1U Dual Power Router / Firewall

1U Dual Power Router / Firewall

Products

Industrial Motherboard
Router/Firewall/Server
Industrial Box PC
Industrial Monitor
Industrial Tablet PC
Accessories

New Products

  • 2 Lan Dual DDR5 4K Display Thin ITX Motherboard
    Model No.: ITX-YS140R1_I526L
    ♦Based on Intel Meteor Lake SOC platform 125H
    ♦Integrated Core™ Ultra 5 125H 4.5GHz 14 core processor
    ♦Intel® Arc™ graphics; EDP + DP + HDMI1.4 + LVDS(4K display)
    ♦2*DDR5 5600MHz SO-DIMM Socket, up to 96GB
    ♦2*RTL8111H 1GbE Ethernet/8*USB/6*COM/1*SIM
    ♦2*SATA3.0/1* M.2 2280 NVME SSD/1*MINI-PCIE (Wifi/4G)/1*M.2 2230(WIFI)
    ♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W
    ♦Support DC_12V Input
  • RK3576 ARM Motherboard
    Model No.:CX3576-A V1.0 (4G+128G)  VER:4G
    ♦WIFI use FCS960K,support 2.4G/5G dual-band,Bluetooth5.3
    ♦Bottom plate thread DC2.0*1(12V-36V input)
    ♦RJ45*1、HDMI*1、USB3.0*1、USB2.0*1、USB2.0 socket*4、TF*1、Audio 3.5mm*1
    ♦Size:157*100mm
  • LGA1151 1+1 Power Supply 1U Firewall Appliance
    Model NO.:ST-C2468L-2P  V1.0
    ♦1U Standard Rack_mount  Chassis
    ♦Intel Socket LGA1151 processors
    ♦2x DDR4 RAM slot, up to 32GB
    ♦4x SATA3.0 + 1x MSATA + 1x M.2
    ♦8x 2.5GbE Ports (RJ45)
    ♦2x PCI-E x8 (SFP+ Expansion)
    ♦(Bypasss/Vpro) Optional
    ♦1x Mini-pcie&M.2 (Wifi&BT&4G/5G LTE)
    ♦2x USB3.0 ; 4x USB2.0(inner)
    ♦1+1 Redundant Power Supply (Hot_Swap)
  • 4 Lan N100 2x SFP+ (10Gb) Firewall MIni Router
    Model NO.:ST-AD12N-6S  V1.0
    ♦Aluminum Alloy ; Active Cooling
    ♦Intel N97/N100/N200/N305 CPUs
    ♦1x DDR5 RAM slot, up to 32GB
    ♦1x SATA3.0 + 1x M.2 NVMe X1 + 1x TF slot
    ♦4x 2.5GbE RJ45 + 2x SFP+ (10Gb)
    ♦DP+HDMI+Type_C Triple Display
    ♦1x Mini-PCIe for 4G LTE
    ♦1x SIM slot
    ♦5x USB2.0 ; 1x USB3.0
    ♦DC_12V Power Input
  • 8 Lan i3-6100 1U 2 Power Network Firewall Security

    8 Lan i3-6100 1U 2 Power Network Firewall Security

    Model No.:STCW-NET-C236
    ♦Compatible with Intel 6th/7th/8th/9th generation LGA1151 series CPU processors
    ♦Native 8*Intel i226-V 2.5G, customizable 8*i210/i210 Gigabit Ethernet ports
    ♦Supports up to i9-9900 8-core 16-thread processor and E3 V5 series processor
    ♦PCI-E x8 slot supports expansion of 4 network ports/dual 10 Gigabit optical ports/40 Gigabit optical ports
    ♦1U/2U rackmount chassis optional, 2U has stronger heat dissipation
    ♦2U chassis supports single power supply/redundant dual power supply
    ♦The motherboard reserves BYPASS pads to support customized LAN1-4 two sets of BYPASS
  • 8 Lan LGA1151 1U Dual Power Firewalls and Network Security

    8 Lan LGA1151 1U Dual Power Firewalls and Network Security

    Model No.:STCW-NET-B150
    ♦Compatible with Intel 6th/7th gen LGA1151 series CPU processors
    ♦8*native Inteli226-V2.5G, 8*customizable i210 Gigabit Ethernet ports
    ♦PCI-E x8 supports expansion of four network ports/four 1000M optical ports/dual 1000M optical ports/4000M optical ports
    ♦1U/2U rackmount chassis optional, 2U has stronger heat dissipation
    ♦1U/2U chassis supports single power supply/redundant dual power supply solutions
    ♦2U chassis supports single power supply/redundant dual power supply
    ♦The motherboard reserves BYPASS pads to support customized LAN1-4 two sets of BYPASS

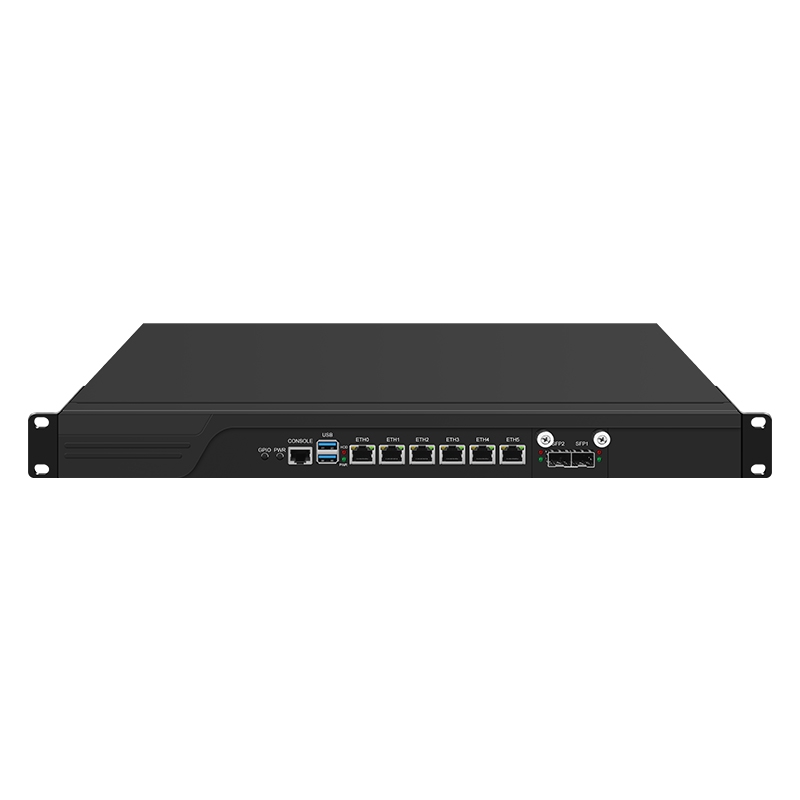

  • 6 Lan LGA1150 1U Dual Power Firewall and Security

    6 Lan LGA1150 1U Dual Power Firewall and Security

    Model No.:STCW-NET-B85/Z87
    ♦Intel 4th Core LGA1150 series processor
    ♦ 6*Intel 82574L/6*electrical + 2*10G optical ports 82599 optional
    ♦1U/2U rackmount chassis optional, 2U has stronger heat dissipation
    ♦2U chassis supports single power supply/redundant dual power supply
    ♦LAN1-LAN2 support BYPASS
  • 6 Lan LGA1155 1U Dual Power Network Security Appliance

    6 Lan LGA1155 1U Dual Power Network Security Appliance

    Model No.:STCW-NET-B75
    ♦Intel 2nd/3rd generation Core LGA1155 series processors
    ♦6*inteli210-AT/6*electrical + 2*optical ports i350 optional
    ♦1U/2U rackmount chassis optional, 2U has stronger heat dissipation
    ♦2U chassis supports single power supply/redundant dual power supply
    ♦LAN1-2 support BYPASS
  • 4 Lan N100 /  N200 / N305 1U Dual Power Application Level Firewall

    4 Lan N100 / N200 / N305 1U Dual Power Application Level Firewall

    Model No.: STCW-NET-ADLN-4L
    ♦New Intel 12th generation Alder Lake-N low-power processor
    ♦PCI-E slot can expand dual network/quadruple network 2.5G/82599 dual 10G optical card
    ♦SO-DIMM DDR5 memory slot; up to 48G
    ♦Storage mode supports CF card/mSATA/SATA3.0 (choose one of the three)
    ♦Reserved BYPASS plug-in slot, 1-4 ports can be customized to support BYPASS function
    ♦Optional support for single power supply or redundant dual power supply module power supply mode
    ♦1U chassis with 3*4020 double ball cooling fans to ensure stable operation of the machine
    ♦2U chassis with 3*8025 double ball bearing cooling fans for stronger heat dissipation
  • 6 Lan N100 / N305 1U Dual Power Firewalls and Network Security

    6 Lan N100 / N305 1U Dual Power Firewalls and Network Security

    Model No.:STCW-ADLN-6L
    ♦New Intel 12th generation AlderLake-N low-power processor
    ♦1x SO-DIMM DDR5, is up to 48G
    ♦Storage supports CF card/mSATA/SATA3.0 (select one of the three signals)
    ♦Reserved BYPASS plug-in slot, LAN3-6 ports can be customized to support BYPASS
    ♦1x M.2 B_Key supports 4G/1 x M.2 E_key supports WiFi
    ♦Support customized redundant dual power supply module
    ♦Dust-proof design, with built-in dust-proof net at the air inlet of the shell
    ♦Cooling ball fan, 2U size, large space, stronger heat dissipation
  • 6 Lan J6412 / J6413 / J6426 1U Dual Power Firewall Security

    6 Lan J6412 / J6413 / J6426 1U Dual Power Firewall Security

    Model No.:STCW-EHLK-SFP-1U
    ♦New Intel long-cycle 12th generation Elkhart Lake quad-core processor
    ♦Support PCl-E customized expandable dual Gigabit SFP optical port network card
    ♦2x SO-DIMM DDR4, is up to 64G
    ♦Supports single power supply or redundant dual power supply modules
    ♦Three 4020 double ball bearing cooling fans for stronger heat dissipation
    ♦Customizable rack-mount 2U redundant dual power supply chassis
