Overview

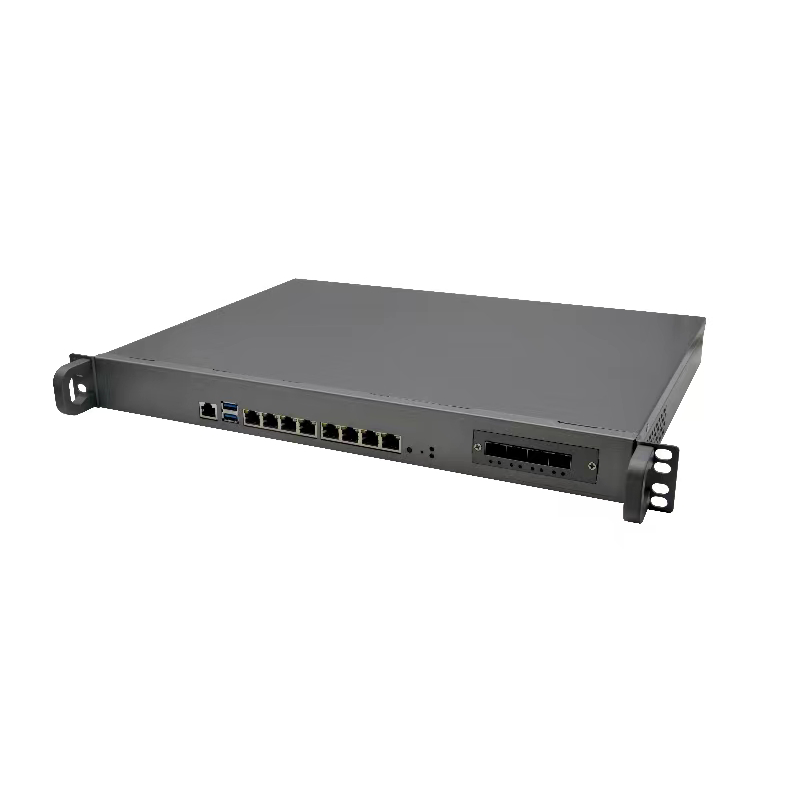

The R320E-L8 V1.0(R270) 1U Firewall Appliance is an enterprise-grade firewall system security device featuring Intel® Q270/Q250 high-speed chipset and supporting 6th-9th Gen Intel® Core™ i3/i5/i7 processors. This 1U firewall with 8×Intel I210 GbE ports and expandable 4/2×SFP+ fiber ports delivers robust security protection for data centers and enterprise networks.
Key Advantages:
✔ High-performance platform - Supports 6th-9th Gen Intel® Core™ i-series
✔ Enterprise networking - 8×GbE+4/2×SFP+ hybrid ports
✔ Dual BYPASS protection - Optional dual BYPASS for network continuity
✔ Large memory - Dual DDR4 slots (up to 64GB)
✔ Industrial reliability - 1U galvanized steel chassis with 250W ATX PSU
✔ Professional security - Comprehensive firewall system security solution
Typical Applications:
◼ Data center perimeter security
◼ Core network traffic monitoring
◼ High-availability network architecture
◼ Financial-grade security systems
Product Description

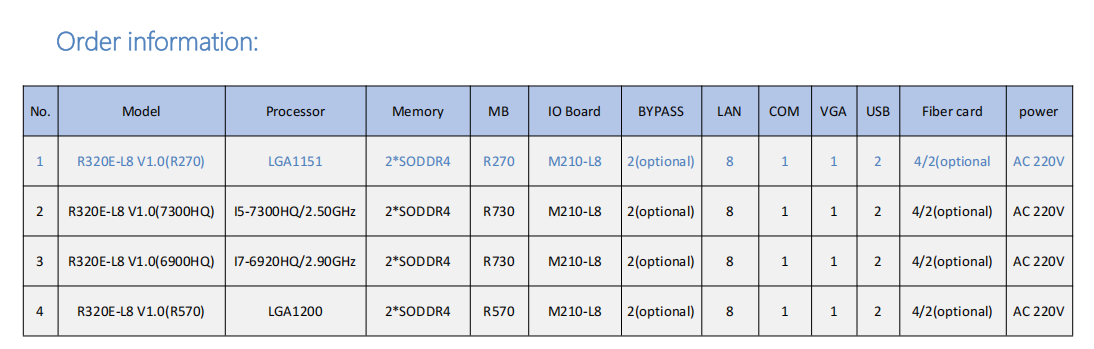

Model No.: R320E-L8 V1.0(R270)
Chassis:
Material/structure: 1U standard case, high-quality galvanized steel plate
Color: Iron grey

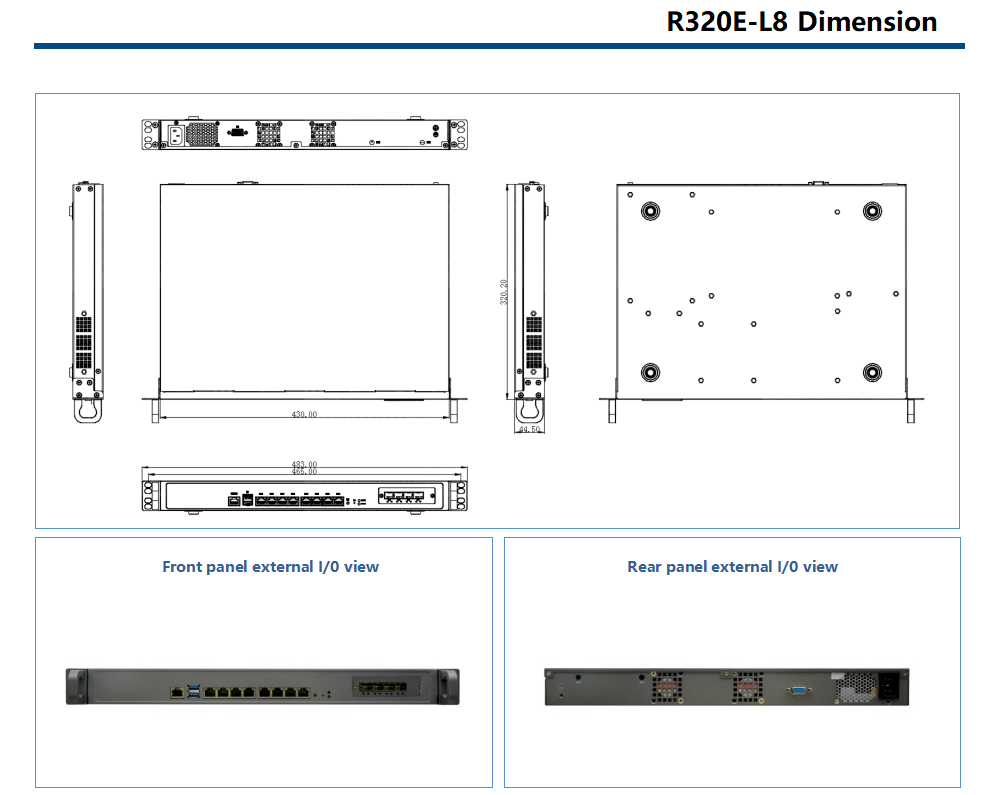

Size（LWH）: 430MM*320MM*44.5MM
Installation: 1U standard rack

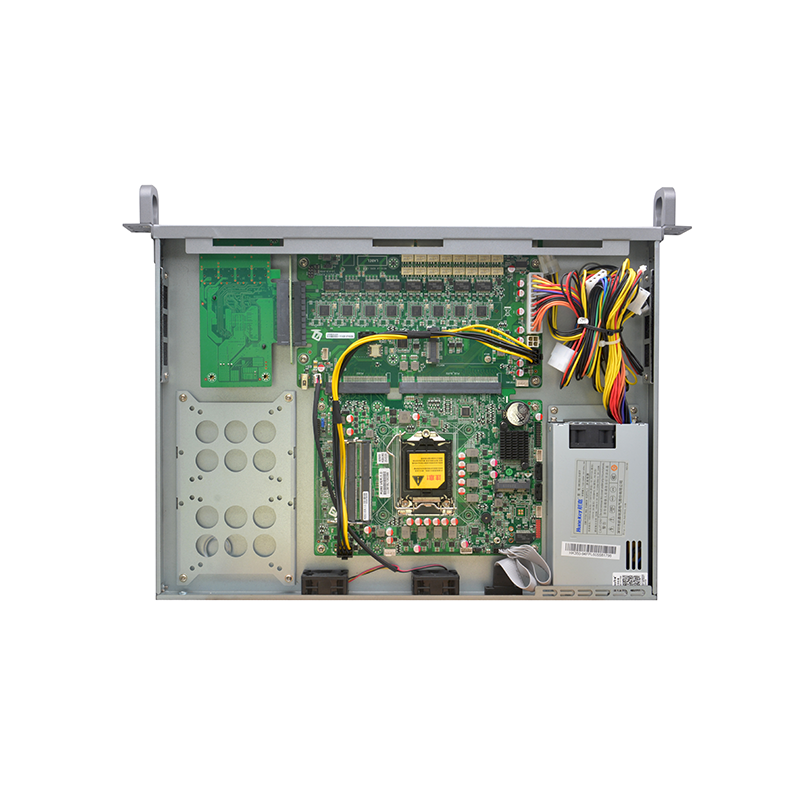

Motherboard:
CPU: Support Intel®LGA1151 6th/7th/8th/9th Celeron/Pentium/Core i3/i5/i7 series processor
Chip: Intel Q270/Q250 high speed chipsets
Display: Integrated Intel®HD Graphics
Memory: 2*DDR4 SODIMM memory, support 2400MHz ram, max uo to 64GB

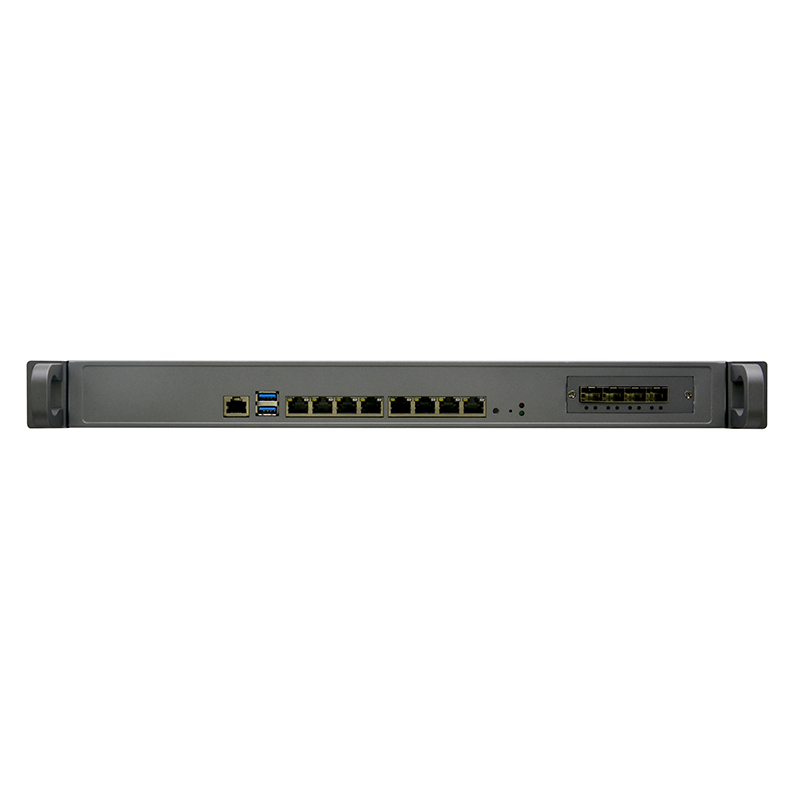

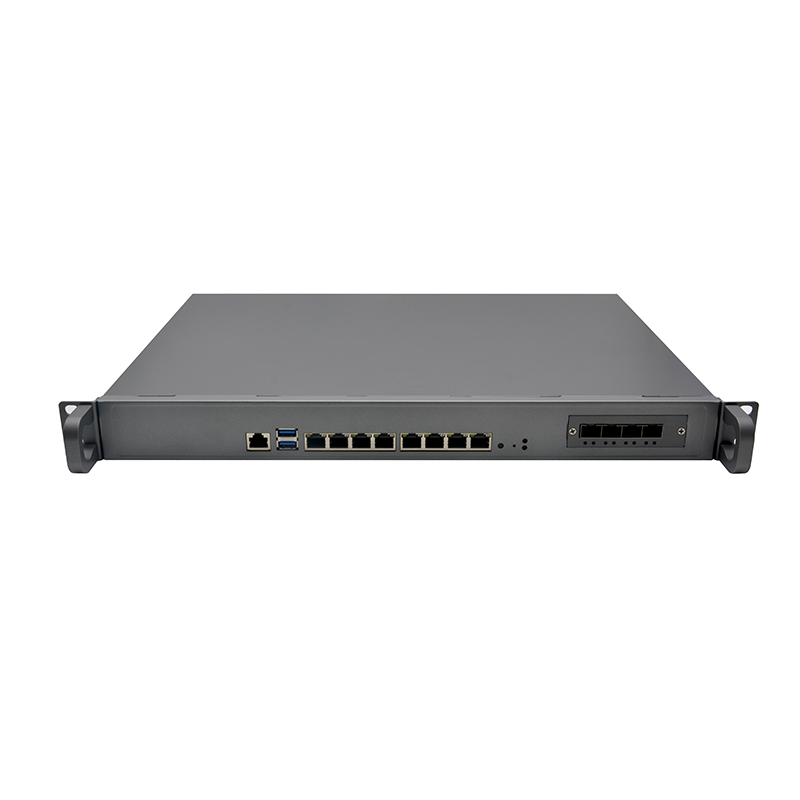

Front panel connector:
POWER: 1*Power switch, 1 * Restart switch
USB: 2*USB3.0
LAN:
8*Intel I210 Gigabit Ethernet port, supporting network wake up /PXE (LAN1-4 supports BYPASS, not
installed by default) LAN8 with WiFi optional，default LAN8
SFP: 4 or 2 fiber card（expansion）
COM: 1*RJ45 serial
LED: 1*hard disk indicator, 1 * power indicator

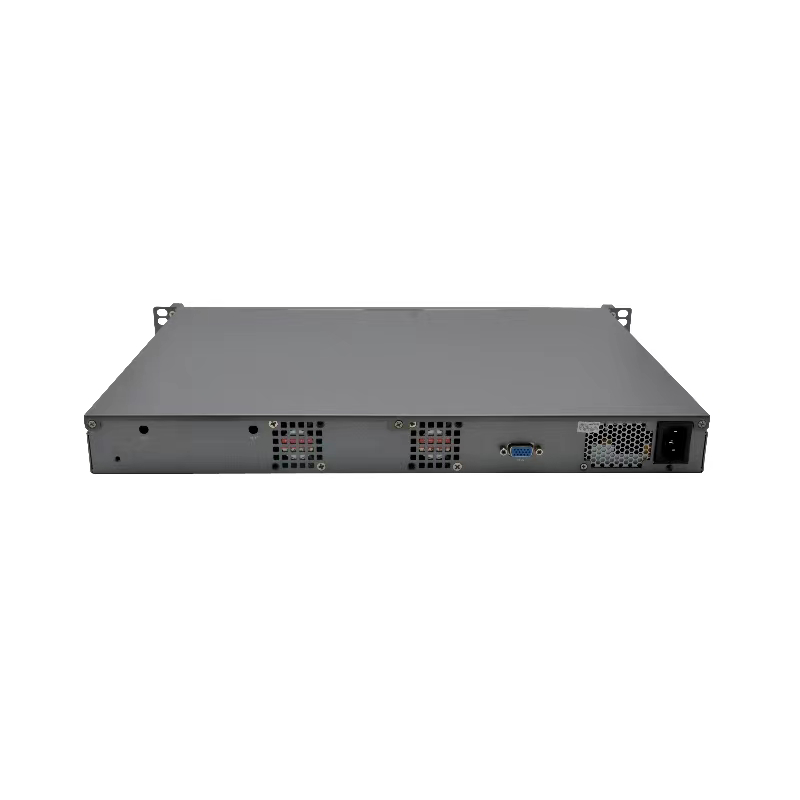

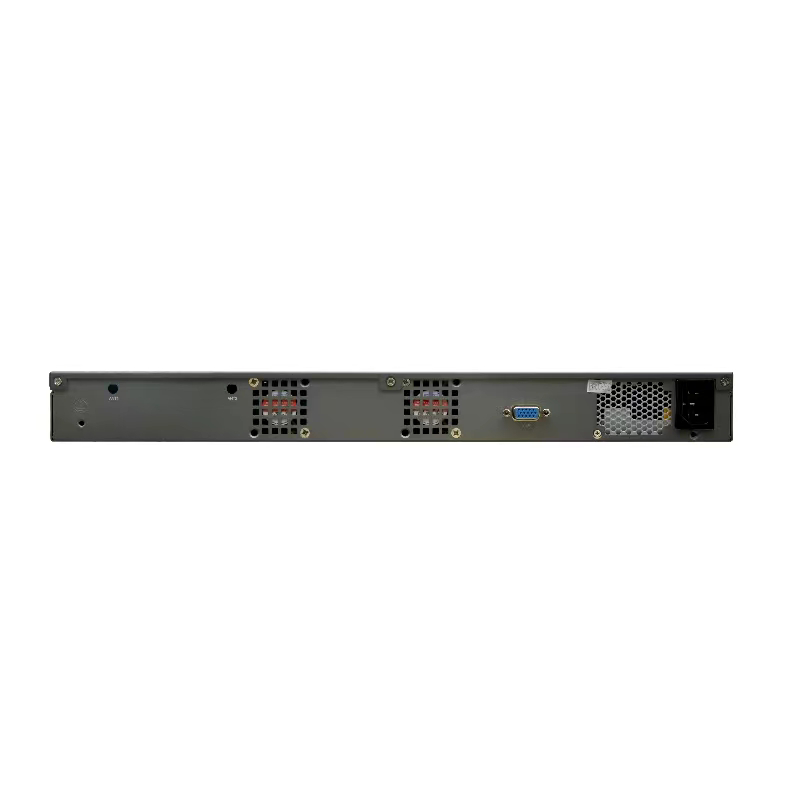

Rear panel connector :
Display interface: 1*VGA
Power interface: 1*AC DC port
Storage:
SATA: 1*3.5 HDD or 1*2.5 inch HDD slot
MSATA: 1* MSATA
Expansion:
PCIE x8: 1* MSATA,the transfer rate is up to 6Gbps
MINIPCIE: 1*MINIPCIE slot , support WiFi/4G
USB: 1*USB2.0，Dongle can be connected
OS:
Windows: Yes
Linux: Yes
Power Supply:
Power supply type: Integrated ATX/1U power
Voltage input: AC 110-220V
Power output: Standard 250W
Environment:
Working temperature: -10℃～50℃
Storage temperature: -20℃～70℃
Relative humidity: 5%-95%(Relative humidity, non condensing)
Working Vibration: 0.5g rms/5-500HZ/random/operating
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
.jpg)
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
