Products

New Products

4 Lan N97 DDR4 Fanless Mini Firewall Router

♦Model No.:C2120Z-L4 V2.0(N97)

♦All aluminum alloy, fanless cooling structure

♦Intel®Alder Lake-N N97/Turbo 3.6GHz quad-core CPU

♦1x DDR4 RAM slot, up to 16GB

♦1x SATA + 1x M.2

♦4x RJ45 Lan

♦1x HDMI1.4

♦1x Mini-PCIe for 4G/WIFI

♦5x USB3.0, 1x USB2.0

♦DC_12V Power Input
8 Lan LGA1151 DDR4 SFP Pfsense System Security Firewall Device

♦ Model No.:R320E-L8 V1.0(R270)

♦ Intel®LGA1151 6th/7th/8th/9th i3/i5/i7 series processor

♦ Intel®Q270/Q250 High speed chipset

♦ 2*DDR4 SODIMM 2400MHz ,max up to 64GB

♦ 8*Intel I210 Gigabit Ethernet port，4 or 2 SFP+ ports can be extended

♦ 2*USB3.0, 1*VGA

♦ 4 or 2 light ports can be extended

♦ Support two groups of BYPASS(Optional)

♦ Standard with 1U AC220V ATX power supply 250W

♦ 1U standard case, high-quality galvanized steel plate / Support Windows&Linux OS
4 Lan N97 DDR4 Machine Vision Motherboard

♦Model No.:ITX-VL305 VER:1.0(N97)

♦Based on Inte Alder Lake-N SOC platform

♦Integrated Intel®Alder Lake-N N97 3.6GHz quad-core processor

♦Intel® UHD Graphics; VGA+HDMI+LVDS/1* EDP for display

♦1*DDR4 2133MHz SO-DIMM Socket, up to 16GB

♦4* Intel WGI210AT Gigabit Ethernet/ 8*USB/ 6*COM /1*SIM/ 1* TPM

♦1*SATA3.0/ 1* M.2 SSD/ 1* Mini-PCIE (Wifi/4G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Support DC_12V Input
RK3576 ARM Motherboard

♦Model No.:CX3576-A V1.0 (4G+128G) VER:4G

♦WIFI use FCS960K,support 2.4G/5G dual-band,Bluetooth5.3

♦Bottom plate thread DC2.0*1（12V-36V input)

♦RJ45*1、HDMI*1、USB3.0*1、USB2.0*1、USB2.0 socket*4、TF*1、Audio 3.5mm*1

♦Size:157*100mm

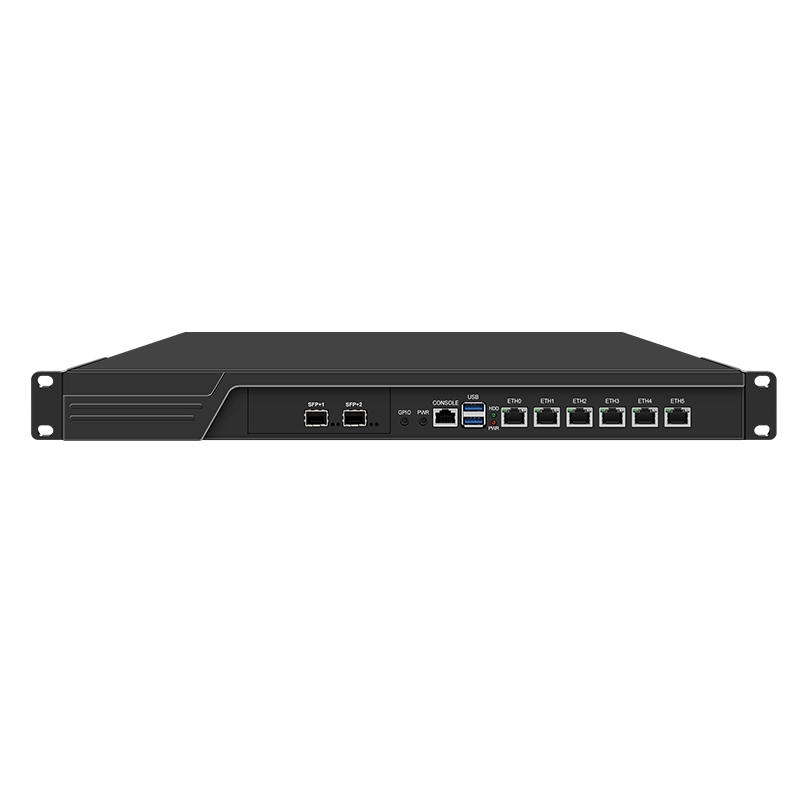

LGA1700 DDR5 SFP 6 Lan 2.5G Firewall
♦Model: SII-B760-6LV (440 * 320 * 45 mm)

♦CPU: Intel 12th ~14th Gen LGA1700 Processors

♦Memory: 2x SO-DIMM DDR5 5600MHz slot, up to 64GB

♦Ethernet: 6x RJ45_2.5GbE (Intel I225/I226V Ethernet Controller)

♦Storage: 2x M.2 NVME slot + 4x SATA3.0 slot

♦Expansion: Supports expand 2/4x SFP+_10G ports; 1x M.2 E-KEY (for WIFI&BT); 2x M.2 B-KEY(for 4G/5G)

♦Power Supply: AC 100-240V (Dual power supply is optional)

Read More Make an inquiry
6 Lan LGA1150 1U Rackmount PC Router Firewall Appliance
♦Model No.:STCW-NET-B85/Z87

♦Intel 4th Core LGA1150 series processor

♦ 6*Intel 82574L/6*electrical + 2*10G optical ports 82599 optional

♦1U/2U rackmount chassis optional, 2U has stronger heat dissipation

♦2U chassis supports single power supply/redundant dual power supply

♦LAN1-LAN2 support BYPASS

Read More Make an inquiry
6 Lan LGA1155 1U Industrial Network Security Device
♦Model No.: SII-NET-B75-G

♦Intel 2nd/3rd generation Core LGA1155 series processors

♦6*inteli210-AT/6*electrical + 2*optical ports i350 optional

♦1U/2U rackmount chassis optional, 2U has stronger heat dissipation

♦2U chassis supports single power supply/redundant dual power supply

♦LAN1-2 support BYPASS

Read More Make an inquiry
6 Lan 2350M 1U Rackmount PC Router Firewall Appliance
♦Model No.:STCW-989NP-1U

♦PGA package replaceable upgrade pin-type notebook CPU

♦PCI-E can expand 82599 dual 10G optical or quad electrical port network card

♦Intel i226-V 2.5G & 82574L server network card optional

♦The CPU/housing fans of the whole machine are ball bearing fans

♦The aluminum panel of the chassis can be laser engraved with the LOGO for free

♦The air inlets on the left and right sides of the chassis have built-in dust screens to keep the machine away from dust

Read More Make an inquiry
6 Lan LGA1151 1U Rackmount PC Router Firewall Appliance
♦Model No.:STCW-B250

♦6*Intel i225-V B3 2.5G electric port

♦Support 2*Intel 82599 dual 10G optical ports

♦Support 4*Intel XL710 40G optical port

♦Dual SO-DIMM slot;up to 64GB

♦Support Intel 6/7/8/9 gen Core processor

♦Support redundant 1+1 dual power supply solution

Read More Make an inquiry
6×2.5GbE LGA1700 10G SFP Network Security Hardware Firewall Appliance
♦Model :SII-B760-6L (440*280*44mm)

♦1U/2U standard Rackmount case, high-quality galvanized steel plate

♦Intel LGA1700 Socket 12 th~ 13 th Gen Core Processors

♦Display: 1* VGA (HD optional)

♦Memory: 2* DDR5 5600MHz SO-DIMM socket, up to 64GB

♦Ethernet: 6* RJ45 2.5GbE ports(Intel I225/I226 2.5GEthernet Controller);Support Onboard 2*10G_SFP ports

♦Storage: 4*SATA3.0/2*M.2 NVMe SSD(2280 PCIE3.0x4)

♦Expansion:1*Mini-PCIE/MSATA; 1*M.2 Key-E; 1*M.2 Key-B

♦2~6 USB/1*RJ45_Console/ 1*TPM2.0 pin

♦ATX/1U Power Supply (AC_100-240V) / Support Windows&Linux OS

Read More Make an inquiry
6 Lan i3-12100 1U Rackmount PC Router Linux Firewall Appliance
♦Model No.:SII-B660-6LV

♦B660 chipset supports Intel 12th/13th/14th generation desktop processors

♦The PCI-Ex16 slot on the left side of the motherboard supports expansion of application cards or network cards

♦Support dual-port/quad-port/1G/2.5G/10G/40G 10G optical expansion card

♦Dual M.2 NVMe/quad SATA3.0/mSATA three storage interfaces

♦2*SO-DIMM DDR4 memory slots, dual channel, maximum 64G

♦The motherboard 4PIN/DC port power supply supports 19-24V or DC 24V power supply

♦Optional support for single power supply or 1U redundant dual power supply module

♦2U case with 3*8025 ball bearing fans for stronger heat dissipation

Read More Make an inquiry
6 Lan 2.5G J6412 / J6413 / J6426 DDR4 SFP 1U Network Firewall
♦Model No.: SII-EHLK-6LV

♦New Intel long-cycle 12th generation Elkhart Lake quad-core processor

♦Support PCl-E customized expandable dual Gigabit SFP optical port network card

♦2x SO-DIMM DDR4, is up to 64G

♦Supports single power supply or redundant dual power supply modules

♦Three 4020 double ball bearing cooling fans for stronger heat dissipation

♦Customizable rack-mount 2U redundant dual power supply chassis

Read More Make an inquiry
6 Lan LGA1151 2 or 4x SFP 10 GbE Linux pfsense firewall hardware network appliance
♦Model No.: R320V-SF V1.0(R270)

♦1U standard Rackmount, high quality galvanized steel plate

♦Support LGA1151 6th~9th Celeron/Pentium/Core i3/i5/i7/i9 processors

♦Display: 1x VGA

♦Memory: 2x DDR4 2400MHz SO-DIMM socket, up to 64GB

♦Eth: 6x RJ45 2.5GbE LAN + 2/4x SFP+ Fiber/COPPER ports (1/10 GbE ) ; Bypass Optional

♦1x SATA / 1x MSATA / 1x PCIE X8 / 1x M.2(WiFi) / 1x M.2(5G) / 1x TPM-4 COM

♦2x USB2.0 / 1x USB (for Security Dongle) / 1x RJ45 console port (RS-232) / WDT

♦ATX/1U Power Supply (AC_100-240V) / Support Windows 7 / 10 &Linux UbuntuOS

Read More Make an inquiry
