Equipped with 2*M.2 NVMe, 4*SATA3.0 and mSATA storage interfaces, and 2*SO-DIMM DDR5 slots for dual-channel memory up to 64GB. It supports 19-24V / DC 24V power via 4PIN or DC port, with optional single power or 1U redundant dual power module. It can meet deployment needs for network security, industrial automation and embedded systems.
Product Specification

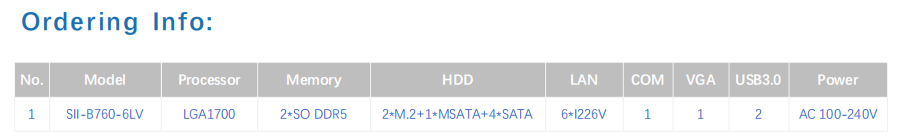

Model No.: SII-B760-6LV

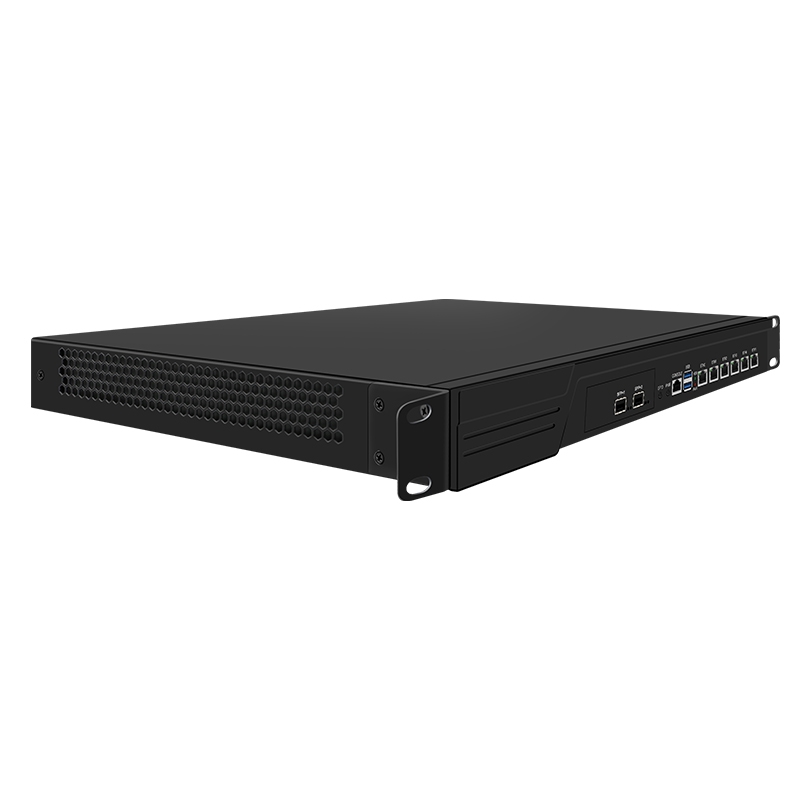

Chassis:
Structure: Industrial-grade 1U galvanized steel, rust-proof and wear-resistant
Dimension: 440 x 320 x 45 mm (L*W*H)
Color: Black
Installation: Rackmount pc

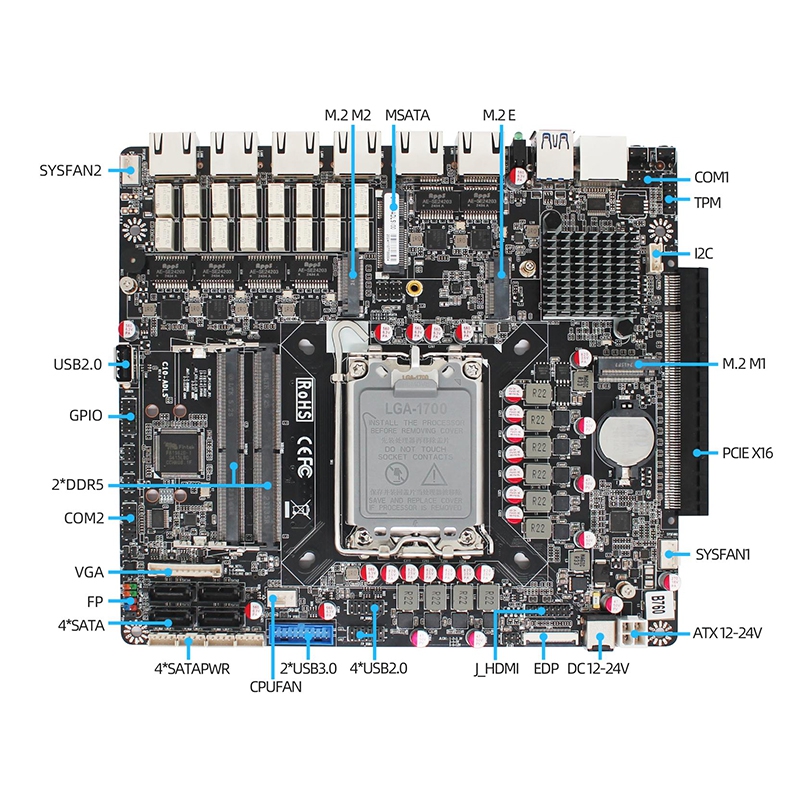

Motherboard:
Processor:
Support Intel 12th Gen Alder Lake/ Intel 13~14th Raptor Lake
Popular model:
Intel 12th : I3-12100 / I5-12400 / I7-12700
Intel 13th : I3-13100 / I5-13400 / I7-13700
Intel 14th : I3-14100 / I5-14400 / I7-14700
Memory : 2* SO-DIMM DDR5 4800/5200/5600MHz, is up to 64G
BIOS: AMI UEFI BIOS

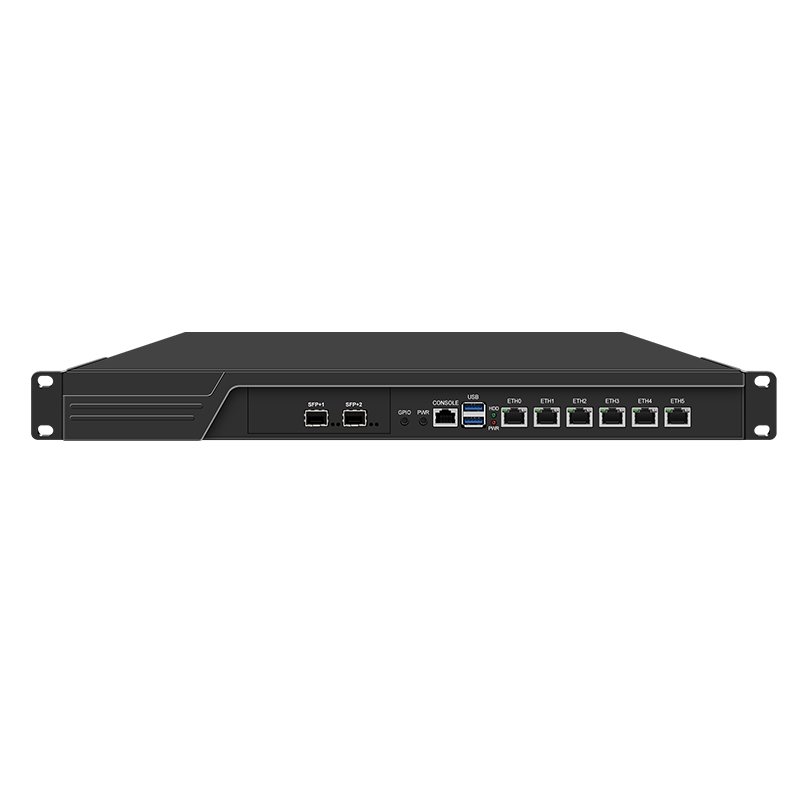

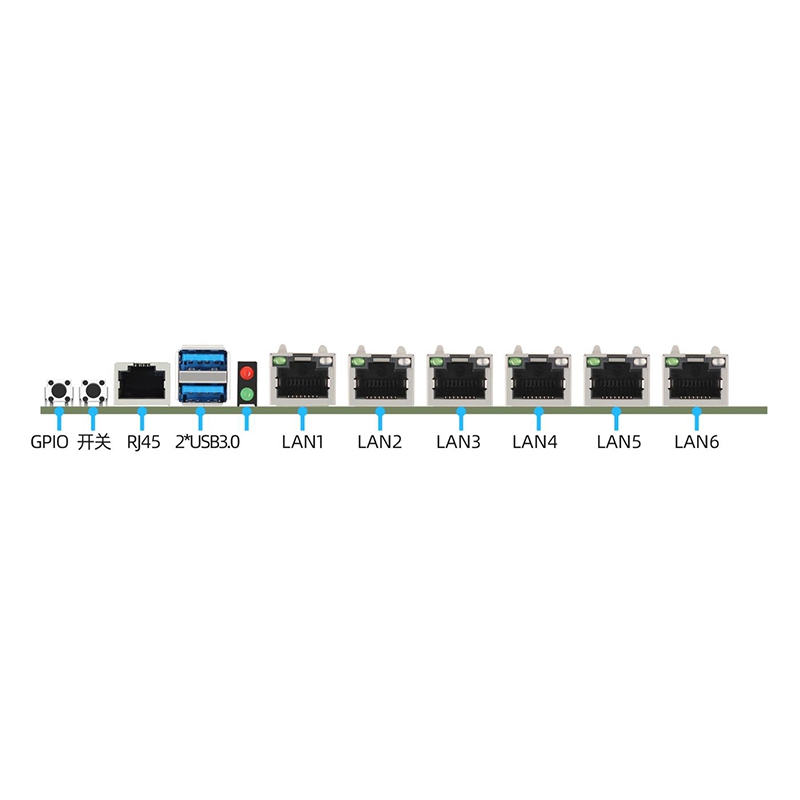

Front I/O:
LED: 1* HDD LED; 1*Running LED
LAN: 6* Intel I225V/I226V 2.5G RJ45 Ethernet
USB: 2* USB3.0
SFP: Support expand 2/4*SFP+_ 10G ports
CONSOLE: 1* RJ45 COM

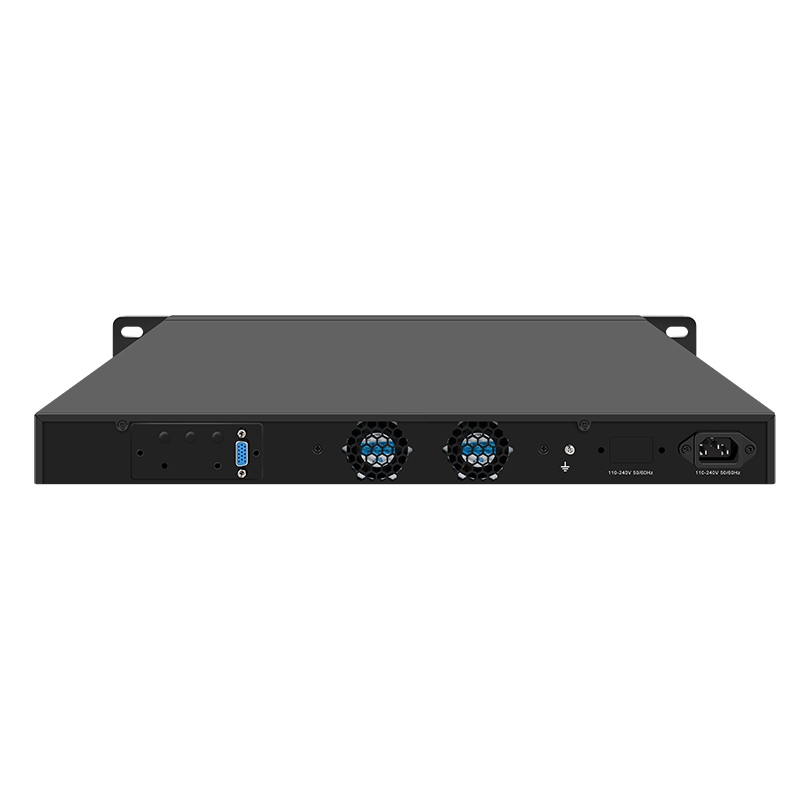

Rear I/O:
Display: 1* VGA
Cooling fan: 3* Cooling fan
Power Socket: 1* AC Power Socket
Storage:
SATA: 4* SATA3.0, transfer rate up to 6Gbps
M.2: 2* M.2 NVME 2280 PCIE3.0 x4
MSATA: 1* MSATA slot
Expansion:
PCIE: 1* PCIE x16 slot
WIFI : 1* M.2 E-Key (PCIe 3.0/2.0 protocol, supports Wi-Fi&BT modules)

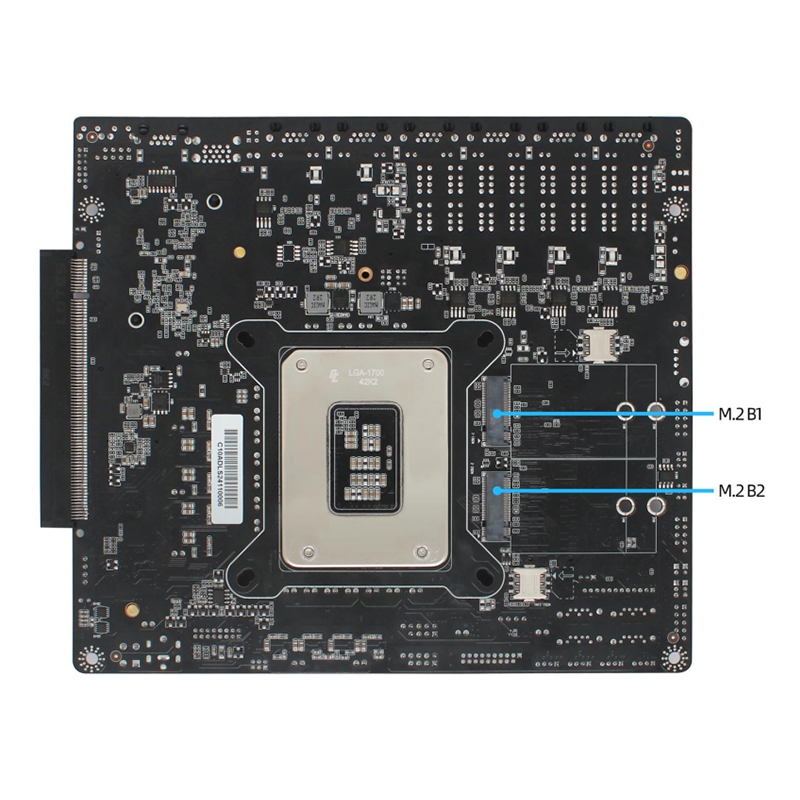

4G/5G: 2* M.2 B-Key (USB 2.0/USB 3.0 protocol, supports 4G/5G modules)
I2C: Support 16-channel isolated GPIO expansion
O/S:
Windows: Support
Linux: Support
WatchDog: Support hardware reset function (level 255, 0~255 seconds)
Temperature:
Working Temp.: 0℃~60℃
Storage Temp.: -10℃~70℃
Working humidity: 0–90% RH, relative humidity, non-condensing
Storage humidity: 0–90% RH, relative humidity, non-condensing
Power Supply:
Power supply: 1U Single Power Supply (Dual power supply is optional)
Voltage input: AC_100V~240V
