Overview
The SII-F6L-P is an Intel low-power rack-mount firewall platform featuring 6x 2.5GbE ports (I226), DDR4 memory support, dual storage (SATA+MSATA), and onboard PCI-E & M.2 expansion slots for flexible integration of 4G/5G/WiFi modules. Designed for high-throughput security applications.
Key Applications
Enterprise firewall/VPN gateway, SD-WAN link aggregation, edge computing nodes, industrial IoT security isolation, and video surveillance aggregation gateways.
Product Details
.jpg)
Product Description
Model NO.: SII-F6L-P V1.0
Chassis:
Structure: 1U/2U standard Rackmount case, high-quality galvanized steel plate

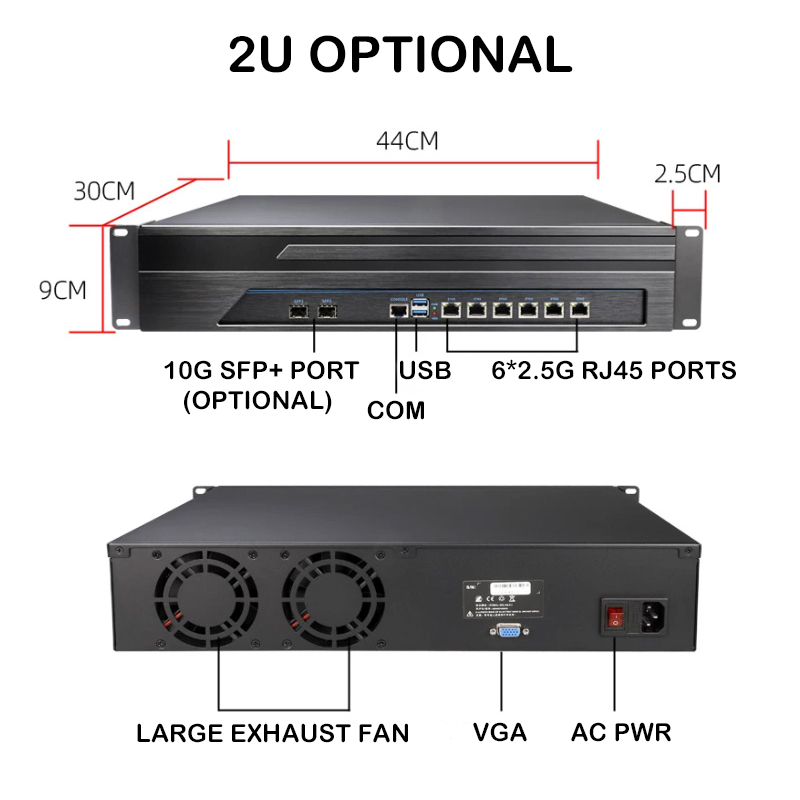

Dimension: 1U (440*280*44mm); 2U(440*300*90mm)
Color: Dark Black
Installation: 1U/2U Rack_mount / Desktop
Motherboard:
Processor: Intel® N100/N150/N200/N305/N355 Processors
Graphics: Integrated Intel®HD Graphics (according to CPU)
Memory: 1x DIMM slot, 3200 MHz DDR4 Memory, up to 16GB

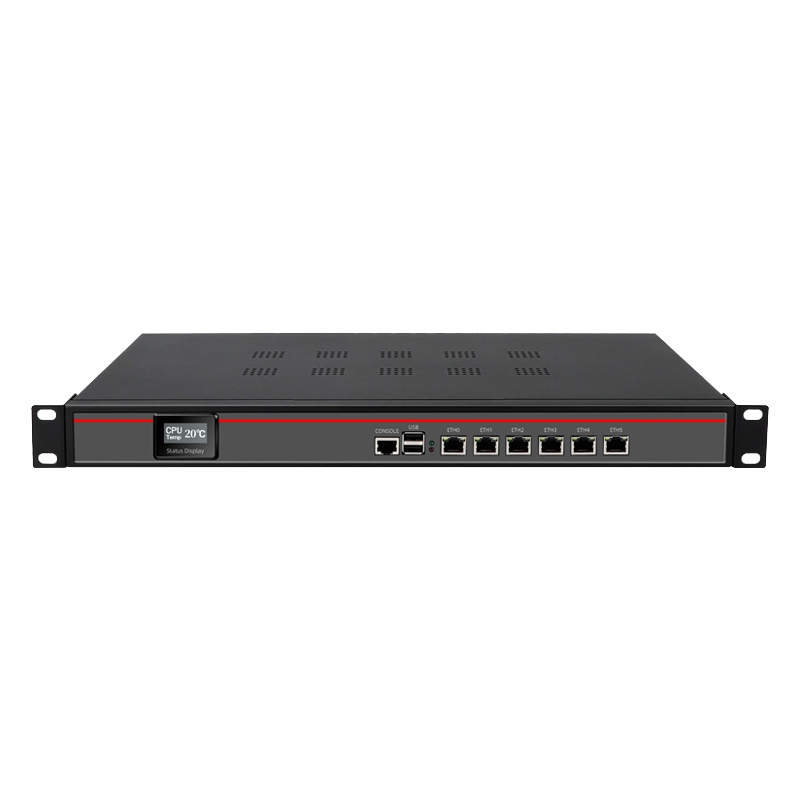

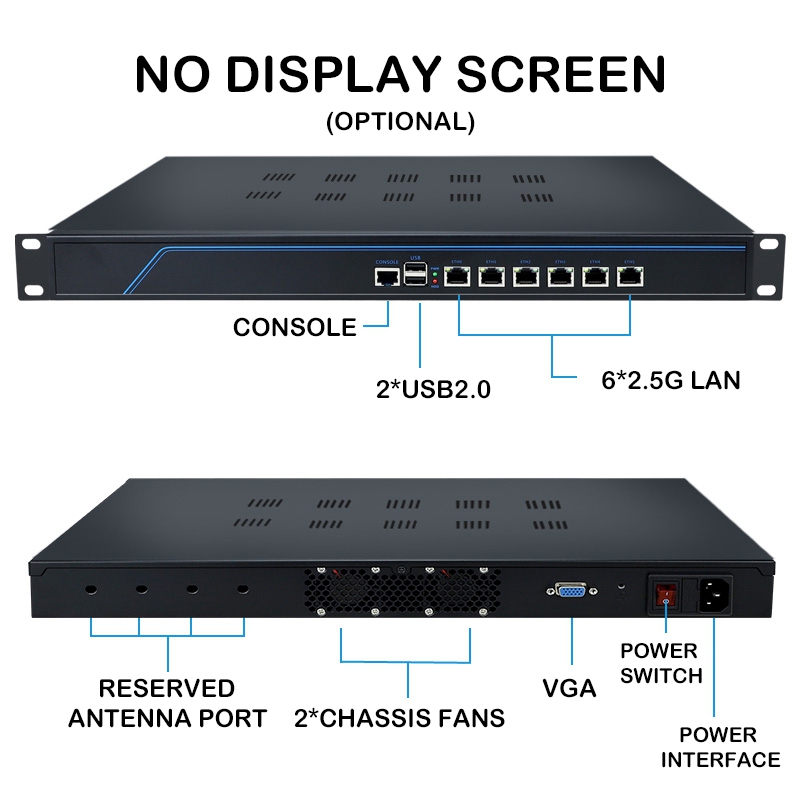

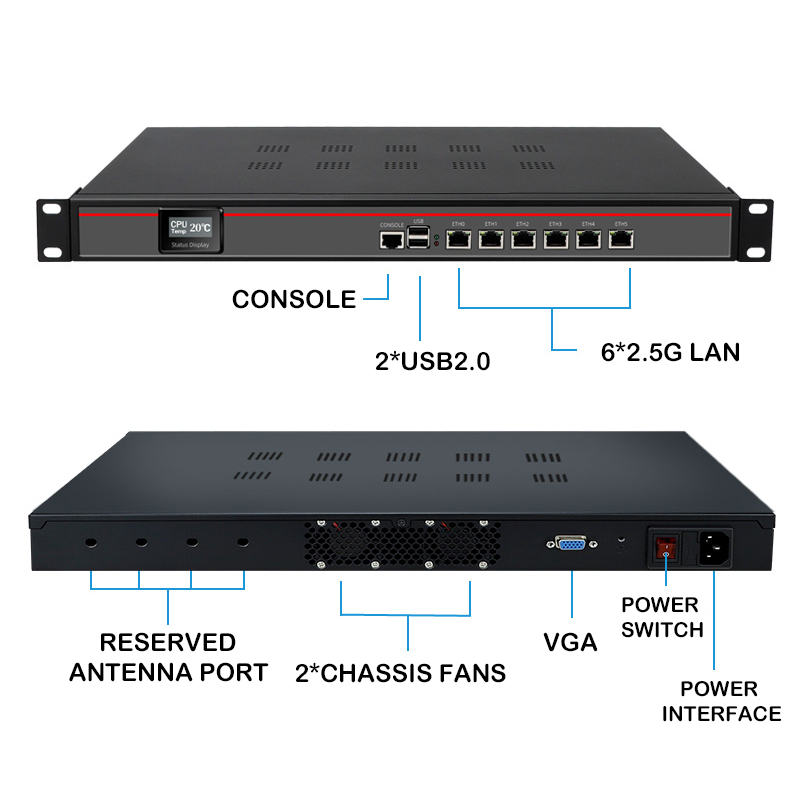

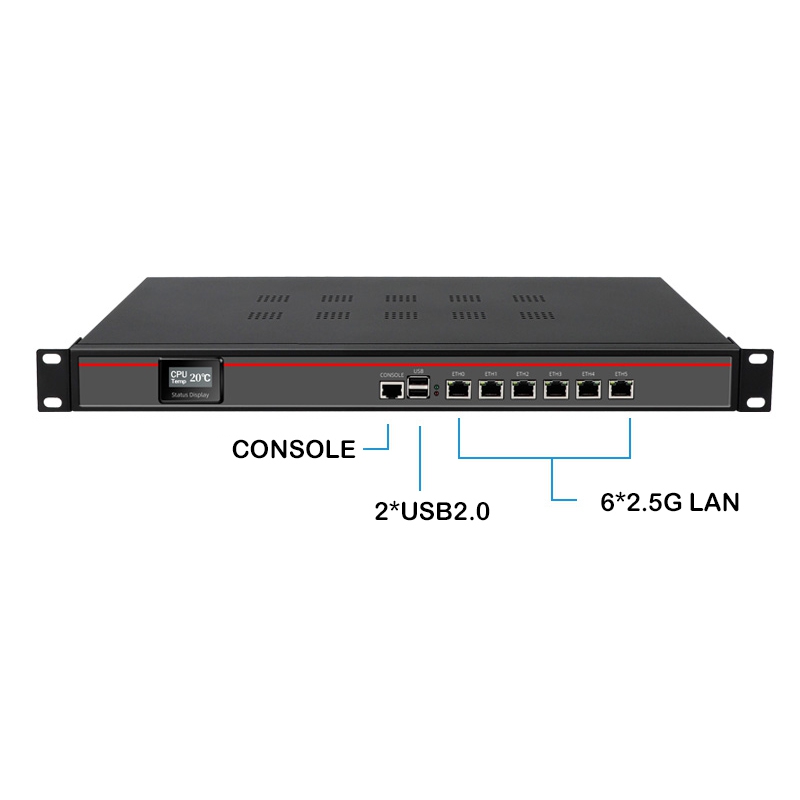

Front Panel:
LED: 1x Power.LED ; 1x HDD.LED
Ethernet: 6x RJ45 2.5GbE ports (Intel I226-V 2.5G Ethernet Controller), support Wake_on_LAN/PXE
Console: 1x RJ45_Console Port
USB: 2x USB2.0
Expansion: 1x PCI-Ex8 Expansion ( support RJ45 Copper Card)

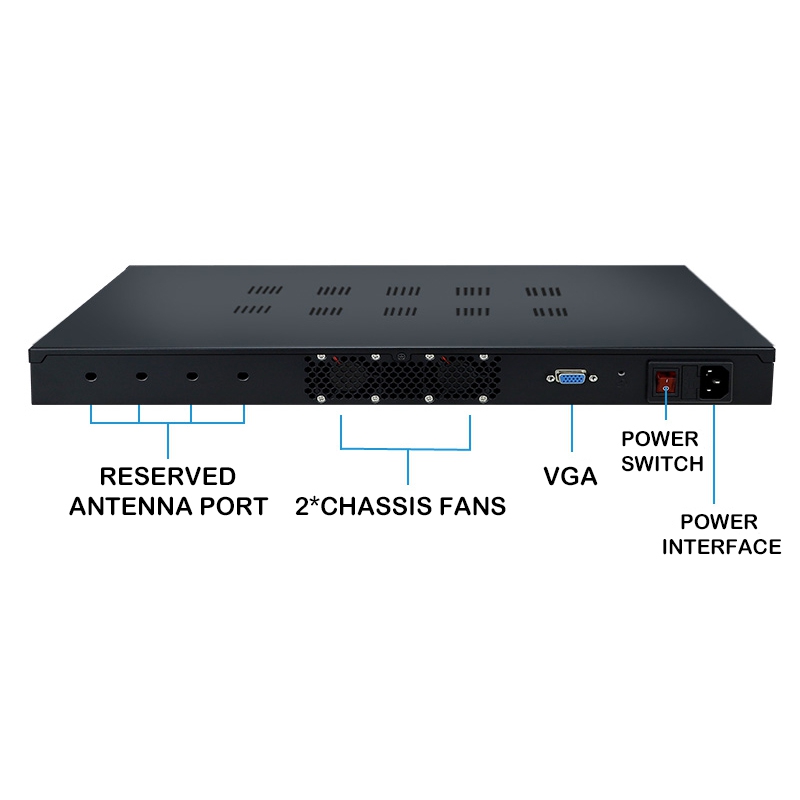

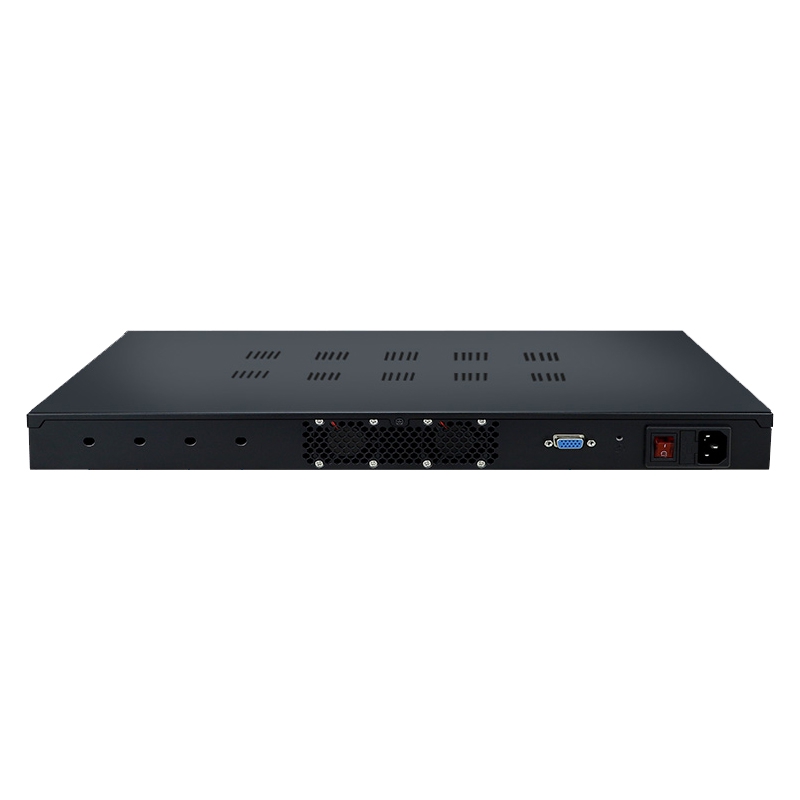

Rear Panel:
Display: 1x VGA (HDMI is optional)
Indicator: 1x AC_power LED indicator
Fan: 2x System Fan (Ventilated)
Power Supply: 1U single Power supply
Storage:
SATA: 1x SATA
MSATA: 1x MSATA
Expansion:
Mini-PCIE: 1x Mini-PCIE/MSATA slot
M.2: 1x M.2 Key-E slot, support WIFI&BT modules
M.2: 1x M.2 Key-B slot, support 4G modules
Inner_I/O: 2x USB2.0(2*5pin) ; 1x HDMI1.4(2*8pin) ;
OS Support:
System: Windows / Linux OS etc.
BIOS: AMI 128M BIOS
Power Supply:
Power Type: 1U Power supply
Voltage Input: AC 100V~240V
Reliability:
Working Temp.: 0℃ ~ 60℃
Storage Temp.: 0℃ ~ 70℃
Relative Humidity: 0%-90% relative humidity, non-condensing
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
.jpg)
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
