Overview

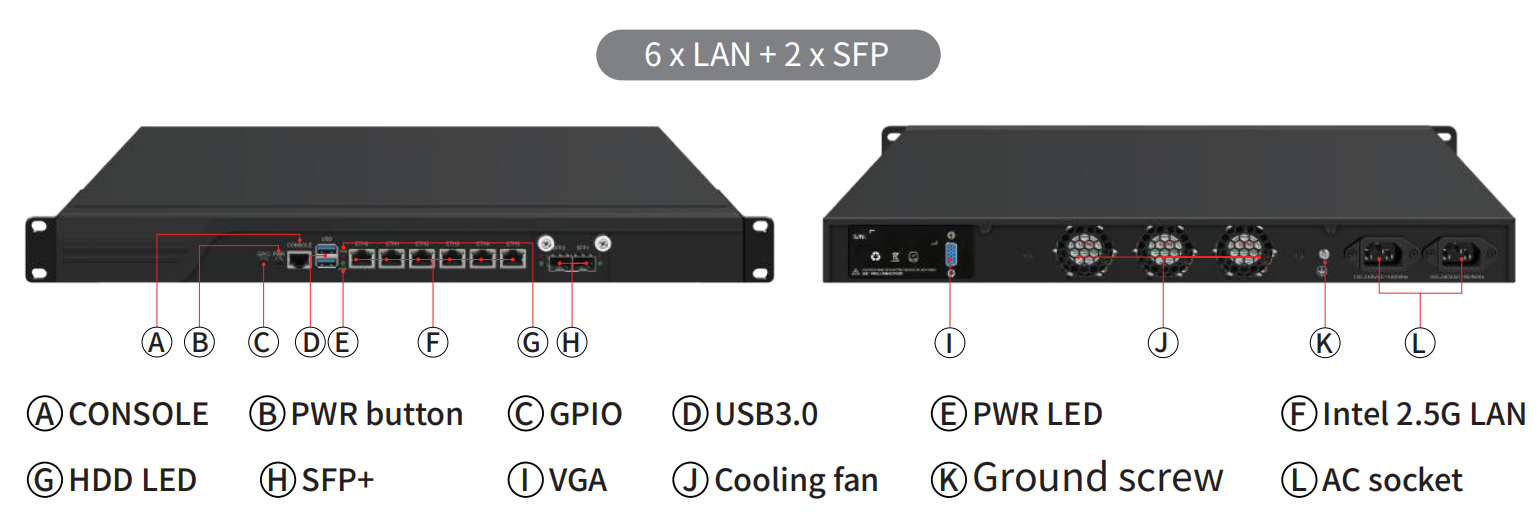

The SII-EHLK-6LV is a 1U rackmount network security appliance powered by Intel® Elkhart Lake processors (J6412/J6413/J6426), supporting up to 64GB DDR4 memory. It features 6 x Intel® i226-V 2.5G RJ45 ports (Bypass on LAN1-4) and 2 x 1G SFP fiber ports for flexible WAN connectivity, delivering high throughput for Network Firewall applications. Storage options include 1 x SATA/mSATA/CF (selectable). I/O includes 2 x USB3.0, 8 x USB2.0, 1 x VGA, 1 x HDMI header, 1 x EDP, 1 x RJ45 COM console, 1 x COM header, and 8 x programmable GPIO. Expansion features 1 x miniPCIe with SIM slot for 4G/WiFi and 1 x PCI-E x4 slot. It also supports Wake-On-LAN, PXE boot, and a 255-level watchdog timer, with AC 100-240V or DC 12V power input.
This appliance is ideal for Network Firewall, NGFW, VPN gateways, UTM, IDS/IPS, and enterprise perimeter security. With 2.5G high-speed ports, SFP flexibility, rich expansion, and a compact 1U design, the SII-EHLK-6LV offers a reliable and cost-effective hardware foundation for SMB and branch office security deployments.
Product Description
Main:
Code Name: Intel® Elkhart Lake
Popular model: J6412 /J6413 /J6426
Memory: 2* SO-DIMM DDR4 3200MHz MAX 64G
LAN:
IC: Intel® i226-V
Speed: 2500Mbps 2.5G adapting
Interface: 6* Intel® Ethernet Contoller 2.5G RJ45
Support NetWork WakeUp / PXE
Storage: 1* SATA / 1* mSATA / 1* CF(One out of three)
Display: 1* VGA / 1* JHDMI / 1* EDP
BIOS: AMI UEFI BIOS
USB: 2* USB3.0; 6* USB2.0(Array pin)
Power Supply:
Voltage: 100-240V~50 / 60Hz
Mainboard: ATX 4PIN 12V / DC-12V 55mm*25mm
PCI-E: 1* PCI-E x4 Integrated LAN
GPIO: 8* programmable GPIO
Watchdog: 255 Levels, 0-255 Seconds
COM: 1* RJ45 Console / 1* JCOM
4G/5G/WiFi:
1* miniPCle / 1* SIM
Dimension:

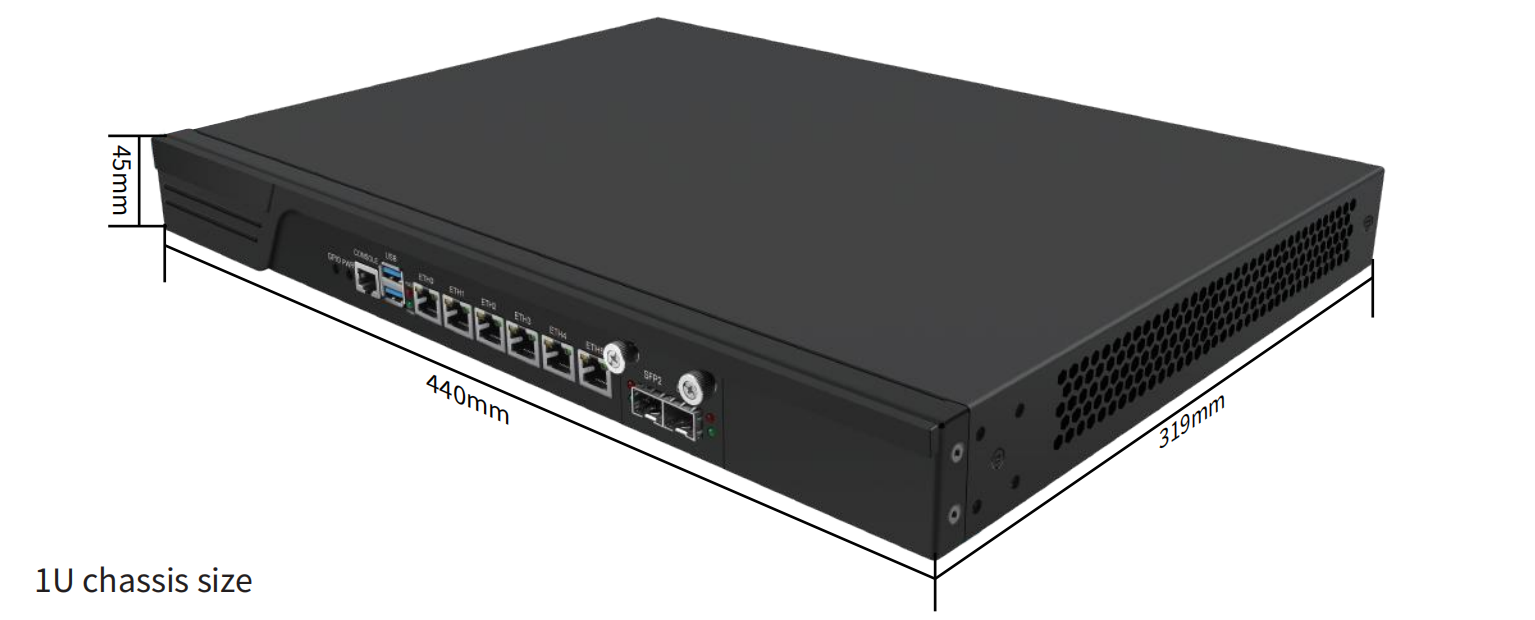

1U: 440mm * 319mm * 45mm
PCB: 223mm(W) * 180mm(L)
Working Temperature: 0℃~60℃
Storage Temperature: -10℃~70℃
Working Humidity: 10%~90%
Storage Humidity: 5%~95%, non-condensing
OS:Windows10 / 11,Windows Server, Linux
Customization:
Number of network ports
2* 1G SFP: 2* MARVELL® 88E1512-NNP2
6* 2.5G RJ45: 6* Intel® i226-V Lan1-4(Bypass)
6* 1G RJ45: 6* Intel® i211-AT(Bypass)
6* 1G RJ45: 6* Intel® i210-AT(Bypass)
.png)
.png)
