Key Features

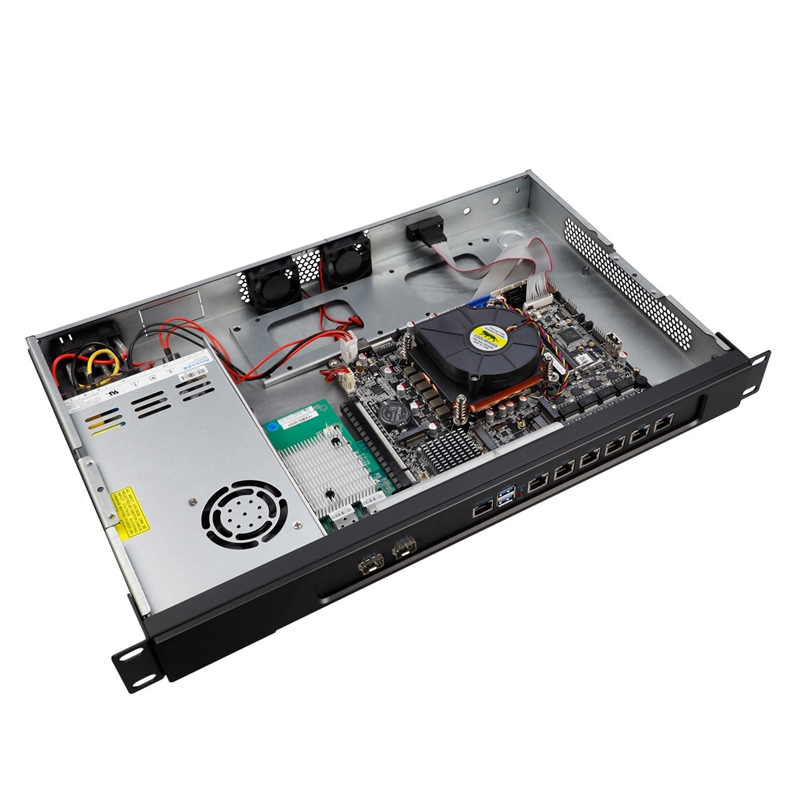

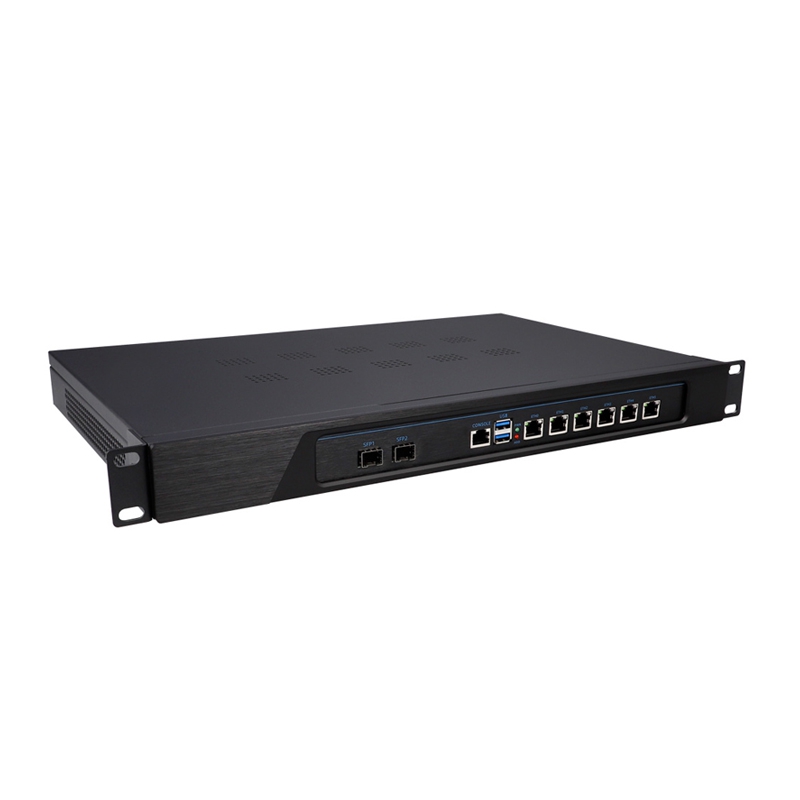

The SII-B760-6L is a 1U rackmount firewall appliance built with high-quality galvanized steel (440×280×44mm). It supports Intel LGA1700 12th/13th Gen Core processors, dual DDR5 SO-DIMM up to 64GB, and features 6× RJ45 2.5GbE ports (Intel I225/I226) for high-speed networking. Storage includes 4× SATA3.0 and 2× M.2 NVMe. Expansion: 1× Mini-PCIE, 1× M.2 Key-E, 1× M.2 Key-B. I/O: 2~6 USB, 1× RJ45 Console, 1× TPM2.0 pin. Powered by ATX/1U PSU (AC 100-240V), supports Windows/Linux.
Purpose-built for network security, this firewall hardware excels as a firewall appliance in enterprise, data center, and edge environments. Ideal for NGFW, UTM, VPN gateway, IDS/IPS, load balancing, and SD-WAN. Its 6× 2.5GbE ports and robust design ensure reliable 24/7 performance for mission-critical security infrastructures.
Product Details
Product Specification

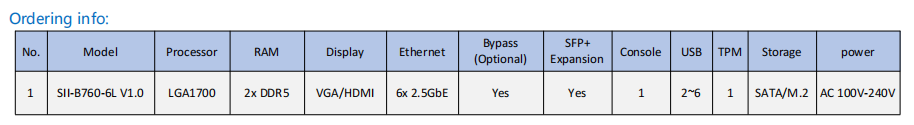

Model NO.: SII-B760-6L V1.0
Chassis:
Structure: 1U/2U standard Rackmount case, high-quality galvanized steel plate

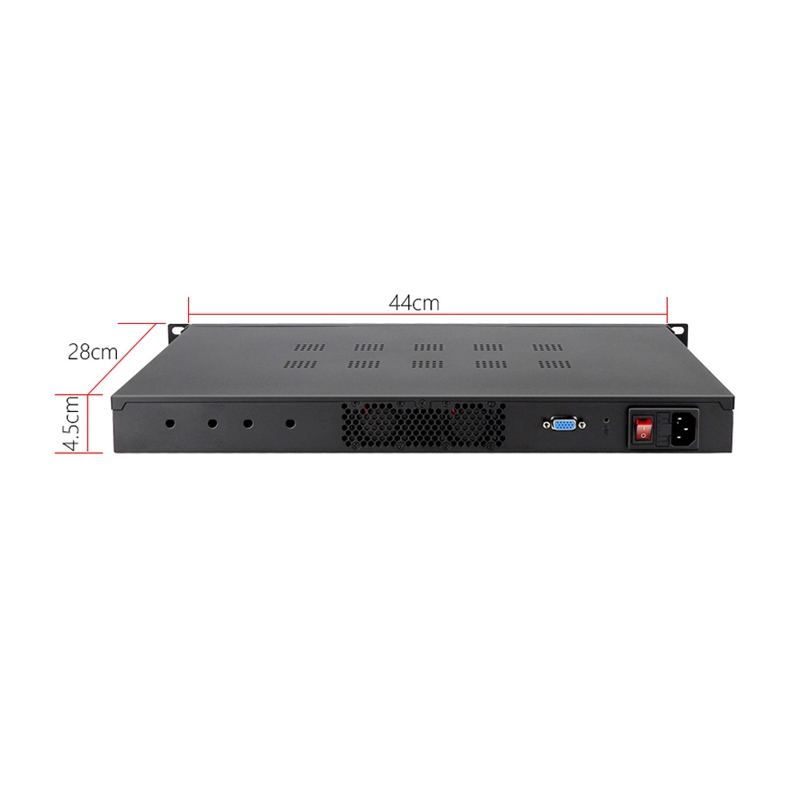

Dimension: 1U (440*280*44mm); 2U(440*285*90mm)
Color: Dark Black
Installation: 1U/2U Rack_mount / Desktop
Motherboard:
Processor:Intel® LGA1700 Socket 12th~ 13th Gen Core Processors
Chipset: Intel B760 Chipset
Graphics:Integrated Intel®HD Graphics (according to CPU)
Memory: 2x SO-DIMM slot, dual channel 5600 MHz DDR5 Memory, up to 64GB

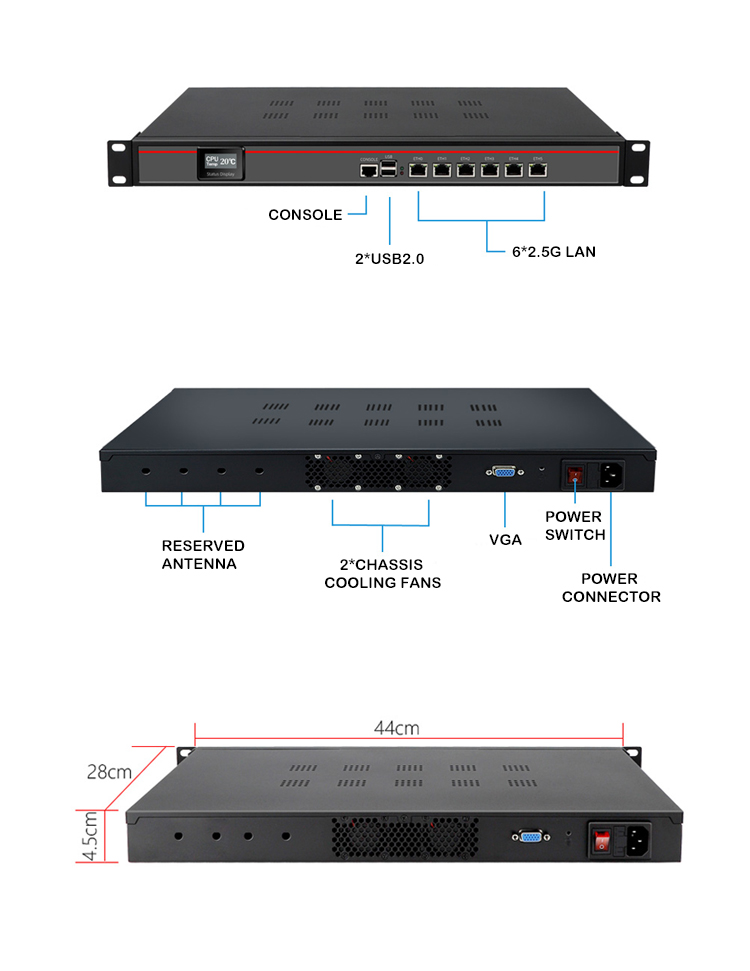

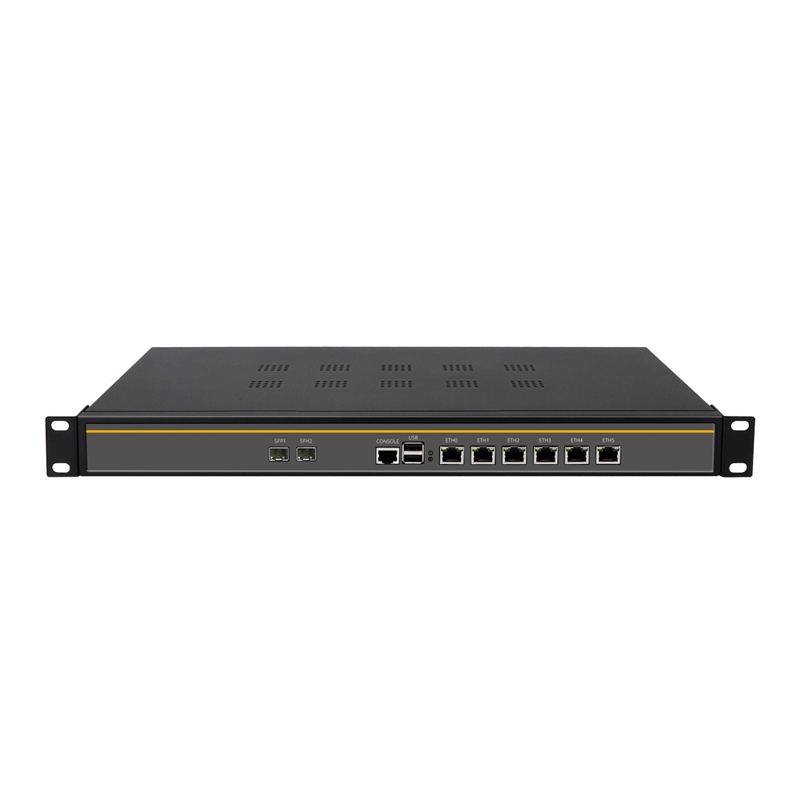

Front Panel:
LED: 1x Power.LED ; 1x HDD.LED
Ethernet: 6x RJ45 2.5GbE ports(Intel I225/I226 2.5GEthernet Controller), support Wake_on_LAN/PXE
SFP: Support Onboard 2*10G_SFP ports(optional); Support expand 2/4*10G_SFP ports or 2*40G_SFP ports Console 1x RJ45_Console Port
USB: 2x USB3.0
Expansion: 1x PCI-E 16 Expansion ( support RJ45 Copper Card / SFP+ Copper/Fiber Card )
Rear Panel:
Display: 1x VGA (HDMI is optional)
Indicator: 1x AC_power LED indicator Fan 2x System Fan (Ventilated)
Power Supply: 1U 350W Power supply
Storage:
SATA: 4x SATA3.0
M.2: 2x M.2 slot, support 2280 NVMe PCIE3.0x4 SSD
Expansion:
Mini-PCIE: 1x Mini-PCIE/MSATA slot
M.2: 1x M.2 Key-E slot(PCIE3.0/2.0), support WIFI&BT modules
M.2: 1x M.2 Key-B slot(USB2.0/3.0), support 4G/5G modules
Inner_I/O: 4x USB2.0(2*5pin) ; 1x RS232(2*5pin) ; 1x HDMI1.4(2*8pin) ; 1x eDP ;1xTPM2.0 pin
OS Support:
System: Windows / Linux OS etc.
BIOS: AMI 128M BIOS,ACPI supported
Power Supply:
Power Type: 1U 350W Power supply
Voltage Input: AC 100V~240V
Reliability:
Working Temp.: -0℃~ 60℃
Storage Temp.: -20℃~ 70℃
Relative Humidity: 0%-90% relative humidity, non-condensing
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
