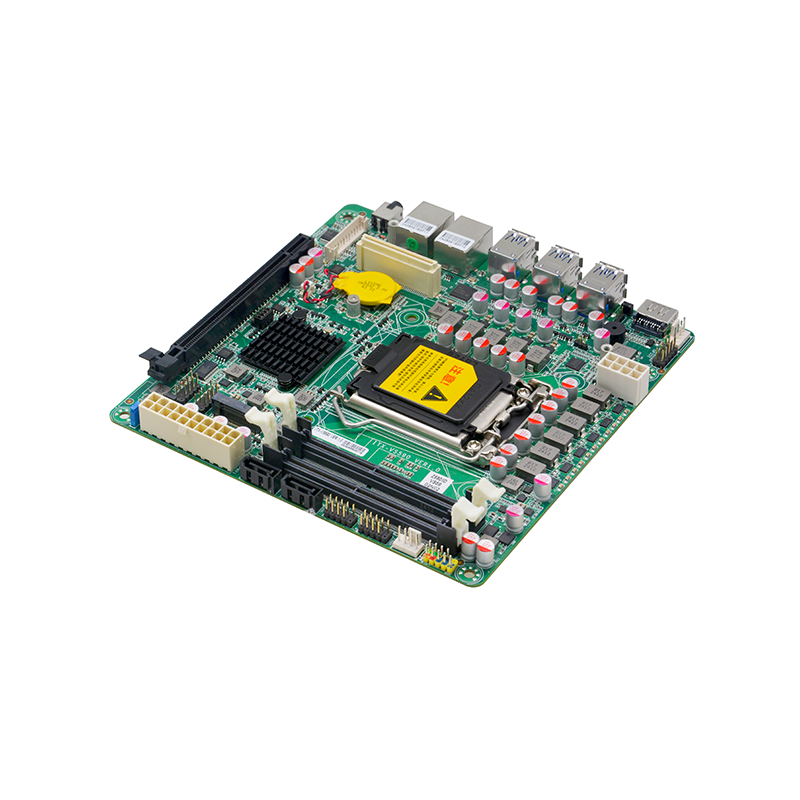

Overview
The ITX-VS590 (Model No.: ITX-VS590 VER:1.0) is a high-performance machine vision motherboard designed for industrial automation and embedded applications. Based on the Intel® Z590 chipset and supporting 10th/11th Gen Intel® LGA1200 processors (including Celeron, Pentium, Core i3/i5/i7/i9), this compact yet powerful board delivers exceptional computing performance for machine vision systems, AI inspection, and high-speed data processing.
Featuring Intel® HD Graphics with VGA+HDMI1.4 dual displays, this machine vision motherboard ensures seamless imaging and real-time analysis. It supports up to 128GB DDR4 3200MHz SODIMM memory and offers flexible storage options, including 2x SATA3.0, 1x M.2 NVMe SSD, and PCIe3.0 x16 expansion for high-speed data throughput.
With dual I210AT Gigabit Ethernet ports, 10x USB interfaces, and 2x COM ports, the ITX-VS590 guarantees reliable connectivity for machine vision cameras, sensors, and peripherals. Additional industrial features like GPIO control and Watchdog Timer enhance stability in harsh environments.
Ideal for machine vision applications, automated optical inspection (AOI), and robotics, this motherboard supports ATX 24Pin + 8Pin power input for robust performance. Its rugged design and rich I/O make it the perfect choice for next-gen machine vision solutions.

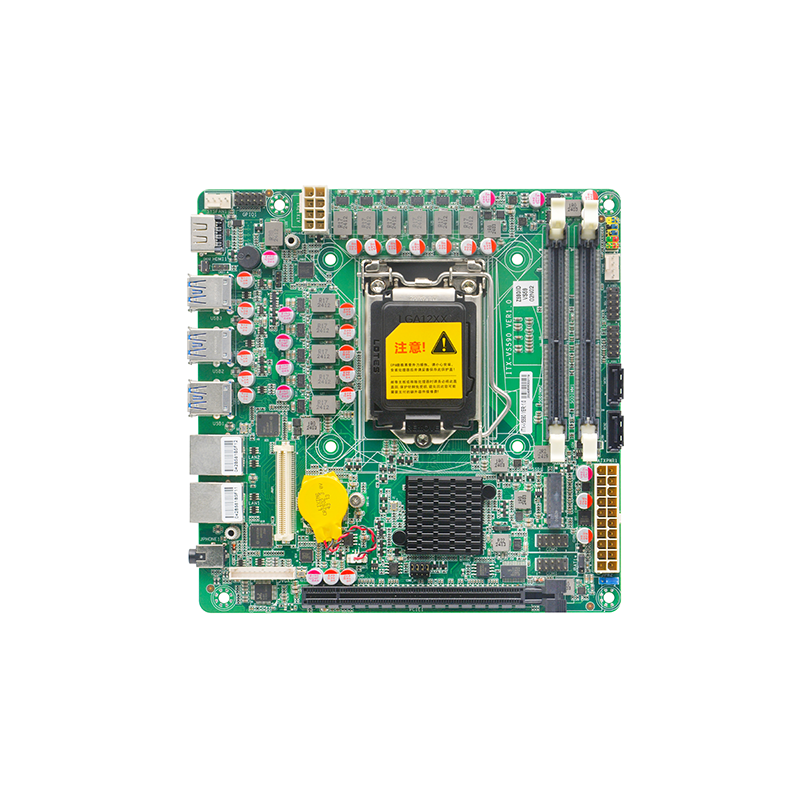

Detail Display

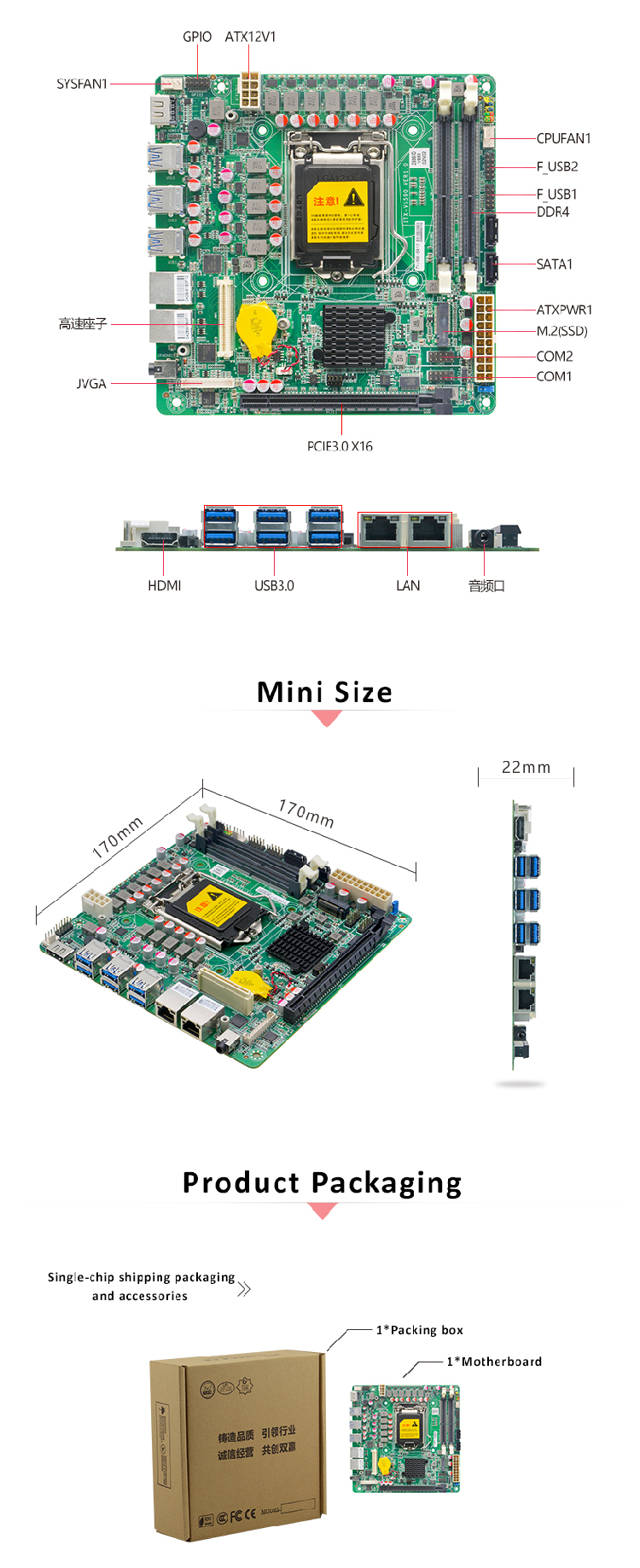

Product Description
Model No.: ITX-VS590 VER:1.0 (LGA1200)
Processor: Support LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Chipset: Intel® Z590 chipset
Memory: 2x SODIMM slot, supports dual-channel 3200MHz DDR4 memory, maximum support 128GB
Graphics:
Intel®HD Graphics; support DirectX12.1,OpenGL4.5; support 4K
1x VGA, Max: 1920 x 1080@60Hz
1x HDMI1.4; Max: 4096x2304 @24Hz
Network: 2x Intel ®I210AT Gigabit network card, support network wake-up, PXE function
Storage:
2x SATA3.0 , transmission rate up to 6Gbps
1x M.2 slot, supports M.2 2280 NVME PCIE X4 standard SSD
Audio: Onboard ALC897 7.1+2 channel high-fidelity audio controller, supports MIC/Line-out
Expansion slots:
1x PCIE3.0 X16 slot
1x 80pin high-speed connector, including 4*PCIE signals, 1*VGA signal (with VS250-P4 small board)

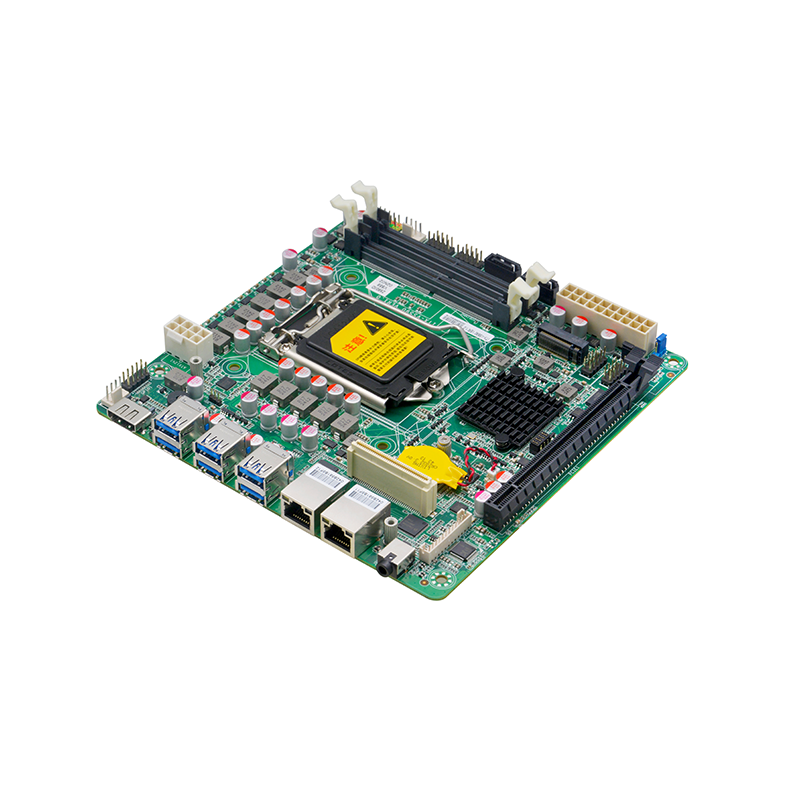

Rear I/O interface:
1x HDMI

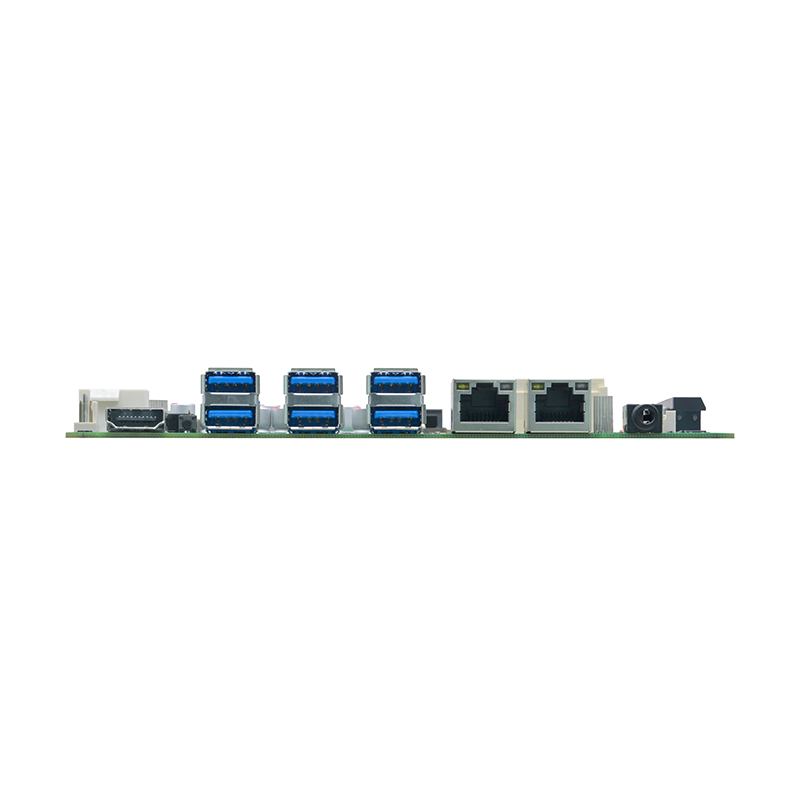

6x USB3.0 (5Gbps)
2x RJ45 Gigabit network interface
1x Audio 2 and 1 interface (support Line-out/MICK)
Built in I/O interface:
1x VGA pin header, either 80pin high-speed VGA
4x USB2.0 interface 2*5pin
1x front panel function button and indicator interface 2*5pin
2x RS232 serial port 2*5pin, COM2 supports RS485 function
1x 2*4pin ATX power interface
1x 20pin ATX power interface
Fan interface: 1x 4pin CPU smart fan interface, 1x 4pin system fan interface
Power input: ATX 20Pin and 8pin power supply
BIOS: 128Mb Flash ROM
GPIO: Supports 4 input and 4 output GPIO interfaces
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 10/Windows 11/Linux
Working Temp.: 0℃～60℃
Storage Temp.:-20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 170mm x 170mm
