Overview
SK35H android motherboard features Rockchip RK3568B quad-core CPU (Cortex-A55/2.0GHz) with Mali-G52 GPU. Equipped with 4GB LPDDR4 (2GB optional) and 32GB eMMC (16/64GB optional). Supports LVDS+EDP+HDMI dual display, Gigabit Ethernet, WiFi/BT. Rich I/Os include 9xUSB, 4xTTL, 2xCAN, etc. 12V power input, supports Android 7.1/Linux OS. Ideal for smart devices and industrial applications.

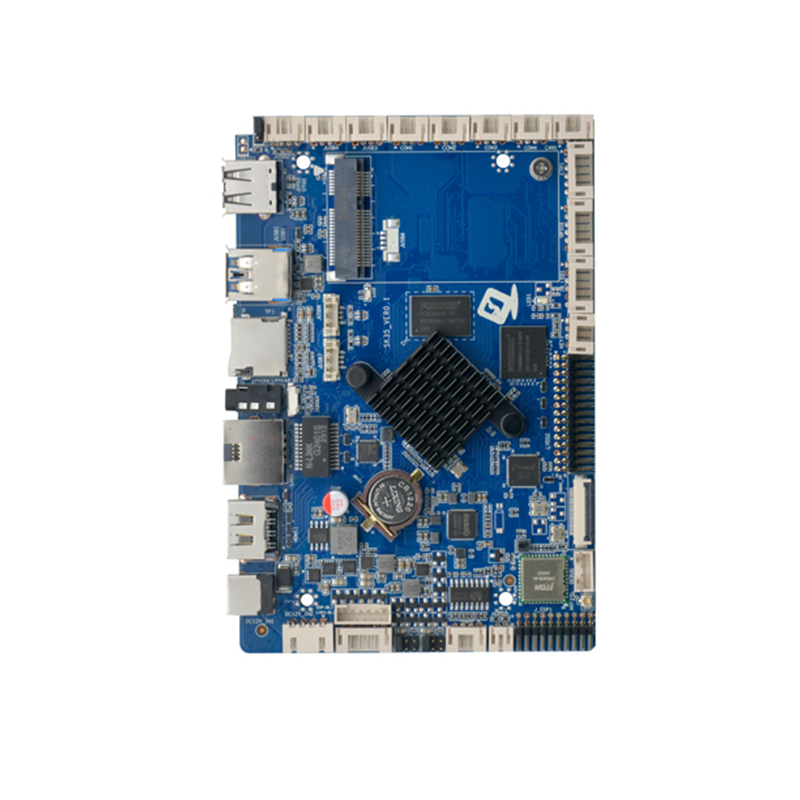

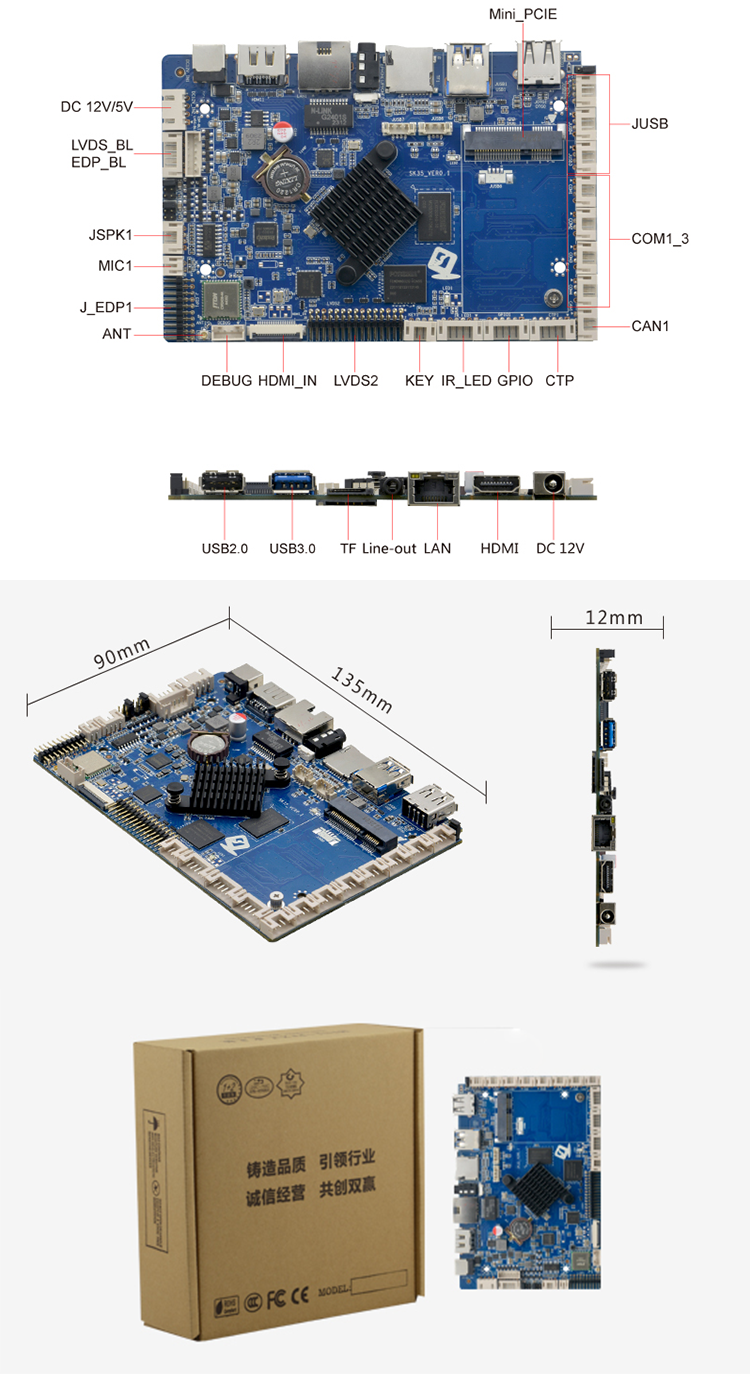

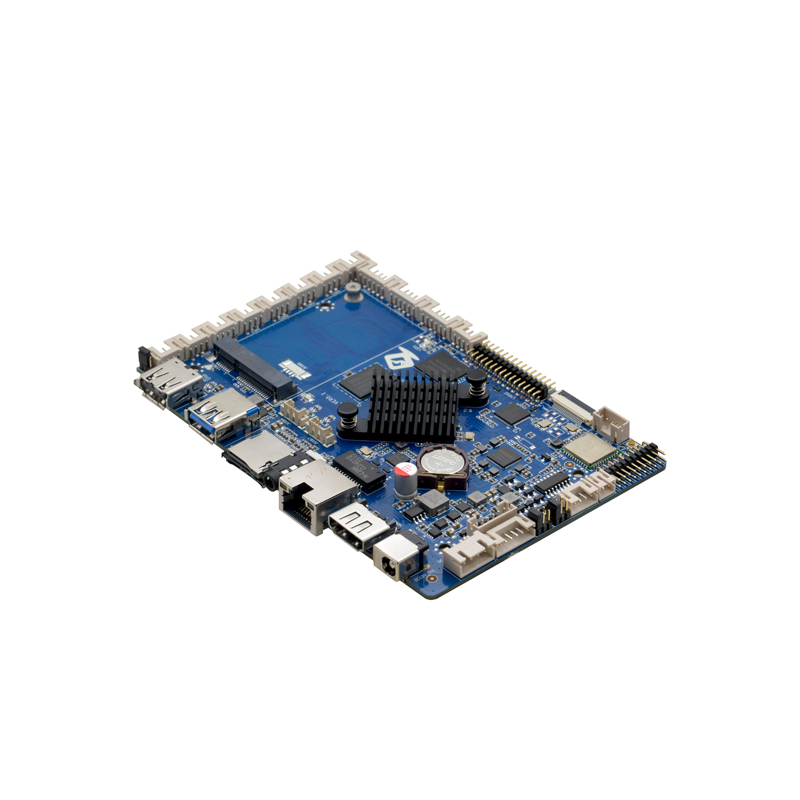

Detail Display
Product Description
Model No.: SK35H VER:1.0
Processor: Integrated Quad-core Cortex-A55 up to 2.0GHz processor
Chipset: Based on Rockchip RK3568B SOC, NPU：up to 0.8TOPS
Memory: Onboard LPDDR4 4GB memory (2GB optional)
Display:
Integrated ARM Mali-G52 GPU, supporting OPENGL ES1.1/2.0/3.2, OPENCL 2.0, Vilkan 1.1;Resolution max: 3840 x 2160
1x LVDS, 1x EDP, 1x HDMI_out, 1x HDMI_in
Play Mode: Loop playback / Inter cut / Timed playback
Video Format:
AVI(H.264、DIVX、XVID), rm, rmvb, MKV(H.264、DIVX、XVID), WMV, MOV, MP4(H.264、MPEG、DIVX、XVID),
DAT(VCD), VOB(DVD), PMP, MPEG, MPG, FLV(H.263、H.264), ASF, TS, TP, 3GP etc...
Ethernet: 1x RJ45 GbE LAN ( RTL8211F Gigabit Ethernet controller)
WLAN: 1x WIFI&BT module builtin ; 1x Mini-pcie socket ( sopporting 4G module)
GPS: 1x external GPS (optional)
Storage:
1x eMMC 32GB onboard (16G/64G optional)
1x TF card socket, up to 128G
Audio: Support L/R audio dual_channal output, Builtin 2x power amplifier (8R 5W)

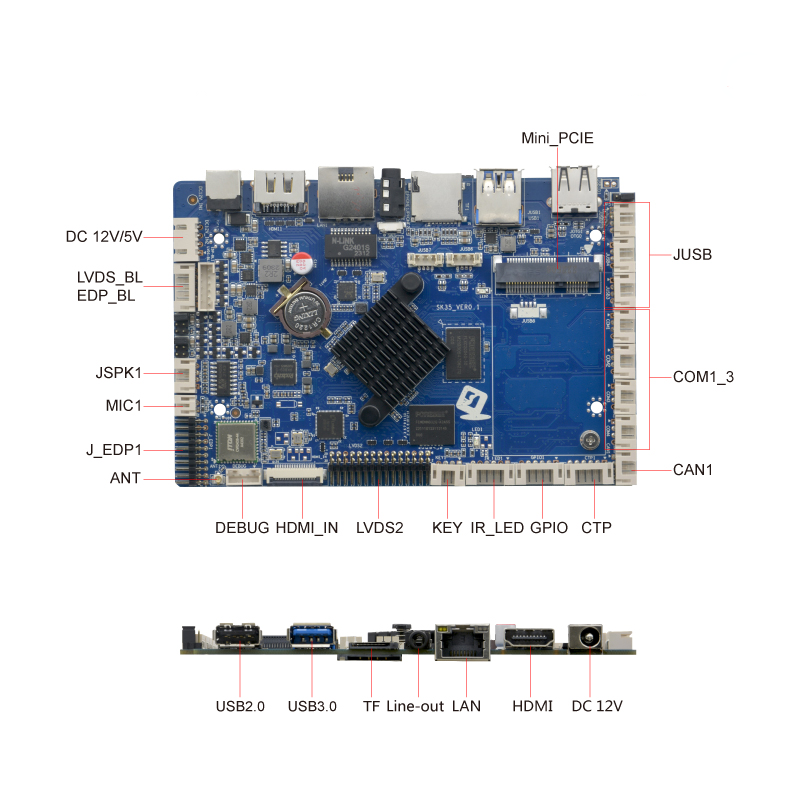

Rear I / O interface:
1x HDMI_out (1080P @60Hz / 4K @30Hz)
1x USB2.0 ; 1x USB3.0
1x RJ45 LAN (10M/100M/1000M self-adaption)
1x TF card slot
1x Line-out
1x DC_Jack (DC_12V input)
1x MIPI_in (24pin)
1x EDP (30pin)
1x LVDS (2*15pin ，supports dual channels 24BIT)
1x Upgrade key
5x USB2.0 (PH: 2.0mm) ; 2x USB2.0 (PH: 1.25mm)
Built in I / O interface:
1x HDMI_out
1x MIC
1x MIPI camera port (30pin) (FPC port ,1300W camera optional)
1x Audio Power amplifier
1x I2C
3x TTL (support RS232/485)
1x TTL (support RS232)
1x IR_LED
1x CTP (for touch panel)
1x Front panel function button (4pin)
1x Front panel function button and indicator port (2*5pin)
2x CAN interface (1*3pin)
1x Serial port adjust socket
RTC: Support
GPIO: Support 4-way input and output GPIO
BIOS: AMI 64Mb Flash ROM
Timed ON/OFF: Support
OS: Android 7.1 / Linux
OS upgrade: Support SD card / PC upgrade
Power Type: DC_12V
working temp.: -10℃ ~ 60℃
Storage temp.: -20℃ ~ 70℃
Working humidity: 5%-95%(Relative humidity, non condensing)

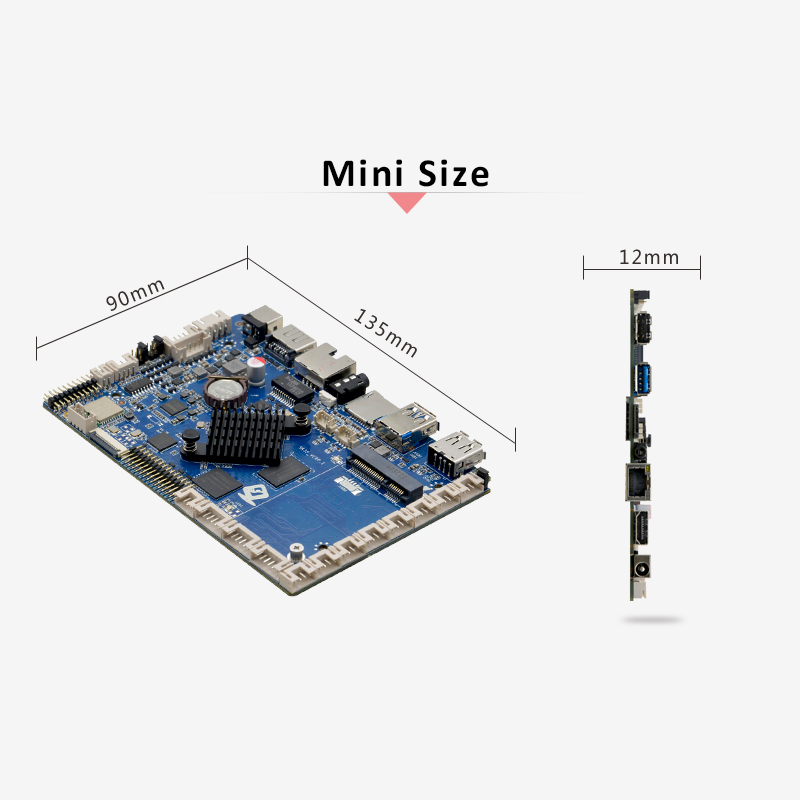

Dimension: 135mm x 90mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.

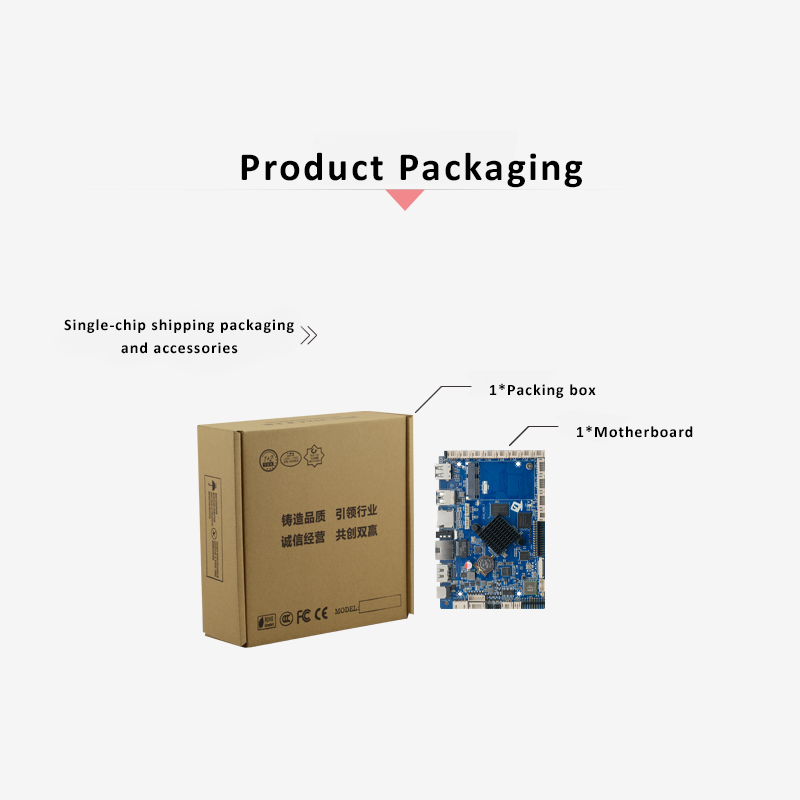

Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
