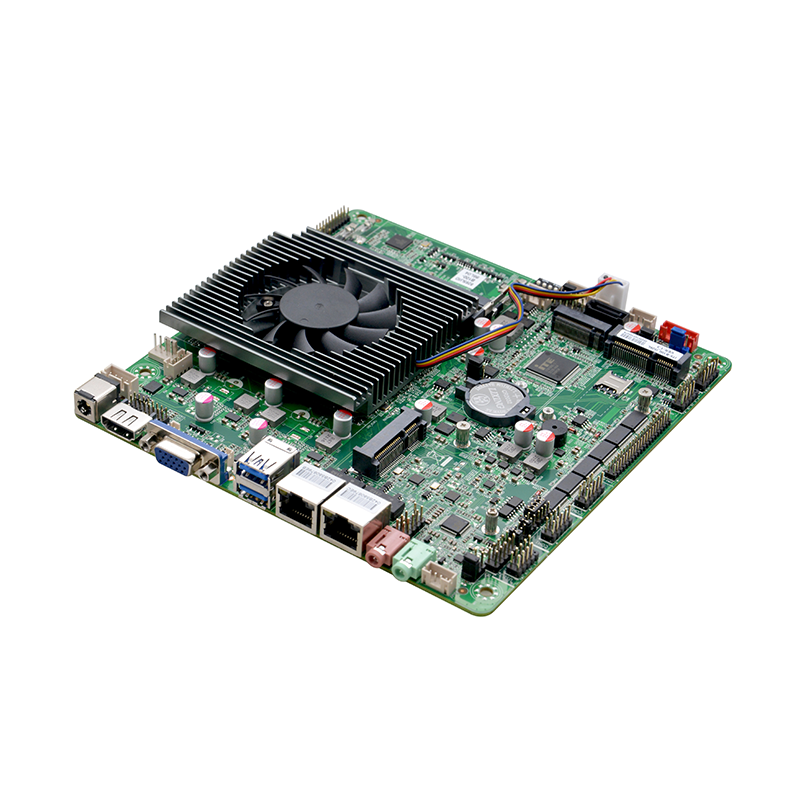

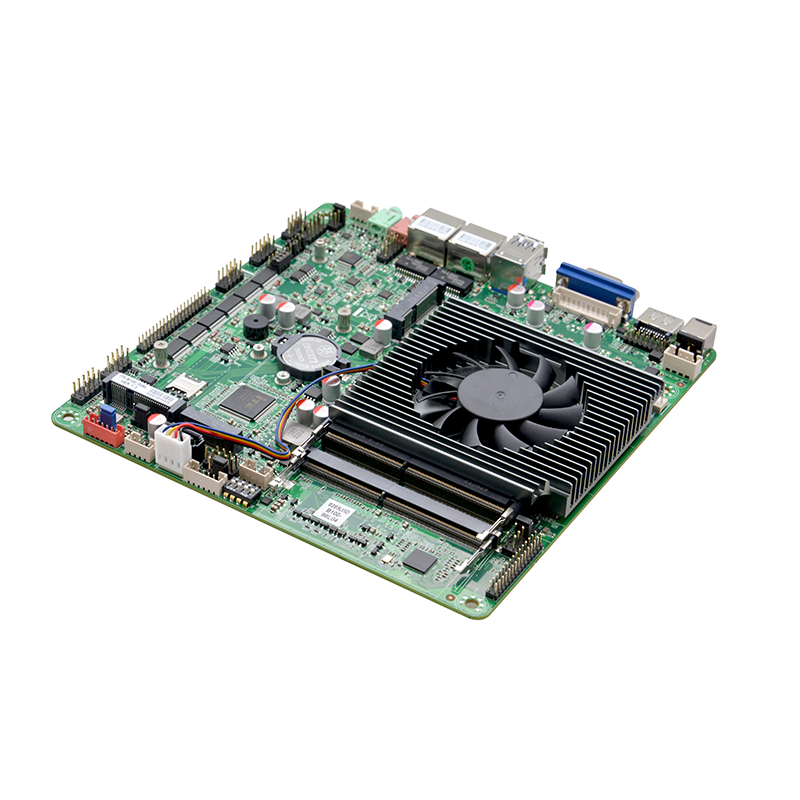

This versatile Thin Mini-ITX motherboard utilizes Intel Comet Lake-U SOC technology, featuring the 10th Gen Core™ i5-10210U processor (4C/8T, 1.6-4.2GHz) with Intel UHD Graphics. The compact Thin Mini-ITX form factor (170×170mm) combines robust computing power with extensive connectivity, making it an ideal solution for space-constrained industrial applications.
Technical Specifications:
✔ High-Efficiency Processing: Intel i5-10210U with 4.2GHz Turbo Boost
✔ 4K Visual Output: Triple-display support via VGA + HDMI + LVDS/eDP
✔ Enhanced Memory: Dual-channel DDR4 2666MHz (max 64GB capacity)
✔ Industrial-Grade Connectivity:
●Dual Intel® GbE LAN ports
●8×USB interfaces (including USB3.1 Gen1)
●6×Configurable COM ports (RS232/485/422)
✔ Storage & Expansion:
●1×SATA3.0 + 1×mSATA SSD
●1×M.2 NVMe (PCIe x4) + 1×mini-PCIe (WiFi/4G)
✔ Rugged Features:
●GPIO control + Hardware Watchdog
●4Ω/3W speaker output + Legacy PS/2
●SIM card slot for cellular connectivity
✔ Flexible Power Options: 12V DC jack or ATX 4-pin input
Product Description

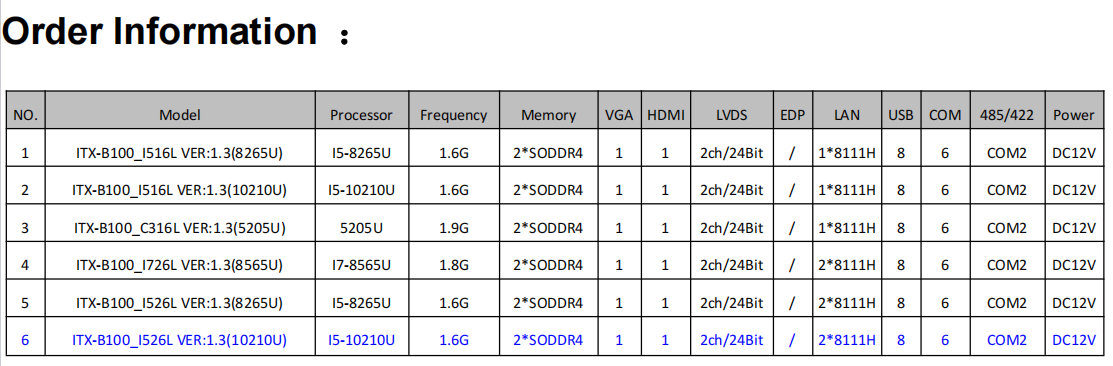

Model No.: ITX-B100_I526L VER:1.3(10210U)
Processor: Integrated 10th Gen Intel®I5-10210U 1.6GHz Quad core eight thread processor,TDP 15W
Compatible with Intel®Whiskey Lake-U/Comet Lake-U 8th/10th Celeron/Pentium/I3/I5/I7 series processors
Chipset: SOC
Memory: 2*DDR4 SODIMM memory slot,supports 2400MHz memory,is up to 64GB
Display:
Integrated Intel® UHD Graphics ,supports DirectX 12 OpenGL 4.5, supports 4K
1*VGA, The maximum resolution supported is：1920X1200@60Hz
1*HDMI1.4, The maximum resolution supported is：4096x2304@24Hz
1*dual channelS 24bit LVDS interface, share row pin with EDP, LVDS by default
Ethernet: 2* RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage:
1* SATA3.0,the trasfer rate is up to 6Gbps
1* MSATA slot, supporting Intel protocol SSD,the trasfer rate is up to 6Gbps
1* M.2 slot,supports M.2 2260/2280 NVME PCIE x4/SATA SSD
Audio:
Integrated ALC888S 7.1+2 channel high fidelity audio controller, supporting mic and line_ Out, power amplifier
Support power amplifier 2 Ω 3W horn
Expansion Slot: 1* Mini-PCIE slot,supports WIFI/4G moudle

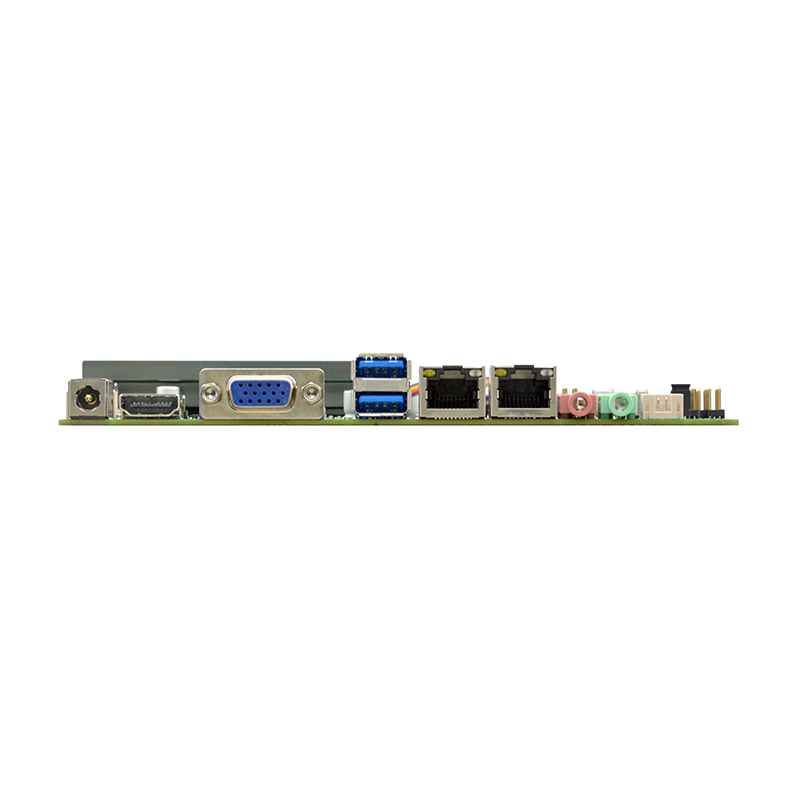

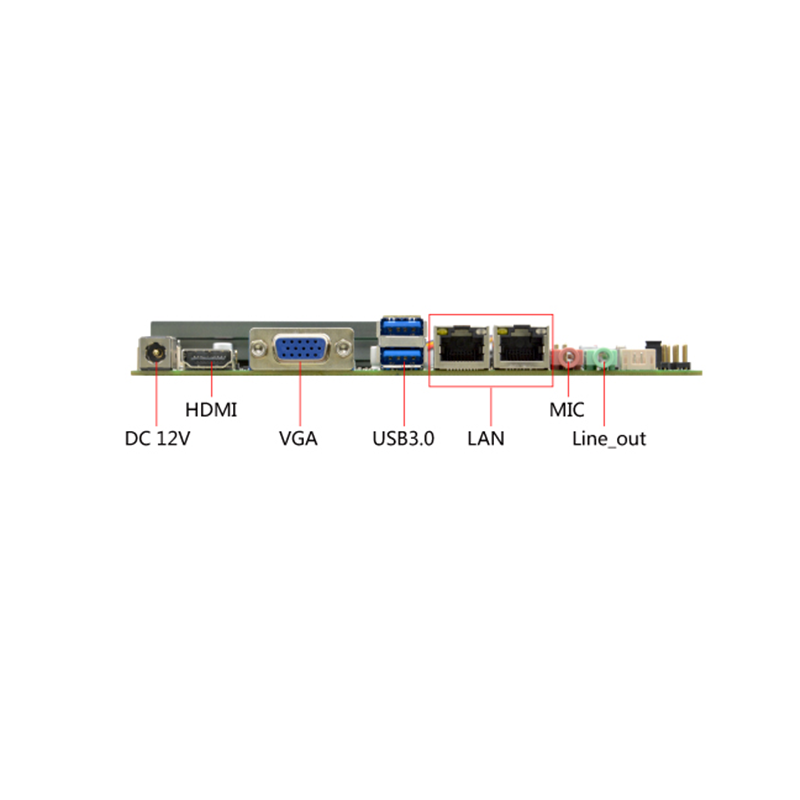

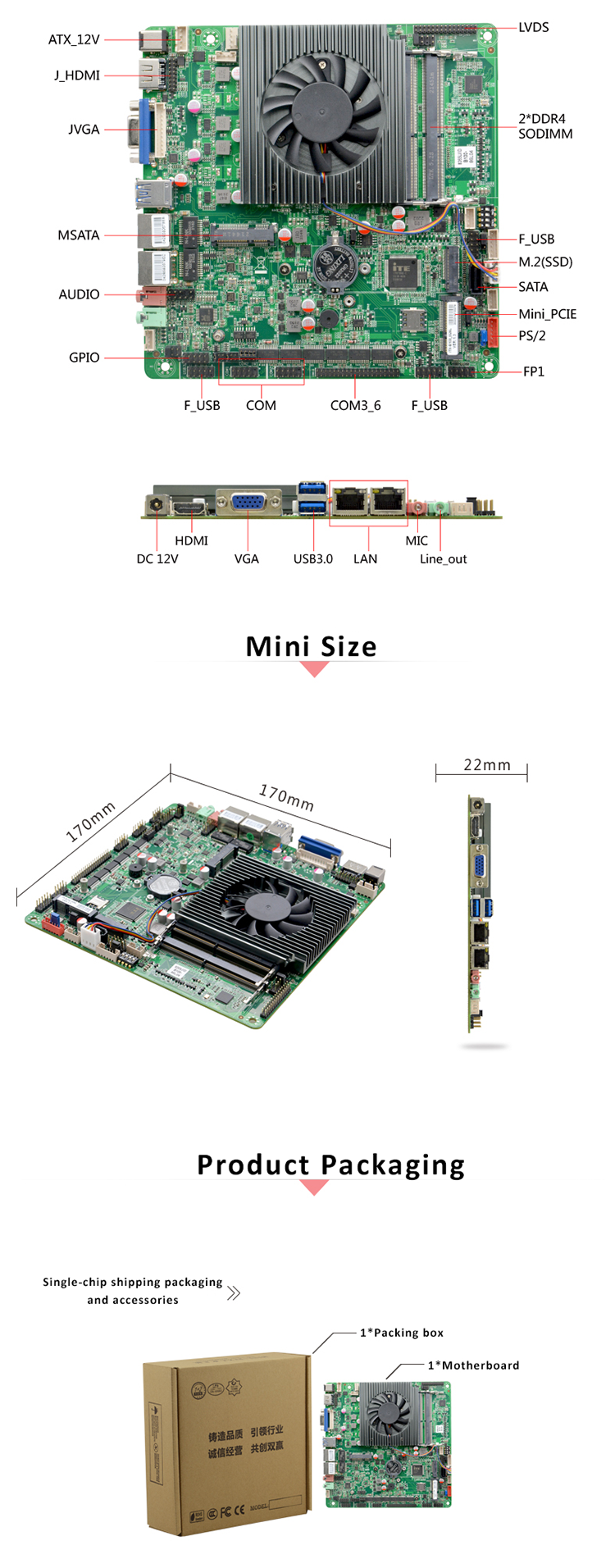

Backplane I / O interface:
2* USB3.0，
1* HDMI
1* DB15 VGA
2* RJ45 Gigabit Network Interface
1* Line-out(Green），1*MIC(red）
1* DC12V power interface, supports 12V power input

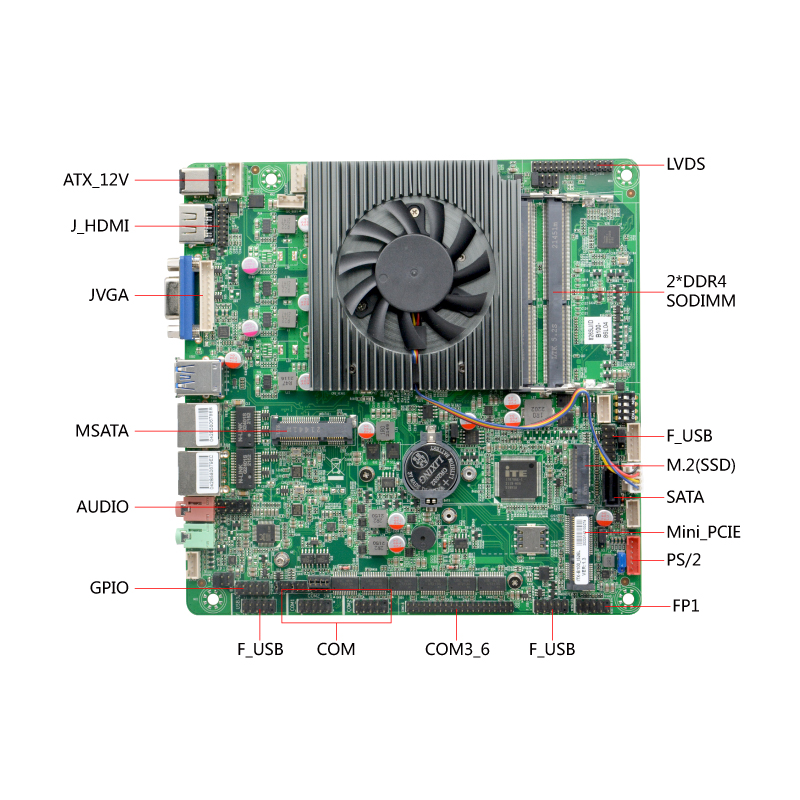

Built in I / O interface:
1* JVGA1,1*12pin(Same signal as DB15)
1* JHDMI,2*10pin，Same signal as HDMI interface
1* LVDS, 2*15pin，supports Dual channel 24bit，
1* LVDS Backlight power supply interface, 1*6pin
1* Screen brightness adjustment interface, 1*4pin
6* RS232 serial interface,COM1/2 supports the 9th pin charged ,COM2 supports RS485/422 function
1* PS/2(red) 1*6Pin
6* USB2.0, 2*5pin ,
1*Front audio interface, 2*5pin
1* Front panel switch button and indicator light interface, 2*5Pin
1* Hard disk power supply interface,1*4pin
1* Power amplifier interface, 1*4pin
1* DC power interface, 1*4pin,Support 12V power input and output
1* SIM card slot
Fan Connector: 1*4pin CPU smart fan connector, 1* 4pin system fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC 12V
OS: Windows 10 ,/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 170mm x 170mm
