Overview
Fanless Industrial Touch Computer - Reliable Silent Solution

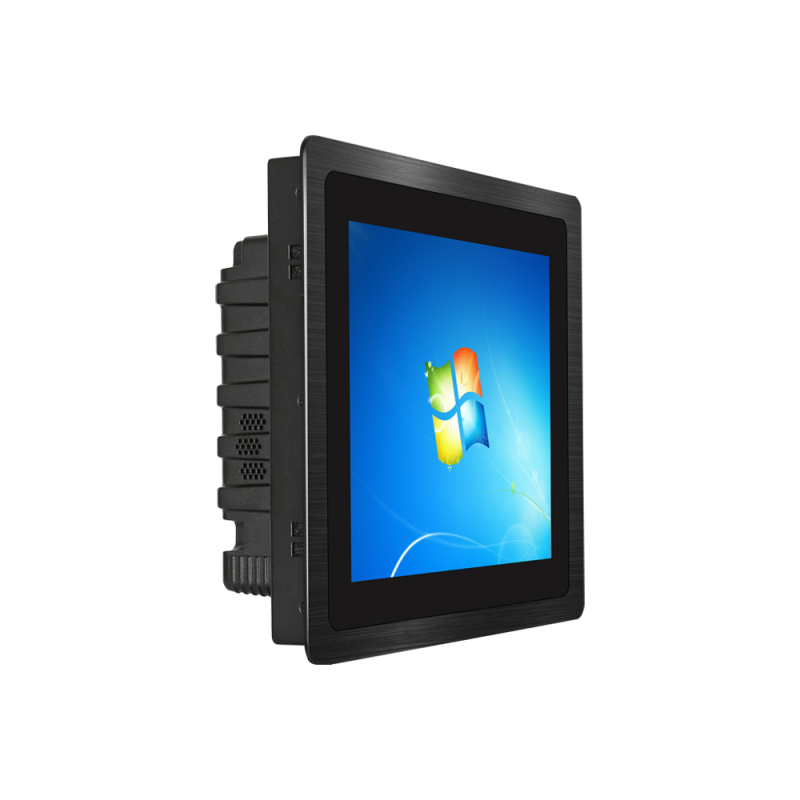

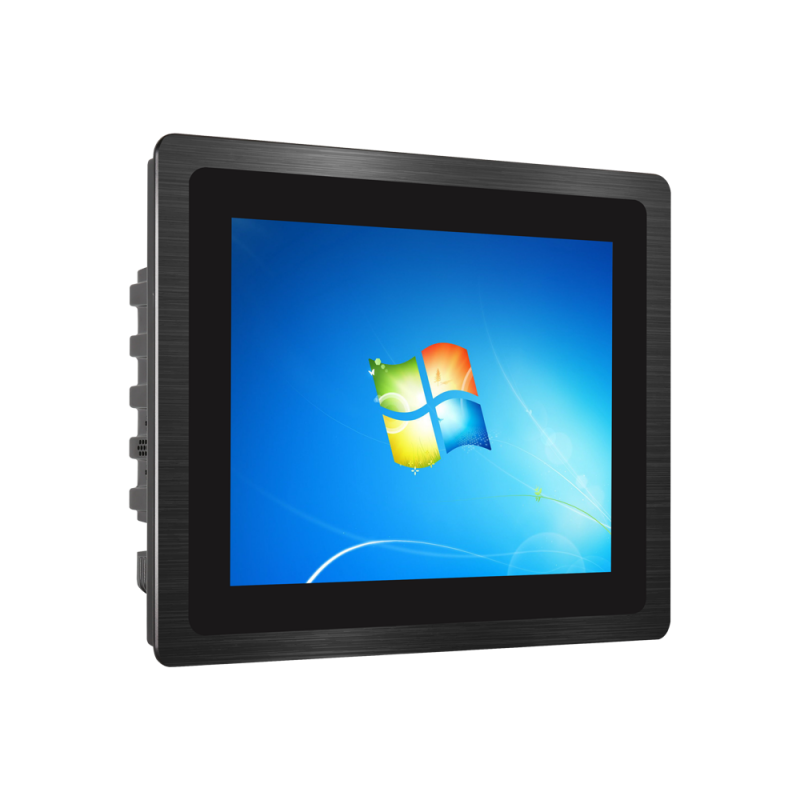

Our professional Fanless Panel series supports multiple Intel Core i5 processors (i5-6200U/i5-7200U/i5-8265U/i5-10210U) with innovative fanless cooling technology. This Fanless Touch Panel features a 10.4" TFT LCD industrial touch display (1024×768, 400cd/m²) and aluminum alloy enclosure with IP65 rating for reliable operation in harsh environments.
Key Advantages
Fanless Design: Completely sealed, maintenance-free
Multiple CPU Options: Four Intel Core i5 generations
Industrial Protection: IP65 aluminum housing
Wide Temperature: Reliable from -20℃ to 60℃
Industrial Connectivity: Dual gigabit Ethernet + wide voltage input
Specifications
CPU Options: i5-6200U/i5-7200U/i5-8265U/i5-10210U

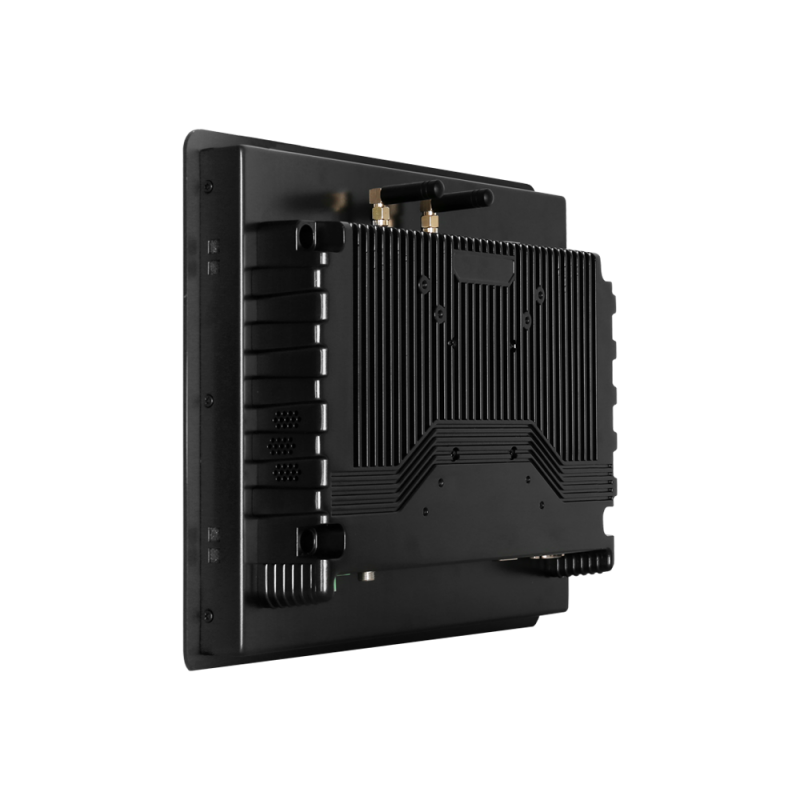

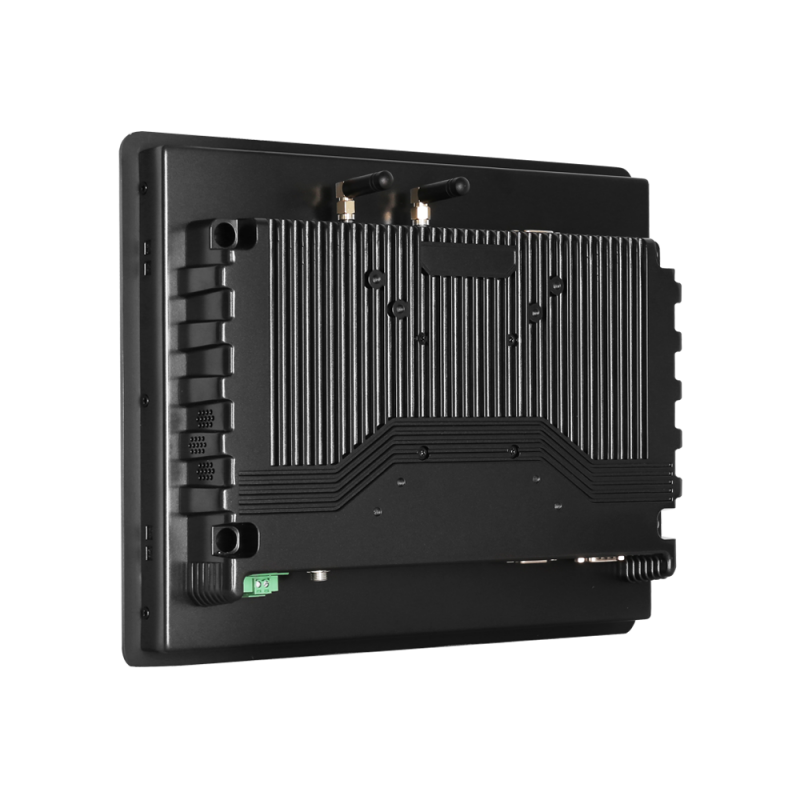

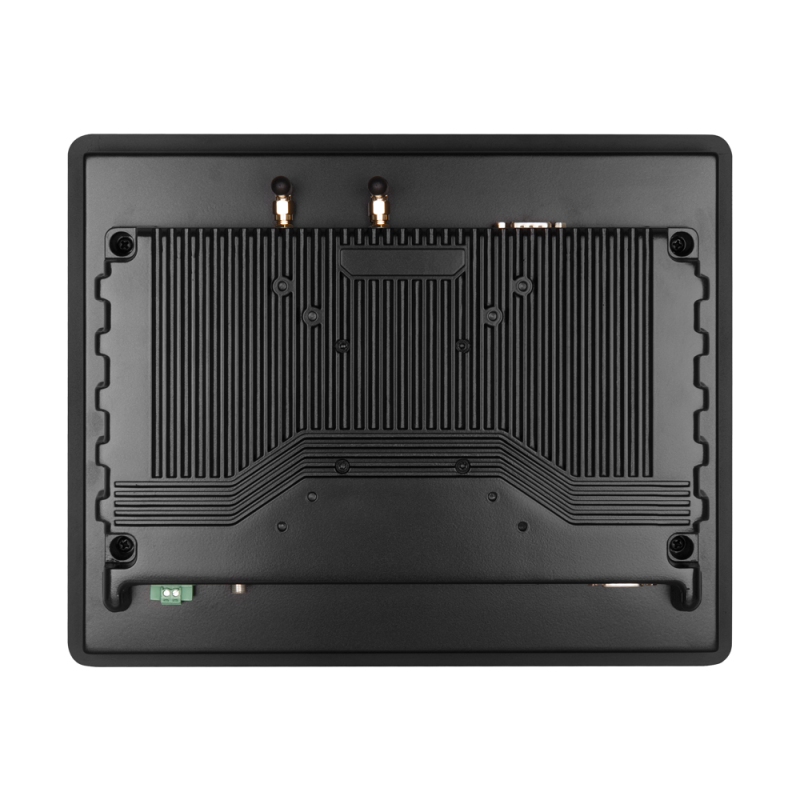

Cooling: Passive cooling system
Touchscreen: 10.4" dual-mode touch
Protection: IP65 certified
Temperature Range: -20℃~60℃
Typical Applications
Industrial automation control
Outdoor equipment monitoring
Medical imaging workstations
Intelligent transportation systems
Product Description
Product Size: 10.4”
Non-touch: TPC104-W1000-I5
Capacitive touch: TPC104-W1010-I5
Resistive touch: TPC104-W1020-I5
Screen Parameters:
LCD Size: 10.4" TFT LCD
Resolution: 1024×768
Viewing Angle: 80/80/80/80 (L/R/U/D)
Colour: 16.7M
Brightness: 400 cd/m2
Contrast ratio: 1000:1
Physical Characteristics:

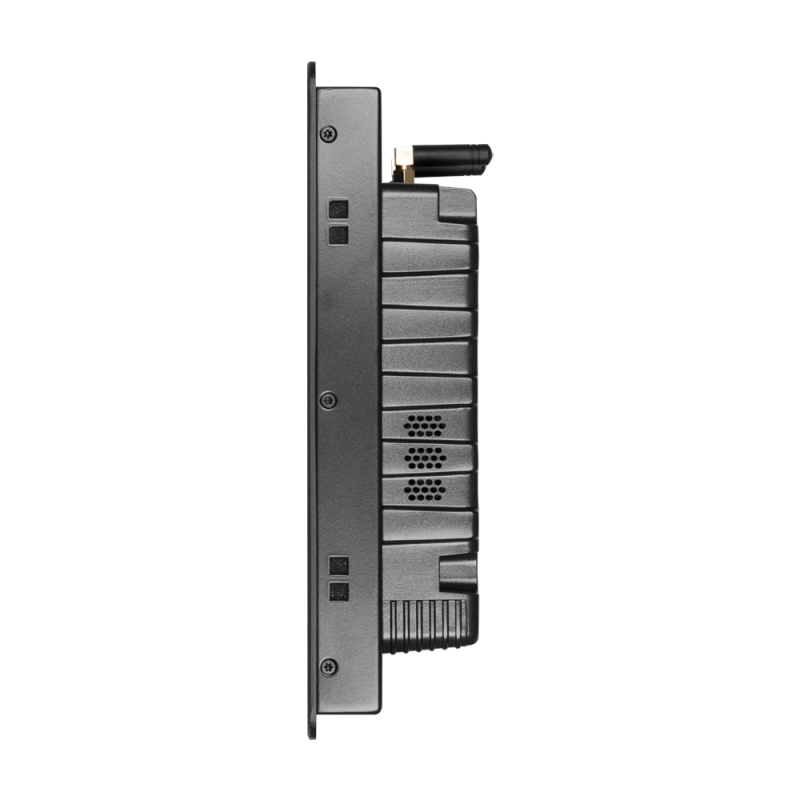

Overall dimensions: W288x H231x D59.5mm
Size of opening: W273 x H216mm

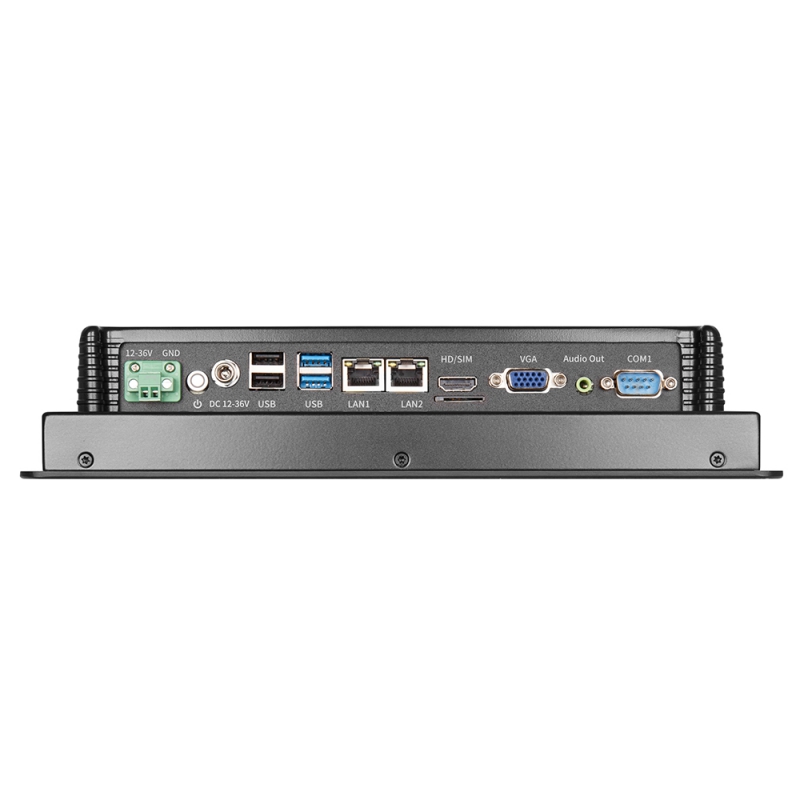

Interface:
Power interface1: 1*DC 2.5, Supporting 12V-36V power input
Power interface2: 1*Industrial terminal, Supporting 12V-36V power input
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
USB: 2*USB 2.0 2*USB 3.0
LAN: 2*LAN, Dual 1000M adaptive Ethernet
AUDIO: 1*Audio Out, Support audio output
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
VGA: 1*VGA
COM: 2*RS232
WiFi antenna: 2*WiFi antenna
POWER: Support (1*POWER)
Grounding post: 1*Grounding post (GND)
Product Reliability:
Working Temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, half sine wave, duration 11ms
Authentication: CCC/CE/FCC/EMC/CB/ROHS
Waterproof: Front panel reaches IP65 protection level
Hardware Configuration:
CPU: I5-6200U / I5-7200U / I5-8265U / I5-10210U
CPU frequency: 2.3GHz / 2.5GHz / 1.6GHz / 1.6GHz
Integrated graphics: Inte HD Graphic 520 / Intel HD Graphics 620 / Intel Ultra HD Graphics 620 / Intel UHD620 Graphics
RAM: 4G DDR4(Optional 8G/16G/32G) / 4G DDR4(Optional 8G/16G/32G) / 4G DDR4(Optional 8G/16G/32G) / 8G DDR4(Optional 16G/32G /64G)
Storage: 128G SSD(256G/512G SSD, 1T/2T HDD Optional)
WiFi: Dual band 2.4G&5G
Bluetooth: BT4.0(Optional)
Operating system: Win7/10/11, Ubuntu/Centos/Redhat/Debian/Linux
Other support: Support RTC real-time clock and timing switch
Power parameters:
Input voltage: DC 12V~36V
Static power: 18W
