[Core Advantages]
●Intel Core i7 processors (6th-10th Gen options), up to 4.9GHz turbo
●Supports 32GB DDR4 RAM, dual storage (M.2 NVMe + 2.5" HDD)
2.Professional Industrial Display:
●11.6" IPS panel with 1920×1080 resolution
●AG anti-glare coating, 300cd/m² brightness
●Dual-mode touch (10-point capacitive + industrial resistive)
●7H Mohs hardness tempered glass surface
3.Advanced Thermal Design:

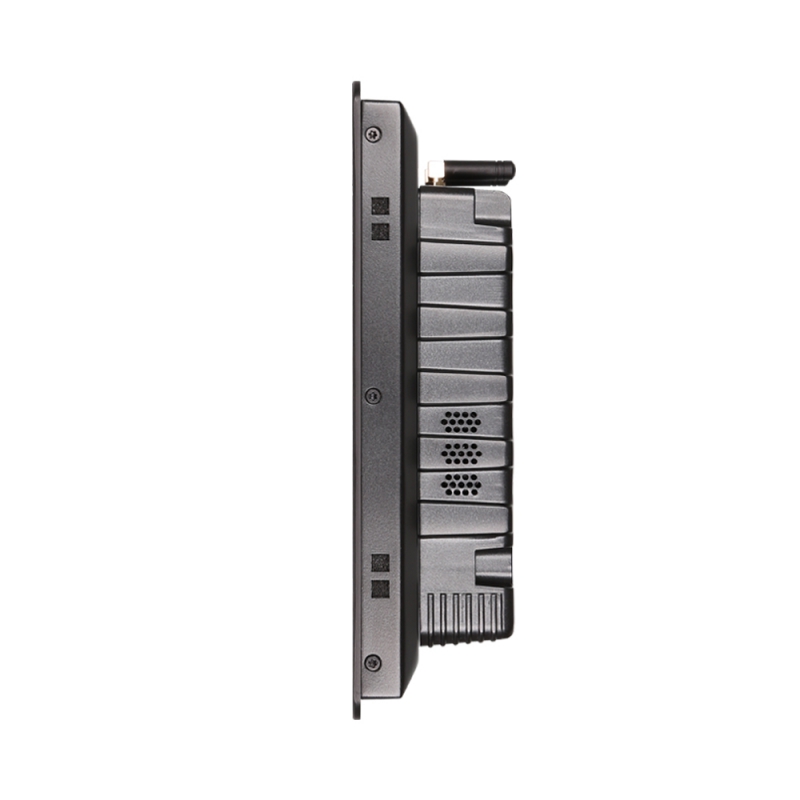

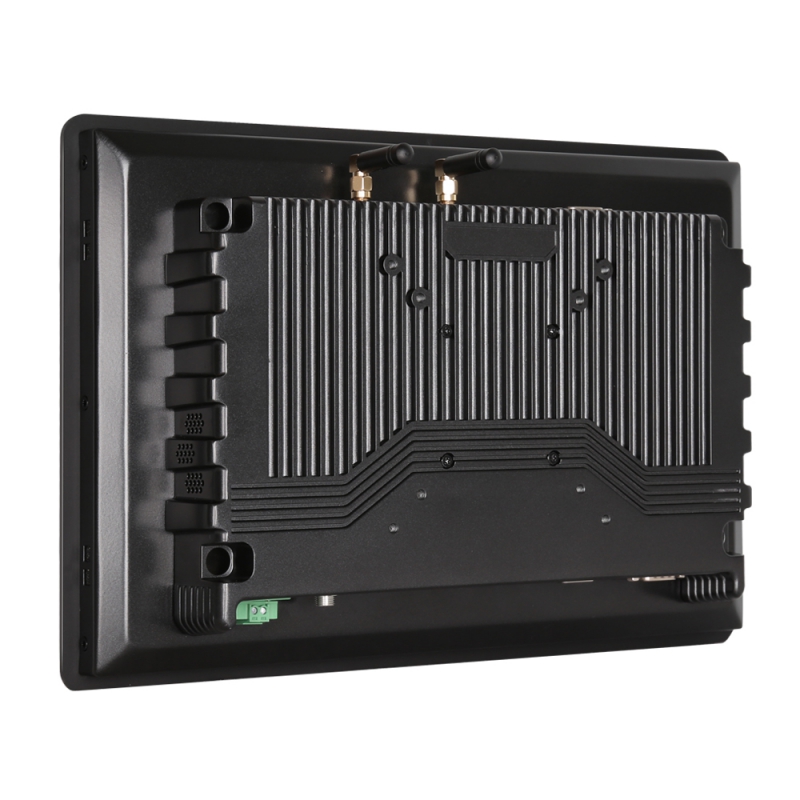

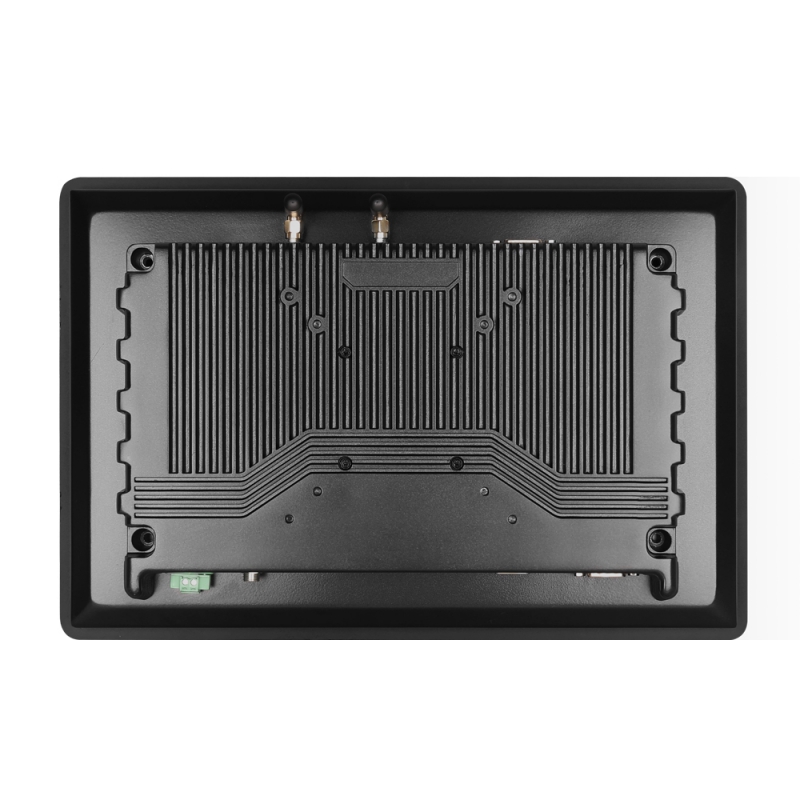

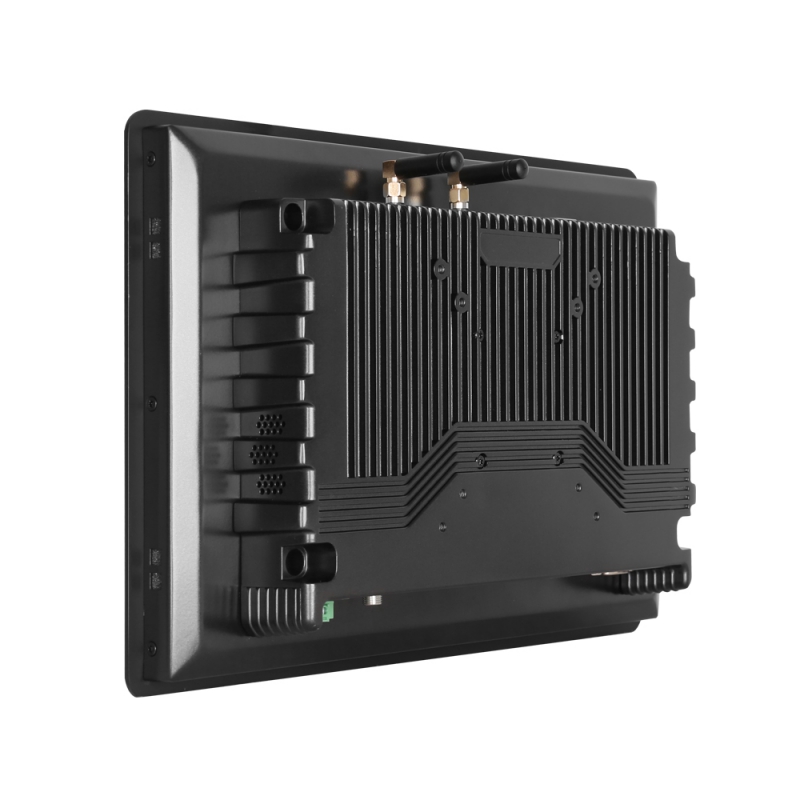

●6063 aluminum alloy unibody enclosure
●3D cooling fins + nano heat pipes
●100% fanless, zero noise operation
●Wide temp range: -30℃ to 70℃
4.Rugged Protection:
●IP65-rated front panel
●Vibration resistant (5-500Hz/5G)
●IEC 61000-4 EMC compliant
●12-36V wide range DC input with protection
5.Industrial Connectivity:
●Dual Gigabit LAN (PoE+ optional)
●4×USB3.1 Gen2 (inc. Type-C)
●2×Isolated RS-232/485
●8×Programmable GPIO
●4G/5G module expansion
[Applications]
1.Industrial Automation:
●Smart production line control
●CNC machine HMI
●Industrial robot console
2.Critical Infrastructure:
●Power substation monitoring
●Oil pipeline SCADA
●Railway control systems
3.Harsh Environments:
●Outdoor kiosks
●Marine engine monitoring
●Mining control equipment

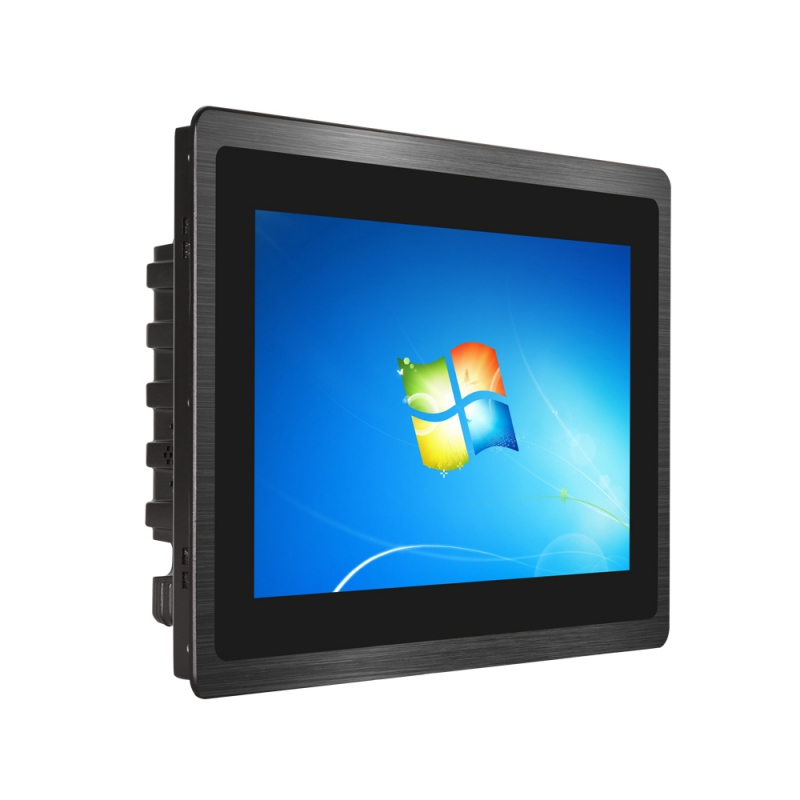

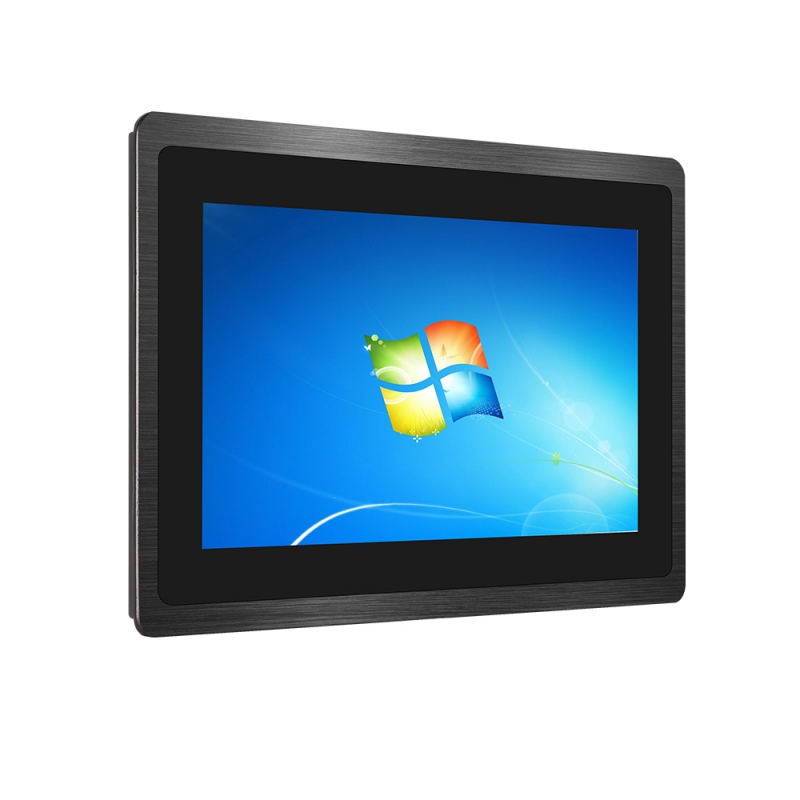

Product Description
The overall use of flat aluminum alloy panel, fanless fully enclosed integrated design. Meet the requirements of different equipment in different environments. It is widely used in industrial control, military, communication, power, network, intelligent self-service terminal equipment and other automation applications.
Product Size: 11.6"
Non-touch: TPC116-W1000-I7
Capacitive touch: TPC116-W1010-I7
Resistive touch: TPC116-W1020-I7

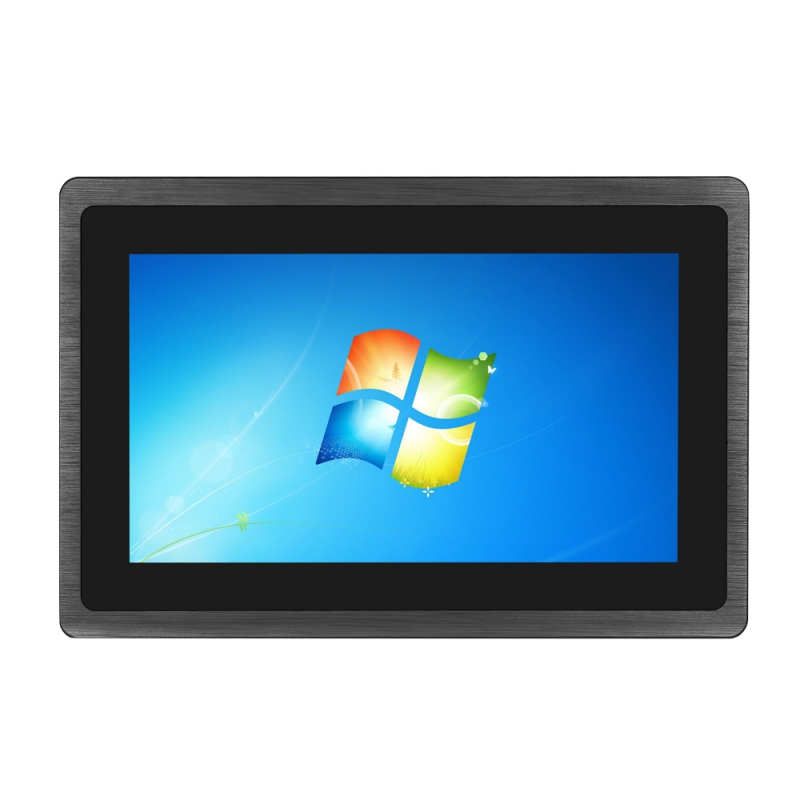

Screen Parameters:
LCD Size: 11.6" TFT LCD
Resolution: 1920×1080
Viewing Angle: 85/85/85/85 (L/R/U/D)
Colour: 16.7M
Brightness: 300 cd/m2
Contrast ratio: 1000:1
Physical Characteristics:
Overall dimensions: W323.7x H218.5x D57mm
Size of opening: W311.7 x H206.5mm

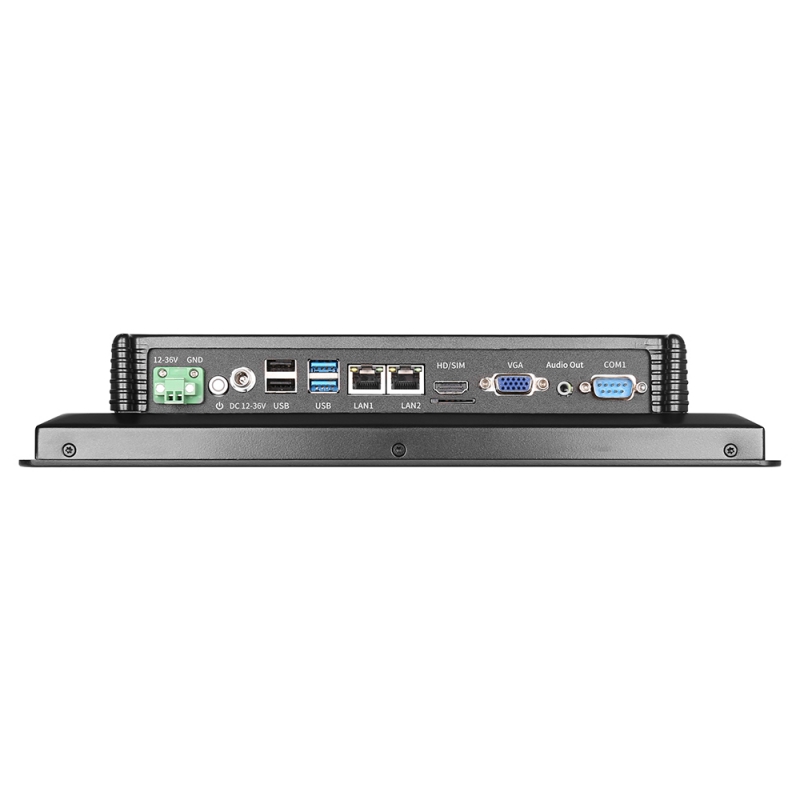

Interface:
Power interface1: 1*DC 2.5, Supporting 12V-36V power input
Power interface2: 1*Industrial terminal, Supporting 12V-36V power input
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
USB: 2*USB 2.0 2*USB 3.0
LAN: 2*LAN, Dual 1000M adaptive Ethernet
AUDIO: 1*Audio Out, Support audio output
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
VGA: 1*VGA
COM: 2*RS232
WiFi antenna: 2*WiFi antenna
POWER: Support (1*POWER)
Grounding post: 1*Grounding post (GND)
Product Reliability:
Working Temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, half sine wave, duration 11ms
Authentication: CCC/CE/FCC/EMC/CB/ROHS
Waterproof: Front panel reaches IP65 protection level
Hardware Configuration:
CPU: l7-6500U / l7-7500U / I7-8565U / I7-10510U
CPU frequency: 2.5GHz / 2.7GHz / 1.8GHz / 1.8GHz
Integrated graphics: Inte HD Graphic 520 / Inte HD Graphic 620 / Intel Ultra HD Graphic 620 / Intel UHD630 Graphics
RAM: 4G DDR4 (Optional 8G/16G) / 4G DDR4(Optional 8G/16G/32G) / 4G DDR4(Optional 8G/16G/32G) / 8G DDR4(Optional 16G/32G/64G)
Storage: 128G SSD(256G/512G SSD, 1T/2T HDD Optional)
WiFi: Dual band 2.4G&5G
Bluetooth: BT4.0(Optional)
Operating system: Win7/10/11, Ubuntu/Centos/Redhat/Debian/Linux
Other support: Support RTC real-time clock and timing switch
Power parameters:
Input voltage: DC 12V~36V
Static Power: 18W
Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
