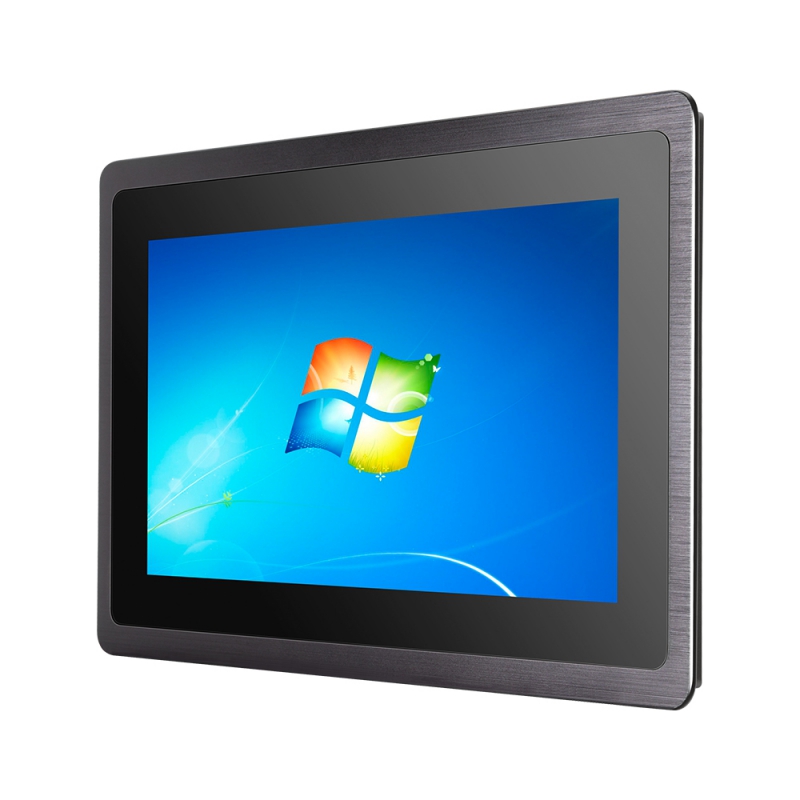

[Premium Industrial Display]

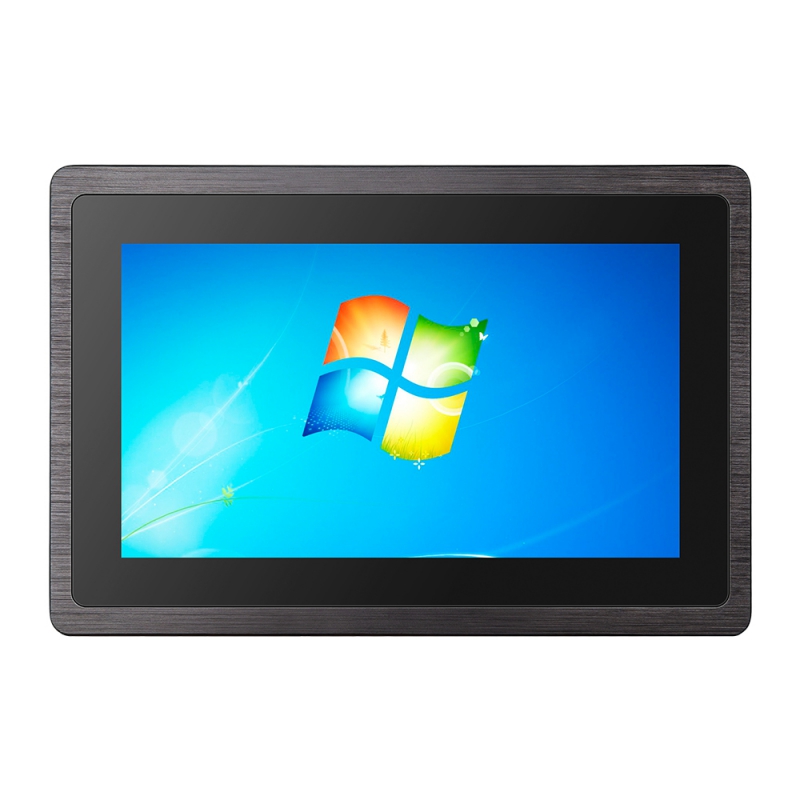

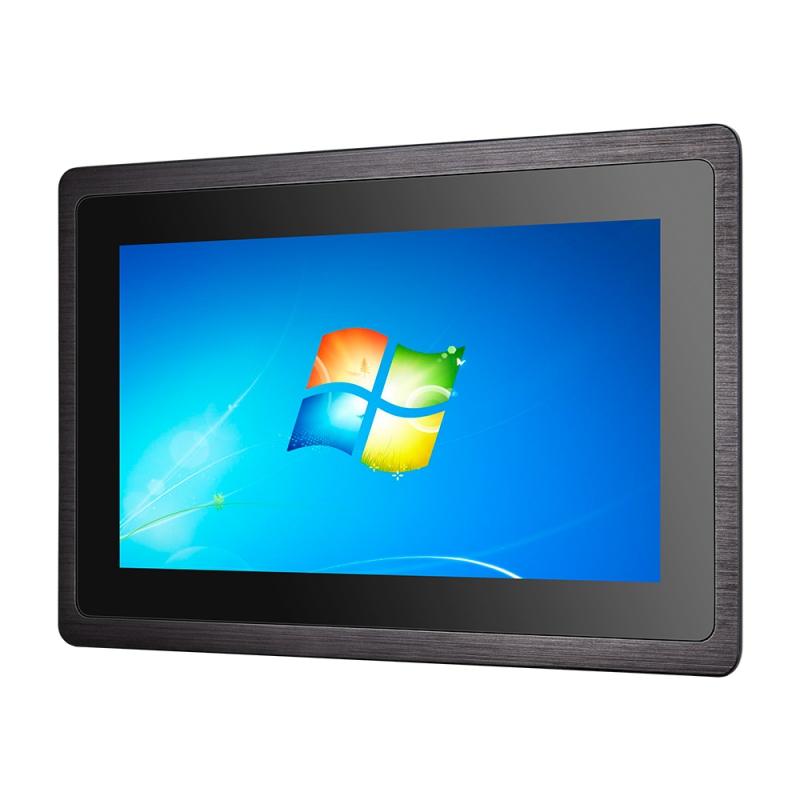

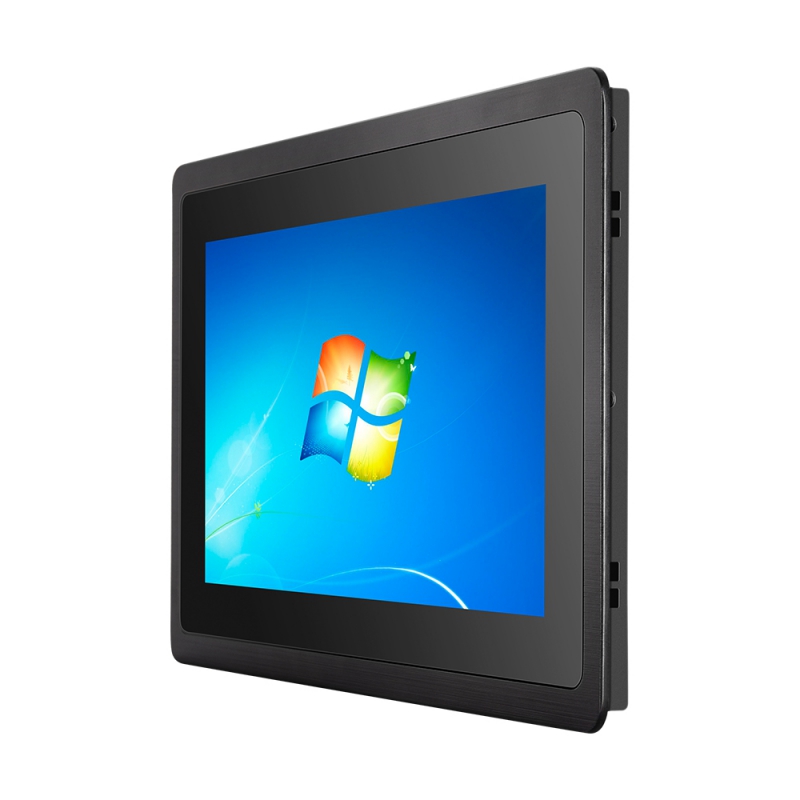

This rugged industrial touch panel PC features an 11.6" full HD IPS industrial display with 1920x1080 resolution and 300cd/m² brightness, ensuring perfect visibility even under direct sunlight. The innovative dual-mode (capacitive + resistive) touch technology supports both bare-finger operation and gloved-hand input, making it ideal for various industrial applications.
[Outstanding Performance]
Powered by Intel Celeron J4125 quad-core processor (2.0GHz base, up to 2.7GHz turbo) and our proprietary X86 industrial motherboard, this panel mount touch screen PC delivers reliable performance in extreme temperatures (-20℃ to 60℃). The all-metal chassis with IP65-rated front panel provides superior protection against dust, oil, and water jets.
[Professional Features]
• 3.5mm ultra-slim bezel with 92% screen-to-body ratio
• 8H hardness tempered glass, 300% more scratch-resistant
• EMI shielding layer, passed rigorous EMC certification
• Rich I/O including 4x USB3.0, 2x GbE, 6x GPIO
[Typical Applications]
• Factory automation control systems
• HMI for CNC machines
• Automated warehouse management
• Digital signage in harsh environments
• Self-service kiosks with high durability requirements
Product Description

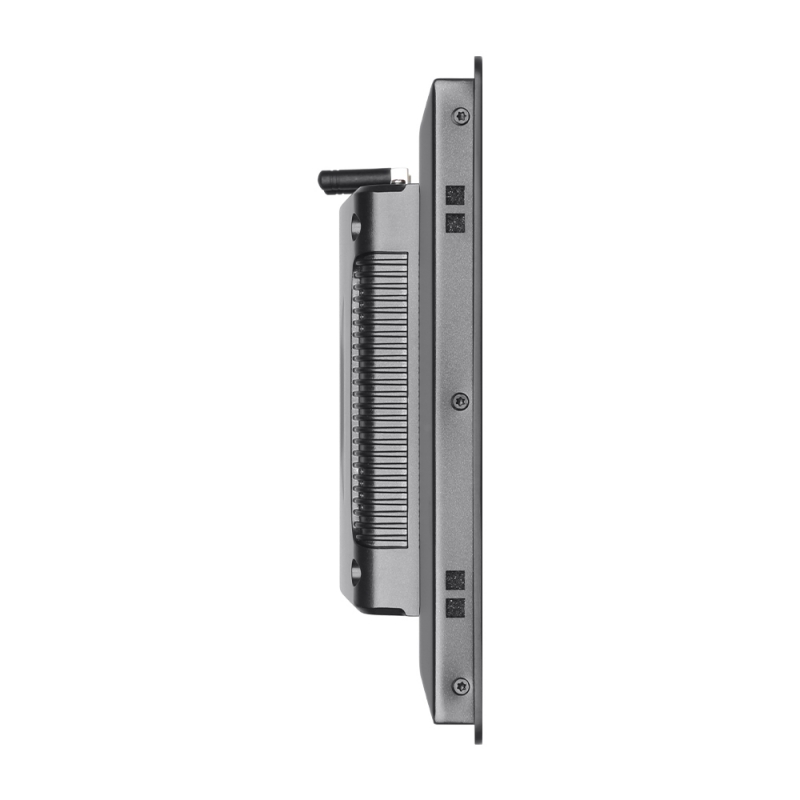

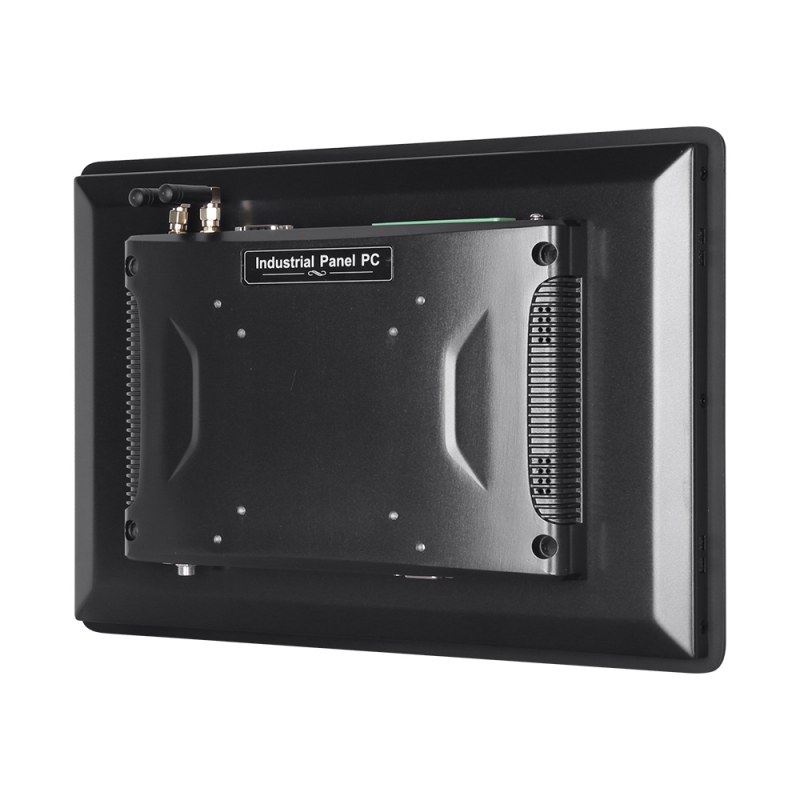

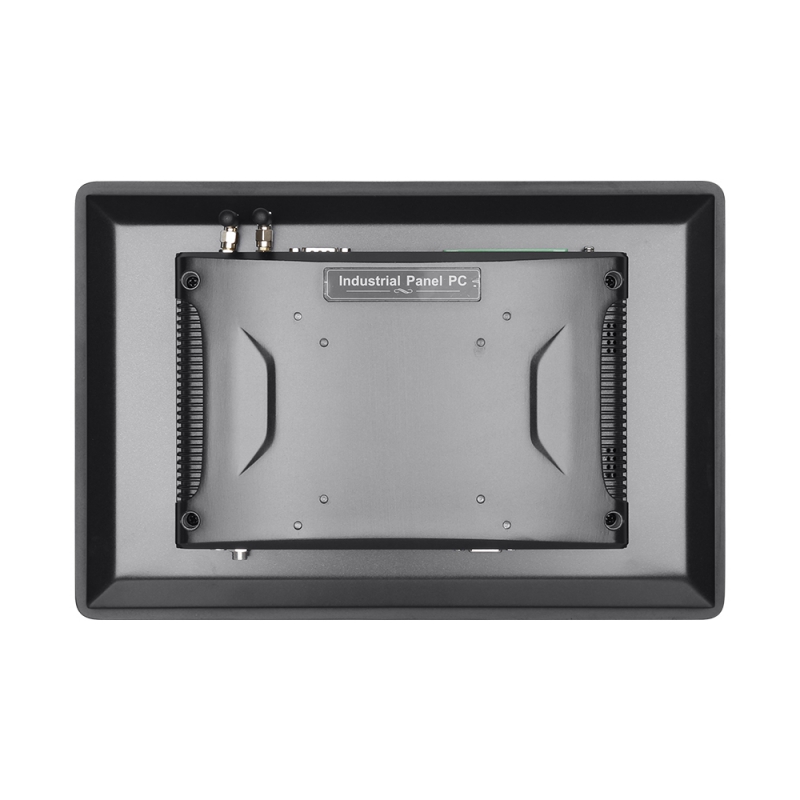

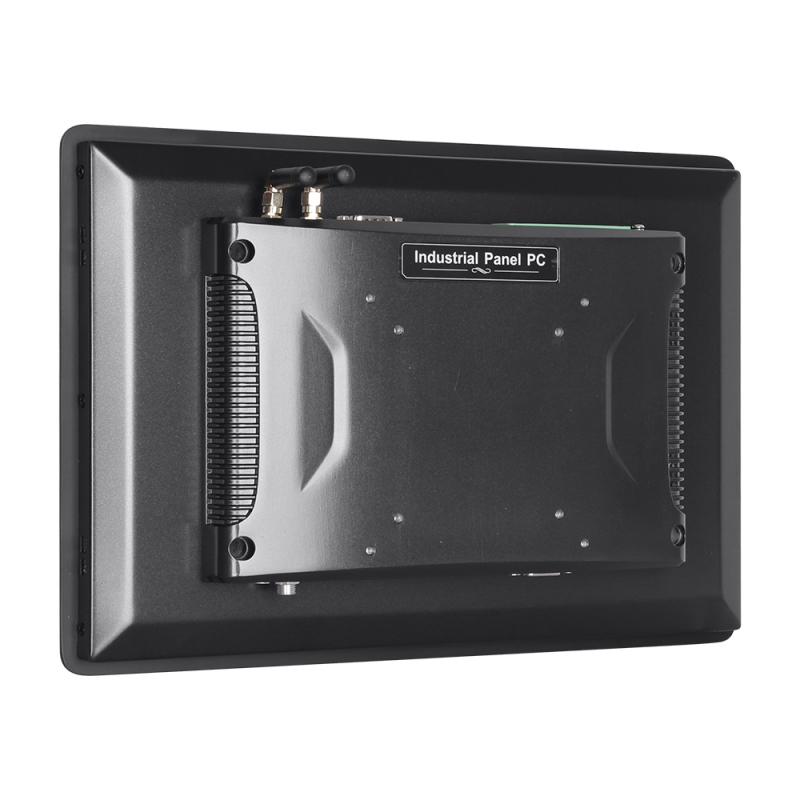

Full aluminum alloy panel structure with an IP65 waterproof front panel and an aluminum alloy rear cover equipped with heat dissipation holes. It is low power consumption.It is suitable for embedded installation applications and supports various external device connections, making it widely applicable in self-service terminals such as self-ser- vice vending machines, inquiry kiosks, parcel lockers, industrial, and medical self-service terminal fields.
Product Size: 11.6"
Non-touch: TPC116-W200-4125
Capacitive touch: TPC116-W210-4125
Resistive touch: TPC116-W220-4125
Screen Parameters:
LCD size: 11.6" TFT LCD
Resolution: 1920×1080(16:9)
Viewing angle: 85/85/85/85 (L/R/U/D)
Color: 16.7M
Brightness: 300 cd/m²
Contrast ratio: 1000:1
Physical Characteristics:
Overall dimensions: W323.7X H218.5X D51.5MM
Size of opening: W311.7 X H206.5MM

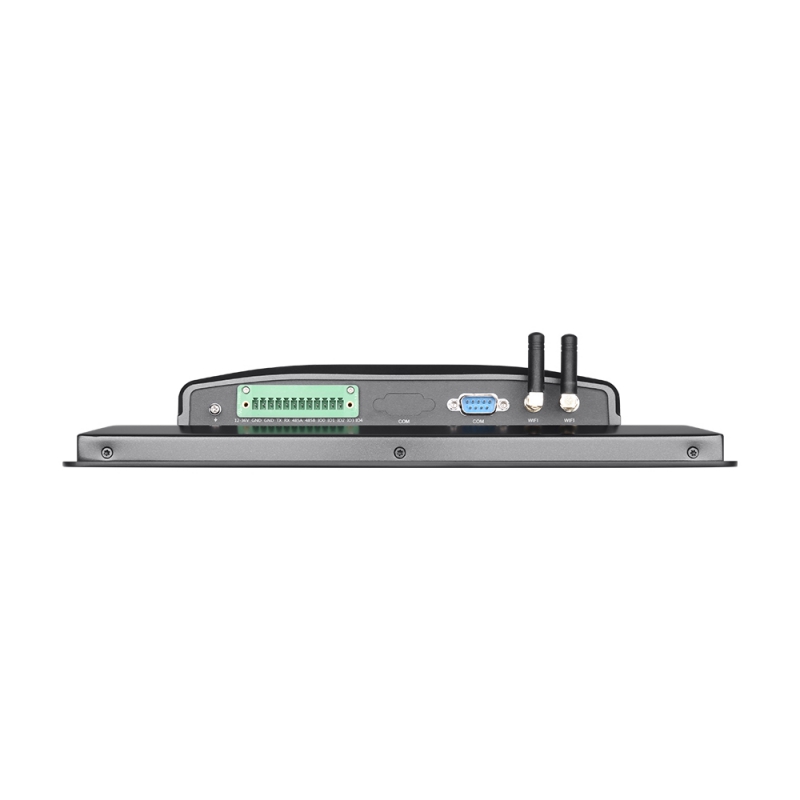

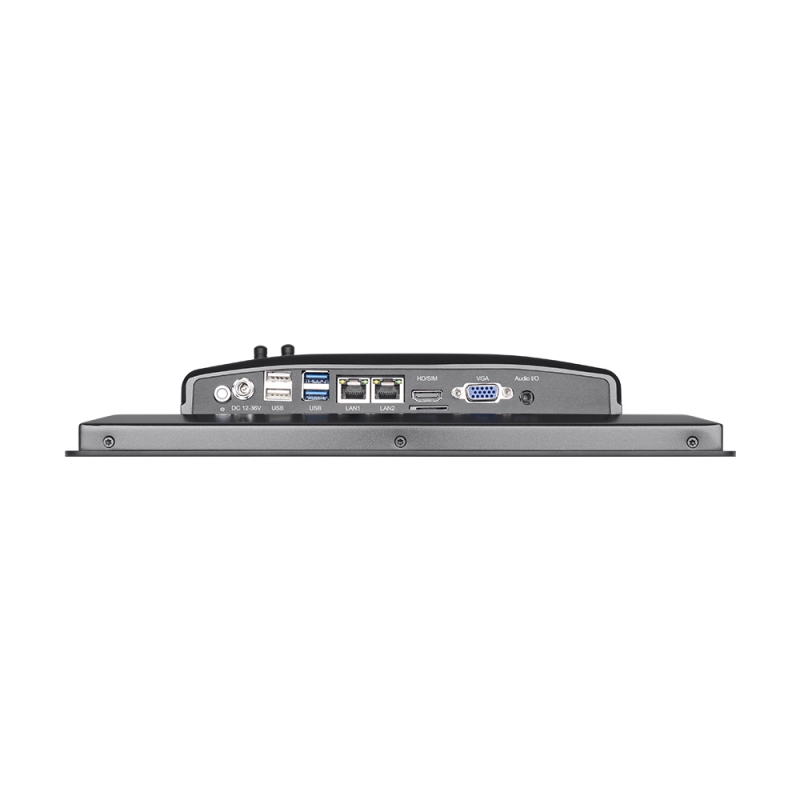

Interface Parameter:
Power interface1: 1*12P Phoenix terminal (Power supply/RS232*1/RS485*1/GPIO*5)
Power interface2: 1*DC【5.5*2.5mm】, Supporting 12V-36V power input
USB: 2*USB2.0, 2*USB3.0
VGA: 1*VGA
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
Network interface: 2*1000M Ethernet interfaces
Audio interface: 1*Audio I/O, support audio input and output
COM: 1*RS232
WiFi antenna: 2*WiFi antenna
Grounding post: 1*Grounding post (GND)
Product Reliability Parameters:
Working temperature: -10°C~60°C
Storage temperature: -20°C~70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, Half sine wave, Lasting for 11ms
Product certification: CCC/CE/FCC/EMC/CB/ROHS
Waterproof grade: The front panel reaches IP65 protection level
Power Parameters:
Power input: DC 12V~36V
Static power: 18W
Hardware Configuration:
CPU: Intel Celeron J4125 quad-core 2.0GHz CPU
Memory: 8GB (Supports up to 8GB)
Broad pressure: With wide voltage (12V~36V)
Storage: 128GB SSD (Optional:256GB/512GB SSD, 1T/2T HDD)
WiFi: Support 2.4GHz/ 5GHz dual-band Wifi
Integrated graphics: Intel UHD Graphics 600
Bluetooth: BT4.0（Optional）
Operating system: Win10/11/Ubuntu/Centos/Linux
