Overview

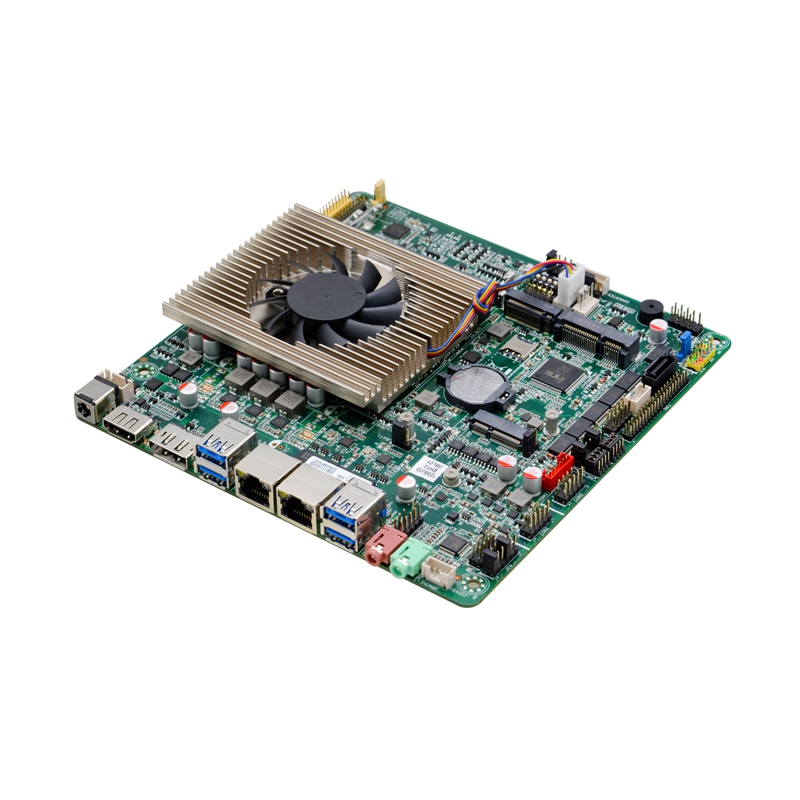

This industrial Mini ITX motherboard (Model: ITX-YS125R1_I526L VER:1.0) is built on the Intel Alder Lake SOC platform, featuring a 12th Gen Core i5-1235U processor (10 cores, 12 threads) with integrated Intel Iris Xe graphics. It supports DP, HDMI 1.4, LVDS, and eDP for display. Equipped with dual DDR5 4800MHz SO-DIMM sockets (up to 64GB), dual Gigabit Ethernet, 8x USB, 6x COM (RS232/485/422), TPM, SATA 3.0, M.2 NVMe, Mini-PCIE (4G/WiFi), and a SIM slot. It also features GPIO, watchdog timer, and a 4Ω/3W audio amplifier. Powered by DC 12V, it’s ideal for industrial control, embedded systems, and edge computing.
Detail Display
Product Description
Product Model: ITX-YS125R1_I526L VER:1.0(1235U)
Processor:
Integrated Intel®Alder Lake 12th Core I5-1235U, 10 Core 12 Threads Processor, TDP 15W
Compatible with Intel®Alder Lake/Raptor Lake-U/P Celeron Pentium Core I3/I5/I7 Processor
Chipset: SOC
Memory: 2* DDR5 SODIMM Memory Slots, Support 4800MHz Memory, Maximum Support 64GB
Display:
Integrated Intel® Iris® Xe Graphics Card, Supports DirectX 12 OpenGL 4.5, Supports 4K
1* HDMI 1.4 Port, Maximum resolution: 3840x2160@24 Hz
1* DP Port, Maximum resolution: 3840x2160@60 Hz
1* Supports Dual Channel 24bit LVDS Port
1* EDP interface, can switch to LVDS via the jumper
Network: 2* RTL8111H Gigabyte Ethernet, Supports Wake-on-LAN, PXE Function
Storage :
1* SATA 3.0 SSD Port, Transfer Speed Up To 6 Gbps
1* M.2 Slot, Supports M.2 2280 NVME PCIE x4 Standard SSD
Audio:
Integrated ALC897 7.1+2 Audio Channels High Fidelity Audio Controller, Supports MIC、Lineout、Power Amplifier
Supports Power Amplifier 4Ω3WSpeaker
Expansion Slots:
1* M.2 Slot, Supports M.2 Key E 2230 WIFI Module
1* MINI-PCIE Slot, Supports WIFI/4GModule
Rear I/O Ports:
4* USB 3.0 Ports
1* HDMI1.4
1* DP Port
2* RJ45 Gigabyte Network Ports
1* Line-out (Green Color), 1*MIC (Red Color)
1* DC12VPower Supply Port, Supports 12V Power Supply Input
Internal I/O Connectors:
1* LVDS Port 2*15pin, supports Dual Channel 24bit,
1* LVDS backlight Power Supply Port 1*6pin
1* EDP Port 2* 15pin, can switch to LVDS via the jumper.
6* RS232 serial Ports, COM1/COM2 support the 9th pin power standby Function, COM2/3 support RS485/422 Function
1* PS/2 Keyboard and Mouse Ports (Red Color) 1*6Pin
4* USB 2.0 Ports 2*5pin
1* Front Audio Header Ports 2*5pin
1* Front Panel Switch Button and Indicator Ports 2*5Pin
1 * SSD Power Supply Ports 1*4pin
1* Power Amplifier Ports 1*4pin
1* DC Power Supply Ports 1*4pin (Can do 12VInput Power Supply Ports)
1* SIM Card Slot
1* TPM Ports 2*6pin
Fan Headers: 1*4 pin CPU Smart Fan Header, 1* 4 pin System Fan Header
GPIO: Supports 4 Channel Input/output GPIO Function
BIOS: 128Mb Flash ROM
Watchdog: Supports Hardware Reset Function (256 Levels, 0~255 Seconds)
Power Type: DC 12V Power Supply
Operating System : Windows 10 /11/Linux
Operating Temperature : -10℃～60℃
Storage Temperature: -20℃～70℃
Operating Humidity : 5%-95% Relative Humidity, Non-Condensing
Dimensions: 170mm x 170mm
