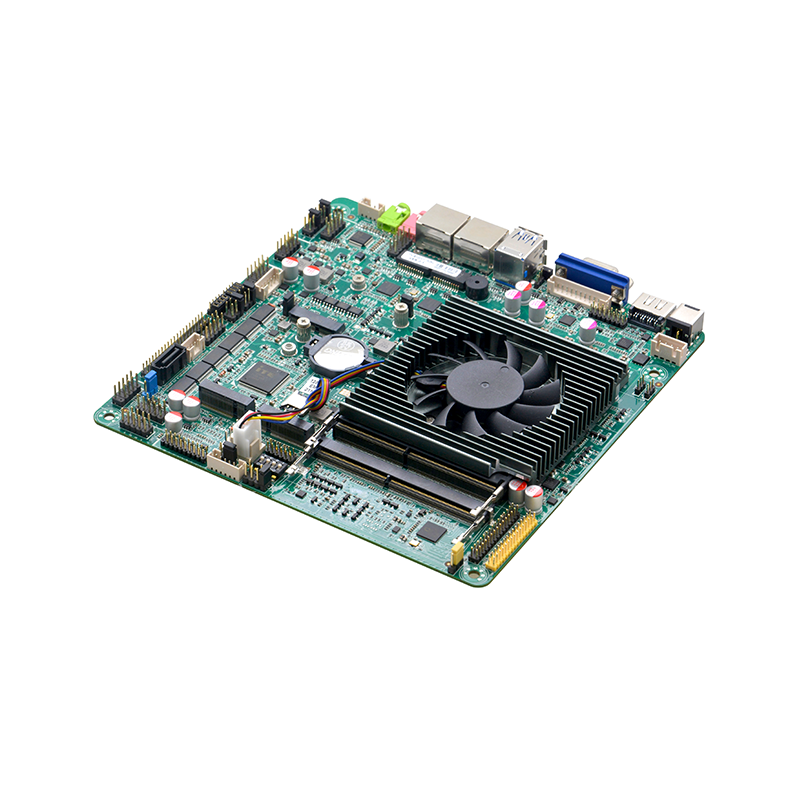

This high-performance Thin Mini-ITX motherboard is built on Intel Alder Lake SOC platform, featuring the 12th Gen Core™ i5-1235U processor (10C/12T) with powerful Intel Iris Xe Graphics. The ultra-slim Thin Mini-ITX form factor delivers exceptional computing performance while optimizing space utilization for industrial applications.
Key Features:
✔ Advanced Graphics: Intel Iris Xe Graphics with quad-display support (VGA + dual HDMI + LVDS/eDP)
✔ High-Speed Memory: Dual-channel DDR4 3200MHz (max 64GB)
✔ Rich Connectivity:
●2×GbE ports + 10×USB interfaces
●6×COM (RS232/485/422) + TPM security module
✔ Expansion Flexibility:
●1×SATA3.0 + 1×M.2 NVMe SSD
●1×M.2 WiFi + 1×M.2 (4G/5G) + SIM slot
✔ Industrial Reliability: GPIO, watchdog timer, 4Ω/3W audio amplifier
✔ Power Efficiency: 12V DC input
Applications: Industrial Automation | Digital Signage | Medical Imaging | Edge AI

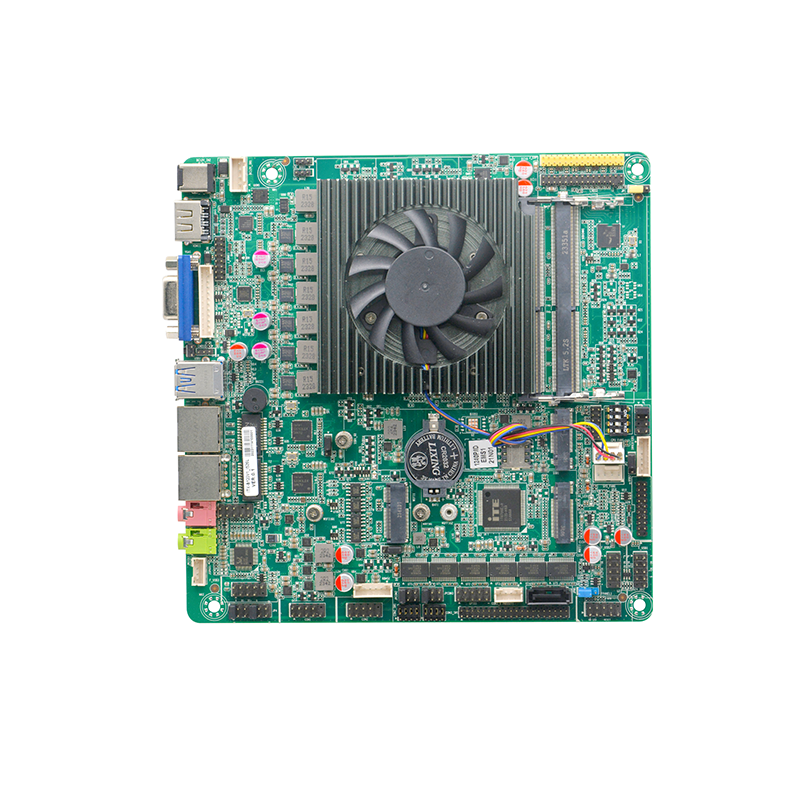

Detail Display

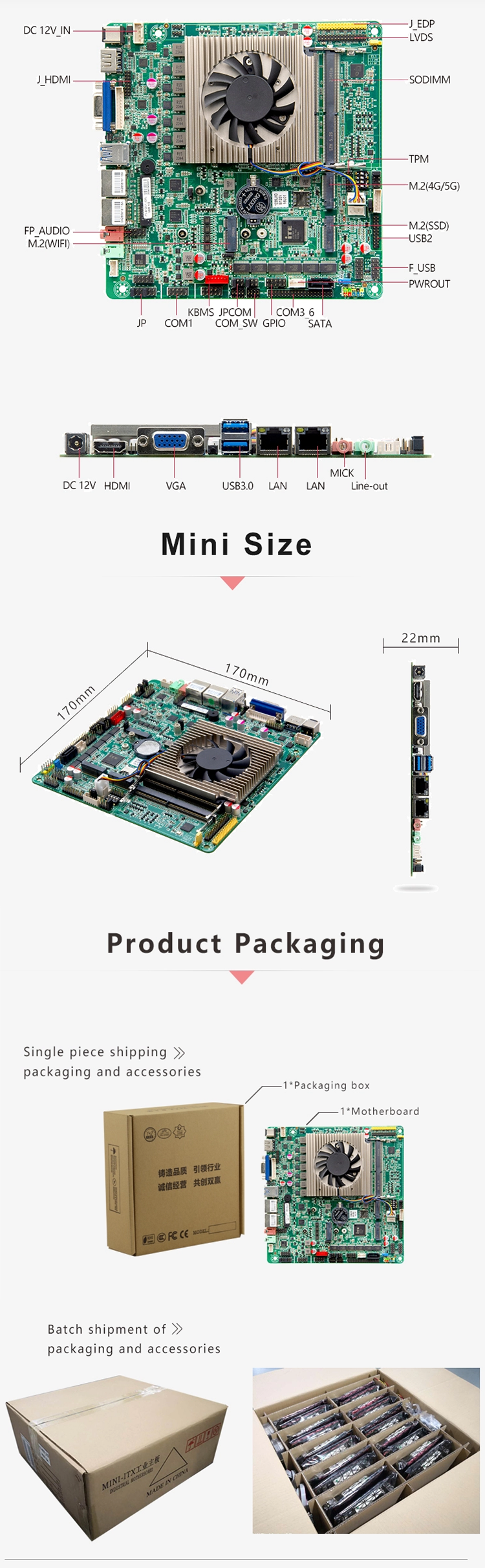

Thin%20mini%20itx%20motherboard.png)
Product Description

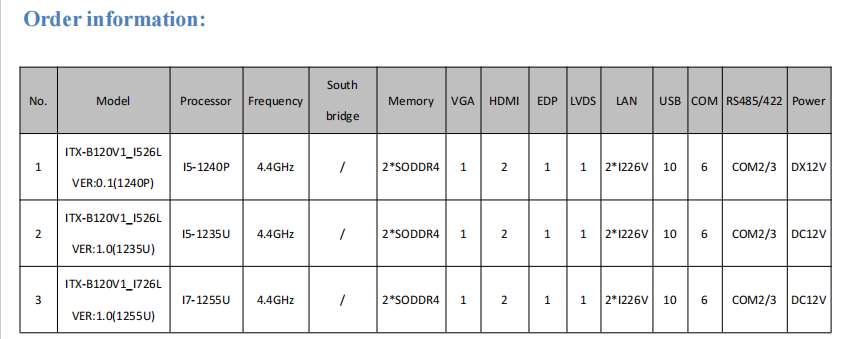

Model No.: ITX-B120V1_I526L VER:1.0(1235U)
Processor: Integrated IIntel®Alder Lake 12th Core I5-1235U 10 cores 12 thread processor, TDP 15W
Compatible with Intel®Alder Lake/Raptor Lake 12th/13th Celeron/I3/I5/I7 Processor
Chipset: SOC
Memory: 2*DDR4 SODIMM memory slot, Supports 3200MHz, up to 64GB
Display:
Integrated Intel® Iris® Xe Graphics core graphics card, Supports DirectX12.1,OpenGL4.6, and 4K/60Hz display
1*VGA,The highest resolution supported is 1920x1080@60Hz
1*HDMI2.0,The highest resolution supported is 4096x2304@60Hz
1* HDMI1.4,The highest resolution supported is 4096x2304@24Hz
1* LVDS, supporting dual-channel 24BIT
1* EDP interface, and LVDS interface through the jumper(EDP and LVDS are optional)
Ethernet: 2* Intel KTI226V(2.5G) Gigabit Ethernet ,Supports network wake up /PXE function
Storage:
1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps
1* M.2 slot, supporting M.22280 NVME PCIE 3.0 X4 SSD
Audio:
Onboard ALC897 7.1+2 channel high-fidelity audio controller, support MIC/Line_out,power amplifier
The amplifier supports 4Ω/3W dual channels
Expansion Slot:
1* M.2 slot, supporting the M.2 2230 WIFI module
1* M.2 slot, supporting the M.2 2242/2252 4G/5G module

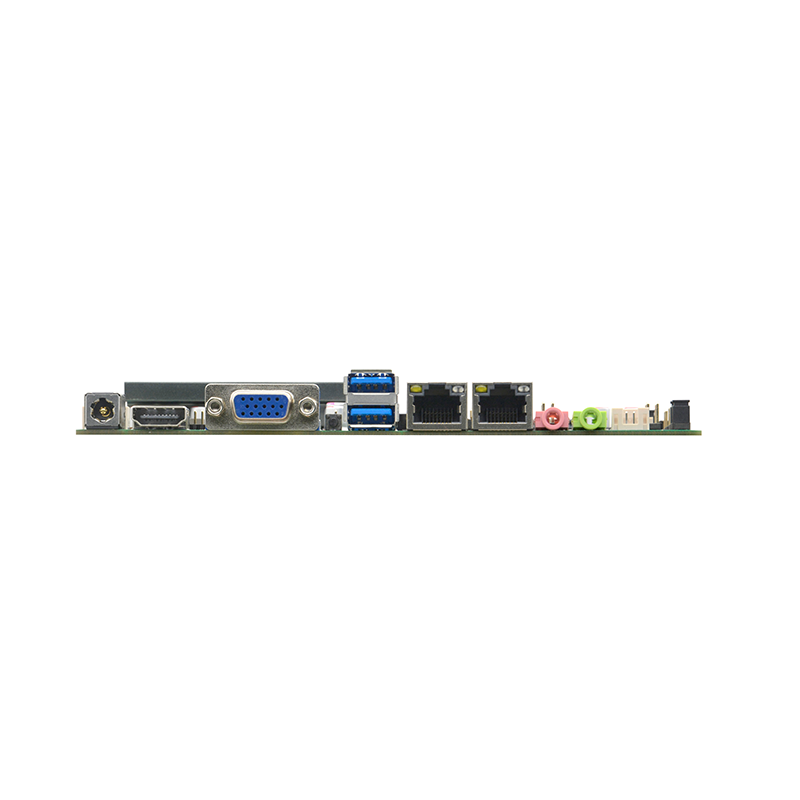

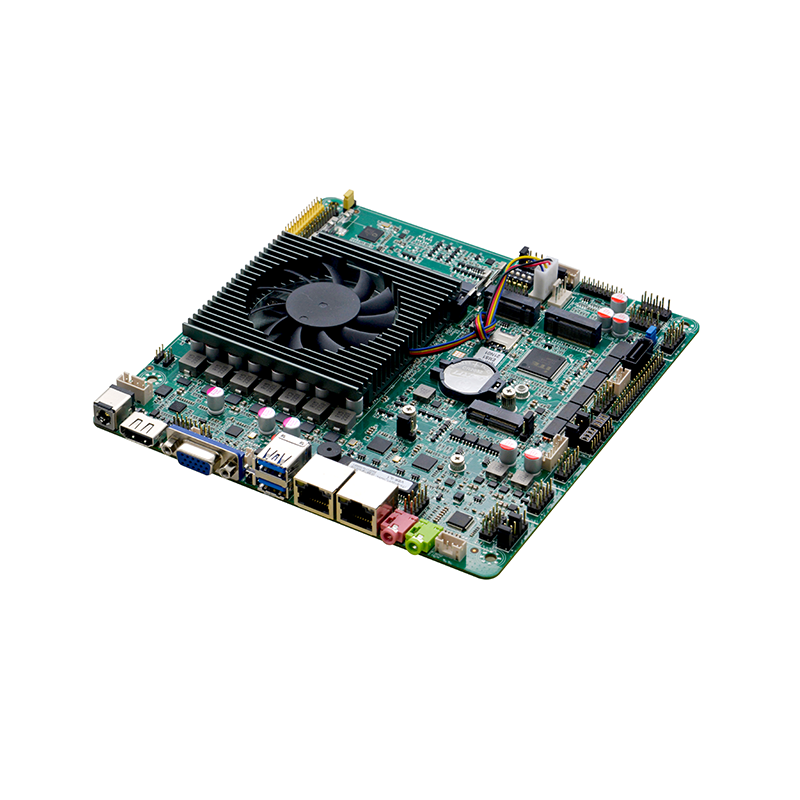

Rear I/O interface:
1* DC12V power port ,supports 12V power input and output
1*HDMI2.0
1*VGA
2*USB3.0(5Gbps)
2* RJ45 Gigabit network interface (LAN2 and USB2.0 are listed together)
1* Line out interface (green), 1* MIC interface (red)
Built in I/O interface:
1* JVGA pin port 1*12pin, same signal as DB15
1* JHDMI interface 2*8pin, can be used alone
1*LVDS, 2*15PIN
1* EDP interface, 2*15pin ( LVDS are optional by jumping)
1* screen backlight power supply interface, 1*6pin
6* RS232 serial port, of which COM1 supports 9pin live function, COM2/3 supports RS485/422
1* front audio interface, 2*5Pin
1*power amplifier interface , 1*4Pin
1*Function buttons and indicators on the front panel, 2*5Pin
6*USB2.0, 2*5pin
2*USB3.0, 2*10pin
1* PS/2 keyboard and mouse interface, 1*6pin
1* hard drive power port, 1*4pin
1*TPM, 2*6pin
1*4pin DC power interface, support 12v power input and output
1*SIM card slot
Fan Connector: 1*4pin CPU intelligent fan interface; 1*4pin system fan port
GPIO: Support 4-way input output GPIO function
BIOS: 256Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC12V power supply
operating system: Windows 10/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 170mm x 170mm
