Product Description

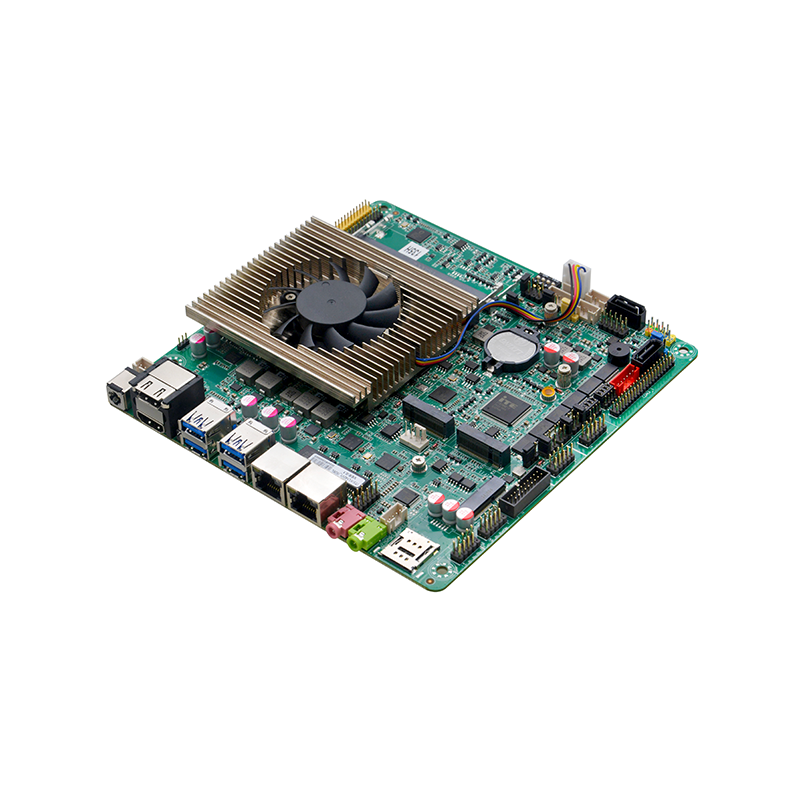

ITX-YL140V1_I526L thin itx motherboard main application:commercial display, industrial automation, transportation industry, medical. etc.

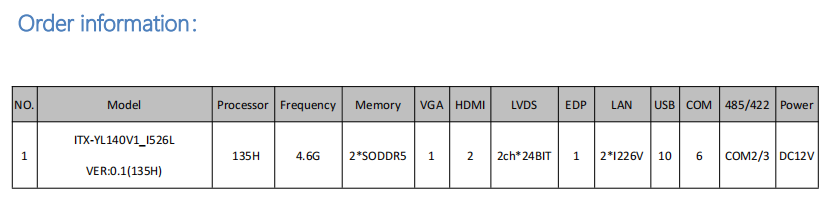

Model No.: ITX-YL140V1_I526L VER:0.1(135H)
Processor: industrial motherboards integrated Intel®Meteor Lake Core™ Ultra 5 135H 4.6GHz, 14-core 18-thread processor, TDP 6W
Compatible with Intel®Meteor Lake-U/H 14th CPU
Chipset: SOC
RAM: 2x DDR5 SODIMM memory slot, support 5600MHz memory, up to 96GB
Display:
industrial motherboards integrated Intel® Arc™ graphics, support DirectX 12.1, OpenGL4.6, support 4K
2x HDMI2.0, supports a maximum resolution of 4096 x 2304 @ 60Hz
1x LVDS, support dual channel 24bit interface
1x EDP
Note: The LVDS and EDP interfaces are selected by wire jumper(LVDS default)
Ethernet: 2x Intel I226 Gigabit LAN, support Wake-on-LAN, PXE function(LAN2 and USB2.0 are co-line)
Storage:
1x SATA3.0 hard disk interface, transfer rate up to 6Gbps
1x M.2 slot, support 2260/2280 NVME PCIE x4/SATA specification SSD
Audio:
Onboard ALC897 7.1+2 channel Hi-Fi audio controller,support MIC/Line-out.Power amplifier
Support power amplifier 4Ω3W horn
Expand slot:
1x M.2 slot, support M.2 Key E 2230 WIFI module
1x M.2 slot, support Key B 2242/4452 5G module

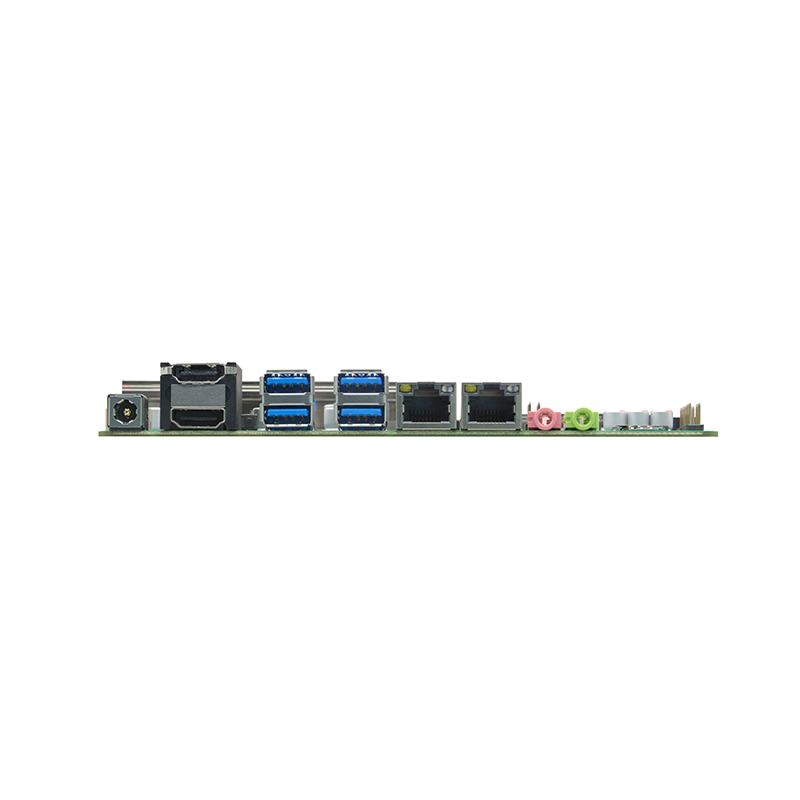

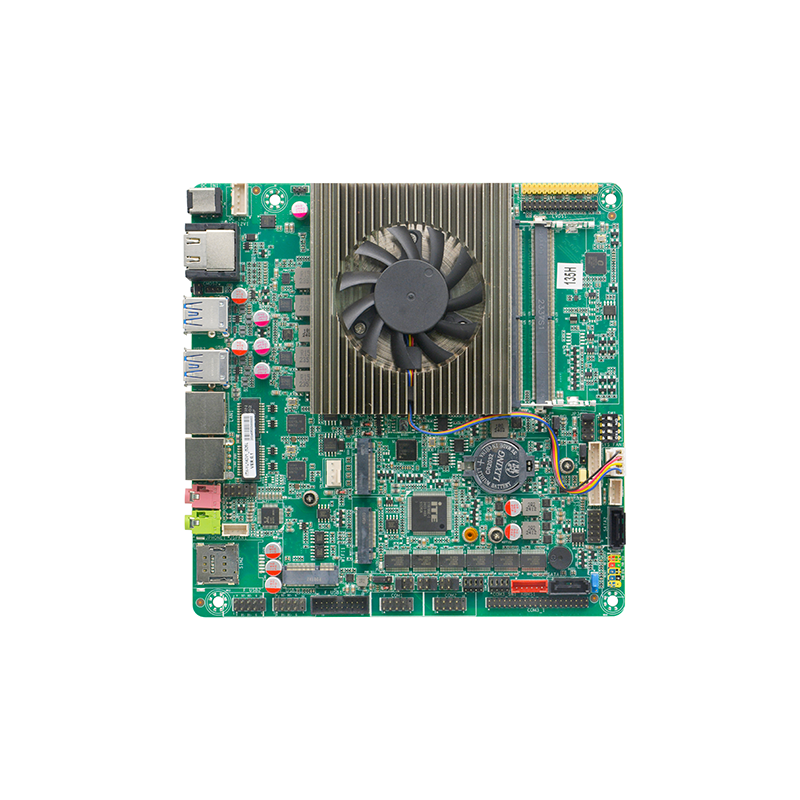

Backplane I/O Interface:
4x USB3.0
2x HDMI2.0
2x RJ45 (LAN2 and USB2.0 are co-line)
1x Line-out(green), 1x MICK(red)
1x DC12V, support 12V power supply input
1x SIM
Built-in I/O interface:
1x LVDS, 2x15pin, support dual channels 24BIT
1x Screen backlight power supply interface, 1x 6pin
1x EDP, 2x 15pin(The LVDS and EDP interfaces are selected by wire jumper)
6x RS232 serial port,COM2 Support the 9th pin charging function,COM2/COM3 support RS485/422 function
1x PS/2 keyboard and mouse interface (red), 1x 6Pin
4x USB2.0, 2x 5pin, one set of USB2.0 and external USB2.0 co-line
2x USB3.0, 2x 10pin
1x Front panel audio interface, 2x 5pin
1x Front panel function button and indicator interface, 2x 5pin
2x Hard drive power supply interface, 1x 4pin
1x Amplifier interface, 1x 4pin
1x DC power supply interface, 1x 4pin support 12V power input output
Fan interface: 1x 4pin CPU smart fan interface, 1x 4pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function(256 levels, 0~255 seconds)
Operating system: Windows 10/Linux
Power Type: Powered by DC 12V power supply
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, no condensation
Dimension: 170mm x 170mm
