Key Features:
✔ Efficient Quad-Core: Intel J3455 with HD Graphics 500 (10W TDP)
✔ Multi-Display Support: VGA + HDMI + LVDS (triple independent outputs)
✔ Memory: Single DDR3L 1866MHz (max 8GB)
✔ Industrial I/O:
1×GbE + 10×USB (4×USB3.0)
6×COM (RS232/485/422) + SIM + LPT
✔ Storage & Expansion:
1×SATA2.0 + 1×mSATA
1×M.2 SSD + 1×mini-PCIe (WiFi/3G/4G)
✔ Rugged Design:
GPIO + Watchdog + 2Ω/5W audio
Fanless dual 12V DC/ATX power
Detail Display
Product Description

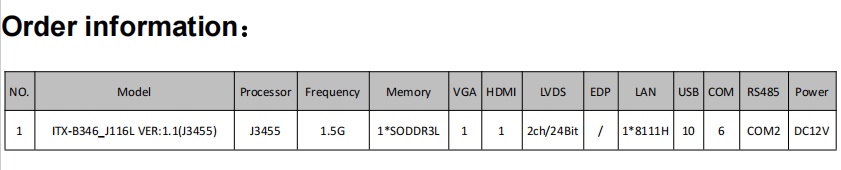

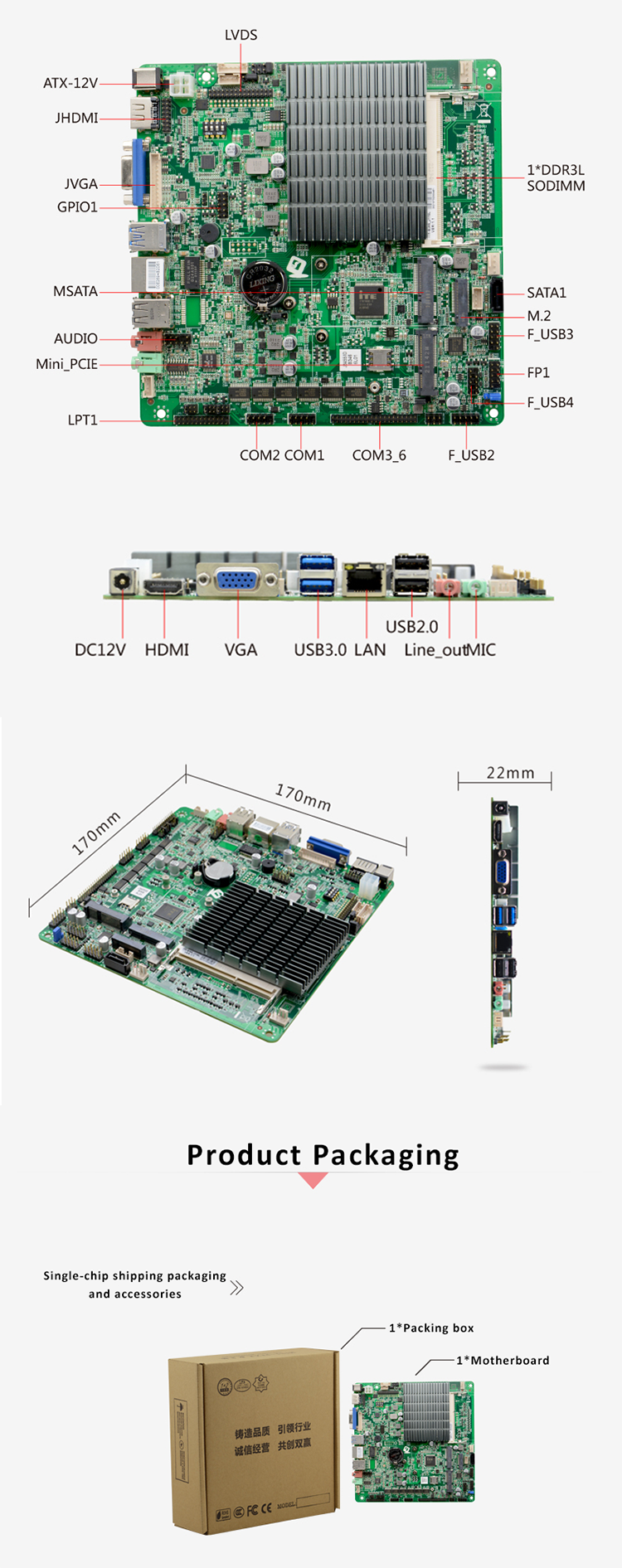

Model No.: ITX-B346_J116L VER:1.1(J3455)
Processor: Integrated Intel® Celeron J3455 1.5GHz quad-core processor, TDP power consumption 10W
Compatible with Intel® Apollo Lake Celeron/Pentium low-power processor
Chipset: SOC
RAM: 1x DDR3L SODIMM, support single channel 1600/1866MHz 1.35V memory, maximum support 8GB
Display:
Integrated Intel®HD Graphics 500 core graphics card
1x VGA, 1x HDMI, 1x LVDS interface (support dual channel 24Bit) or 1x EDP interface
Support VGA, HDMI, LVDS synchronous/asynchronous display
Ethernet: 1x RTL8111HS gigabit network card chip, support Wake-on-LAN/PXE function
Storage: 1x 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
1x MSATA slot, support SSD transfer speed up to 6Gbps,
1x M.2 slot, support M.2 2280 NVME PCIE standard SSD
Audio: Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out.
It is recommended to use 2Ω5W speakers for the power amplifier
Expansion Slot: 1x Mini-PCIE slot supports WIFI/3G module
Backplane I/O interface: 2* USB3.0 interface, 2*USB2.0 interface
1x HDMI1.4 interface
1x VGA DB15 interface
1x RJ-45 Gigabit network interface
1x Line out (green)
1x Mic (red)
1x 12V DC power input interface
Built-in I/O interface:
1x LVDS interface 2x 15pin, support dual channel 24Bit LCD display
1x screen backlight power supply interface (1x 6pin)
1x Screen brightness adjustment interface 1x 4pin
1x HDMI interface 2x 8Pin, the same signal as the HDMI interface on the back panel
1x JVGA interface 1x 12pin, the same signal as DB15
6x RS232 serial port, COM2 can support RS485, COM1/COM2 supports the 9th pin charged function
1x LPT interface 2x 13pin
6x USB2.0 interface, 2x 5pin
1x Front panel audio interface 2x 5pin
1x SIM card holder
1x Hard disk power supply interface, 1x 4pin
1x Front panel function button and indicator port 2x 5pin
2x 2pin ATX power interface, can be used as +12V input and output
1x power amplifier interface 1*4pin
Fan interface: Fanless cooling, reserved 1* 4pin CPU smart fan interface, 1*4pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Power type: DC 12V single power input
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, non-condensing
Dimension: 170mm x 170mm
