Overview

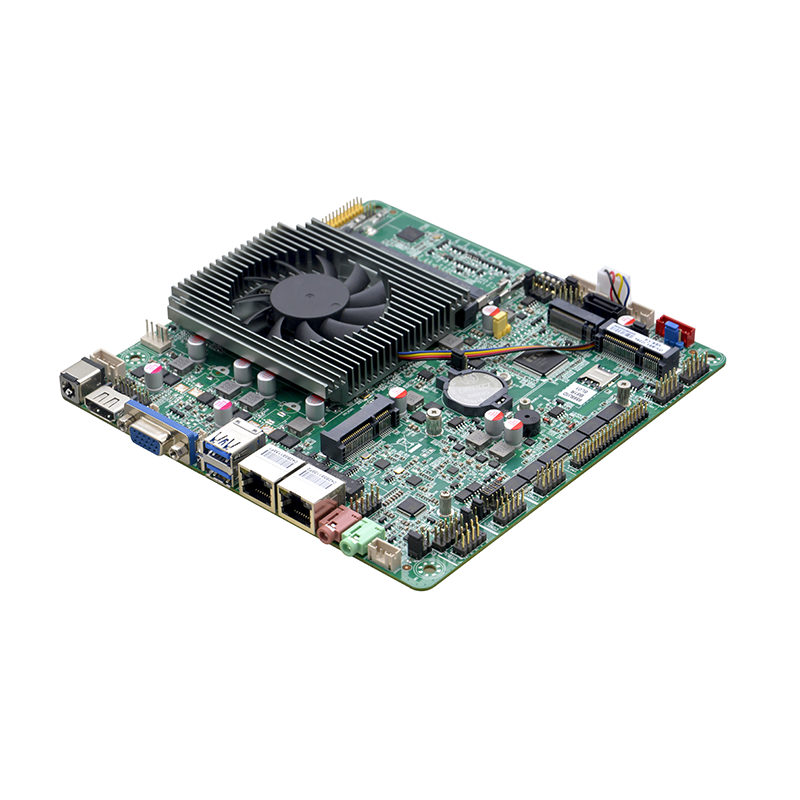

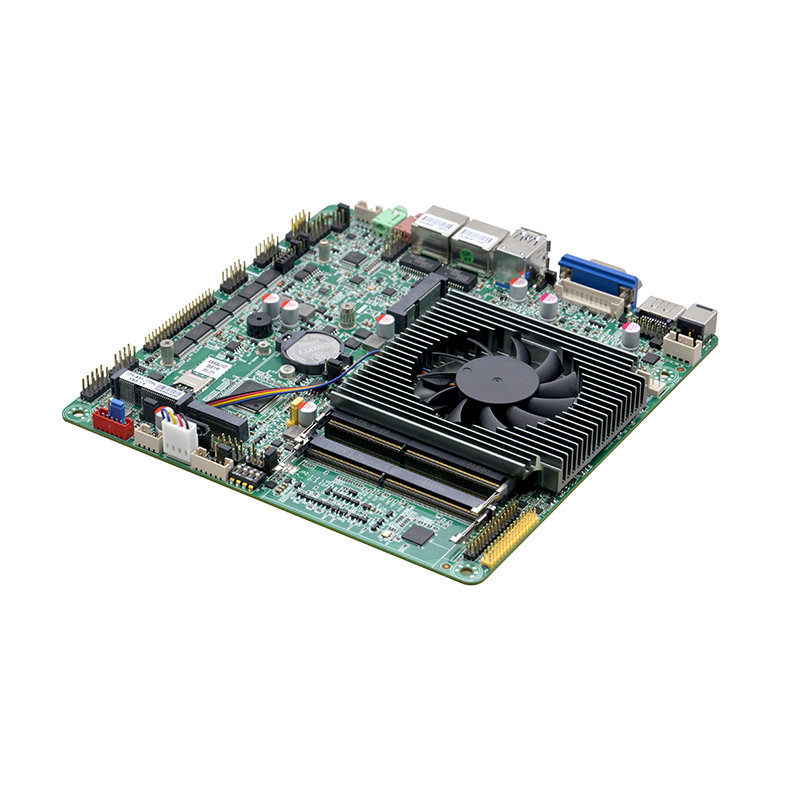

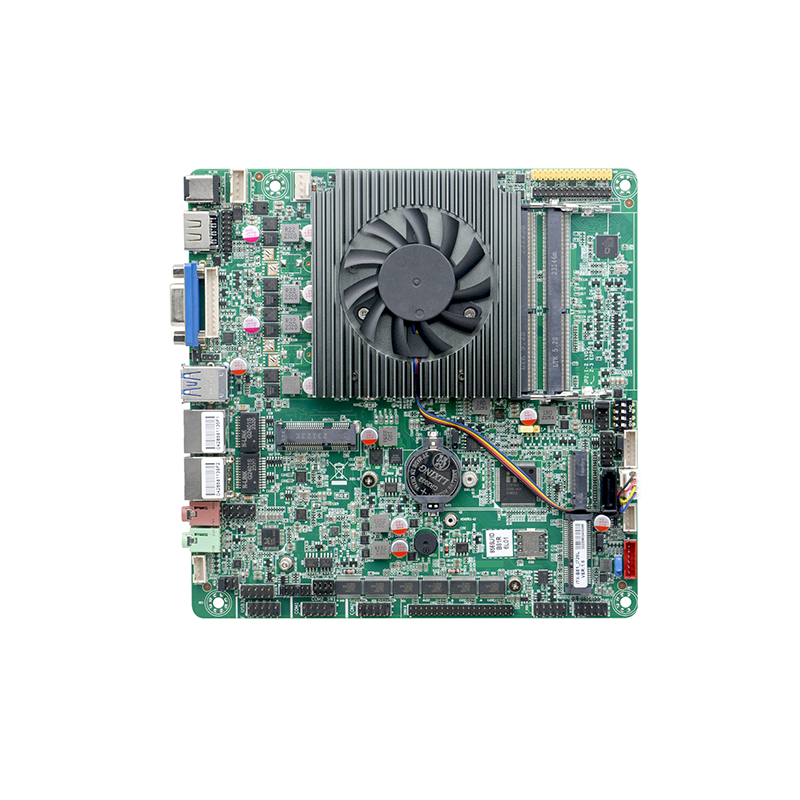

This high-performance Thin ITX motherboard is built on Intel‘s Whiskey Lake-U SOC platform, featuring the powerful 8th Gen Core™ i7-8565U processor (4C/8T, 1.8-4.6GHz) in an ultra-compact Thin ITX form factor (170×170mm). Designed for space-constrained industrial applications, it delivers workstation-class computing with robust expansion capabilities.
Key Features:
✔ Powerful Processing: Intel i7-8565U with 4.6GHz Turbo Boost
✔ 4K Multi-Display: VGA + HDMI + LVDS/eDP triple output
✔ High-Speed Memory: Dual-channel DDR4 2666MHz (max 64GB)
✔ Industrial I/O:
Dual Gigabit Ethernet (Intel® I219V + I211AT)
8×USB (4×USB3.1 Gen2) + 6×COM (RS232/485/422)
✔ Storage & Expansion:
1×SATA + 1×mSATA
1×M.2 NVMe (PCIe 3.0 x4) + 1×mini-PCIe (WiFi/4G)
✔ Rugged Design:
GPIO + Watchdog Timer
2Ω/5W audio amplifier + LPT legacy port
✔ Flexible Power: 12V DC jack or ATX 4-pin input
Detail Display
Product Description

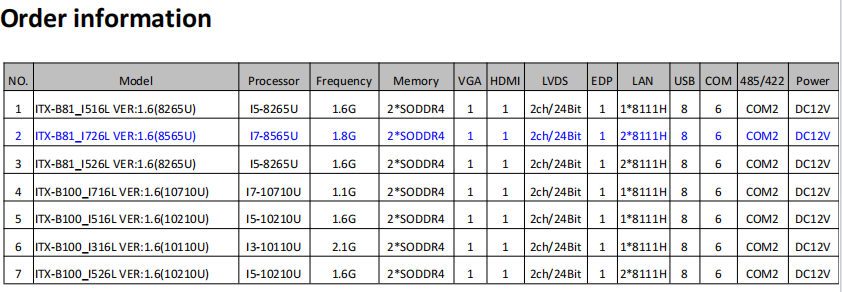

Model No.: ITX-B81_I726L VER:1.6(8565U)
Processor: Integrated 8th generation Intel®I7-8565U 1.8GHz quad-core eight-thread processor, TDP 15W
Compatible with Intel® Whiskey Lake-U/Comet Lake-U 8th/10th Celeron/Pentium/I3/I5/I7 low-power processors
Chipset: SOC
Memory: 2x DDR4 SODIMM memory slot,support 2400MHz memory ,up to 64GB
Display:
Integrated Intel® UHD Graphics ,support DirectX 12 OpenGL 4.5, support 4K
1x VGA,The maximum resolution supported is：1920X1200@60Hz
1x HDMI1.4, The maximum resolution supported is：4096x2304@24Hz
1x Support dual-channel 24bit LVDS interface, 1x EDP, choose one from the other with LVDS by jumping, default LVDS
Ethernet: 2x RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage:
1x SATA3.0,the trasfer rate is up to 6Gbps
1x MSATA, supporting Intel protocol SSD,the trasfer rate is up to 6Gbps
1x M.2 slot, supports M.2 2260/2280 NVME PCIE x4/SATA adaptive standard SSD
Audio:
Integrated ALC897 7.1+2 channel high fidelity audio controller,supporting mic and line_ Out, power amplifier
Support power amplifier 4Ω3W horn
Expansion Slot: 1x Mini-PCIE slot,supports WIFI/4G moudle

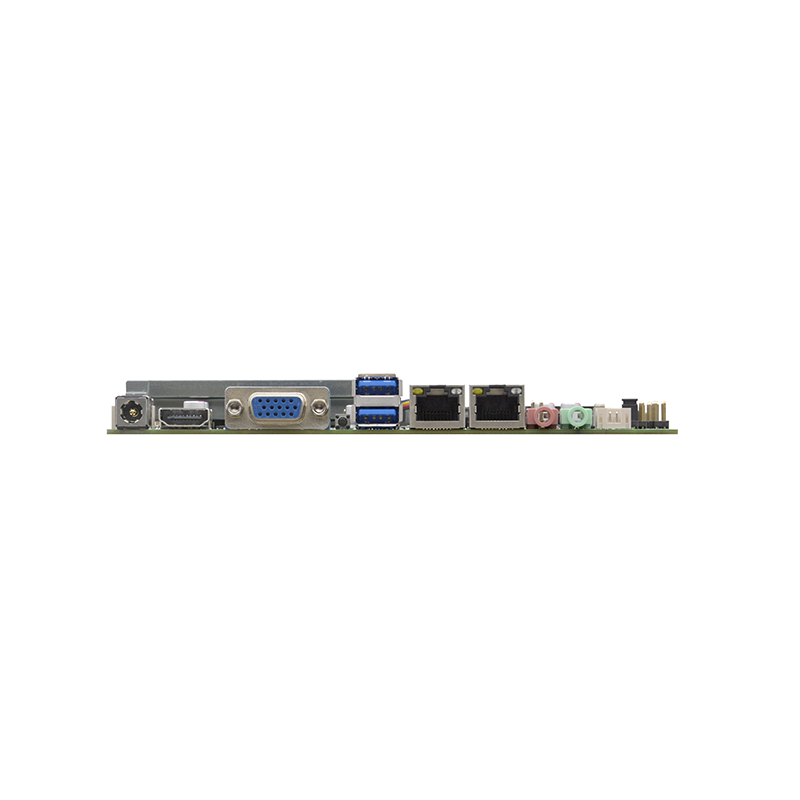

Backplane I / O interface:
2x USB3.0，
1x HDMI
1x DB15 VGA
2x RJ45 Gigabit Network Interface
1x Line-out(Green），1x MIC(red）
1x DC12V power interface, supports 12V power input

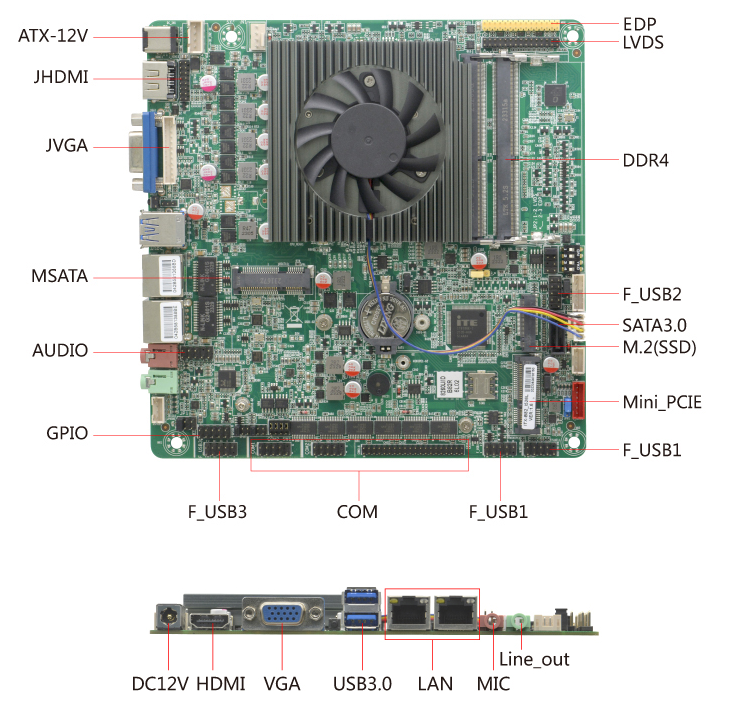

Built in I / O interface:
1x JVGA1,1x 12pin(Same signal as DB15)
1x JHDMI, 2x 10pin，Same signal as HDMI interface
1x LVDS, 2x 15pin，supports Dual channel 24bit，
1x EDP interface (yellow) 2x 15pin, choose one of the two with LVDS by jumping, the default is LVDS
1x LVDS Backlight power supply interface, 1*6pin
6x RS232 serial interface,COM1/2 supports the 9th pin charged ,COM2 supports RS485/422 function
1x PS/2(red) 1x 6Pin
6x USB2.0, 2x 5pin ,
1x Front audio interface 2x 5pin
1x Front panel switch button and indicator light interface 2x 5Pin
1x Hard disk power supply interface 1x 4pin
1x Power amplifier interface 1x 4pin
1x DC power interface 1x 4pin,Support 12V power input and output
1x SIM card slot
Fan Connector: 1x 4pin CPU smart fan connector, 1x 4pin system fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC 12V
OS: Windows 10 ,/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

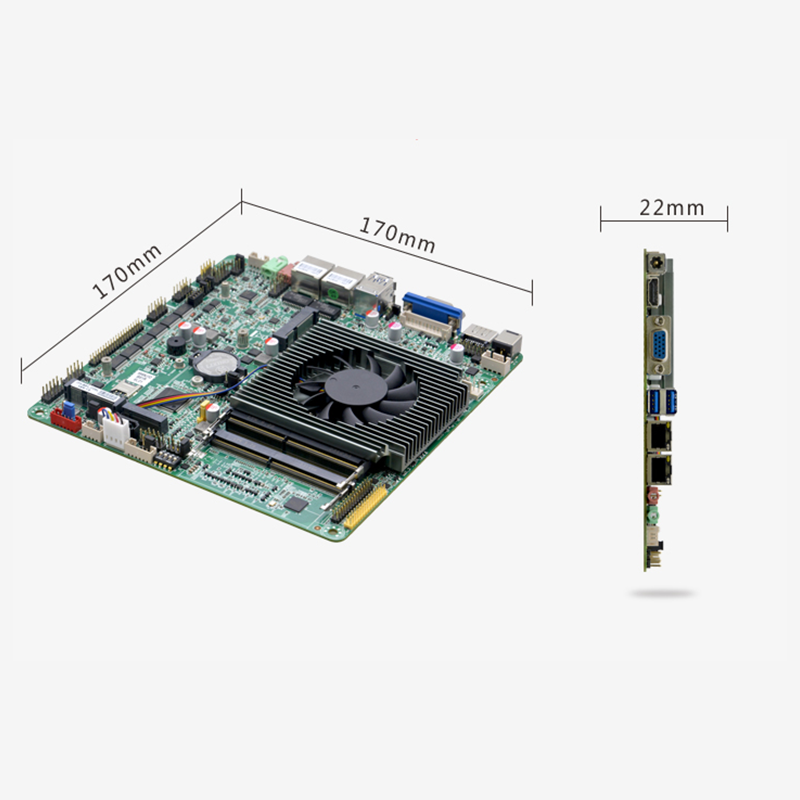

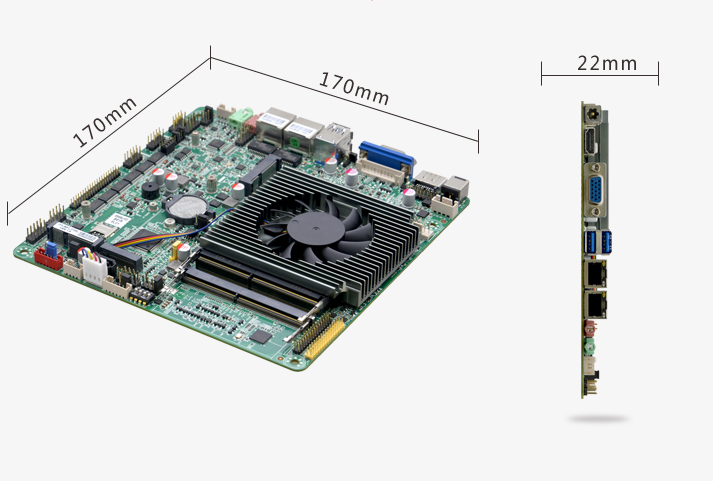

Dimension: 170mm x 170mm
