This high-performance Thin ITX motherboard is engineered on Intel Coffee Lake-U SOC platform, featuring the 8th Gen Core™ i5-8260U processor (4C/8T, 1.6-3.9GHz) in a compact Thin ITX form factor (170×170mm). Designed for demanding industrial environments, it delivers exceptional computing power with robust connectivity and expansion options.
Key Features:
✔ Power-Efficient Processing: Intel i5-8260U with 3.9GHz Turbo Boost (15W TDP)
✔ 4K Multi-Display: VGA + HDMI + LVDS/eDP (triple independent displays)
✔ Dual-Channel Memory: 2×DDR4 2666MHz (max 64GB)
✔ Industrial-Grade I/O:
Dual Intel® GbE ports
8×USB (4×USB3.1 Gen2)
6×COM (RS232/485/422) + LPT legacy port
✔ Storage & Expansion:
1×SATA3.0 + 1×mSATA
1×M.2 SSD (PCIe/SATA) + 1×mini-PCIe (WiFi/4G)
✔ Rugged Design:
GPIO + Watchdog Timer
4Ω/3W audio amplifier
SIM card slot for cellular connectivity
✔ Dual Power Input: 12V DC jack or ATX 4-pin
Applications: Industrial Automation | Machine Vision | Medical Equipment | Transportation Systems
Detial Display
.png)
.png)
Product Description

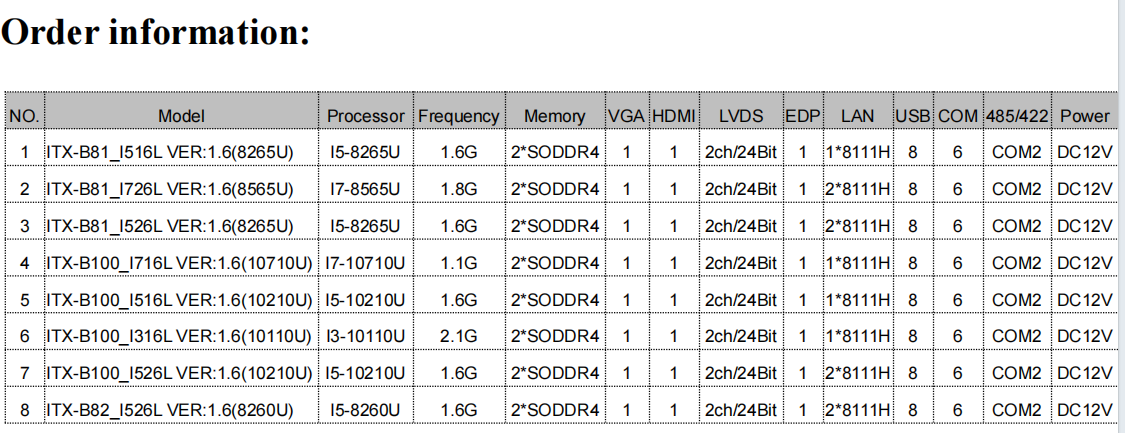

Model No.: ITX-B82_I526L VER:1.6(8260U)
Processor: Integrated 8 generation Intel®I5-8260U 1.6GHz quad-core eight-thread processor,TDP 15W
Compatible with Intel®Whiskey Lake-U/Comet Lake-U 8th/10th Celeron/Pentium/I3/I5/I7 low power processors
Chipset: SOC
Memory: 2x DDR4 SODIMM slot, Supports 2400MHz memory, up to 64GB
Display:
Integrated Intel® UHD Graphics 620,support DirectX 12 OpenGL 4.5, support 4K
1x VGA,The highest resolution supported is 1920X1200@60Hz
1x HDMI1.4 port, the highest resolution supported is 4096x2304@24Hz
1x Supports dual channel 24bit LVDS interface,1* EDP, and LVDS by jumping one of two options, default LVDS
Ethernet: 2x RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage:
1x SATA3.0 hard disk interface, transmission rate up to 6Gbps
1x MSATA slot, Support Intel protocol SSD, transmission speed up to 6Gbps
1x M.2 slot, support M.2 2260/2280 NVME PCIE x4/SATA adaptive standard SSD
Audio:
Integrated ALC897 7.1+2 channel hi-Fi audio controller,support MIC, Line_out, power amplifier
Suggest power amplifier 4Ω3W horn
Expansion Slot: 1x Mini-PCIE slot, supporting WIFI/4G module

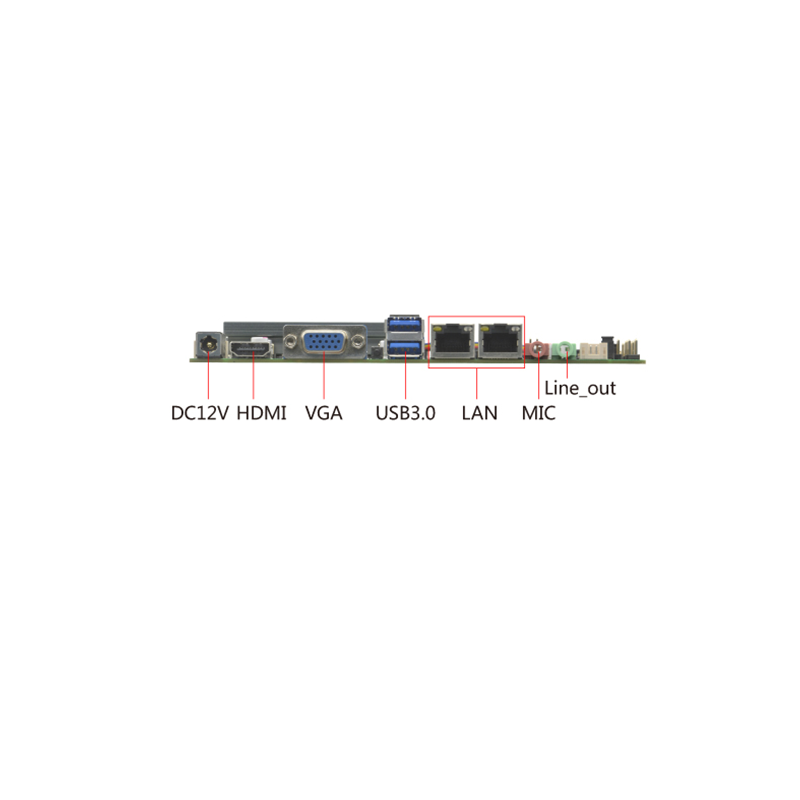

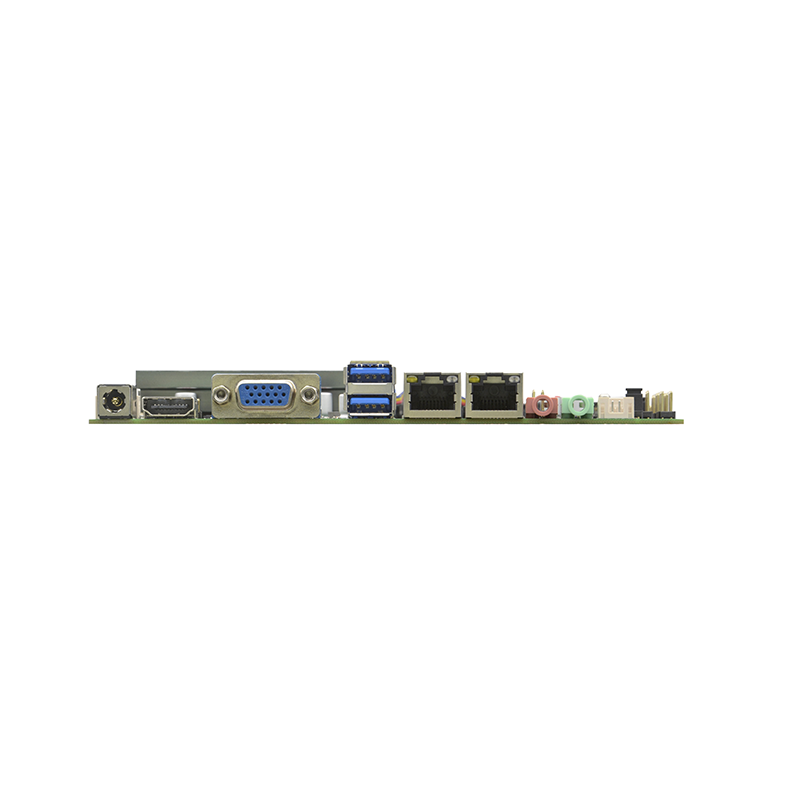

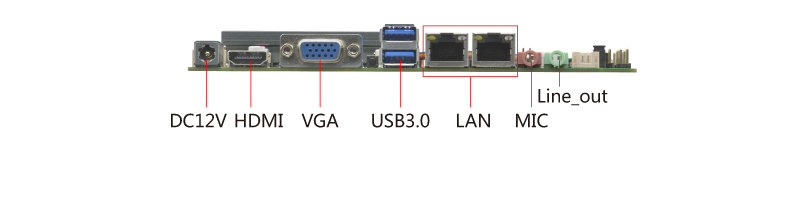

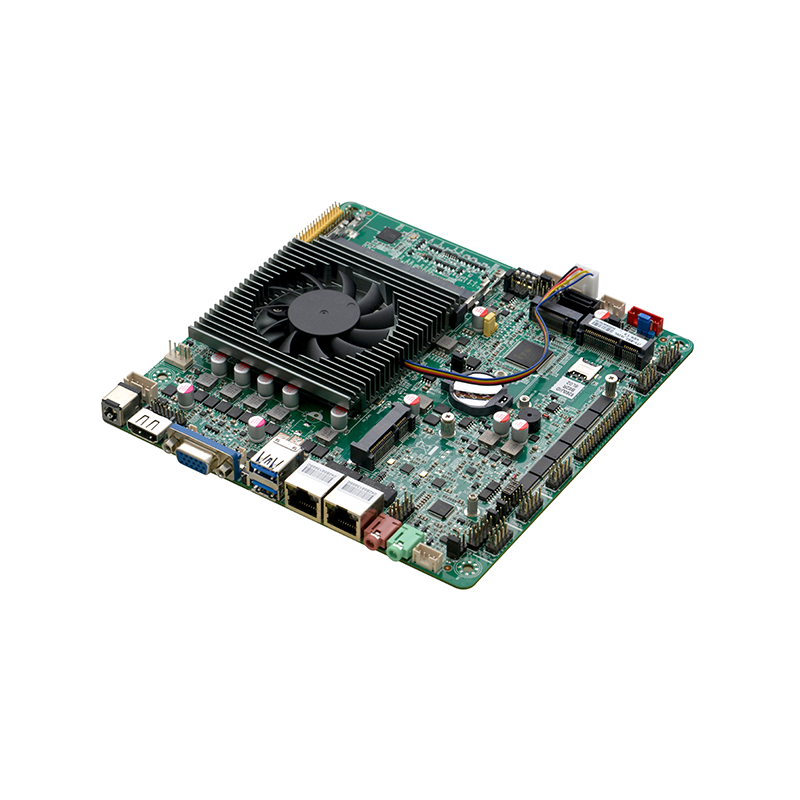

Rear I/O interface:
2x USB3.0
1x HDMI
1x DB15 VGA
2x RJ45 Gigabit network interface
1x Line out interface (green),1x MIC interface (red)
1x DC12V power port, supports 12V power input

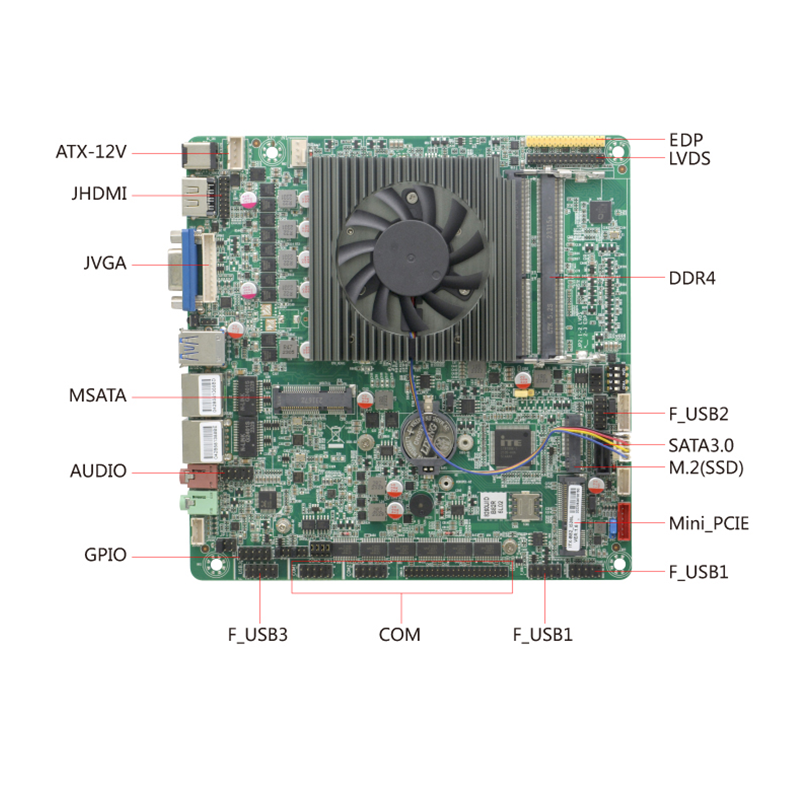

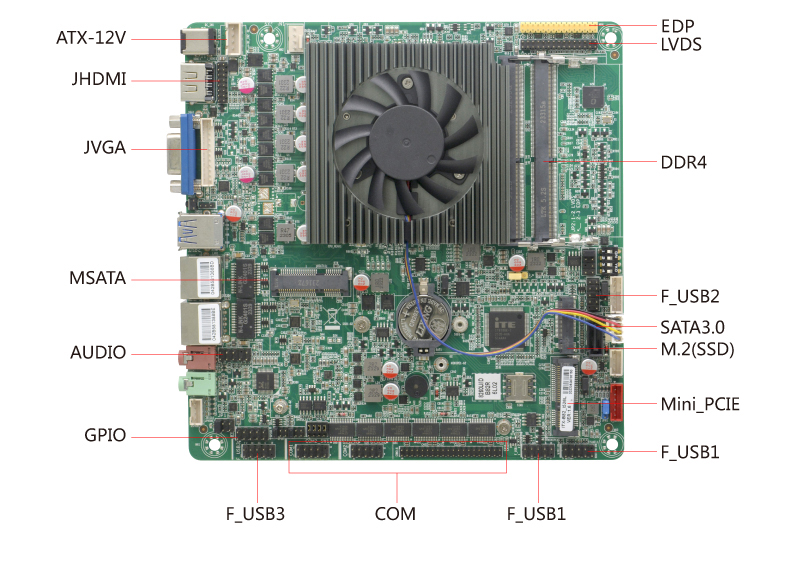

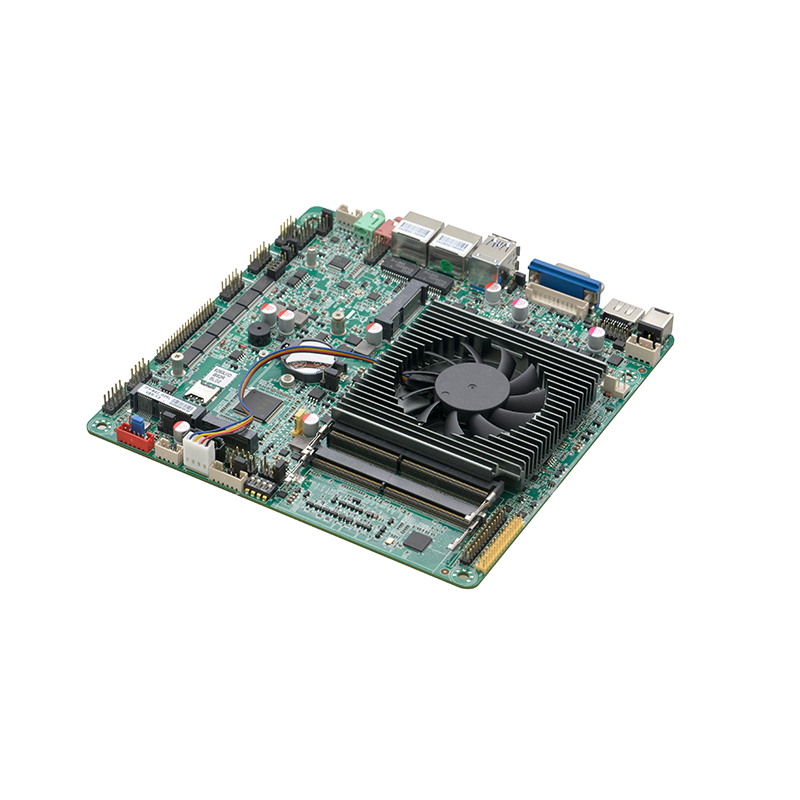

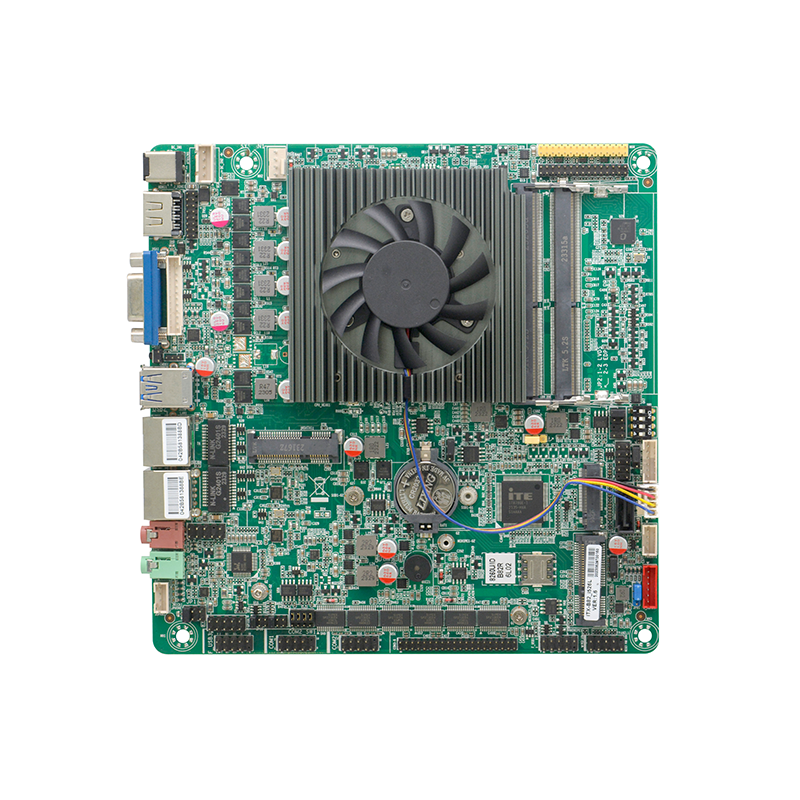

Built in I/O interface:
1x JVGA1 Interface 1x 12pin(same signal as DB15)
1x JHDMI interface 2x 10pin, the same signal as the HDMI interface
1x LVDS interface 2x 15pin, support dual channel 24bit
1x EDP interface (yellow) 2x 15pin, with LVDS by jumping one of two, default LVDS
1x LVDS backlight power supply interface 1x 6pin
6x RS232 serial interface,COM1/2 support 9pin live function,COM2 support RS485/422 function
1x PS/2 Keyboard and mouse interface (red) 1x 6Pin
6x USB2.0 2x 5Pin
1x front audio interface 2x 5pin
1x Front panel switch button and indicator port 2x 5Pin
1x hard drive power port 1x 4pin
1x power amplifier interface 1x 4pin
1x DC power port 1x 4pin, support 12V power input and output
1x SIM card seat
Fan Connector: 1x 4pin CPU intelligent fan interface, 1x 4pin system fan interface
GPIO: Support 4-way input output GPIO function
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC 12V power supply
Operating system: Windows 10/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

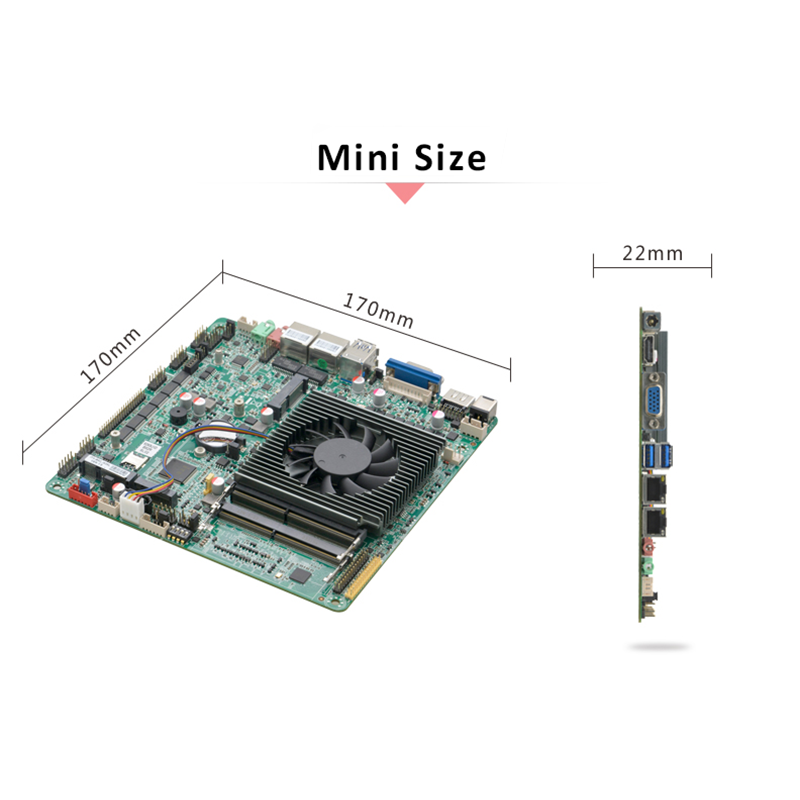

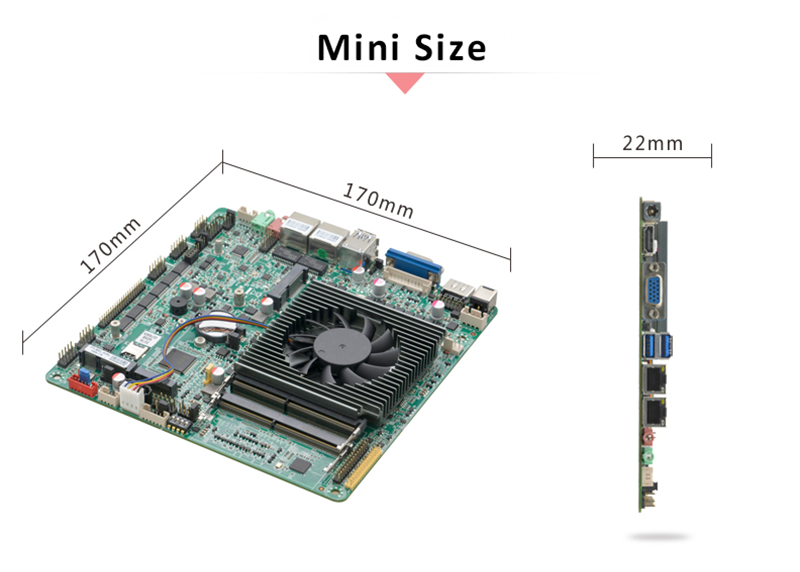

Dimension: 170mm x 170mm
