Key Features:
✔ Quad-Core Power: Intel J4125 with UHD Graphics 600 (10W TDP)
✔ Multi-Display Support: VGA + HDMI + LVDS/eDP (triple independent outputs)
✔ Memory: Single DDR4 2400MHz (max 8GB)
✔ Industrial I/O:
Dual GbE ports + 8×USB
10×COM (RS232/485/422)
✔ Storage & Expansion:
1×SATA3.0 + 1×mSATA
1×mini-PCIe (WiFi/4G)
✔ Rugged Design:
GPIO + Watchdog + 2Ω/5W audio
Fanless 12V DC power
Applications: Factory Automation | Transportation Systems | Industrial IoT
Detail Display
Product Description
Product No.: ITX-B413_J1210L VER:1.0（J4125）
Processor: Integrated Intel®Celeron J4125 2.0GHz quad-core quad-thread processor ,TDP 10W
Compatible with Intel® Gemini Lake all series CPU for customers to choose flexibly
Chipset: SOC
RAM: 1x SODIMM slot,support single channel 2400MHz DDR4 memory,up to 8GB
Display: Integrated Intel® UHD Graphics 600 core Graphics
1x VGA,1x HDMI,1x LVDS interface，support dual channel 24BIT
Ethernet: 2x Realtek RTL8111H Gigabit Ethernet,support Wake-on-LAN/PXE
Storage: 1x 7pin SATA3.0 hard disk interface,the transfer speed can reach 6Gbps
1x MSATA slot supports SSD solid state drive,the transfer speed can reach 6Gbps
Audio: Onboard ALC897 7.1+2 channel high-fidelity audio controller,support MIC/Line-out. Power amplifier
It is recommended to use a 2Ω5Wspeaker for the power amplifier
Expansion slot :1x Mini-PCIE slot, support WIFI, 4G module
Note: If MINIPE1 needs to support 4G module,you need to adjust the relevant hardware settings,and it will cause F_USB2 to only support 1 USB

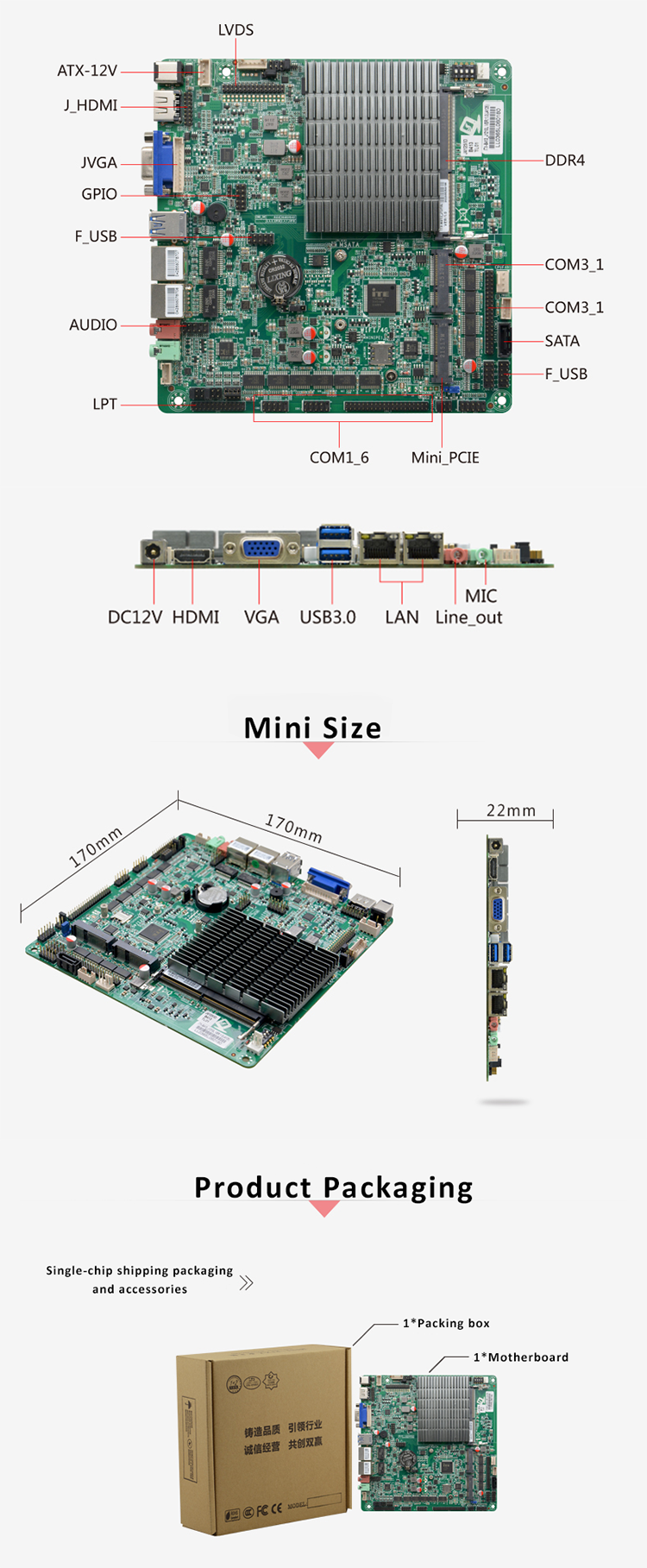

Backplane I/O Interface:
1x HDMI display interface
1x VGA display interface
2x USB3.0 interface,
2x RJ-45 Gigabit network interface
1x Line out interface (green)、1x MIC interface (red)
1x 12V DC power input interface
Built-in I/O interface:
1x 4pin DC power interface (can be used as 12V input and output power interface)
1x LVDS interface 2x15pin，support dual channel 24BIT
1x Screen backlight power supply interface 1*6pin
6x USB 2.0 interface 2x 5Pin
1x J_HDMI interface 2x 8Pin(same signal as HDMI1 of backplane IO interface)
1x JVGA interface 1x 12Pin(same signal as DB15)
10x RS232 serial interface， COM1/2 supports the 9th pin live function, COM2 supports RS485/422 function.
1x LPT parallel interface 2x 13Pin
1x front audio interface 2x 5pin
1x Front panel switch button and indicator port 2x 5Pin
1x hard drive power supply interface 1x 4pin
1x Amplifier interface 1x 4pin
1x SIM card holder
Fan interface: Fanless cooling design,reserved 1x 4pin CPU fan interface,1x 3pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Operating system: Windows 10/Linux
Power Type: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, no condensation
Dimension: 170mm x 170mm
