Key Features:
✔ Quad-Core Processing: Intel J4125 with UHD Graphics 600 (10W TDP)
✔ Multi-Display Support: VGA + HDMI + LVDS/eDP (triple independent outputs)
✔ Memory Configuration: Single DDR4 2400MHz (max 8GB)
✔ Industrial I/O:
Dual GbE ports + 8×USB
6×COM (RS232/485/422) + SIM slot
✔ Storage & Expansion:
1×SATA3.0 + 1×mSATA
1×M.2 SSD + 1×mini-PCIe (WiFi/4G)
✔ Rugged Design:
GPIO + Watchdog Timer
4Ω/3W audio amplifier
Fanless 12V DC power
Detail Display
Product Description

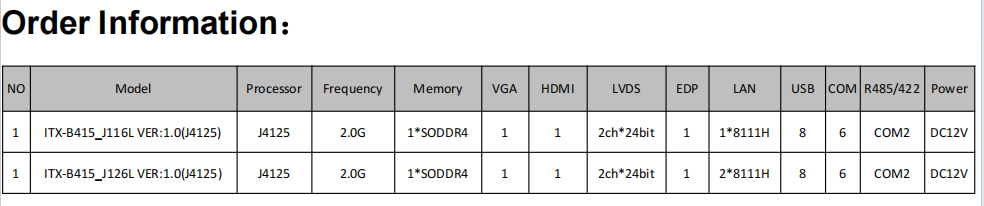

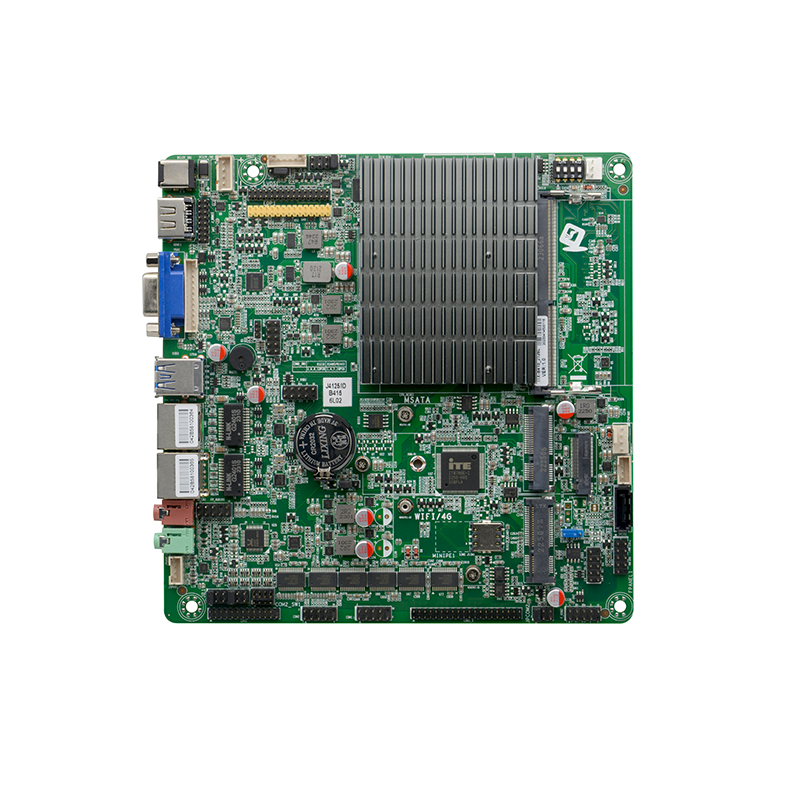

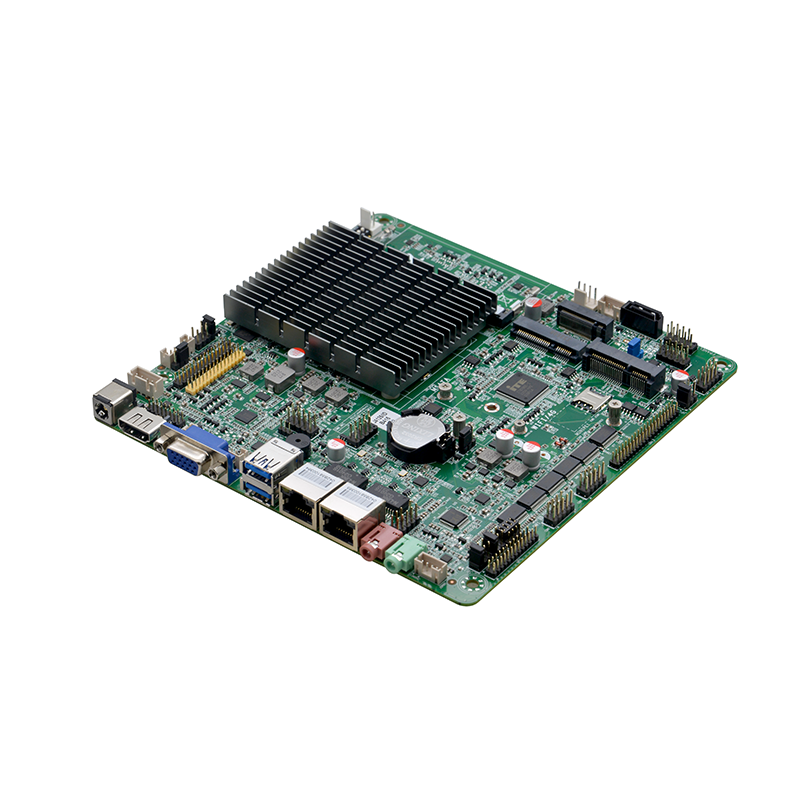

Model No.: ITX-B415_J126L VER:1.0（J4125）
Processor: Integrated Intel®Celeron J4125 2.0GHz Quad core Quad thread processor ,TDP 10W
Compatible with Intel® Gemini Lake all series CPU
Chipset: SOC
Memory: 1x SODIMM slot,supports single channel 2400MHz DDR4 memory,up to 8GB
Display: Integrated Intel® UHD Graphics 600
1x VGA,1xHDMI,1x LVDS, supports dual channels 24BIT,1x EDP (Choose EDP or LVDS, the default is LVDS)
Ethernet: 2x Realtek RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage: 1x 7pin SATA3.0, the transfer rate is up to 6Gbps
1x MSATA, supports SSD, the transfer rate is up to 6Gbps
1x M.2, supports M.2 Key M 2260/2280 PCIE X2 specification SSD
Audio: Onboard ALC897 7.1+2 channel high fidelity audio controller, supporting MIC,Line-out and power amplifier
Suggest power amplifier 4Ω3W horn
Expansion Slot: 1x Mini-PCIE, supports WIFI and 4G module
Note: If MINIPE1 need to support 4G module,need to adjust the relevant hardware settings, and it will cause F_USB2 to only support 1 USB

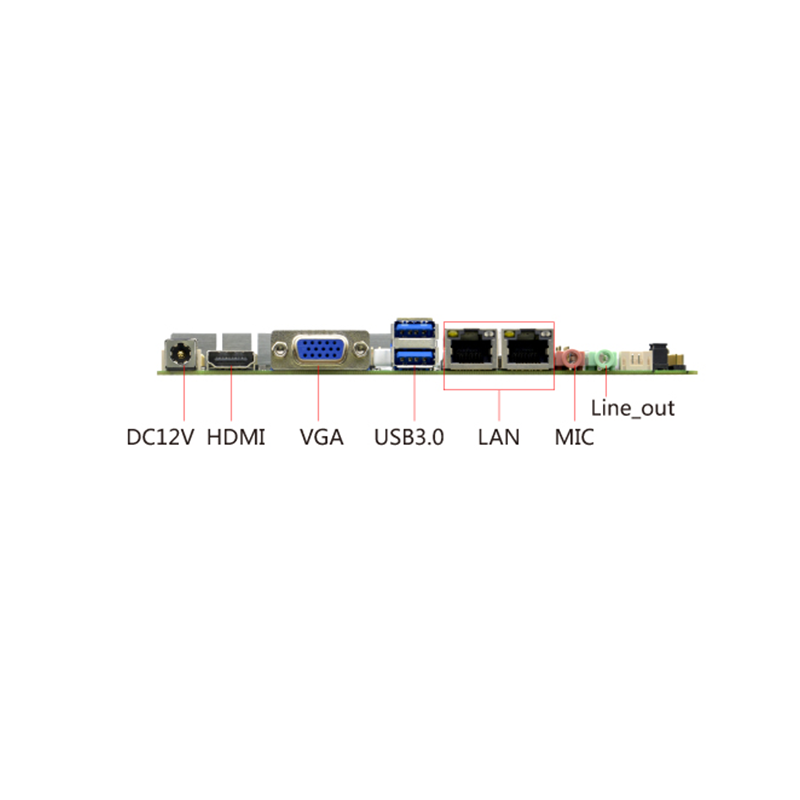

Rear I/O interface:
1x HDMI
1x VGA
2x USB3.0
1x RJ-45 Gigabit Network Interface
1x Line out (Green), 1x MIC (Red)
1x 12V DC power input interface
Built in I/O interface:
1x 4pin ATX power interface（can be used as 12V input and output power interface）
1x LVDS, 2x 15pin，supports dual channels 24BIT
1x EDP (Yellow) 2x 15pin (Choose EDP or LVDS, the default is LVDS. If use EDP, need to change hardware)
1x Backlight power supply interface, 1x 6pin
6x USB 2.0, 2x 5Pin
1x J_HDMI, 2x 8Pin(the same signal as HDMI1 of the backplane IO interface)
1x JVGA, 1x 12Pin(same signal as DB15)
6x RS232 COM，COM1/2 supports the 9th pin charged ,COM2 supports RS485/422
1x LPT, 2x 13Pin
1x Front audio interface, 2x 5pin
1x Front panel switch button and indicator light interface, 2x 5Pin
1x Hard disk power supply interface, 1x 4pin
1x Power amplifier interface, 1x 4pin
1x SIM card slot
Fan Connector: No fan cooling design, reserve 1x 4pin CPU fan connector,1x 3pin system fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 7/Windows 10/Linux
Power type: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

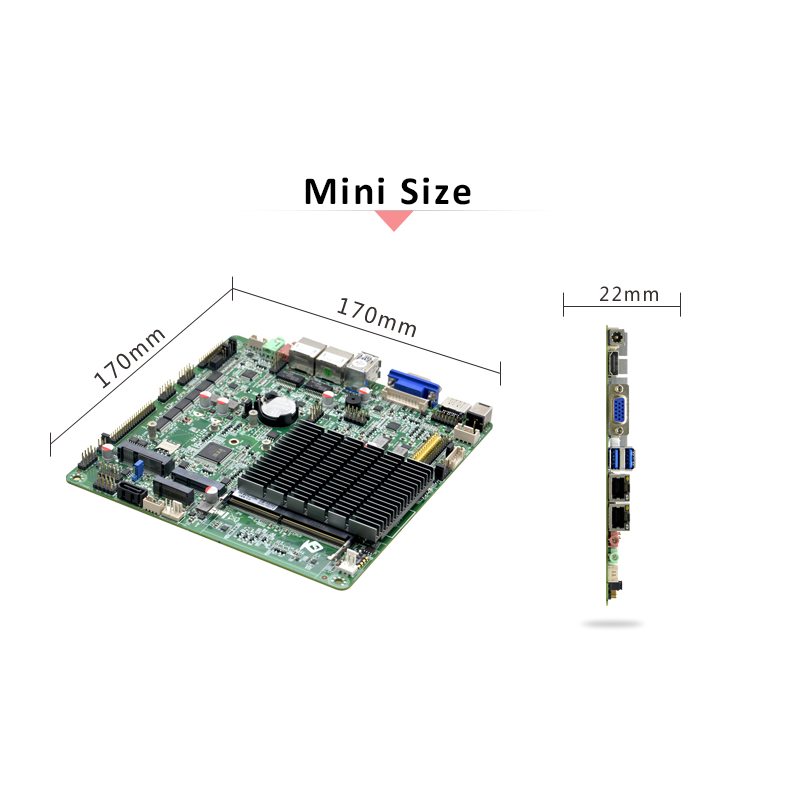

Dimension: 170mm x 170mm
