Overview
As a professional manufacturer of industrial computing solutions, we proudly introduce our new industrial touchscreen pc series. This device features a 12-inch industrial touch screen computer with capacitive/resistive dual-mode touch, 1024×768 resolution and 500cd/m² brightness, ensuring excellent visibility in various industrial environments.
Our industrial touchscreen pc supports multiple processor options including I3-6100U/I3-8145U/I3-10110U, equipped with a self-developed fanless X86 industrial motherboard and dual gigabit Ethernet ports. The 3mm ultra-thin bezel design makes it perfect for use as a panel mounted computer in industrial automation systems.
Constructed with high-precision aluminum alloy housing and featuring a pure flat panel with IP65 dust/waterproof rating, it supports 12V-36V wide voltage input and offers rich interfaces for strong expandability. Specifically designed for harsh industrial environments like factory floors and outdoor operations, it guarantees long-term reliable performance.
Product Description
The overall use of flat aluminum alloy panel, fanless fully enclosed integrated design. Meet the requirements of different equipment in different environments. It is widely used in industrial control, military, communication, power, network, intelligent self-service terminal equipment and other automation applications.
Product Size: 12"
Non-touch: TPC120-W1000-I3
Capacitive touch: TPC120-W1010-I3
Resistive touch: TPC120-W1020-I3
Screen Parameters:
LCD Size: 12" TFT LCD
Resolution: 1024×768
Viewing Angle: 85/85/85/85 (L/R/U/D)
Colour: 16.7M
Brightness: 500 cd/m2
Contrast ratio: 1000:1
Physical Characteristics:
Overall dimensions: W319x H257x D59.5mm
Size of opening: W305.1 x H243.6mm

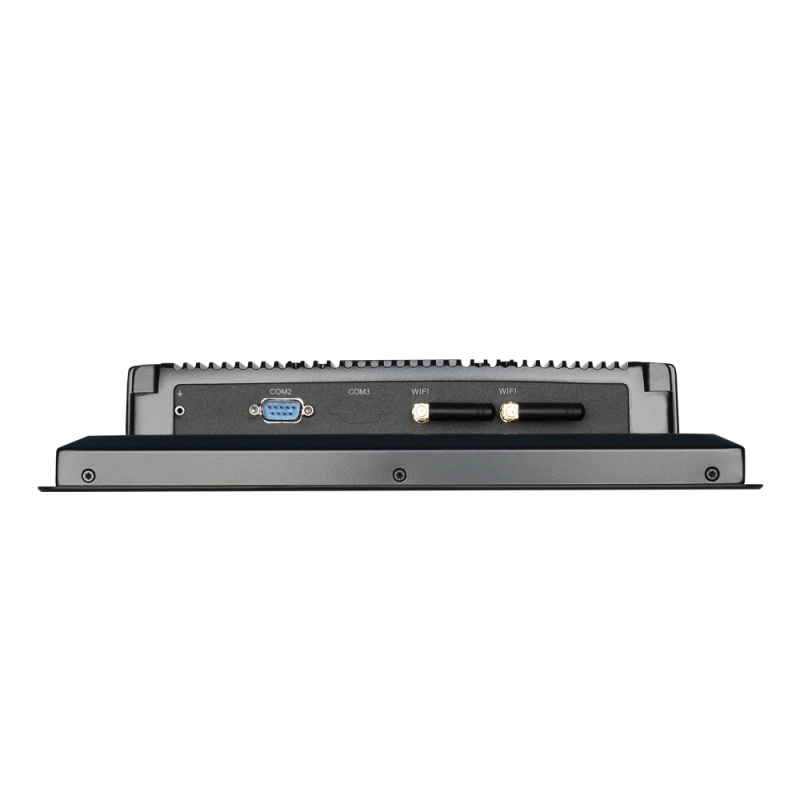

Interface:
Power interface1: 1*DC 2.5, Supporting 12V-36V power input
Power interface2: 1*Industrial terminal, Supporting 12V-36V power input
HDMI: 1*HDMI, Supporting HDMI data output, Up to 4K
USB: 2*USB 2.0 2*USB 3.0
LAN: 2*LAN, Dual 1000M adaptive Ethernet
AUDIO: 1*Audio Out, Support audio output
SIM: 1*SIM, Supporting various formats (Depending on 3G/4G module)
VGA: 1*VGA
COM: 2*RS232
WiFi antenna: 2*WiFi antenna
POWER: Support (1*POWER)
Grounding post: 1*Grounding post (GND)
Product Reliability:
Working Temperature: -10°C to 60°C
Storage temperature: -20°C to 70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Impact protection: IEC 60068-2-27, half sine wave, duration 11ms
Authentication: CCC/CE/FCC/EMC/CB/ROHS
Waterproof: Front panel reaches IP65 protection level
Hardware Configuration:
CPU: I3-6100U / I3-8145U / I3-10110U
CPU frequency: 2.3GHz / 2.1GHz / 2.1GHz
Integrated graphics: Inte HD Graphic 520 / Inte HD Graphic 620 / Intel UHD Graphic 620
RAM: 4G DDR4(Optional 8G/16G/32G) / 4G DDR4(Optional 8G/16G/32G) / 8G DDR4(Optional 16G/32G/64G)
Storage: 128G SSD(256G/512G SSD, 1T/2T HDD Optional)
WiFi: Dual band 2.4G&5G
Bluetooth: BT4.0(Optional)
Operating system: Win7/10/11, Ubuntu/Centos/Redhat/Debian/Linux
Other support: Support RTC real-time clock and timing switch
Power parameters:
Input voltage: DC 12V~36V
Static Power: 18W
