China 12.1 inch RK3588 Capacitive Resistive 5G module Android Industrial Tablet PC factory,Guangdong pc industrial supplies,Shenzhen tablet for industrial use price【Senbainno】-China Industrial computer and motherboard,Pfsense Firewall Router Hardware,Industrial Tablet and Panel PC manufacturer and supplier-Senbainno.

Products

New Products

2 Lan Dual DDR5 4K Display Thin ITX Motherboard

♦Model No.: ITX-YS140R1_I526L

♦Based on Intel Meteor Lake SOC platform 125H

♦Integrated Core™ Ultra 5 125H 4.5GHz 14 core processor

♦Intel® Arc™ graphics; EDP + DP + HDMI1.4 + LVDS(4K display)

♦2*DDR5 5600MHz SO-DIMM Socket, up to 96GB

♦2*RTL8111H 1GbE Ethernet/8*USB/6*COM/1*SIM

♦2*SATA3.0/1* M.2 2280 NVME SSD/1*MINI-PCIE (Wifi/4G)/1*M.2 2230(WIFI)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Support DC_12V Input
RK3576 ARM Motherboard

♦Model No.:CX3576-A V1.0 (4G+128G) VER:4G

♦WIFI use FCS960K,support 2.4G/5G dual-band,Bluetooth5.3

♦Bottom plate thread DC2.0*1（12V-36V input)

♦RJ45*1、HDMI*1、USB3.0*1、USB2.0*1、USB2.0 socket*4、TF*1、Audio 3.5mm*1

♦Size:157*100mm
LGA1151 1+1 Power Supply 1U Firewall Appliance

♦Model NO.:ST-C2468L-2P V1.0

♦1U Standard Rack_mount Chassis

♦Intel Socket LGA1151 processors

♦2x DDR4 RAM slot, up to 32GB

♦4x SATA3.0 + 1x MSATA + 1x M.2

♦8x 2.5GbE Ports (RJ45)

♦2x PCI-E x8 (SFP+ Expansion)

♦(Bypasss/Vpro) Optional

♦1x Mini-pcie&M.2 (Wifi&BT&4G/5G LTE)

♦2x USB3.0 ; 4x USB2.0(inner)

♦1+1 Redundant Power Supply (Hot_Swap)
4 Lan N100 2x SFP+ (10Gb) Firewall MIni Router

♦Model NO.:ST-AD12N-6S V1.0

♦Aluminum Alloy ; Active Cooling

♦Intel N97/N100/N200/N305 CPUs

♦1x DDR5 RAM slot, up to 32GB

♦1x SATA3.0 + 1x M.2 NVMe X1 + 1x TF slot

♦4x 2.5GbE RJ45 + 2x SFP+ (10Gb)

♦DP+HDMI+Type_C Triple Display

♦1x Mini-PCIe for 4G LTE

♦1x SIM slot

♦5x USB2.0 ; 1x USB3.0

♦DC_12V Power Input

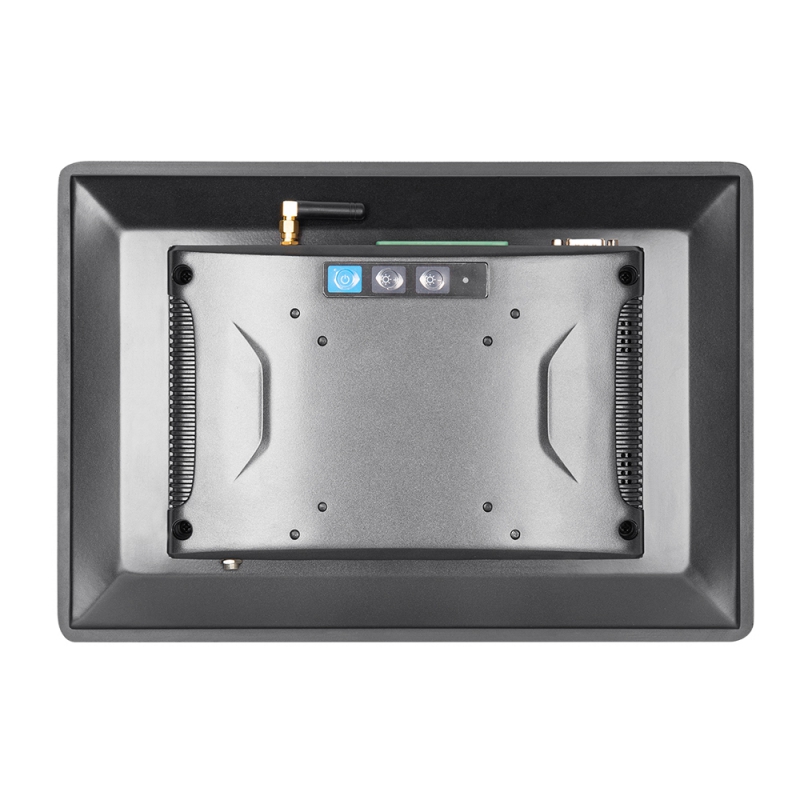

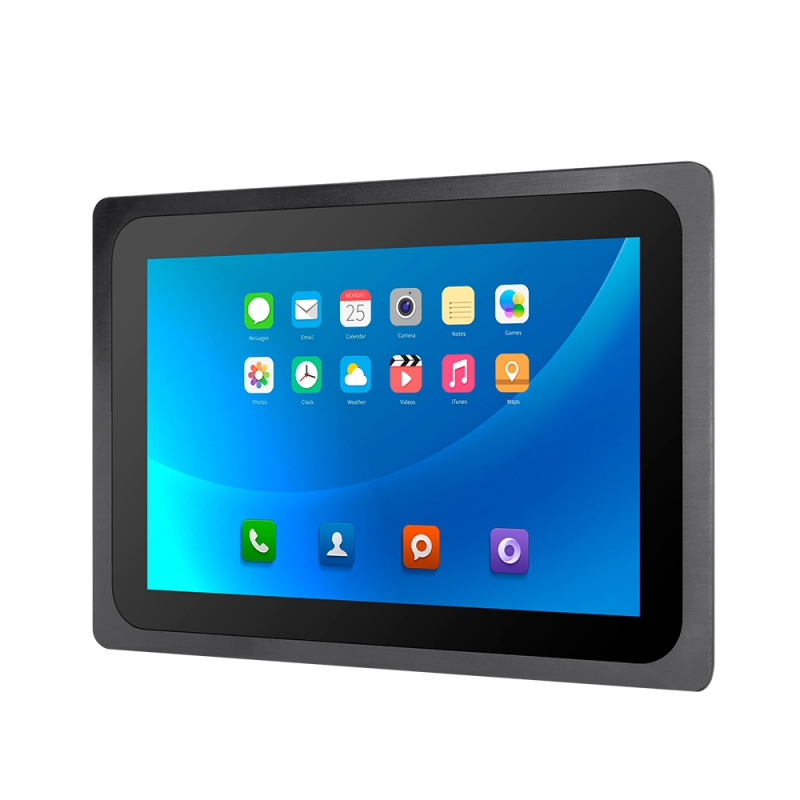

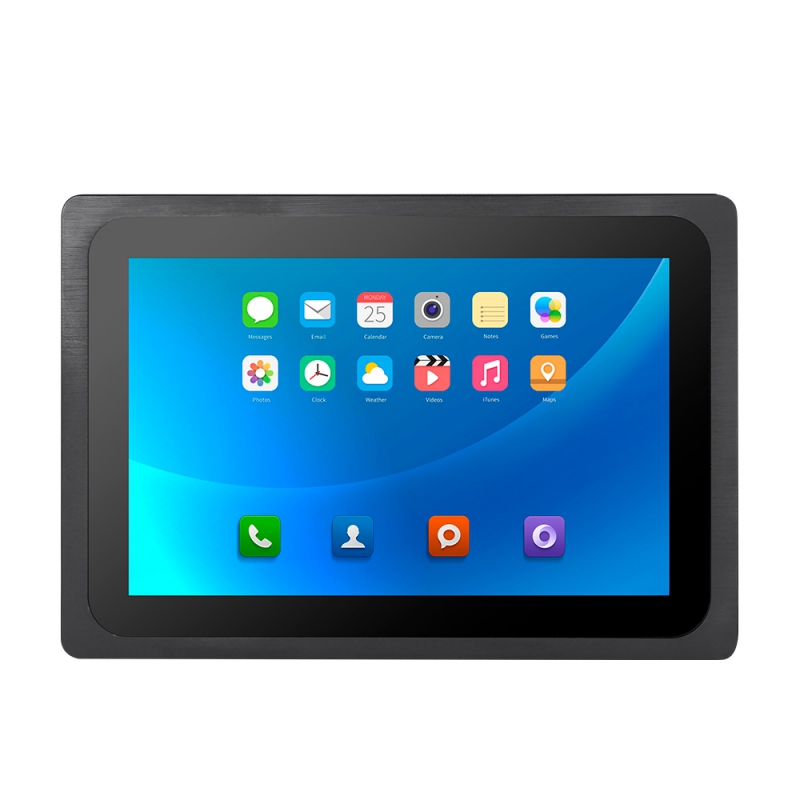

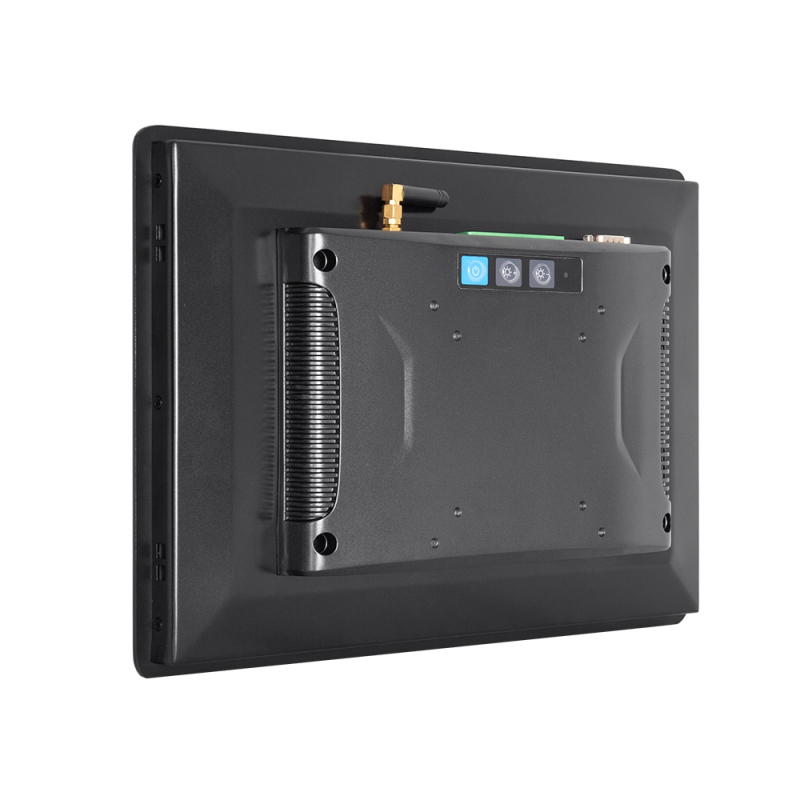

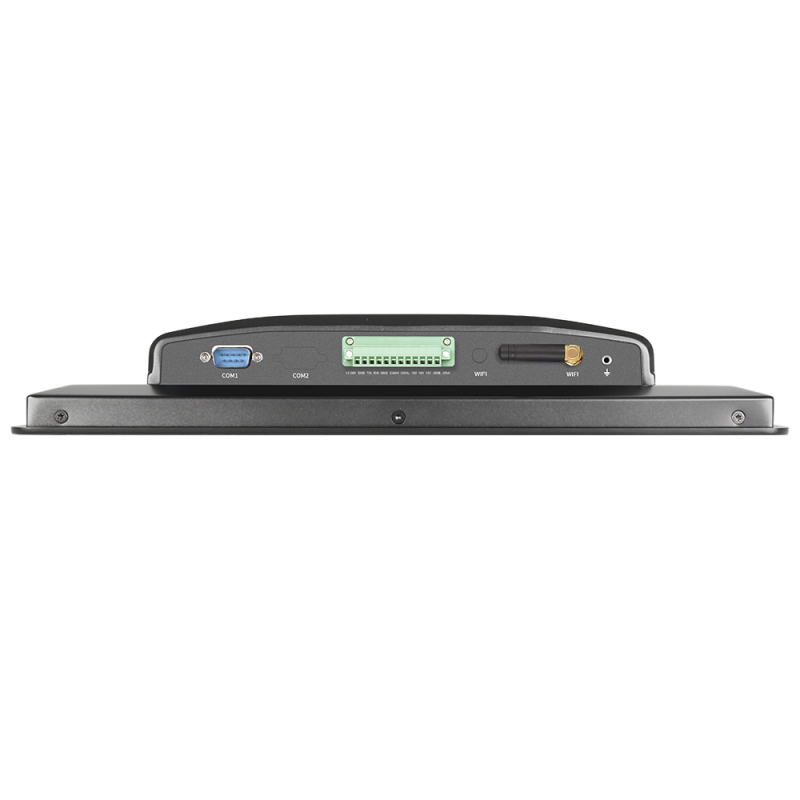

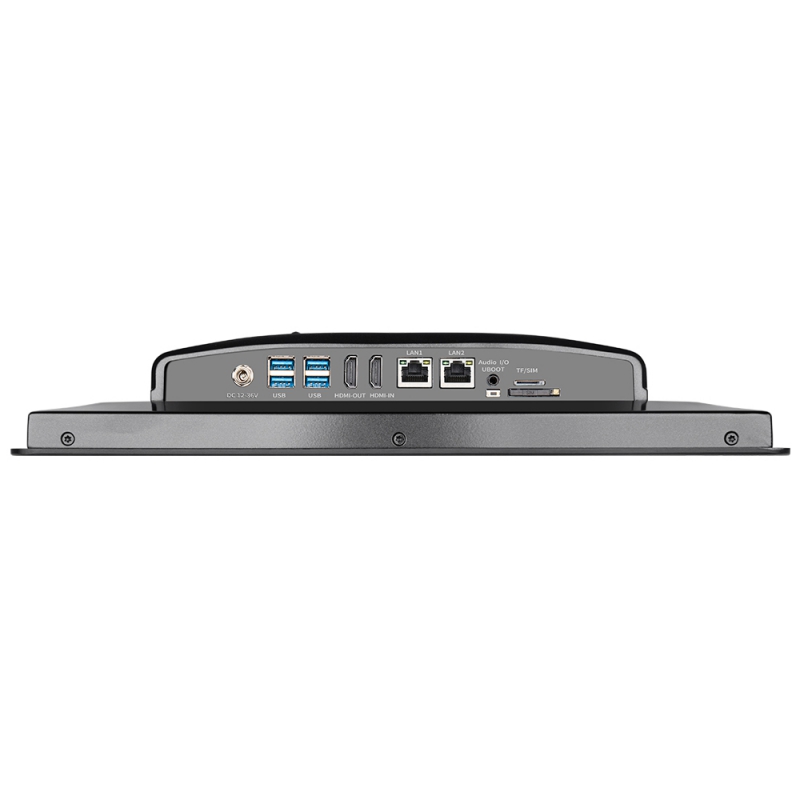

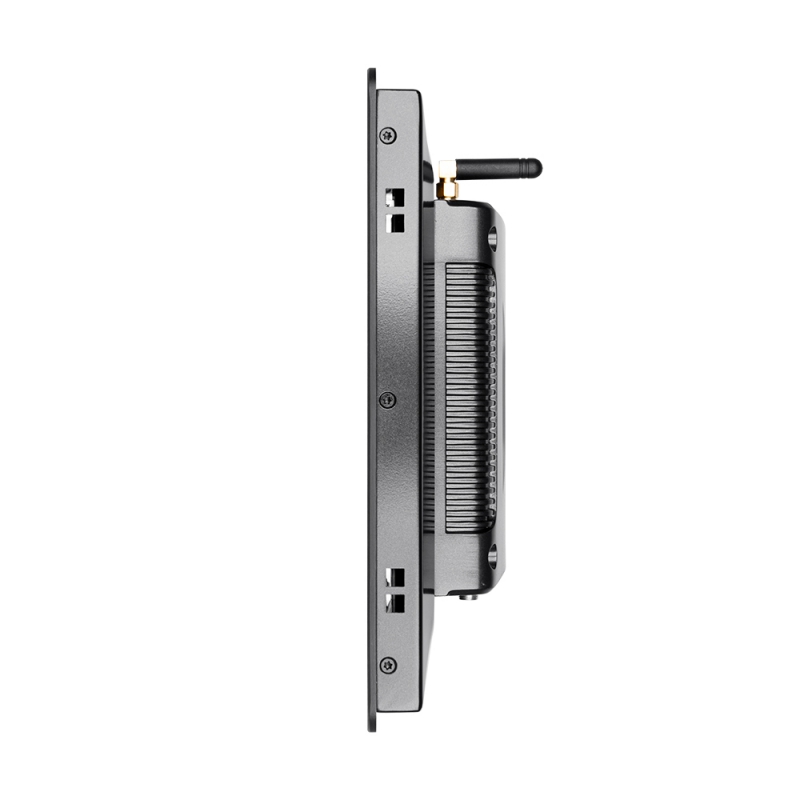

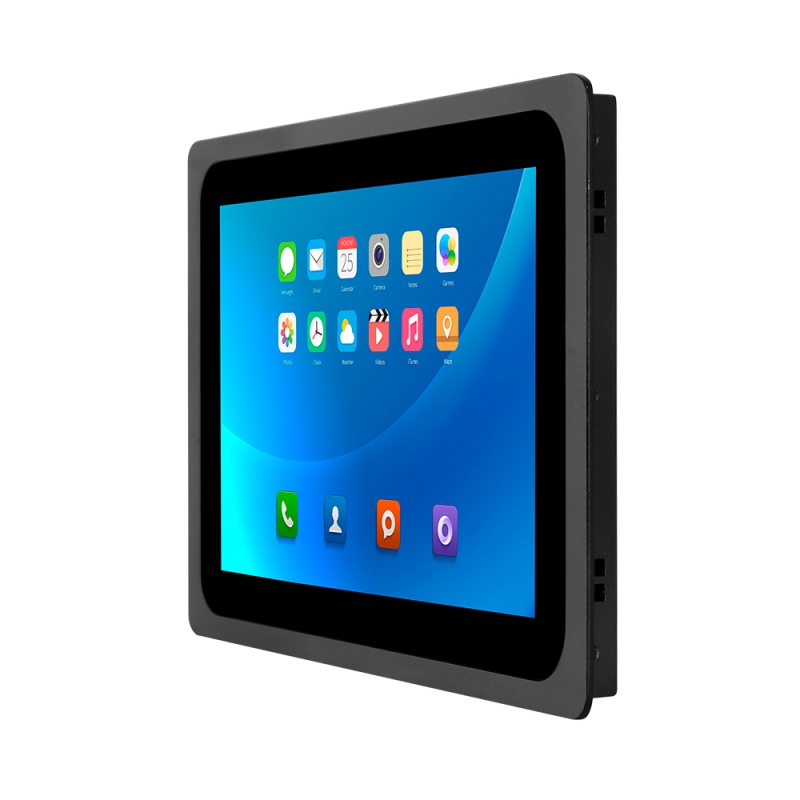

12.1 inch RK3588 Android Industrial Panel PC Price support 5G module

♦Support RK3588, Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55) at 2.4GHz CPU

♦Capacitive / Resistive touch:12.1" TFT LCD / 1280*800 / 300 cd/m²

♦3mm Super Thin Front Bezel, Best for Embedded Cabinet.

♦Pure flat panel IP65 dust-proof and waterproof.

♦RK3588 eight-core high-end CPU ，Built-in independent NPU with 6TOPS AI computing power

♦6TOPS AI computing power

♦Support 8K ultra-high definition display, support double display,can be customized four display

♦Provide SDK package, support secondary development and upgrade customization

Description

Overview
Industrial Panel PC with AI Computing | Embedded PC Touch Screen

This high-end Industrial Panel PC features the Rockchip RK3588 Octa-core CPU (4×Cortex-A76+4×Cortex-A55 @2.4GHz) with built-in 6TOPS NPU for AI acceleration, delivering exceptional edge computing power for machine vision and industrial automation. The 12.1" sunlight-readable touchscreen (1280×800) supports 8K ultra-HD display and multi-screen output, making it ideal for smart factory upgrades.

Key Advantages

✅ AI Computing Powerhouse

6TOPS NPU supports TensorFlow/MXNet frameworks

8K video decoding + quad-display output (customizable)

✅ Rugged Industrial Design

IP65-rated flat front panel for dust/water protection

3mm ultra-thin bezel for seamless cabinet mounting

Wide temperature operation (-20℃~60℃)

✅ Customization Ready

Full SDK toolkit for software development

Rich I/O: Dual Gigabit Ethernet, USB3.0, RS-485, GPIO

Optional quad-display version available

Product Description
The whole panel PC adopts a self-developed industrial motherboard, built-in independent NPU, with 6TOPS Alcomputing capability, and supports lightweight Al application development. lts 3mm ultra-thin front panel canseamlessly fit all kinds of cabinets. With a fanless fully enclosed, and front lP65 dustproof & waterproof design. The whole panel PC has high scalability, practicality, and EMC compatibility

Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.

Company Profile

FAQ

Q1.Do you accept OEM / ODM order?

A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.

Q2:What payment method do you accept?

A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.

Q3:How long is the warranty of your products?

A3:We offer 2 years warranty for all of our products.

Q4:How many days will samples be finished? And how about the mass production?

A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.

Q5:If we come to China,can you arrange the visiting to your factory?

A5:We warmly welcome and look forward to your visiting to our factory at any time.
