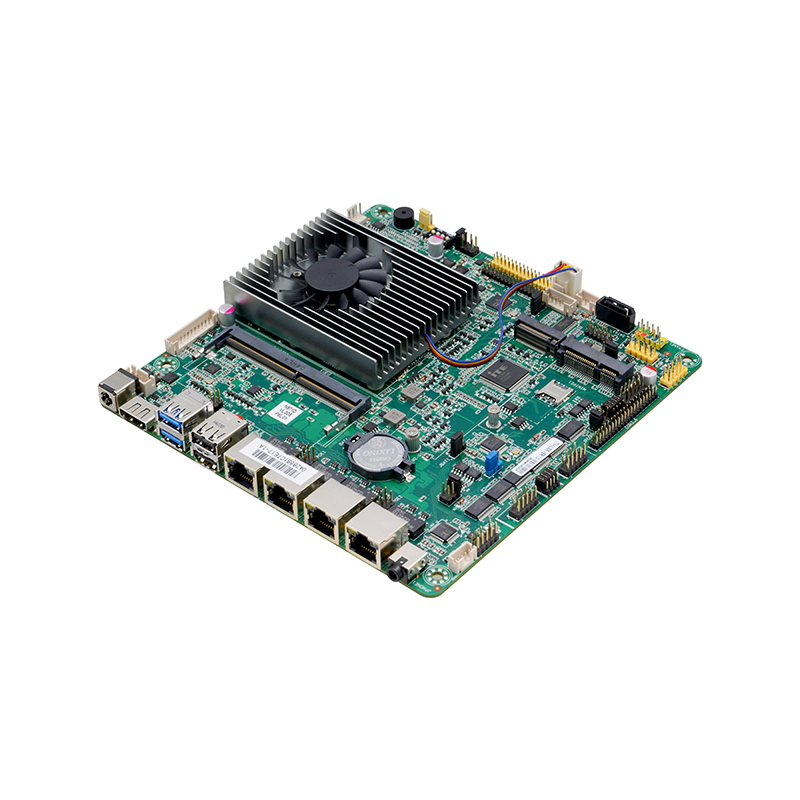

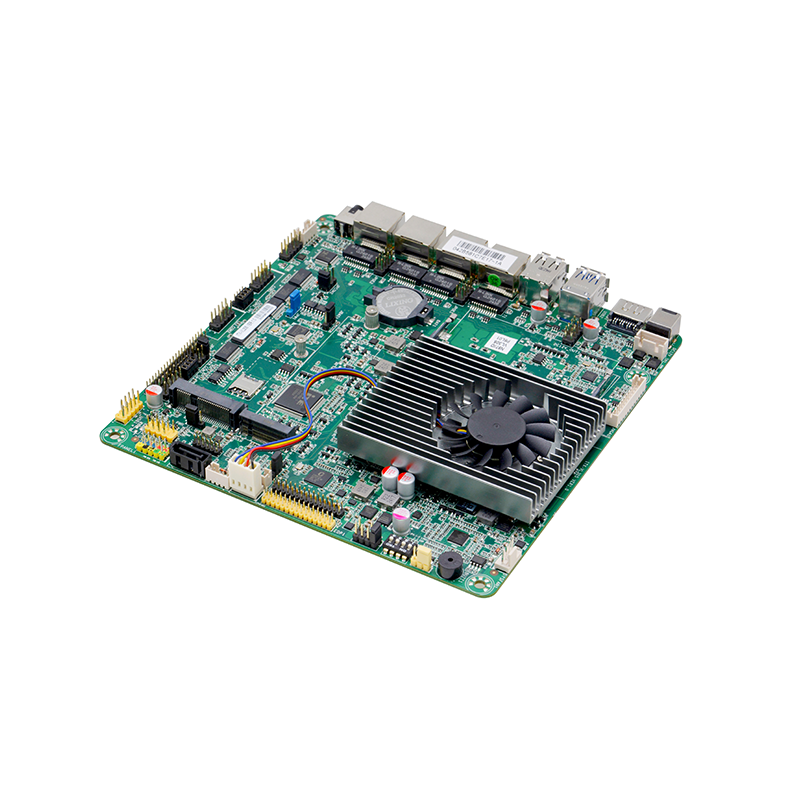

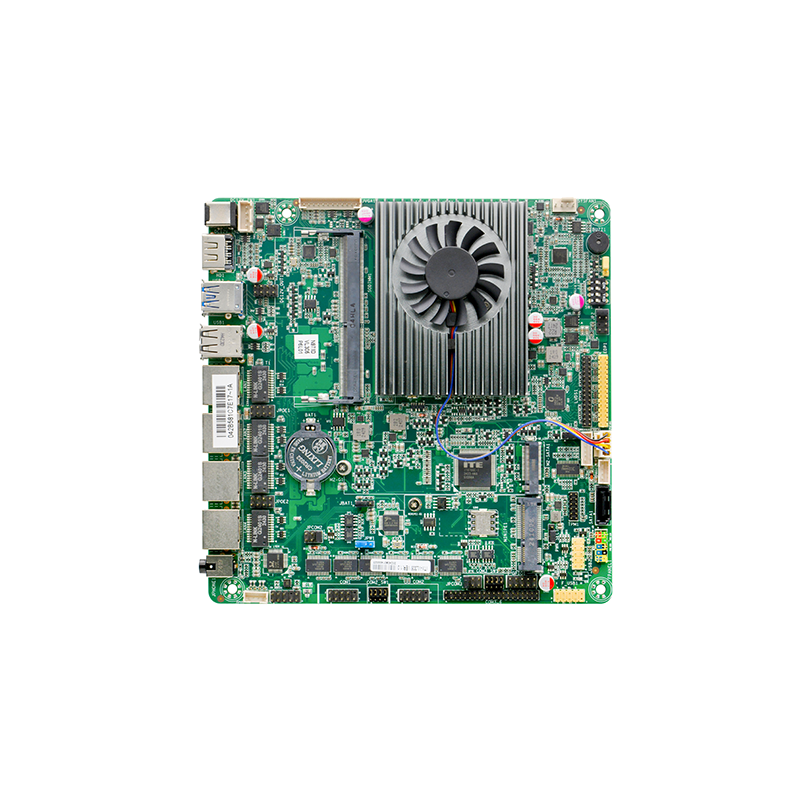

This high-performance firewall motherboard features the Intel® Alder Lake-N N97 Quad-Core processor (3.6GHz), delivering enterprise-grade network security capabilities in a compact and efficient design.
Key Firewall Features:
●Advanced networking: 4× Intel WGI210AT Gigabit Ethernet ports for high-throughput security processing
●Powerful processing: 12th Gen Intel architecture with 4 cores/4 threads, ideal for packet inspection
●Memory capacity: 1× DDR4 3200MHz SO-DIMM (up to 16GB) for demanding security applications
●Multi-display management: VGA + HDMI1.4 + LVDS/EDP for security operation centers
●Industrial connectivity:
4× USB3.0 + 4× USB2.0
6× COM ports for serial console management
●Efficient 12V DC power input
Optimized for:
Next-Generation Firewalls (NGFW)
Unified Threat Management (UTM) systems
Network Traffic Analysis appliances
VPN gateway solutions
Detail Display
Product Description
ITX-VL305 thin itx motherboard main application:commercial display, industrial automation, transportation industry, medical. etc.
Model No.: ITX-VL305 VER:1.0(N97)
Processor: thin itx motherboards integrated Intel®Alder Lake-N N97 3.6GHz quad-core processor, TDP 12W
Compatible with Intel® Alder Lake-N all series CPU
Chipset: SOC
RAM: 1x SODIMM memory slot, support single channel 3200MHz DDR4 memory, up to 16GB
Display:
Integrated Intel® UHD Graphics, support DirectX 12.1, OpenGL4.6
1x VGA, 1x HDMI1.4, 1x LVDS/1x EDP
Note: The LVDS and EDP interfaces are selected by wire jumper(LVDS default)
Ethernet: thin itx motherboards have 4x Intel WGI210AT Gigabit LAN, support Wake-on-LAN, PXE function
Note: can support POE. If need the POE function, will need to use the VL68-PW expansion board.
Storage:
1x 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
1x M.2 slot, support M.2 Key M 2280 NVME PCIE X1/SATA specification SSD
Audio:
Onboard ALC897 7.1+2 channel Hi-Fi audio controller,support MIC/Line-out.Power amplifier
Suggest to use a 4Ω3W speaker for the power amplifier
Expand slot: 1x Mini-PCIE slot, support WIFI/4G module

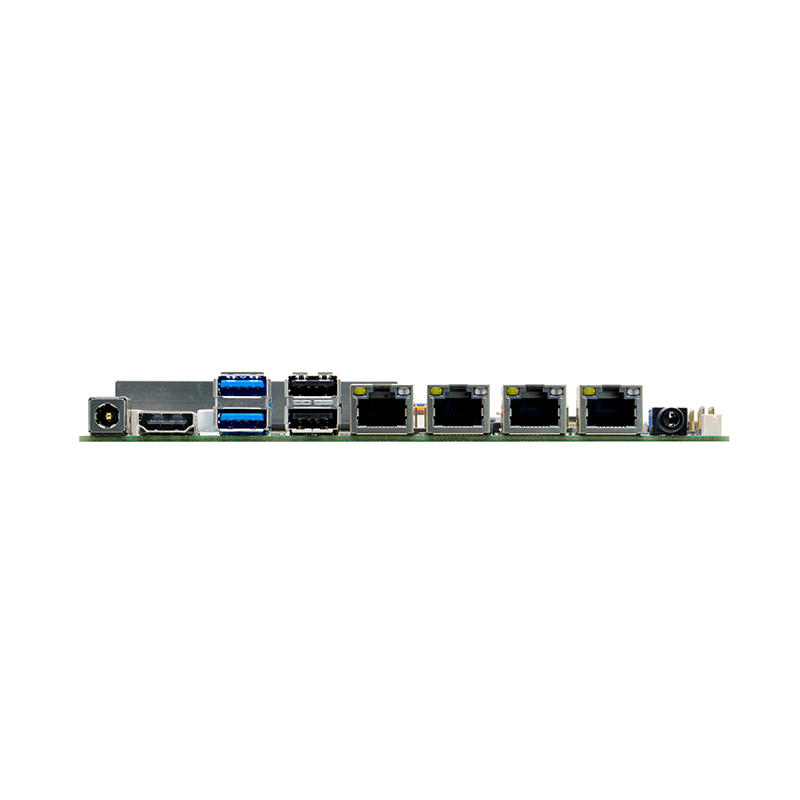

Backplane I/O Interface:
1x DC 12V power supply input interface
1x HDMI1.4
2x USB3.0, 2x USB2.0
4x RJ45 Gigabit network interface
1x Two-in-one audio interface

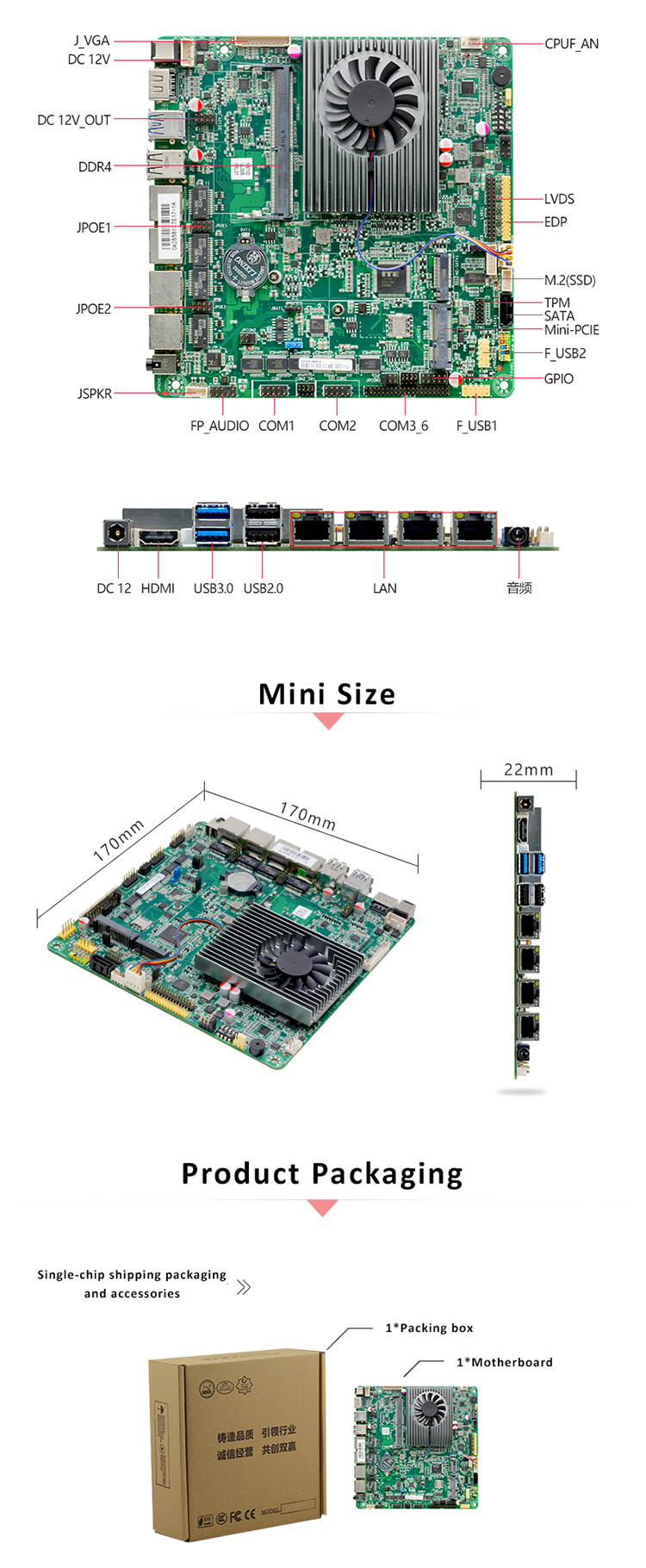

Built-in I/O interface:
1x JVGA, 1x 12pin
3x 2x4pin PH=2.54mm pin header, connected to VL680-PW small board
1x LVDS, 2x15pin, support dual channels 24BIT
1x EDP(yellow), 2x 15pin(The LVDS and EDP interfaces are selected by wire jumper)
1x Screen backlight power supply interface, 1x 6pin
4x USB2.0, 2x 5pin
6x RS232 serial port, COM2/COM3 support RS485/422 function
1x Hard drive power supply interface, 1x 4pin
1x Front panel audio interface, 2x 5pin
1x Amplifier interface, 1x 4pin
1x SIM card slot
1x Front panel function button and indicator interface, 2x 5pin
1x TPM pin header, ESPI specification, 2x 6pin
1x 4pin DC power interface (can be used as 12V input and output power interface)
Fan interface: 1x 4pin CPU smart fan interface, 1x 4pin system fan interface
GPIO: thin itx motherboards support 4 input and output GPIO
BIOS: 256Mb Flash ROM
Watchdog: Support hardware reset function(256 levels, 0~255 seconds)
Operating system: Windows 10/Windows 11/Linux
Power Type: Powered by DC 12V power supply
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, no condensation
Dimension: 170mm x 170mm
