It supports GPIO, Watchdog functions and DC 12V industrial power input, ensuring stable operation. Suitable for enterprise firewalls, industrial gateways and soft routing systems.

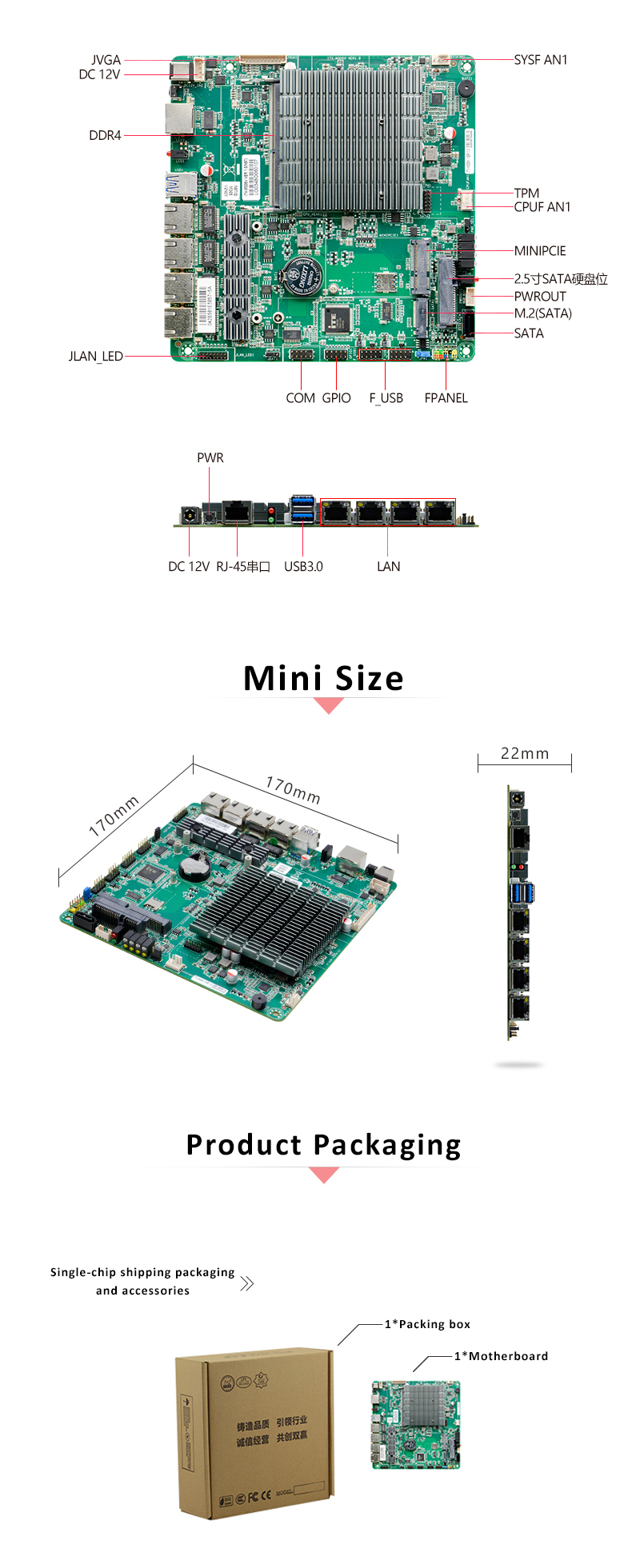

Detail Display
Product Description

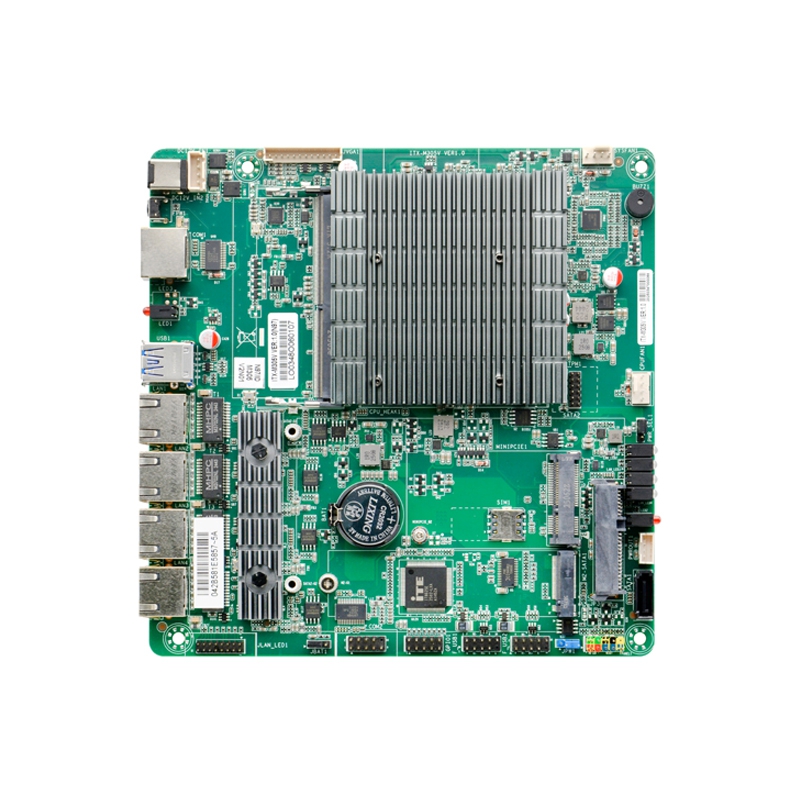

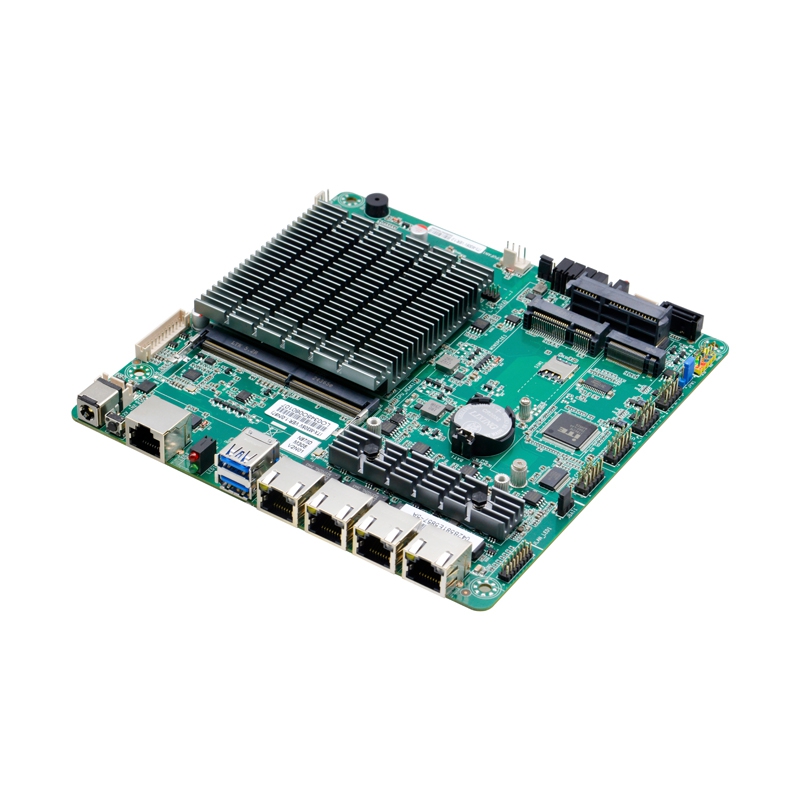

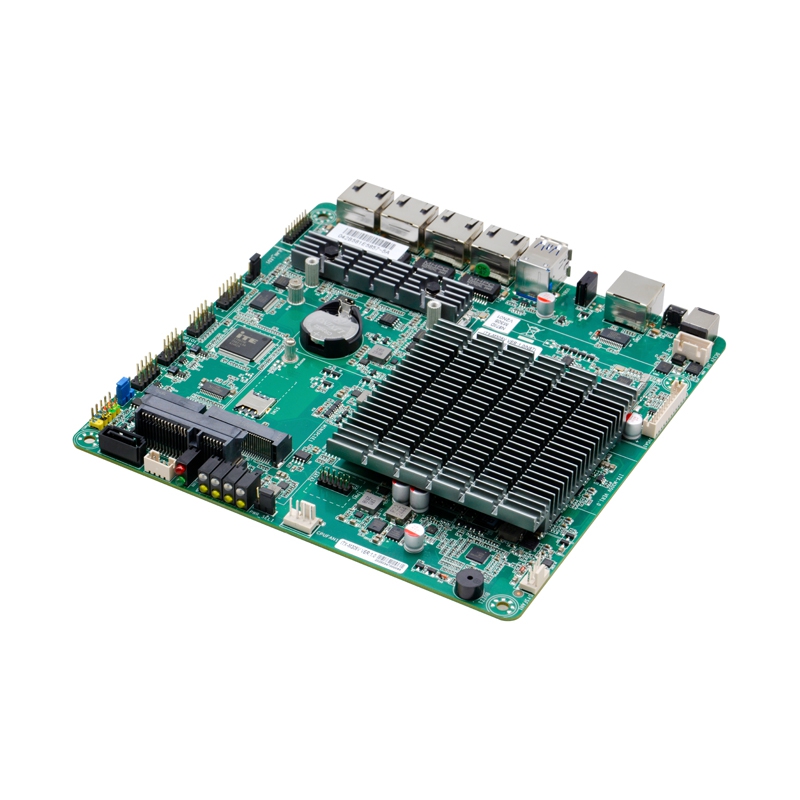

Model No.: ITX-M305V VER:1.0
Processor:
Integrated Intel®Alder Lake-N N97 3.6GHz quad core processor,TDP 12W,
Compatible Intel® Alder Lake-N all series of CPU, Customers can choose flexibly
Chipset: SOC
Memory: 1* SODIMM slot, support single channel 3200MHz DDR4 memory, up to 32GB
Graphics: Integrated Intel® UHD Graphics, 1* VGA
Network: 4* Intel I225V Gigabit network, support wake-up / PXE function
Storage:
1* SATA 2.5-inch notebook hard disk, can directly install the hard disk, the transmission speed can reach 6Gbps
1* Standard 7PIN SATA hard disk interface (choose one with 2.5-inch hard disk)
1* M.2, support M.2280 NVME PCIE X1/SATA adaptive SSD
Expansion slots: 1* MINIPCIE, support WIFI/4G module

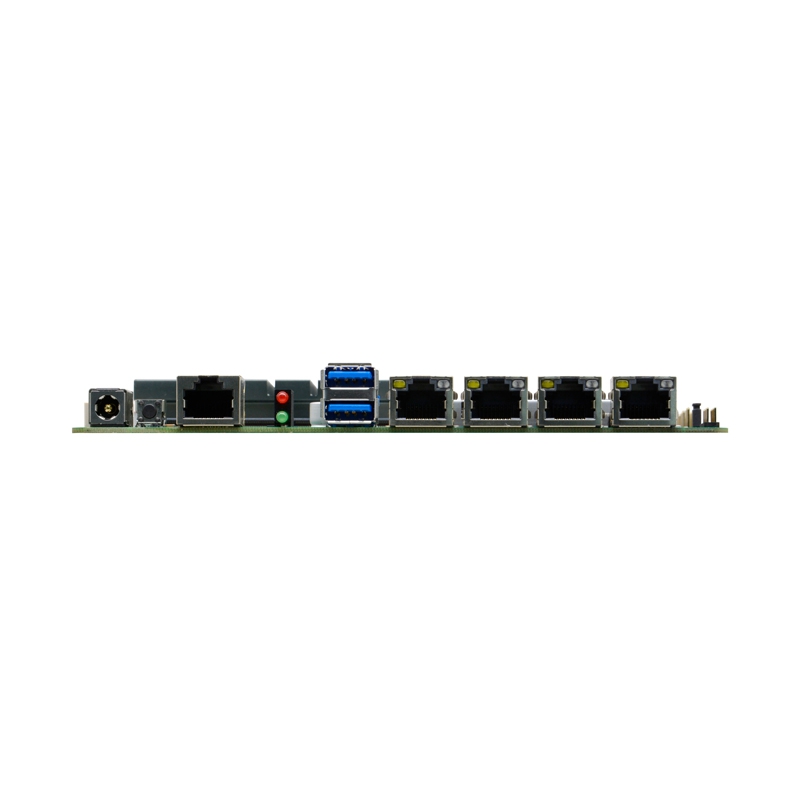

Rear I/O interface:
1* 12V DC Power input interface
4* RJ-45 Gigabit network interface
1* CISCO standard RJ-45 serial port
2* USB 3.0
1* Power switch
2* HDD indicator, 2* Power Indicator
4* Network light，4* Network data transmission indicator
Built in I/O interface:
1* 4pin DC Power interface (can be used as 12V input and output power interface)
1* RS232; 2*5pin
4* USB 2.0; 2*5Pin
1* JVGA; 1*12Pin
1* Network light, 2*8Pin
1* Front panel switch button and indicator light interface, 2*5Pin
1* HDD power supply interface, 1*4pin
1* SIM card slot
Fan connector: Fanless heat dissipation design, reserved 1*4pin CPU fan connector, 1* 4pin system fan connector
GPIO: Support 4-way input and output GPIO
BIOS: AMI 64Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 10/11/Linux
Power type: DC 12V
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
