Key Advantages:
✔ Efficient quad-core - Intel J1900 CPU (10W TDP)
✔ Enterprise security - 4×GbE ports for basic protection
✔ Dual storage - SSD+HDD hybrid storage support
✔ Industrial reliability - Wide voltage input (AC 100-240V)
✔ Flexible expansion - Mini-PCIE slot for add-ons
✔ Cost-effective - Budget-friendly firewall solution
Typical Applications:
◼ SMB perimeter firewall
◼ Basic traffic monitoring
◼ Educational institution network
◼ Retail store security
Product Description

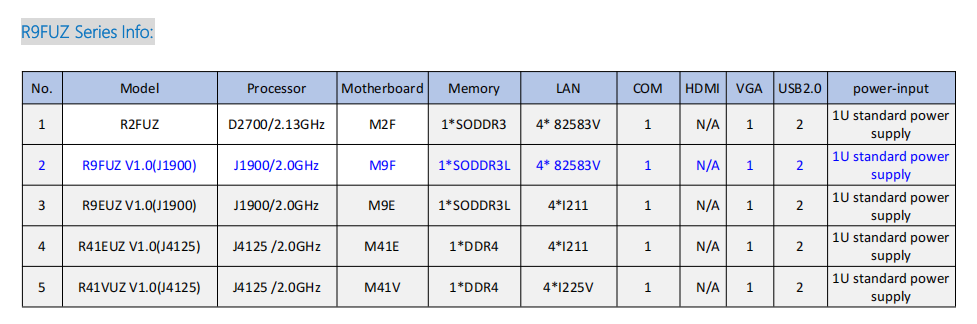

Model NO.:R9FUZ V1.0(J1900)

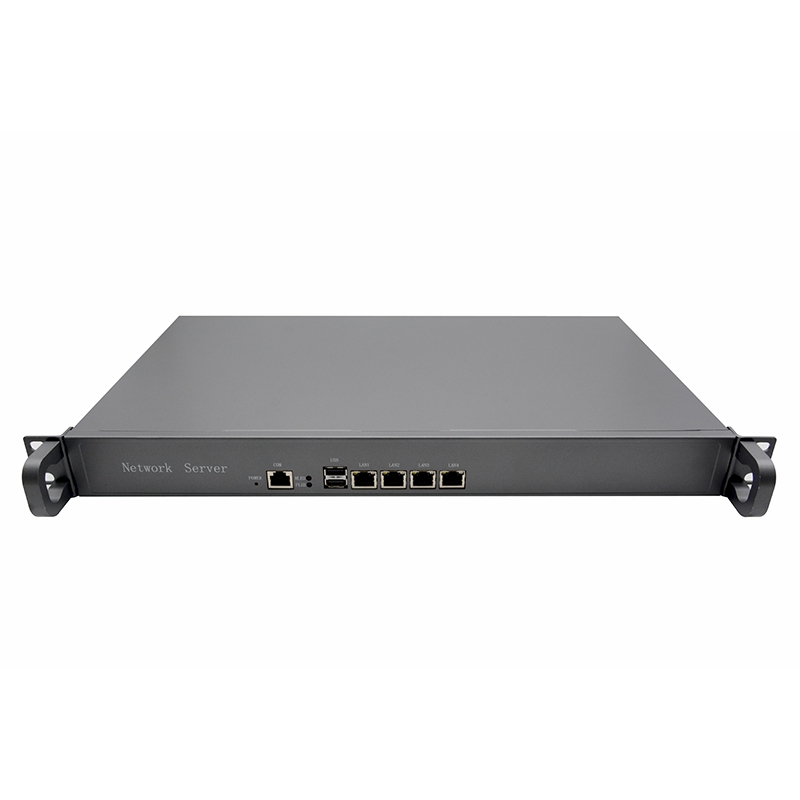

Chassis:
Structure:1U standard chassis, high quality galvanized steel

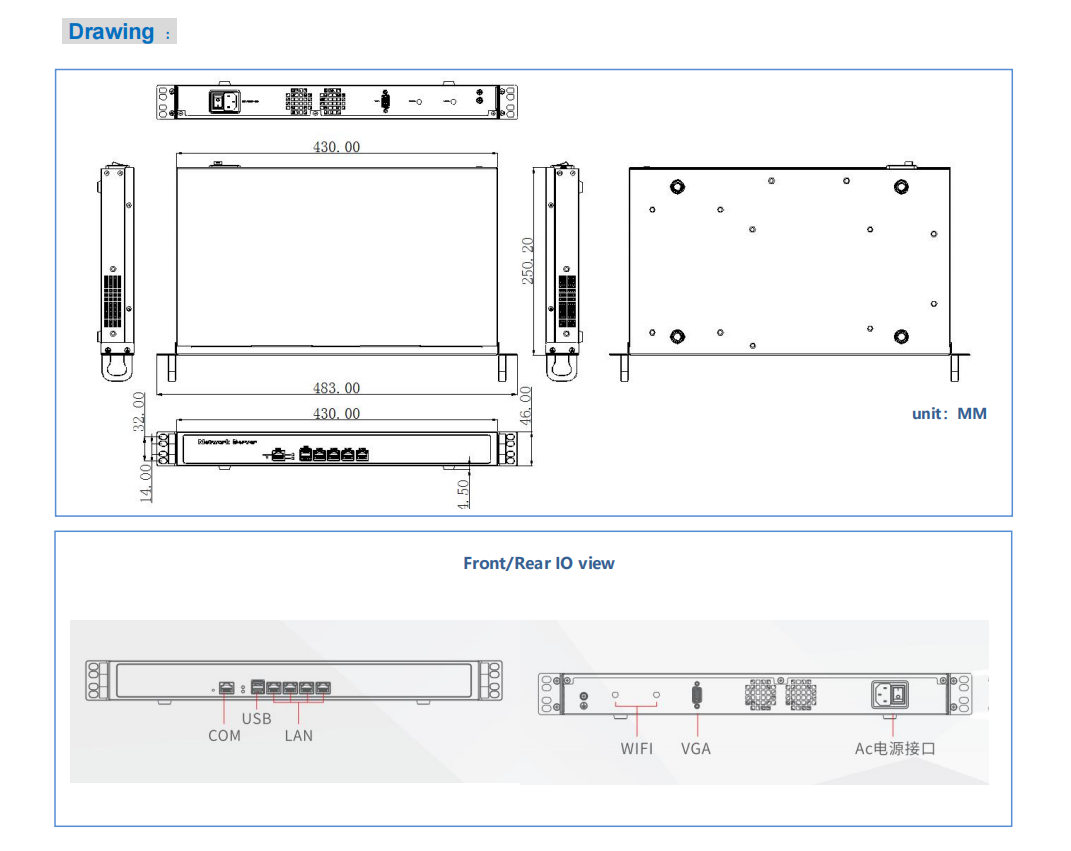

Dimension:430mm*250.2mm*46mm
Color: Iron gray
Installation:1U Rack mount / Desktop

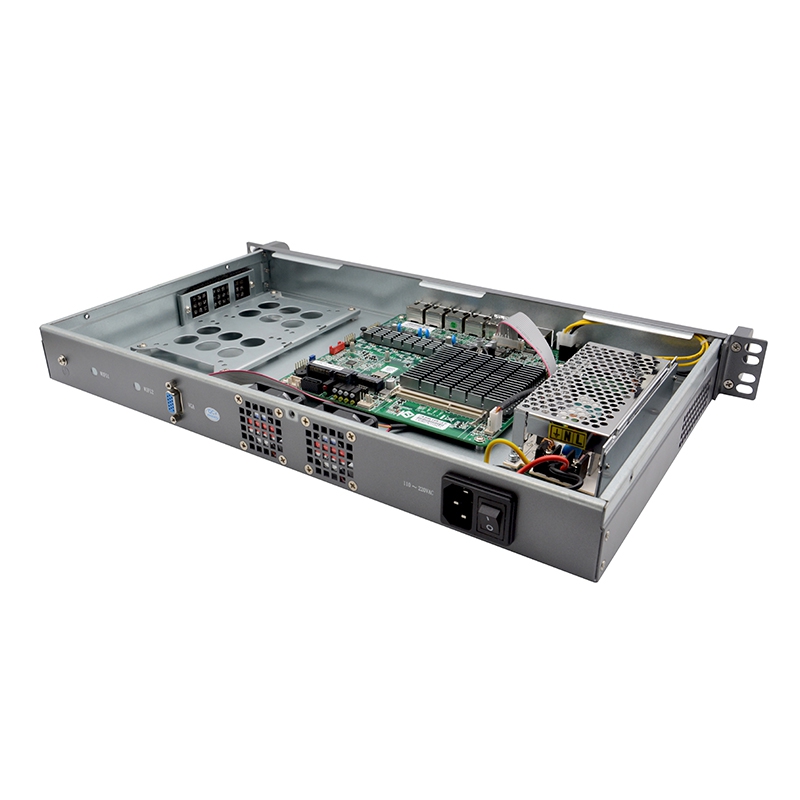

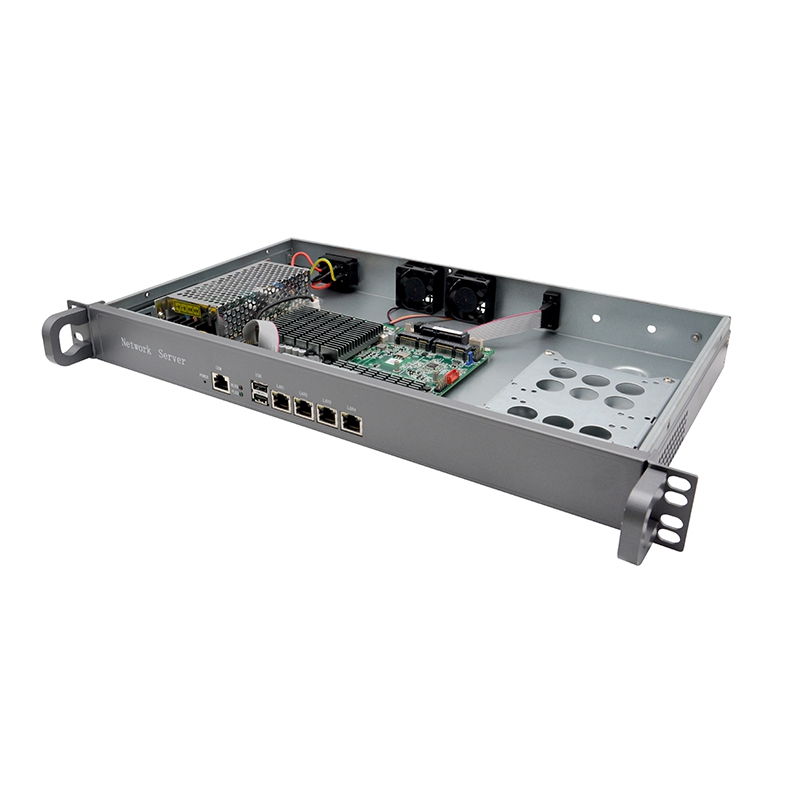

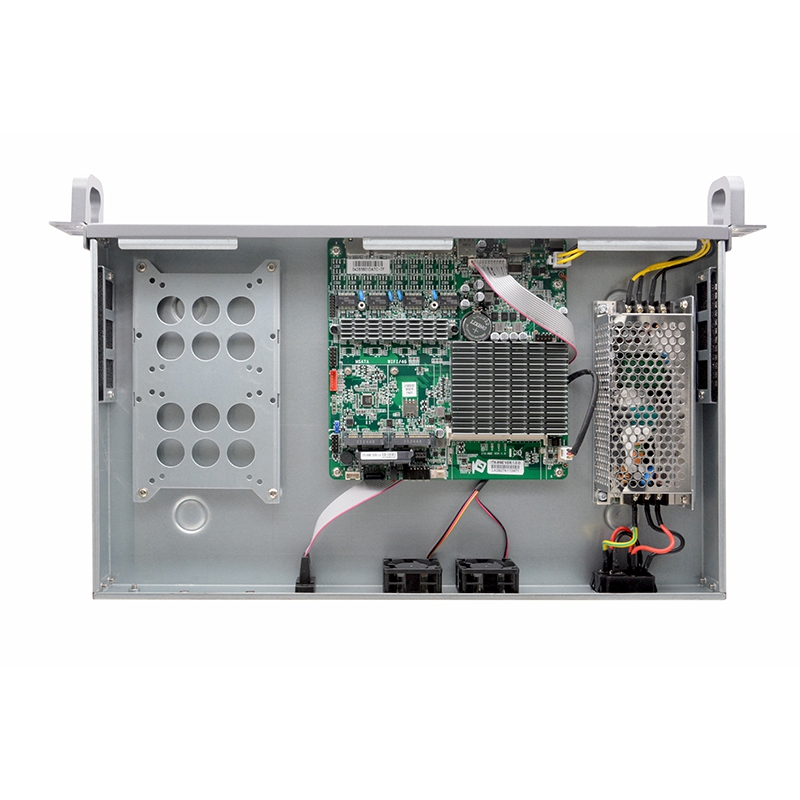

Motherboard:
Processor: Integrated Intel®Celeron J1900 2.0GHz quad-core quad-thread processor ; TDP 10W
Chipset: Bay Trail SOC
Display: Integrated Intel® HD Graphics
Memory:1x SODIMM slot ,support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

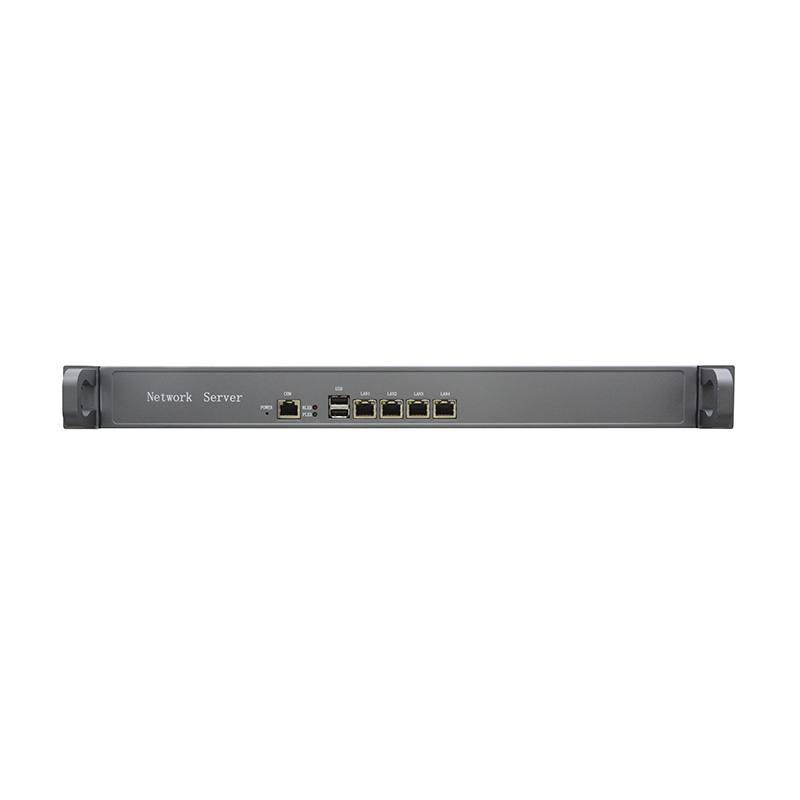

Front I/O:
Switch: 1x Power switch
Ethernet: 4* Intel 82583V Gigabit Ethernet ports, supporting Wake_on_Lan/PXE
USB: 2x USB2.0
COM: 1x Console RJ45 RS232 serial port ( CISCO standard)
LED: 1x Power LED ; 1*HDD LED

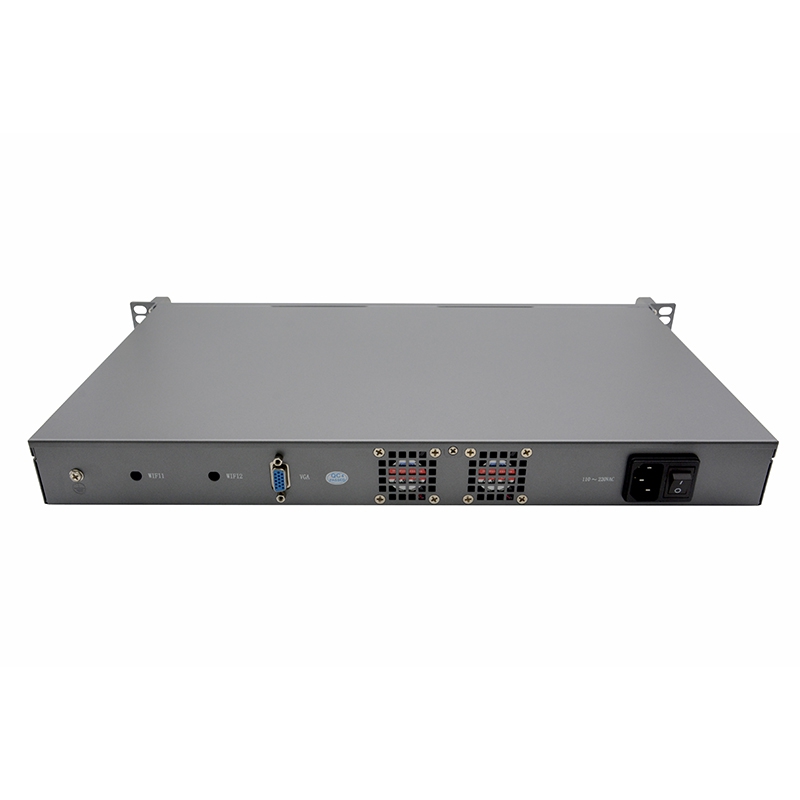

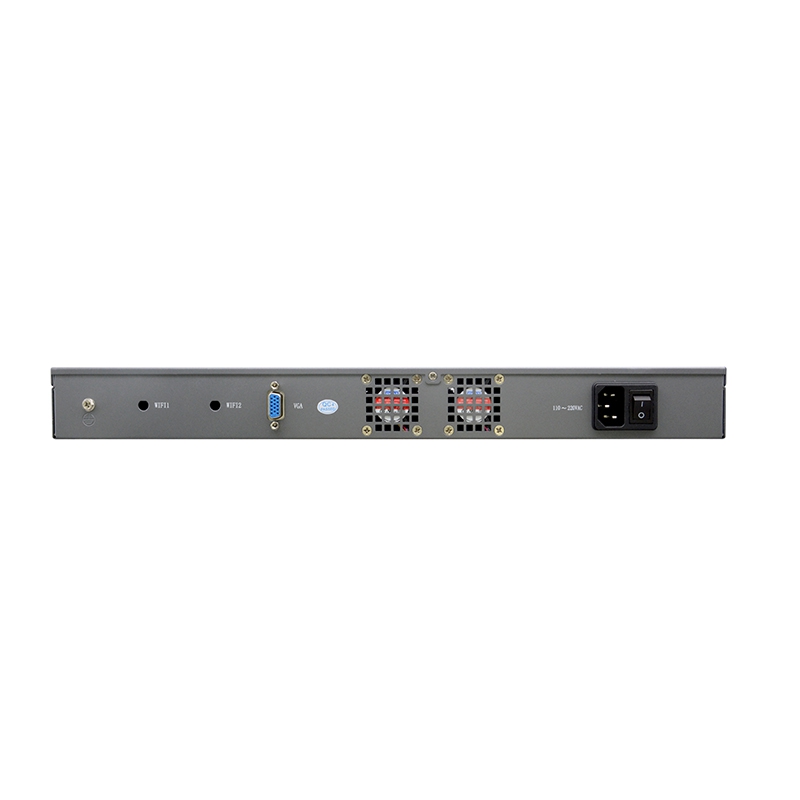

Rear I/O:
Display: 1x VGA
Power: 1x AC power plug (100V~240V power input)
Storage:
SATA: 1x 2.5” SATA HDD Docking Port
SSD: 1x mSATA slot ,support SSD ,transfer speed up to 3Gbps
Extension:
Mini PCIE:1* Mini-PCIE slot, supports WIFI, 4G modules, default is USB signal
Note: Mini-PCIE slot and LAN4 share the same PCIE channel, users can choose one from the two
OS support:
Microsoft Windows: YES
Linux: YES
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power:
Power Type: ATX power supply
Voltage Input: AC 100V~240V
Power output: AC to DC_60W
Reliability:
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Relative Humidity:5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
