Features
The SII-N2600-4LG is a compact desktop/1U rackmount network security appliance powered by Intel® N2600 or D2700 Cedarview processors, supporting up to 4GB DDR3 memory. It features 4 x Intel® i210-AT Gigabit Ethernet RJ45 ports delivering reliable throughput for firewall and network protection applications, along with 1 x SATA, 1 x mSATA, 1 x VGA, 2 x USB2.0 (plus 2 onboard pin headers), 1 x RJ45 COM console, and 1 x COM array pin. It also supports Wake-On-LAN, PXE boot, and a 255-level watchdog timer, with AC 100-240V or DC 12V power input.
This appliance is purpose-built for next-generation firewall (NGFW) deployments, VPN security gateways, unified threat management (UTM) systems, intrusion detection and prevention (IDS/IPS), and comprehensive network protection in perimeter security architectures. With broad OS support (Windows 10/11, Windows Server, Linux) and flexible desktop or 1U rackmount options, the SII-N2600-4LG offers an affordable yet dependable hardware foundation for SMBs, branch offices, and edge security applications
Product Description
Main:
CPU: Intel® N2600 / D2700
Code Name: Cedarview
Memory: 1* SO-DIMM DDR3 1333MHz MAX 4GB
LAN:
IC: Intel® Ethernet Controller 82583V / 82574L
Speed: 100/1000Mbps adapting
Interface: 4* 1Gbps Ethernet Controller, RJ45
Support NetWork WakeUp / PXE
Storage: 1* SATA / 1* mSATA
Display: 1* VGA
BIOS: AMI UEFI BIOS Legacy
USB: 2* USB2.0; 2* USB2.0(Array pin)
Power Supply:
Voltage: 100-240V~50/60Hz
Mainboard: ATX 4Pin 12V / DC-12V 55mm*25mm
Other:
Watchdog: 255 Levels, 0-255 Seconds
COM: 1* RJ45 Console / 1* COM (Array pin)
Dimension:
Desktop: 197mm*174mm*44mm

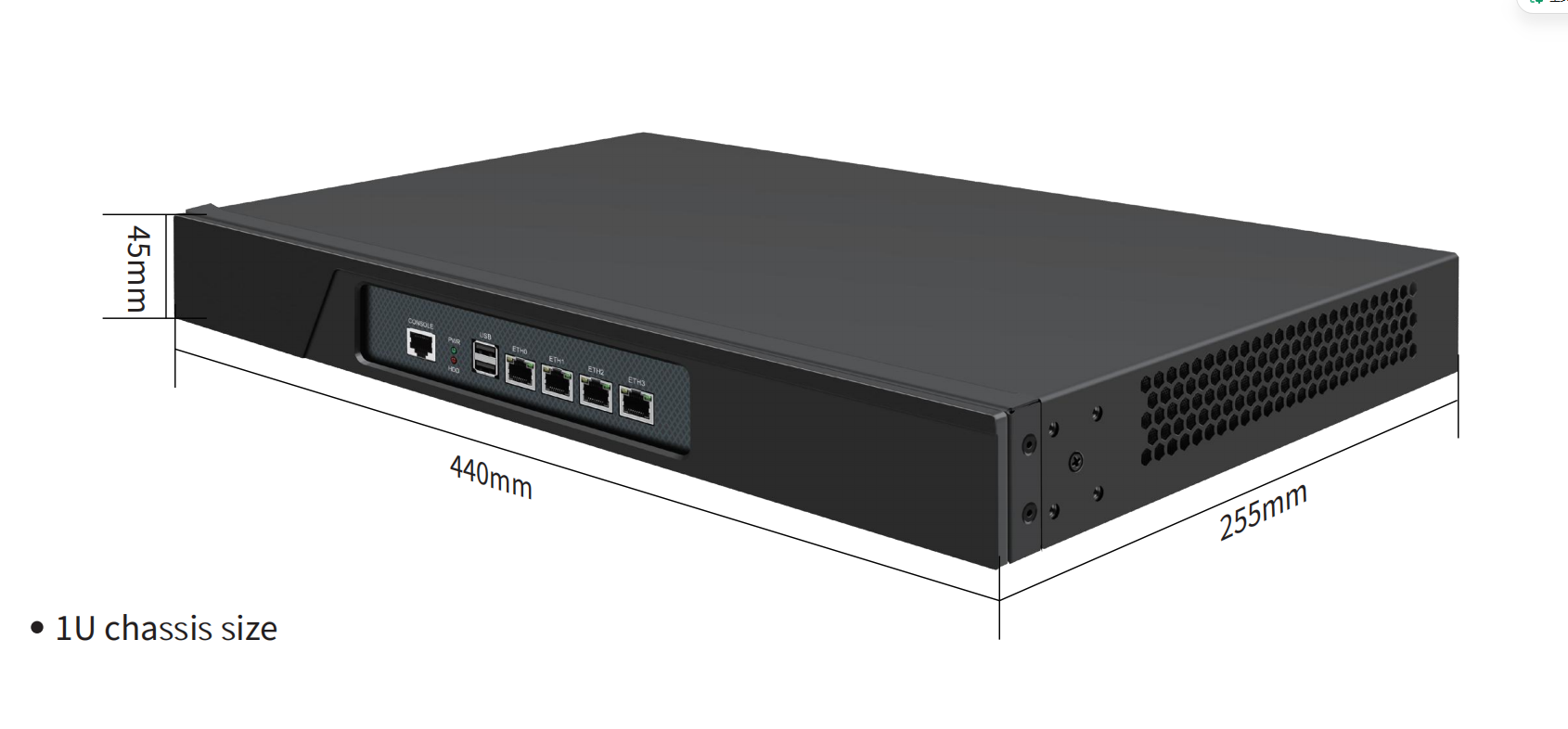

1U: 440mm*255mm*45mm
PCB: 170mm(W) * 170mm(L)
Working Temperature: 0℃~60℃
Storage Temperature:-10℃~70℃
Working Humidity: 10%~90%
Storage Humidity: 5%~95%, non-condensing
OS: Windows10 / 11,Windows Server, Linux
Customization: 4* Intel i210-AT Ethernet
.png)
.png)
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
.jpg)
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
