Features
The SII-J41-4LV is a compact hardware platform purpose-built for Next Generation Firewall (NGFW) deployments. Powered by an Intel low-power quad-core processor, it features four Intel i210-AT/i226-V LAN ports (optional) with full BYPASS support on LAN1-4 to ensure uninterrupted network connectivity during system failures or power outages. It includes one SO-DIMM DDR4 slot supporting up to 32GB of memory, a MINI PCIe slot for 4G/5G/WiFi module expansion, and a 4020 dual ball bearing fan for efficient cooling and reliable long-term operation.
This platform is ideal for Next Generation Firewall (NGFW), UTM, SD-WAN edge gateways, and branch office security deployments. The full-port BYPASS design makes it particularly suitable for critical infrastructure such as financial branch networks, industrial control systems, and intelligent transportation. With wireless module support, it can also be flexibly deployed in smart city projects, remote monitoring, and mobile emergency communication networks.
Product Description
Main:
CPU: Intel® J4125
Code Name: Gemini Lake
Memory: 1* SO-DIMM DDR4 2400 / 2666 / 3200MHz MAX 32GB
LAN:
IC: Intel® Ethernet Controller i210-AT / i226-V
Speed: 100/1000Mbps/2.5G adapting
Interface: 4* 1G/2.5Gbps Ethernet Controller, RJ45
Storage: 1* SATA / 1* mSATA
Display: 1* VGA
BIOS: AMI UEFI BIOS
USB: 2* USB3.0 interface; 2* USB2.0(Array pin)
Power Supply:
Voltage: 100-240V~50/60Hz
Mainboard: ATX 4Pin 12V / DC-12V 55mm*25mm
Other:
GPIO: 8* programmable GPIO
Watchdog: 255 Levels, 0-255 Seconds
COM: 1* RJ45 Console / 1* COM (Array pin)
4G/5G/WiFi: 1* miniPCle / 1* M.2 B_key
Other: NetWork WakeUp / PXE
Dimension:
Desktop: 197mm*174mm*44mm

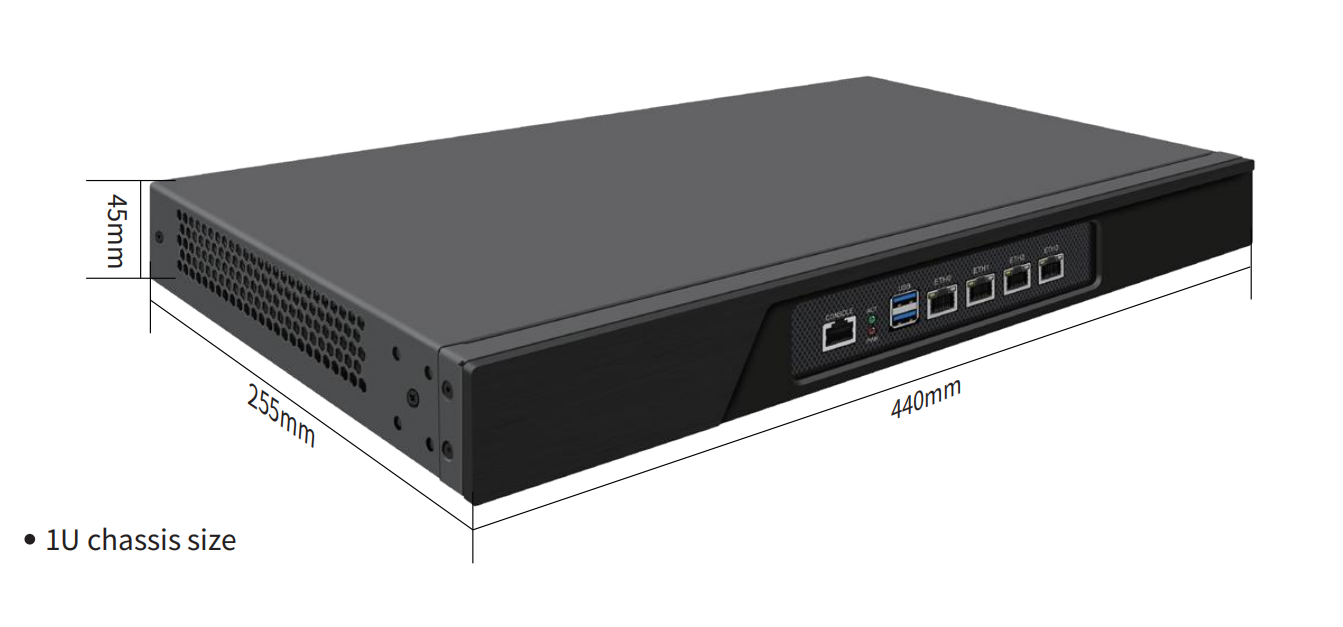

1U: 440mm*255mm*45mm
PCB: 170mm(W) * 170mm(L)
Working Temperature: 0℃~60℃
Storage Temperature: -10℃~70℃
Working Humidity: 10%~90%
Storage Humidity: 5%~95%, non-condensing
OS: Windows10 / 11,Windows Server, Linux
.png)
.png)
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
.jpg)
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
