Features
Powered by the Intel N100 processor, this embedded industrial PC packs extensive I/O into a compact 178x126x56mm metal chassis. It features four Intel i226 2.5G Ethernet ports with link aggregation and hardware offloading, DP and HD dual-display outputs, and dual DB9 COM ports (RS232/RS485 + RS232) for legacy device connectivity. Storage options include an M.2 NVMe (2280) slot and a SATA 3.0 interface, alongside an mPCIe expansion slot for WiFi/BT/4G modules. With six USB ports (two USB3.0), 12V DC input, and support for power-on auto-recovery, Wake-on-LAN, PXE boot, and hardware watchdog, the system is built for reliable 24/7 unattended operation.
With its multi-Ethernet ports, dual COM ports, and wide-temperature tolerance (-20°C to +50°C with industrial SSD), this device is ideal for edge computing and network security roles such as soft routers, VPN gateways, industrial firewalls, and traffic analyzers for SME networks or SD-WAN branches. The dual-display and dual-storage design also suits digital signage and machine vision inspection in smart manufacturing. Additionally, mPCIe cellular expansion enables use in intelligent transportation RSUs or remote-managed outdoor terminals. This platform delivers a cost-effective solution for IIoT and edge AI deployments.
Details
(2).jpg)
Product Description
Processor: Intel N100
Chipset :SII-1264-12-4L2C
BIOS: AMI EFI BIOS
Memory: 1*DDR4 SO-DIMM Memory slot, Up to 16GB 3200MHz
Storage: 1*M.2 NVMe (2280); 1*SATA 6.0Gb/s (Support 2.5 inch HDD/SSD)
Display Chip: Integrated Intel UHD Graphics
Display Port: 1*DP port; 1*HD port

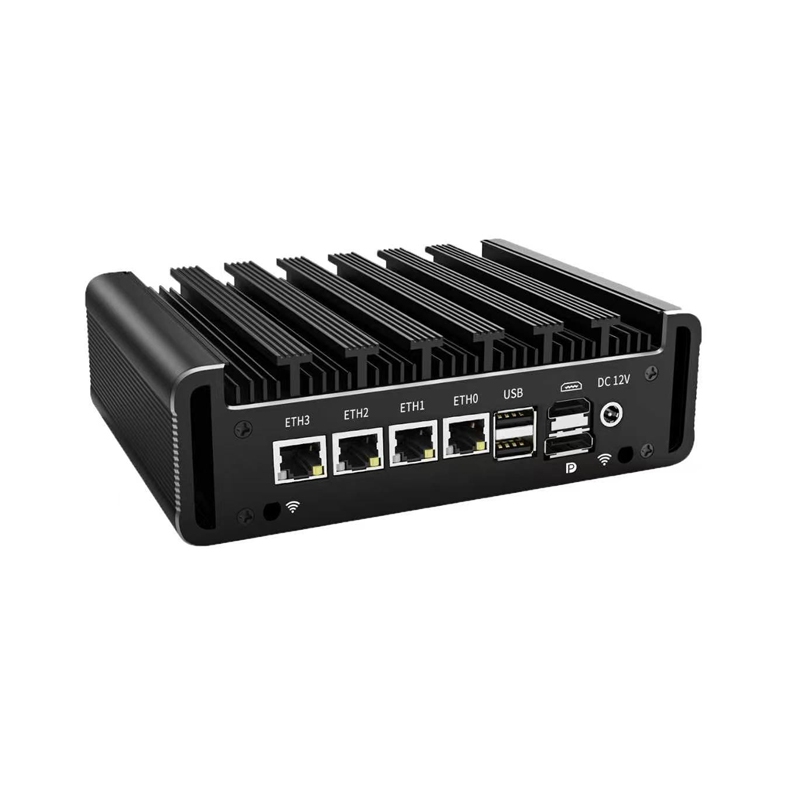

Front I/O interface: 4*Ethernet port; 2*USB2.0;1*DC_IN 1*HD (With audio output); 1*DP

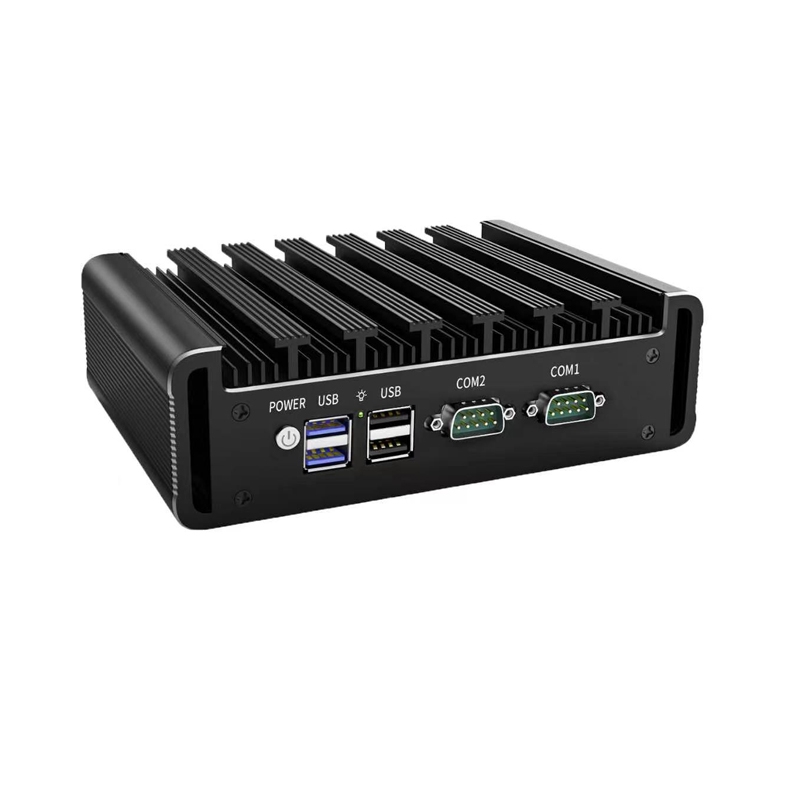

Back I/O interface:
1*Power Button; 2*USB3.0; 2*USB2.0; 1*Power HDD LED;
1*DB9 COM RS232/RS485, 1*DB9 COM RS232
Expansion slot: 1*mPCIe for WiFi/BT/4G Modules
Ethernet port: Intel i226 2.5 Gigabit Ethernet
Other functions: Start auto after power restored; Wake-up on LAN; PXE; Watchdog
Power Supply: Jack DC 5.5/2.5mm 12V 4A
Certificate: CE; CCC; FCC ClassB; RoHS
Size: 178x126x56 (mm)
Working Temperature: -0~+50℃ (Commercial HDD); -20℃~+50℃ (Industrial SSD); Surface Air flow
Environment Humidity: 5~90RH, Non-condensing
Weight: Gross Weight 1.85KG; Net Weight 1.15KG
Package Size: 305x205x105 (mm)
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
.jpg)
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
