Product Description
Model NO.: ST-AD12N-6S V1.0
Chassis:
Structure: All Aluminum Alloy ; Active Cooling (with Fan)
Dimension: 155mm*131.7mm*60mm

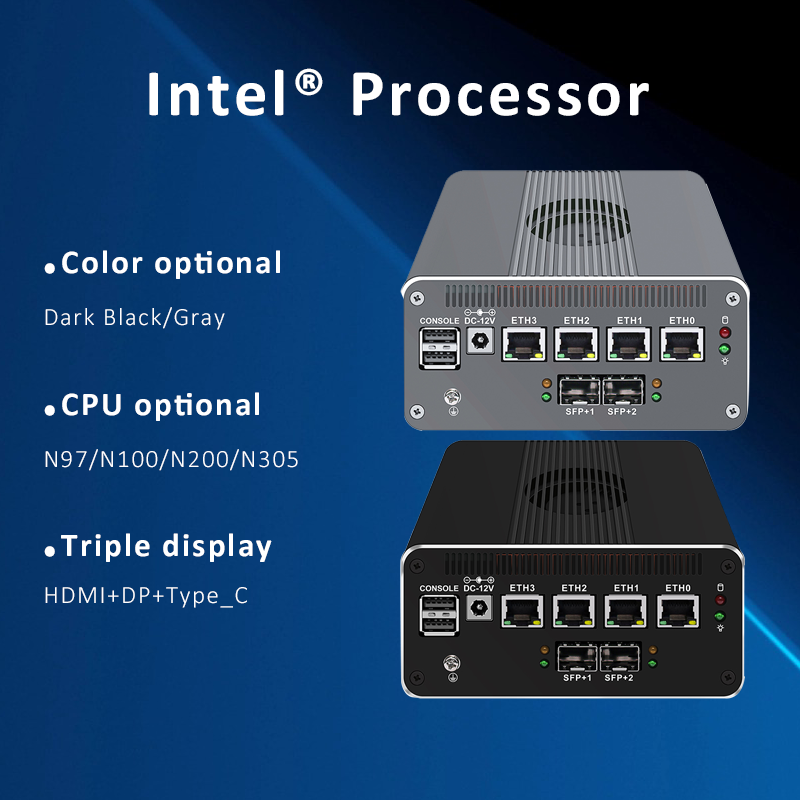

Color: Dark Black / Gray
Installation: Desktop
Motherboard:
Processor: Intel® 12th Gen Alder Lake-N Series N97/N100/N200/i3-N305 Processors
Chipset: Intel SoC
Graphics: Integrated Intel UHD Graphics (according to CPU)
Memory: 1x SO-DIMM slot,4800/5200/5600MHz DDR5 Memory, up to 32GB

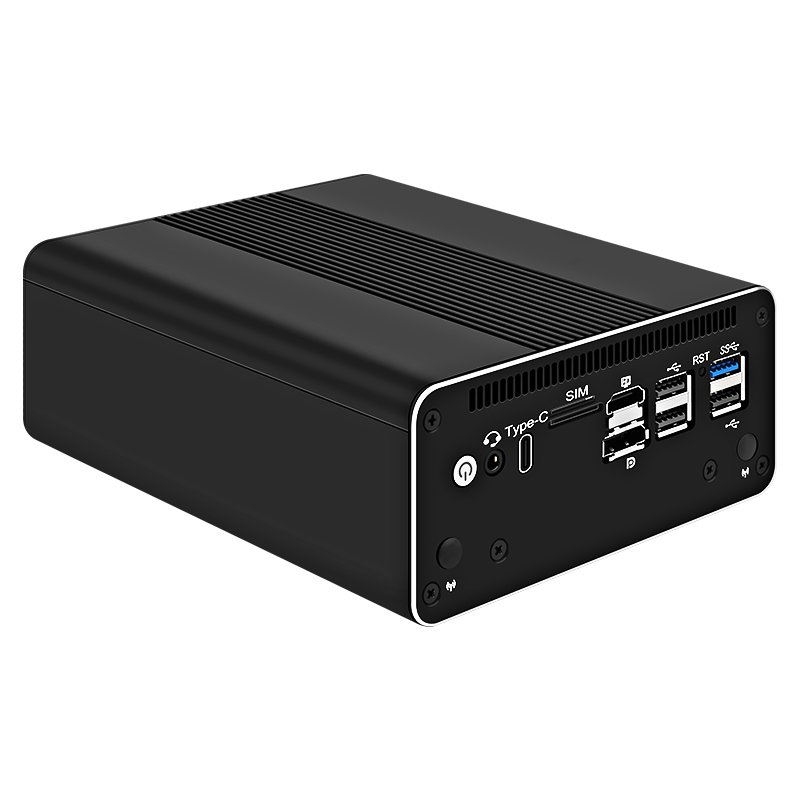

Front Panel:
Switch: 1x Power switch ; 1x Reset
Display: 1x DP1.2 (4096*2160 @60Hz) ; 1x HDMI2.0 (4096*2160 @60Hz) ; 1x Type_C (4096*2160 @60Hz)
USB: 3x USB2.0 ; 1x USB3.0
Slot: 1x TF card slot ; 1x SIM slot
Audio: 1x Audio (Line_out)
Antennas: 2x 4G LTE/Wifi&BT Antenna holes

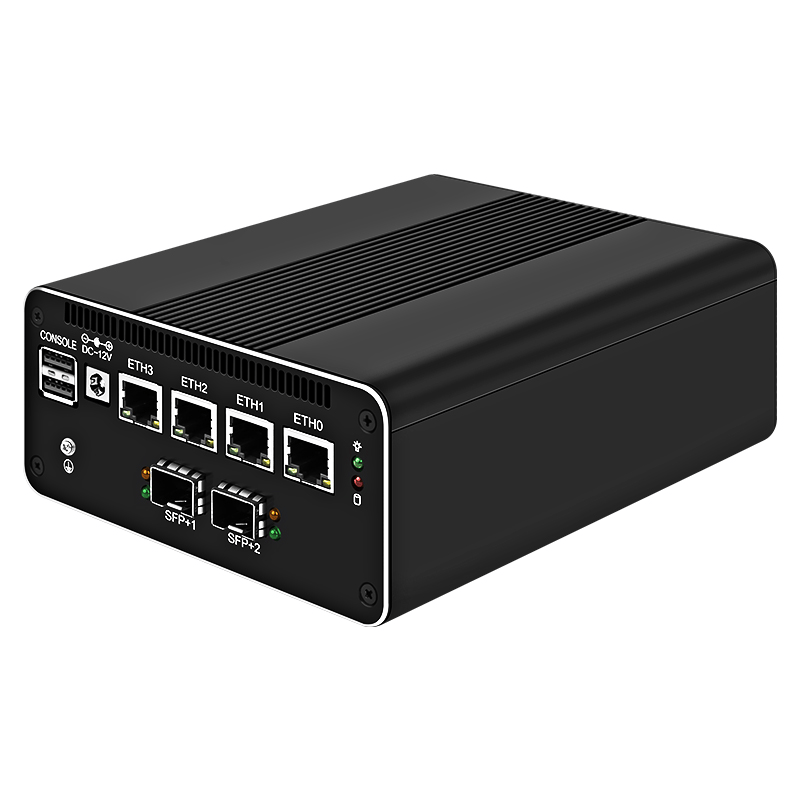

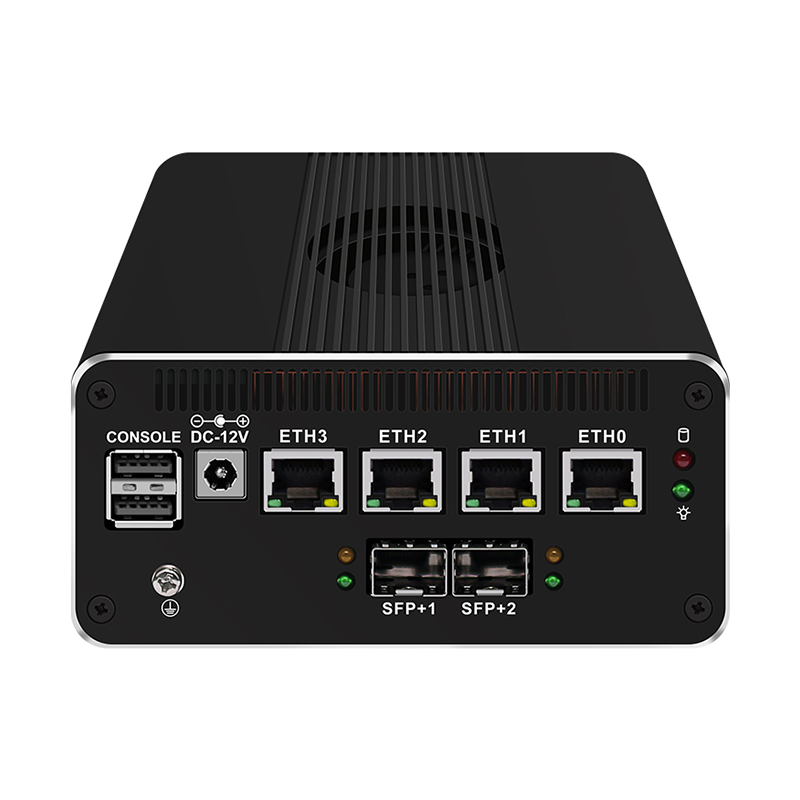

Rear Panel:
Ethernet: 4x RJ45 2.5GbE ports (Intel I226V 2.5G Ethernet Controller), support Wake_on_LAN/PXE
2x 10Gb SFP+ ports (Intel 82599ES Ethernet Controller)
Indicator: 1x Power.LED ; 1x HDD.LED
USB: 2x USB2.0
DC_Jack: 1x DC_12V Power Jack (55*25)
Storage:
SATA: 1x SATA3.0, support 1x 2.5” HDD
TF: 1x TF card slot
M.2: 1x M.2 Key_M slot, support 2242/2280 NVMe X1 SSD
Inner_I/O:
Inner_I/O: 1x RS232(2*5pin) ; 1x TPM ; 2x USB2.0 ; 1x GPIO
OS Support:
System: Windows / Linux OS etc.
BIOS: AMI 64Mb Flash ROM
Watch Dog: Hardware reset function (L256, 0~255 seconds)
Power Supply:
Power Adaptor: DC_12V 5A input
Reliability:
Working Temp.: - 10℃ ~ 60℃
Storage Temp.: -20℃ ~ 70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
