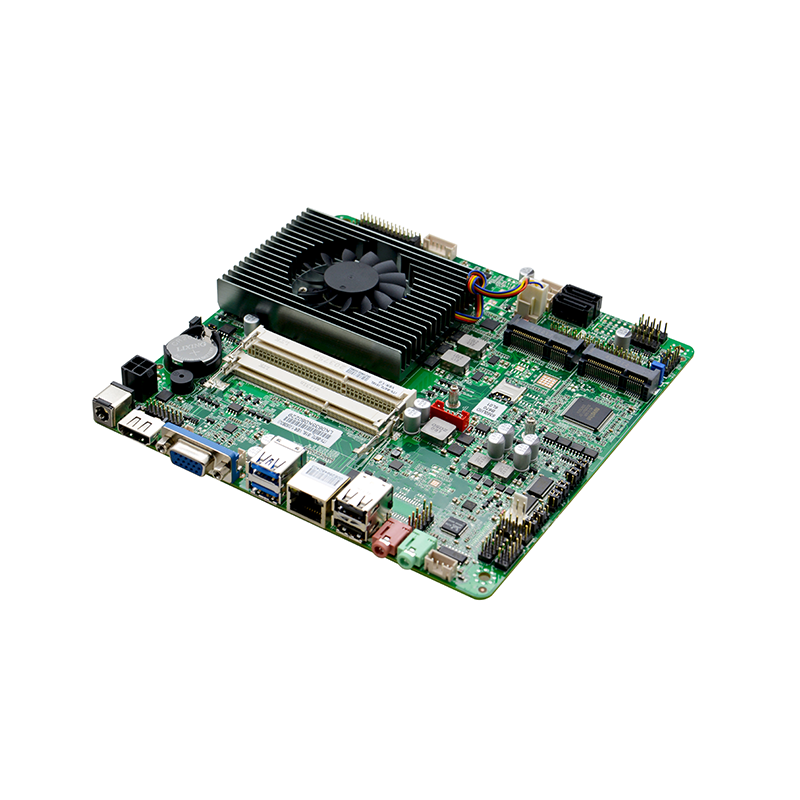

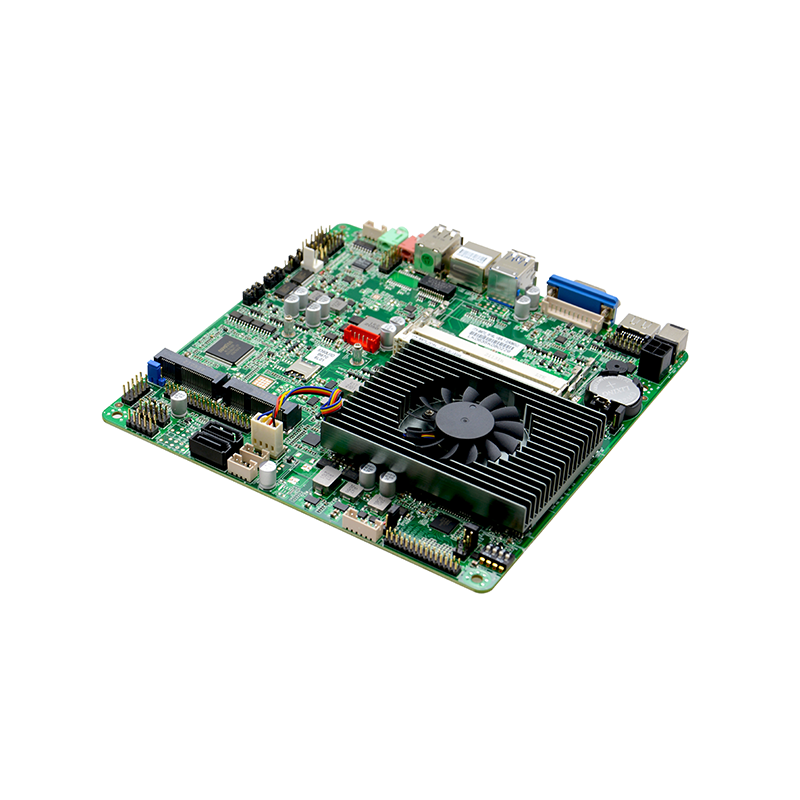

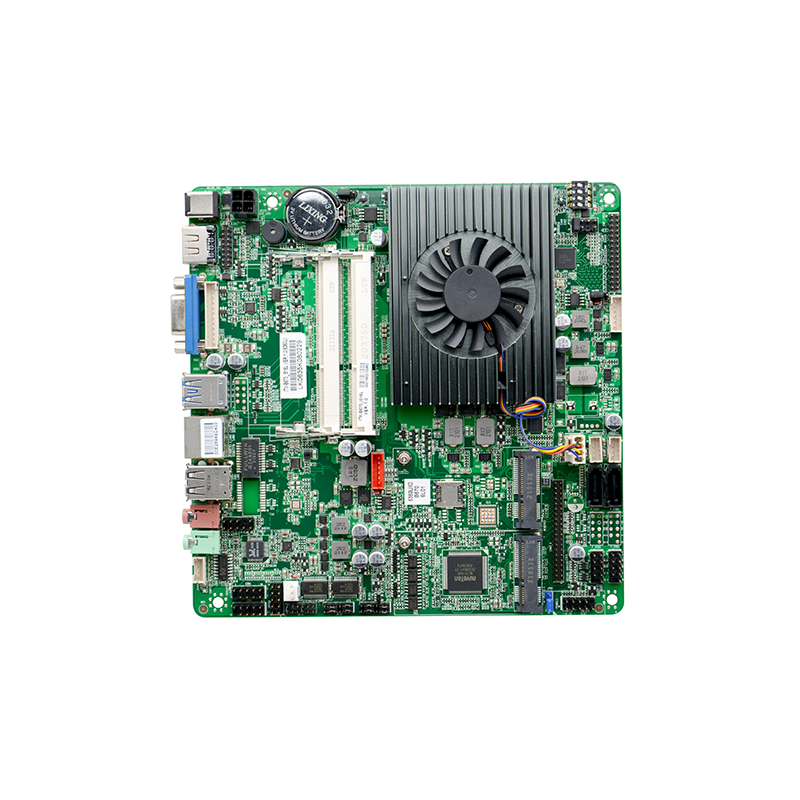

This cost-effective Thin ITX motherboard utilizes Intel Skylake-U SOC technology, featuring the 6th Gen Core™ i5-6300U processor (2C/4T, 2.4GHz) with Intel® Iris® Graphics 550 in a compact Thin ITX form factor (170×170mm). Designed for space-constrained industrial applications, it delivers reliable performance with essential connectivity.
Key Features:
✔ Energy-Efficient Processing: Intel i5-6300U (15W TDP)
✔ 4K Display Support: VGA + HDMI + LVDS (triple output)
✔ Memory Configuration: Dual-channel DDR3L 1600MHz (max 16GB)
✔ Industrial I/O:
1×GbE (Realtek 8111H) + 8×USB
6×COM (RS232/485/422)
✔ Storage & Expansion:
2×SATA3.0 + 1×mSATA
1×mini-PCIe (WiFi/4G)
✔ Rugged Design:
GPIO + Watchdog Timer
2Ω/5W audio amplifier
✔ Dual Power Input: 12V DC jack or ATX 4-pin
Product Description
Model No.: ITX-B670_I516L VER:1.0（6360U）
Processor: Integrated Intel®I5-6360U 2.0GHz dual-core processor, TDP 15W
Compatible with Intel Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors
Chipset: SOC
RAM: 2*DDR3L SODIMM memory slot, support 1600MHz memory, maximum support 16GB
Display:
Integrated Intel® Iris® Graphics550, support DirectX 12, OpenGL 4.5, support 4K
1*VGA interface, the highest resolution supported is: 1920X1200@60Hz
1*HDMI1.4 interface, the highest resolution supported is: 4096X2304@24Hz
1*Support dual channel 24bit LVDS interface
Ethernet: 1* 8111HS Gigabit network card, support Wake on LAN, PXE function
Storage:
2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps
1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps
Audio:
Integrated ALC268 2-channel high-fidelity audio controller, support MIC, Line_out, power amplifier
Support power amplifier 2Ω5W speaker
Expansion slot:1* Mini-PCIE slot, support WIFI/4G module

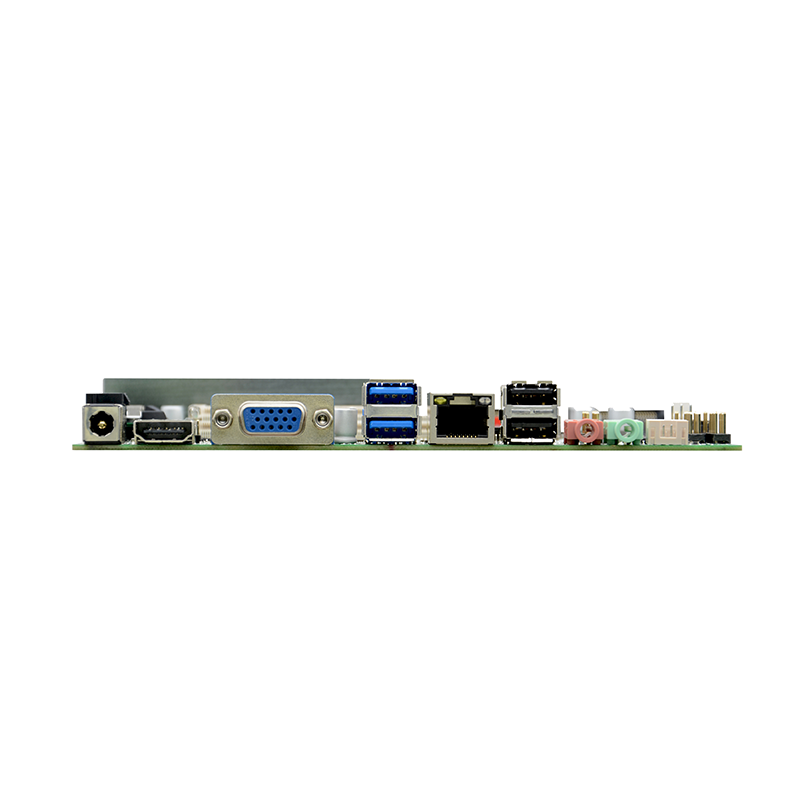

Backplane I/O interface:
2* USB3.0 interface, 2* USB2.0
1* HDMI port
1* DB15 VGA interface
1* RJ45 Gigabit network interface
1* Line-out (green), 1*MIC (red)
1* DC12V power supply, support 12V power input and output
Built-in I/O interface:
1* JVGA1 interface 1*12pin (same signal with DB15)
1* JHDMI interface 2*8pin (same signal as HDMI interface)
1* LVDS interface 2*15pin, support dual channel 24bit
1* LVDS backlight power supply interface 1*6pin
6* RS232 serial interface, COM2/4 supports RS485/422 function
4* USB2.0 interface 2*5pin
1* Front audio interface 2*5pin
1* Front panel switch button and indicator light interface 2*5Pin
2* Hard disk power supply interface 1*4pin
1* power amplifier interface 1*4pin
1* PS/2 keyboard and mouse interface
1* 4pin ATX power interface (can be used as 12V input and output power interface)
1* SIM card slot
Fan interface: 1* 4pin CPU smart fan interface, 1* 3pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Power type: Powered by DC 12V power supply
Operating system: Windows 7, Windows 8, Windows 10, Linux
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, non-condensing
Dimension: 170mm x 170mm
