Overview
This industrial PC with fan is sized 178×126×56 mm, powered by Intel Celeron N150 quad-core quad-thread processor. It supports single-channel DDR4 3200MHz memory up to 16GB, with desktop and wall-mount installation.
It features 6×Intel I225/I226 2.5GbE LAN ports, DP + HDMI dual display outputs supporting 4K@60Hz. Rich I/O includes 2×USB2.0, 2×USB3.0, 1×COM port and SIM slot. The Mini-PCIe slot supports WiFi and 4G expansion.
Storage supports M.2 Key-M 2280/2242 SSD (PCIE/SATA adaptive) and SATA3.0 interface. Powered by DC12V, it supports power resume, timed power on, WOL, PXE boot and hardware watchdog.
Product Description

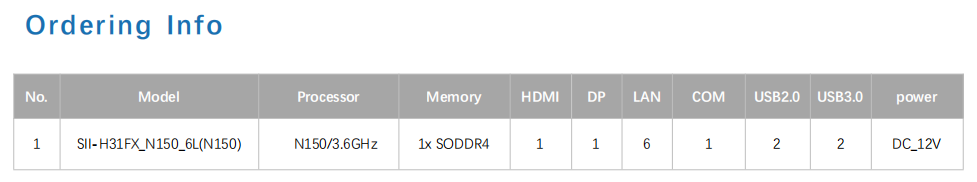

Model No.: SII-H31FX-N150_6L (N150)
Chassis:
Structure: All materials is made of aluminum, fan cooling structure
Dimension: 178 x 126 x 56mm (L*W*H)
Color: Black

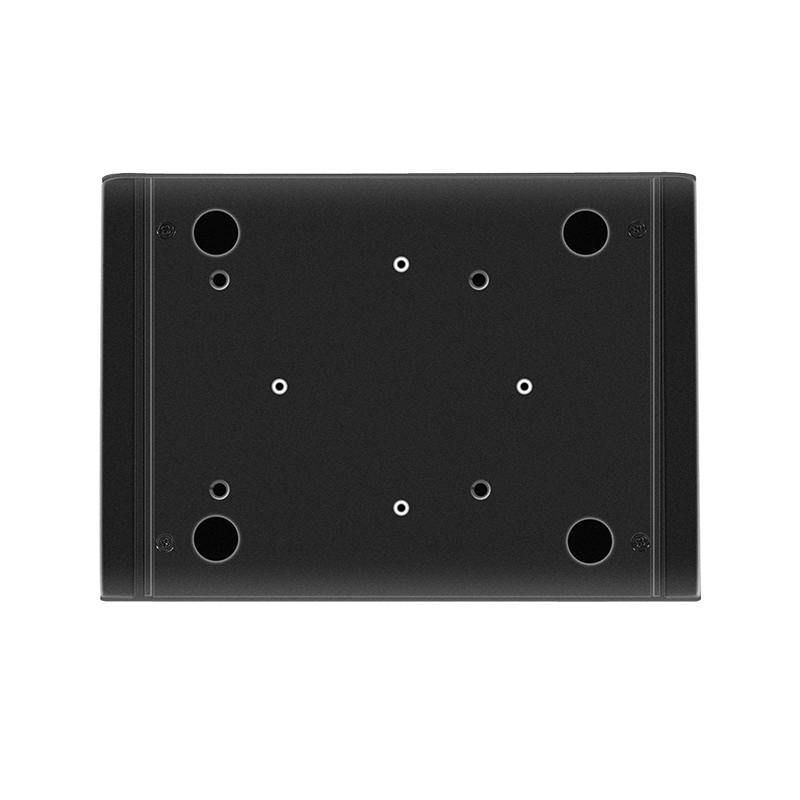

Installation: Support Desktop / Wall-mounted
Motherboard:
Processor: Integrated Intel ® N150/3.6GHZ 4-core 4-threads processor;
Chipest: Integrated Intel HD Graphics
Memory: 1x SO-DIMM slot, support DDR4 Memory, up to 16GB

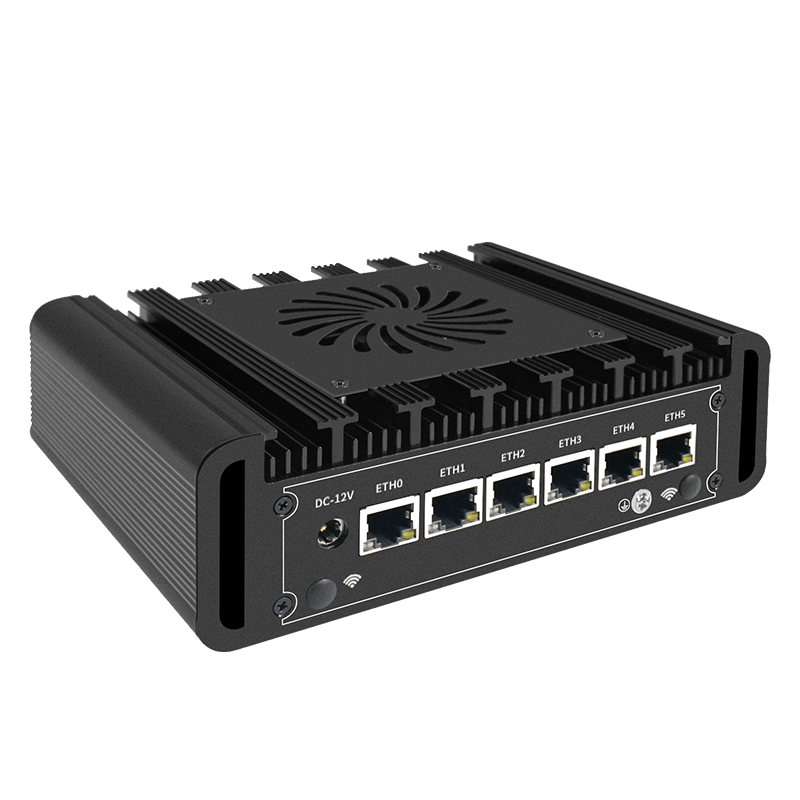

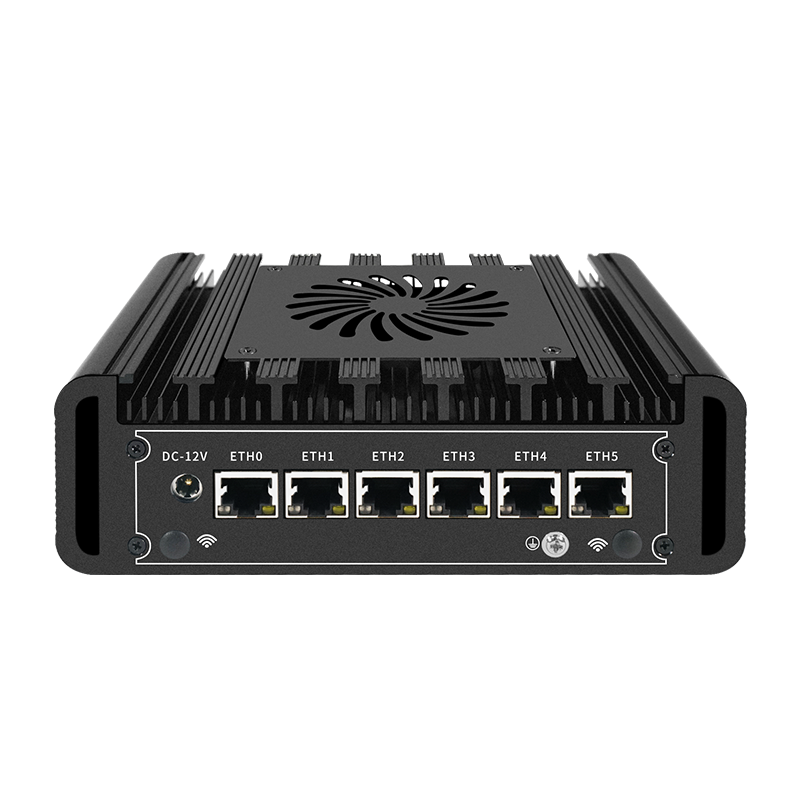

Front I/O:
Power: 1x power input DC_12V
LAN: 6x I226 2.5GbE Ethernet ports;

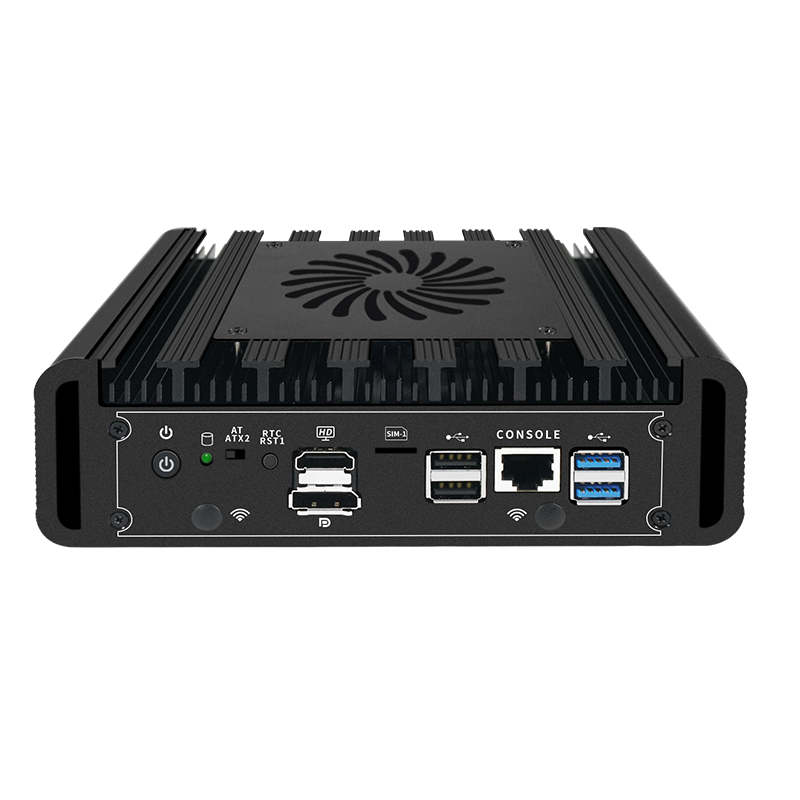

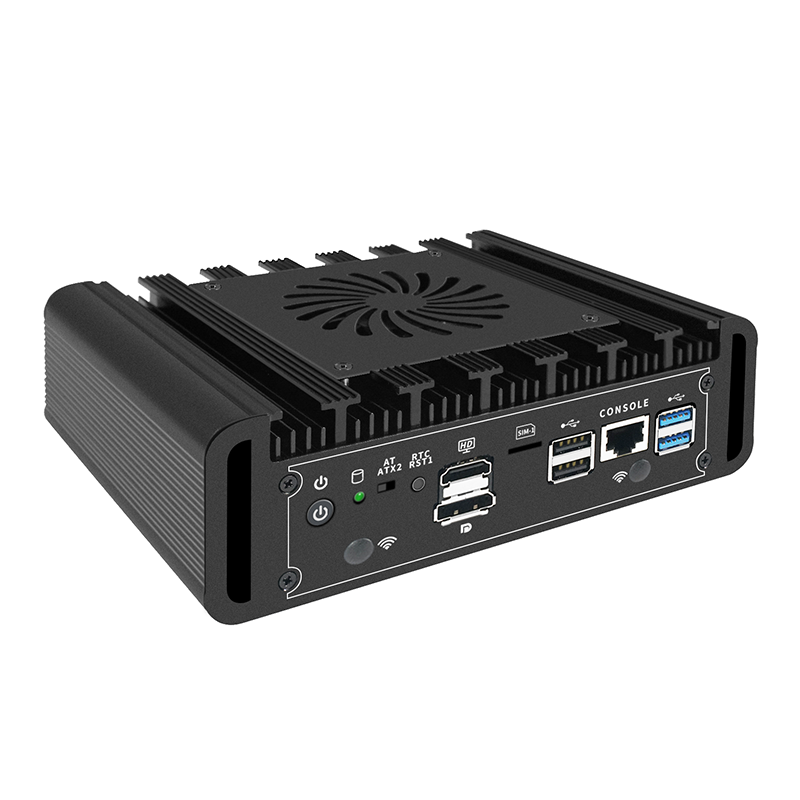

Rear I/O:
Switch: 1x Power Button, 1x RTC (RST1) Button
LED:1x Power HDD LED
USB: 2x USB3.0, 2x USB2.0
COM: 1x RJ45 COM Ports
Display: 1x DP + 1x HDMI dual-display interface (fully supports 4K/60Hz)
SIM: 1x SIM slot
Storage:
SATA: 1x SATA3.0
M.2: 1x M.2 2280/2242 NVME SSD
Expansion:
PCIE: 1x MINI PCIE slot, Support 4G/WIFI&BT
O/S:
Windows: Yes
Linux: Yes
Watch Dog: Support hard ware reset function (level 256, 0~255 seconds)
Power Supply:
Power supply: External power adapter
Voltage input: DC_12V 4A(5.5*2.5)
Reliability:
Working Temp.: 0℃~50℃
Storage Temp.: -20℃~50℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
