Built on the Intel Kaby Lake SOC platform, this 7th Gen Intel Mini ITX motherboard features an Intel® Core™ i3-7100U dual-core processor (2.4GHz, 15W TDP) with Intel HD Graphics, supporting HDMI1.4 + LVDS + dual EDP + VGA multi-display outputs. Equipped with 2 DDR4 SO-DIMM slots (up to 32GB), 1 Gigabit LAN, 10 USB ports, and rich expansion options including M.2 NVMe SSD, WiFi/BT module, and TPM 2.0 security chip for enhanced data protection.

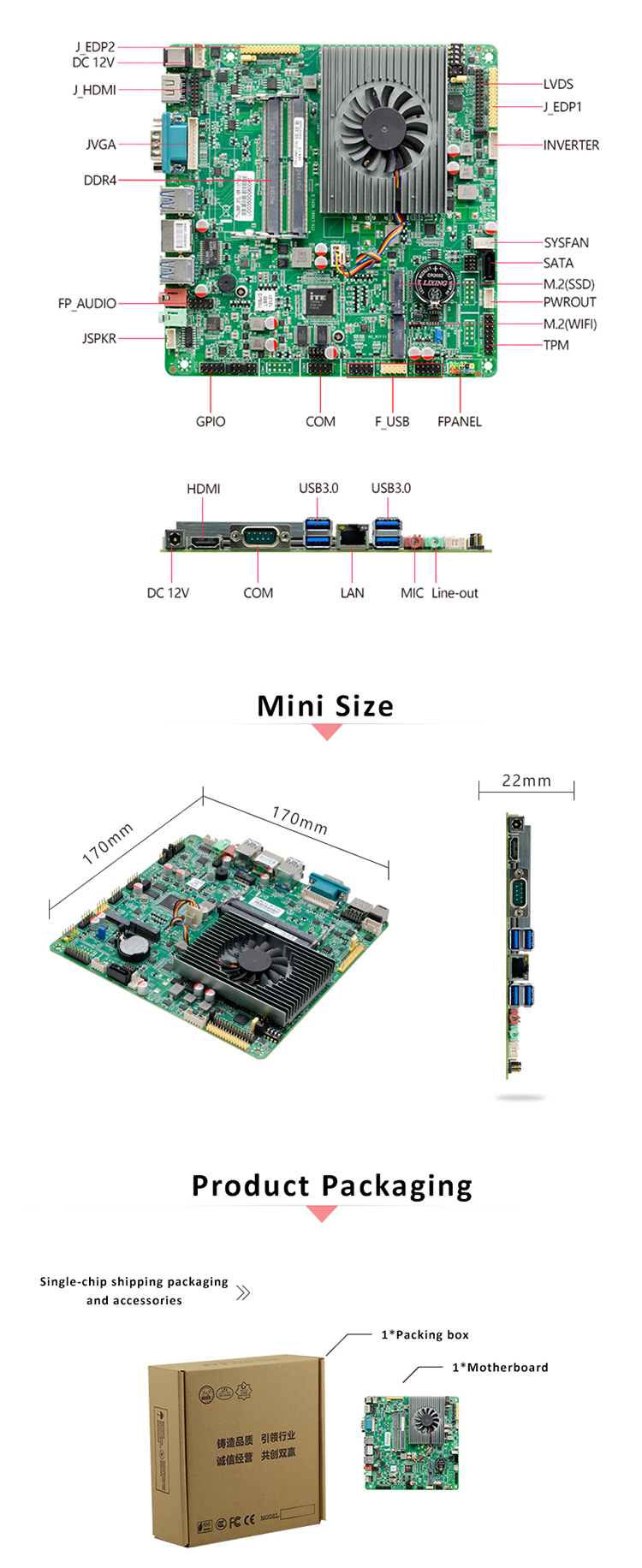

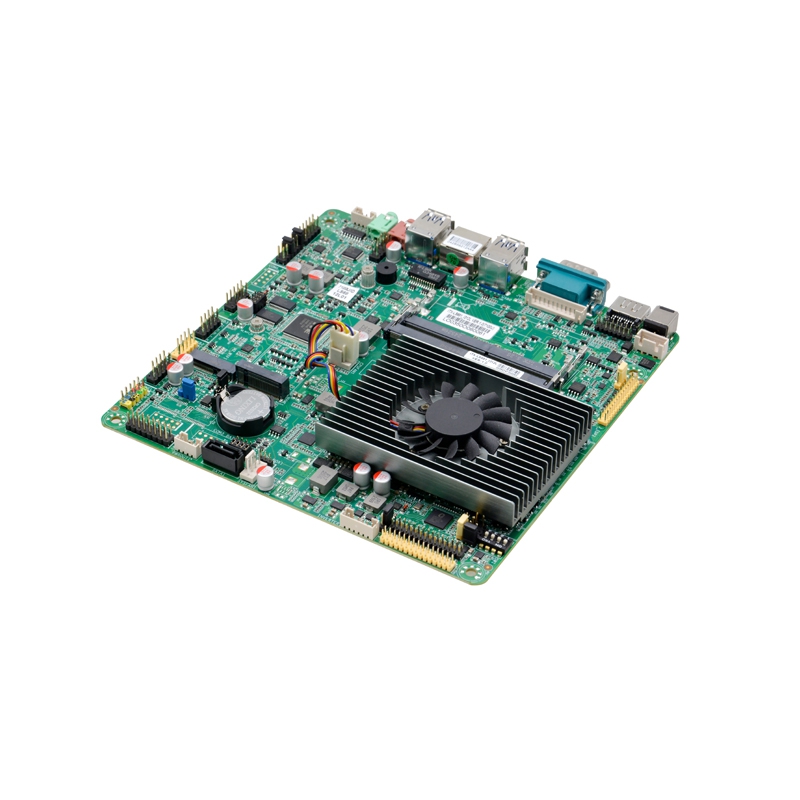

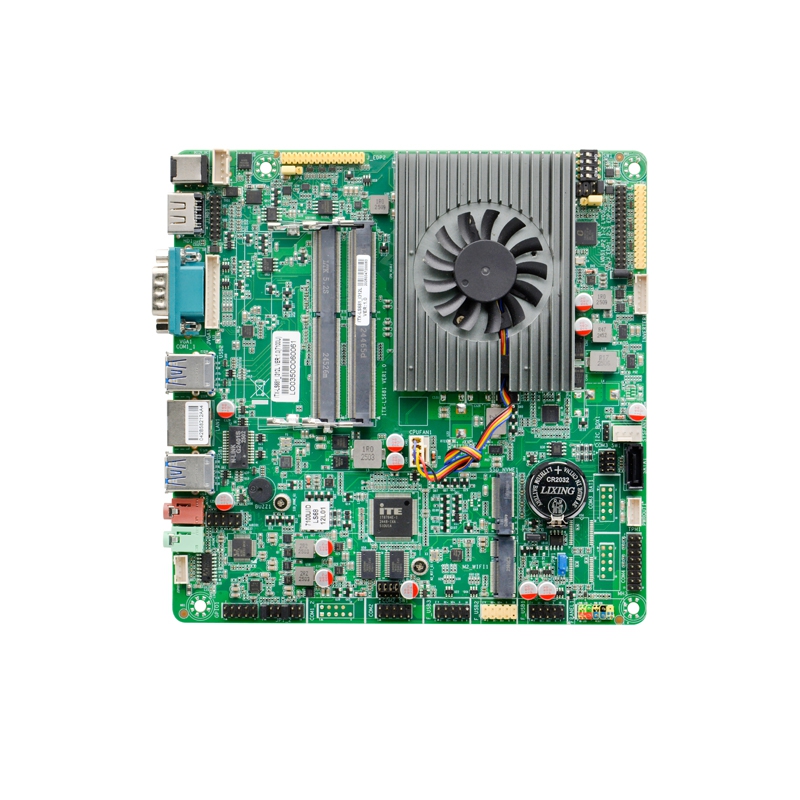

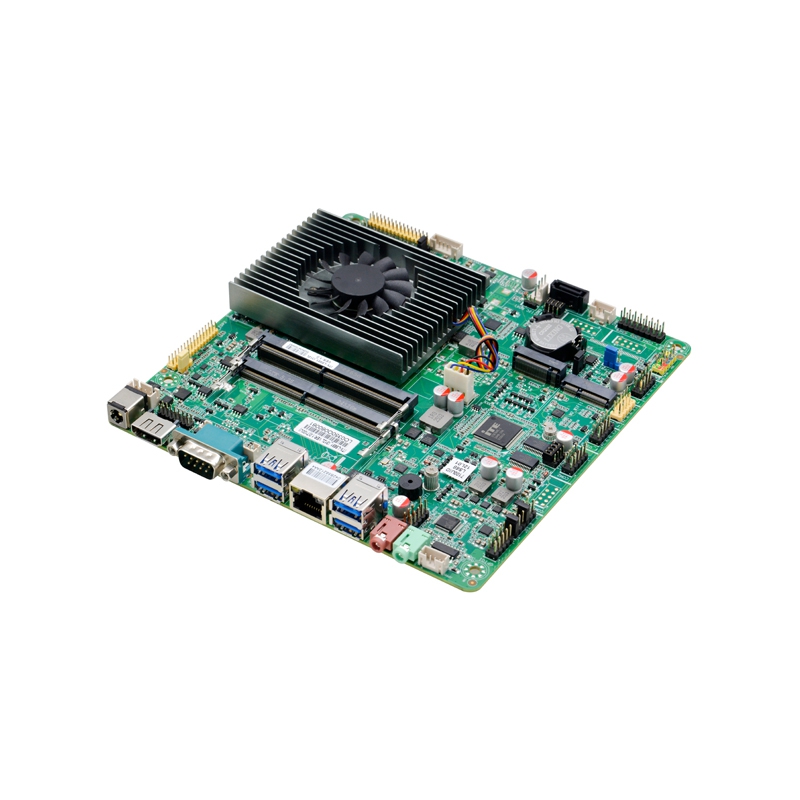

Detail Display
Product Description

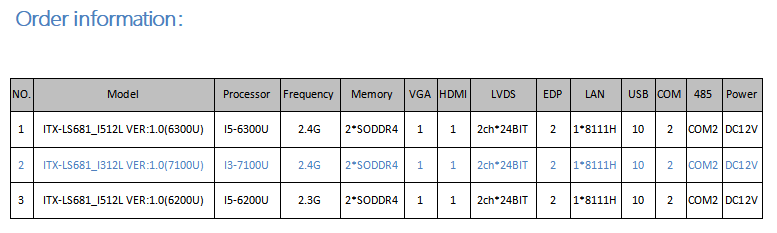

Model No.: ITX-LS681_I312L VER:1.0(7100U)
Processor: Integrated Intel®I3-7100U 2.4GHz dual-core quad-thread processor, TDP 15W
Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low power CPU
Chipset: SOC
RAM: 2* SODIMM memory slot, support dual channels 2133MHz DDR4 memory, up to 32GB
Display:
Integrated Intel® HD Graphics 620, support DirectX 12, OpenGL 4.5, support 4K
1*VGA, the highest supported resolution is: 1920X1200@60Hz
1*HDMI1.4, the highest supported resolution is: 4096X2304@24Hz
1*support duanl channels 24bit LVDS
2* EDP (EDP1 and LVDS interfaces are selected through jumpers, VGA and EDP2 are selected through jumpers)
Supports dual EDP display or LVDS+EDP display
Ethernet: 1* RTL8111H Gigabit LAN, support Wake-on-LAN, PXE function
Storage:
1* SATA3.0 hard disk interface, transfer rate up to 6Gbps
1* M.2 slot, support M.2 Key M 2280 PCIE X4 SATA specification SSD
Audio:
Onboard ALC897 7.1+2 channel Hi-Fi audio controller,support MIC/Line-out.Power amplifier
It is recommended to use a 2Ω5W speaker for the power amplifier
Expand slot: 1* M.2 slot, support M.2 Key E 2230 WIFI/BT module
Backplane I/O Interface:
4* USB3.0
1* HDMI
1* DB9 RS232 Serial port (DB15 VGA is optional)
1* RJ45 Gigabit network interface
1* Line-out(green), 1*MICK(red)
1* DC 12V power supply input interface
Built-in I/O interface:
1* JVGA, 1*12pin (same signal as DB15)
1* JHDMI, 2*8pin(same signal as HDMI)
1* LVDS, 2*15pin, support dual channels 24BIT
2* EDP(yellow), 2*15pin(The LVDS and EDP1 interfaces are selected by jumper, the VGA and EDP2 interfaces are selected by jumper)
1* LVDS Screen backlight power supply interface, 1*6pin
1* RS232 serial port, 2*5pin, COM1/2 Support the 9th pin charging function, COM2 support RS485 function.
6* USB2.0, 2*5pin
1* Front panel audio interface, 2*5pin
1* Front panel switch button and indicator interface, 2*5pin
1* Hard drive power supply interface, 1*4pin
1* Amplifier interface, 1*4pin
1* DC power supply interface, 1*4pin support 12V power input output
1*TPM2.0, 2*8pin
Fan interface: Reserved 1*4pin CPU smart fan interface, 1*4pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function(256 levels, 0~255 seconds)
Operating system: Windows 7/10/11,Linux
Power Type: Powered by DC 12V power supply
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, no condensation
Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
