Overview
Z371SL_8L VER:1.0 8 Lan Firewall Motherboard is built with Intel Z370 high-speed chipset, an industrial-grade motherboard specially designed for network security, firewall and soft routing scenarios, focusing on multi-LAN data forwarding and hardcore network protection.
It supports LGA1151 socket 6th-9th gen Intel full-series processors, 4 DDR4 RAM slots up to 128GB for powerful computing. As a professional
8 Lan firewall motherboard, it integrates 8*Intel I210AT and 1*Intel I219LM Gigabit LAN ports, 9 LAN ports for concurrent transmission, boosting networking, control and security efficiency.
Rich expansion interfaces include SATA3.0, M.2, USB, PCIE3.0 X16, supporting 4G/5G and WIFI modules; built-in Intel HD Graphics with VGA+HDMI output, equipped with watchdog and ATX power supply, ensuring 24/7 stable operation, ideal for enterprise firewall and industrial networking.

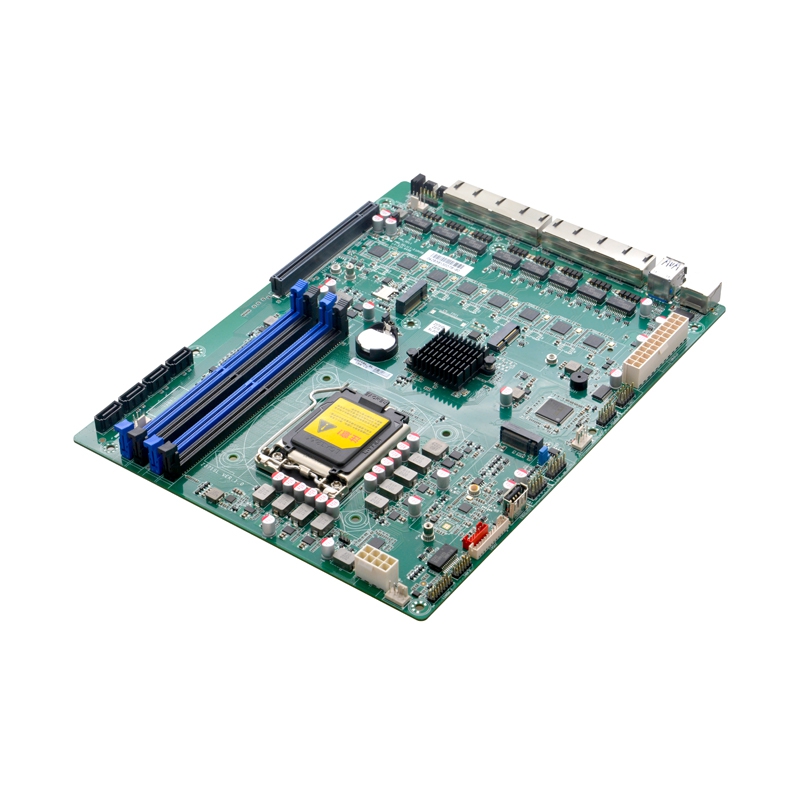

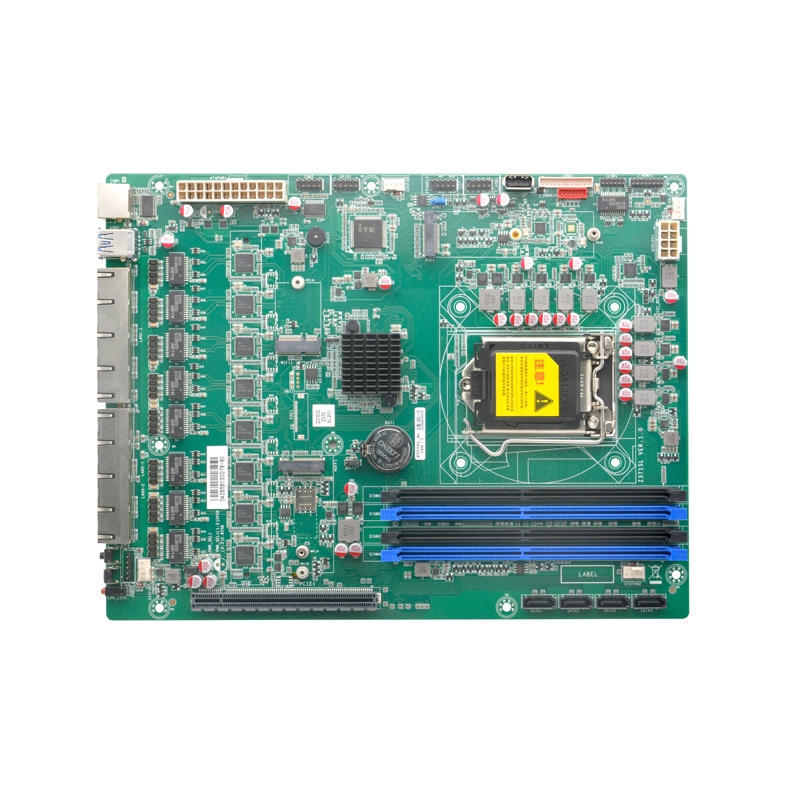

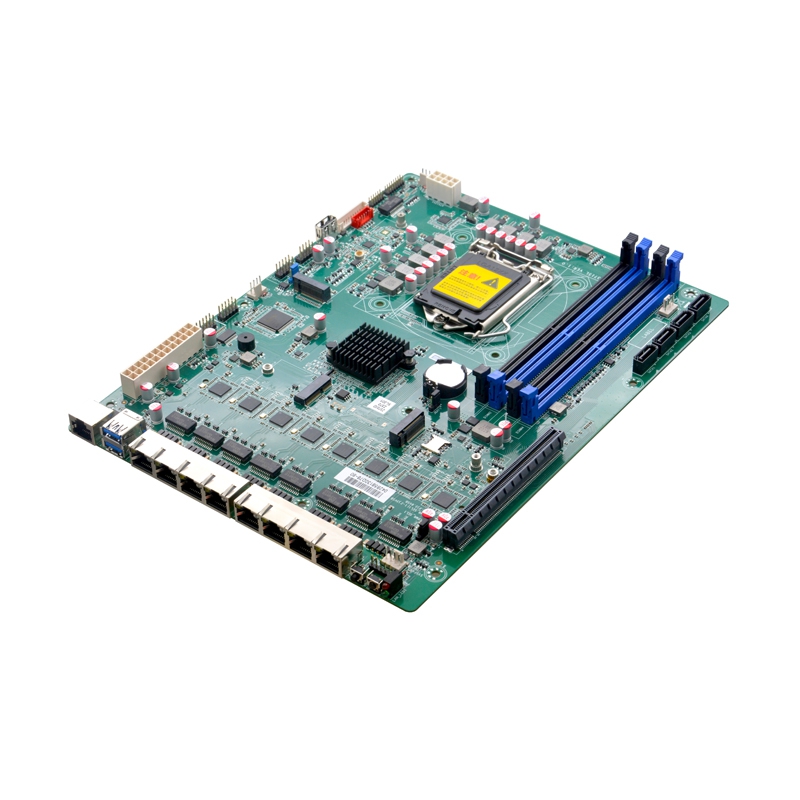

Detail Display
Product Description
Model No.:Z371SL_8L VER:1.0
Processor:
Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Note: Support 125W CPU
Chipset:Adopt Intel Z370 high-speed chipset
Memory:4*DDR4 UDIMM memory slot,support 2666MHz DDR4 memory, up to 128GB
Display:
Integrated Intel® HD Graphics, support DirectX12,OpenGL4.4, support 4K display
1* VGA, supports the highest resolution 1920X1200@60Hz
1* HDMI1.4, supports the highest resolution 4096X2160 @24Hz
Network:
8* Intel® I210AT Gigabit network, supports network wake-up and PXE functions
1* Intel® I219LM Gigabit network, supports network wake-up and PXE/VPRO function
Storage:
4* SATA 3.0, SATA interface transmission speed up to 6Gbps, support RAID 0,1,5,10
1* M.2, support M.2 Key M 2242/2280 PCIE3.0 x4/SATA adaptive standard SSD
Audio: N/A
Expansion slots:
1* M.2, support M.2 Key B 2242/2252 4G/5G module
1* M.2, support M.2 Key E 2230 WIFI module
1* PCIE3.0 X16

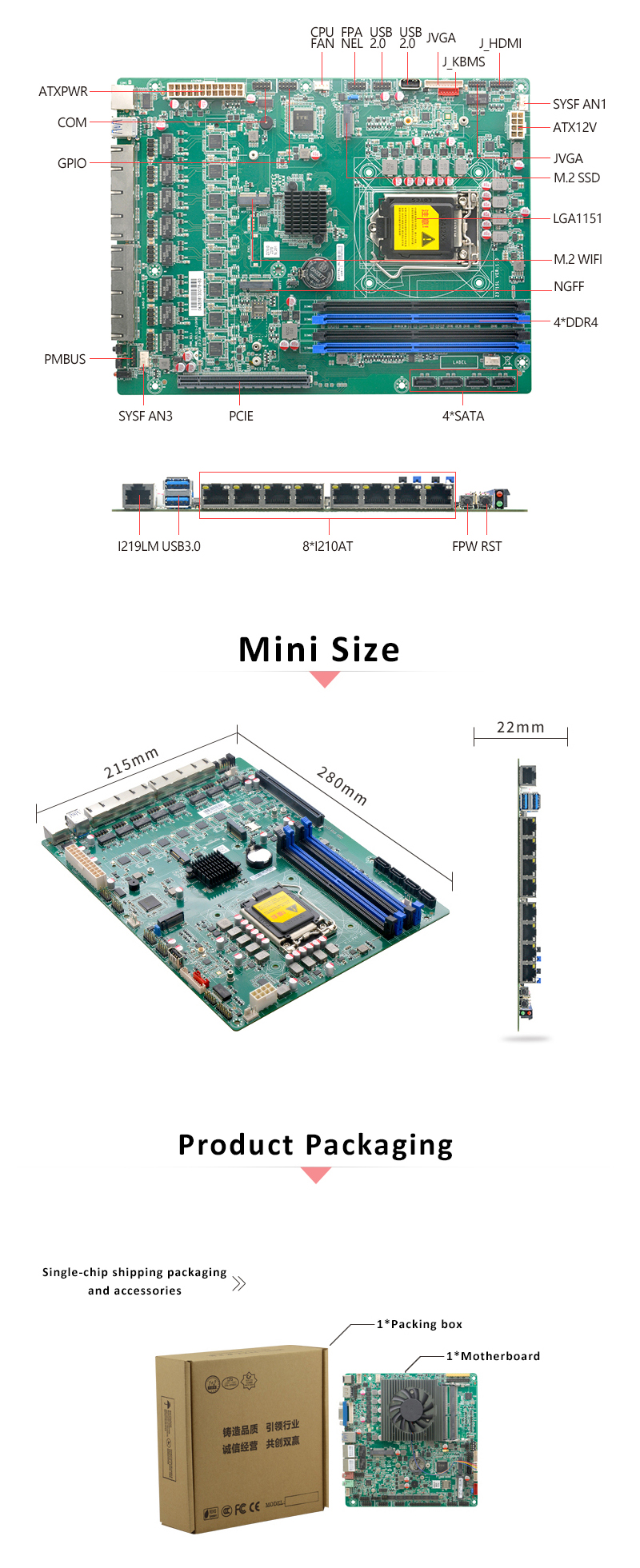

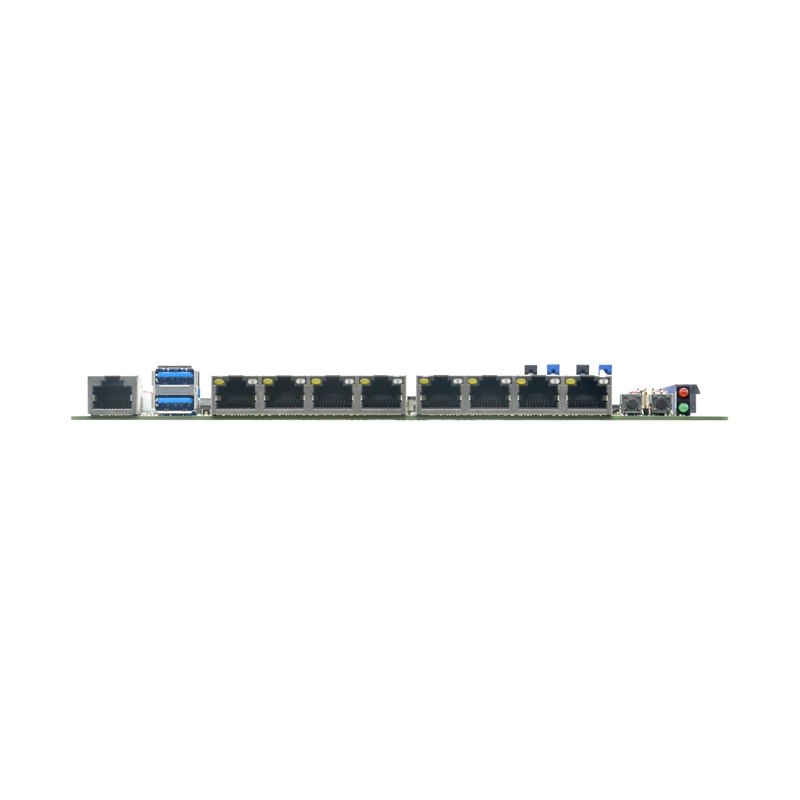

Rear I/O interface:
1* RJ45 serial port
2* USB3.0
8* RJ45 Gigabit network interface
1* power switch, 1* reset switch
1* power indicator light, 1* hard disk indicator light
Built in I/O interface:
1* JVGA; 1*12pin
1* JHDMI; 2*8pin
1* RS232 serial port, 2*5pin
1* Network pin header, 2*6pin
2* USB 2.0, 2*5Pin
1* Vertical USB 2.0 port
1* PS/2 keyboard and mouse interface 1*6pin
1* Front panel function button and indicator light interface 2*5pin
1* FPC interface, 30pin, including 1 PCIE, 1 PLC/ESPI bus, HD bus (reserved, optional)
1* SIM card slot
1* 24pin ATX power input interface
1* 8pin ATX power input interface
Fan connector:1*4pin CPU smart fan interface, 3* 4pin system smart fan interface
BIOS:64Mb Flash ROM
OS: Windows 10/Windows 11/Linux
Watchdog:Support hardware reset function (256 levels, 0~255 seconds)
Power type:ATX power input
Working Temp.:0℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 220mm x 280mm
