Ideal for industrial automation, smart retail terminals, edge computing gateways, and security surveillance systems. Its low-power design combined with rich I/O interfaces makes it well-suited for embedded projects requiring long-term stable operation.
Product Description
Model No.: SBC-E100_LV62 VER:1.1(N100)
Processor:
Integrated Intel®Alder Lake-N N100 3.4GHz quad-core quad-thread processor, TDP 6W
Compatible with Alder Lake-N series：N95、N97、N150、N200
Chipset: Based on SOC platform
RAM:
1* SODIMM memory slot, support single channel 3200MHz DDR4 memory, up to 32G
Dispay:
Integrated Intel® UHD Graphics
LVDS1/ EDP1+VGA/ EDP2+HDMI
supports simultaneous synchronous and asynchronous triple-display output
Ethernet:
2* RTL8111H Gigabit Ethernet, supports network wake up/PXE function
Storage:
1* M.2 2242/2280 SSD (NGFF/NVMe Adaptive)
1* SATA3.0
Audio: Realtek ALC897 High-Definition Audio Chip
Expansion slot: 1* MINI-PCIE slot, supports WIFI/4G module

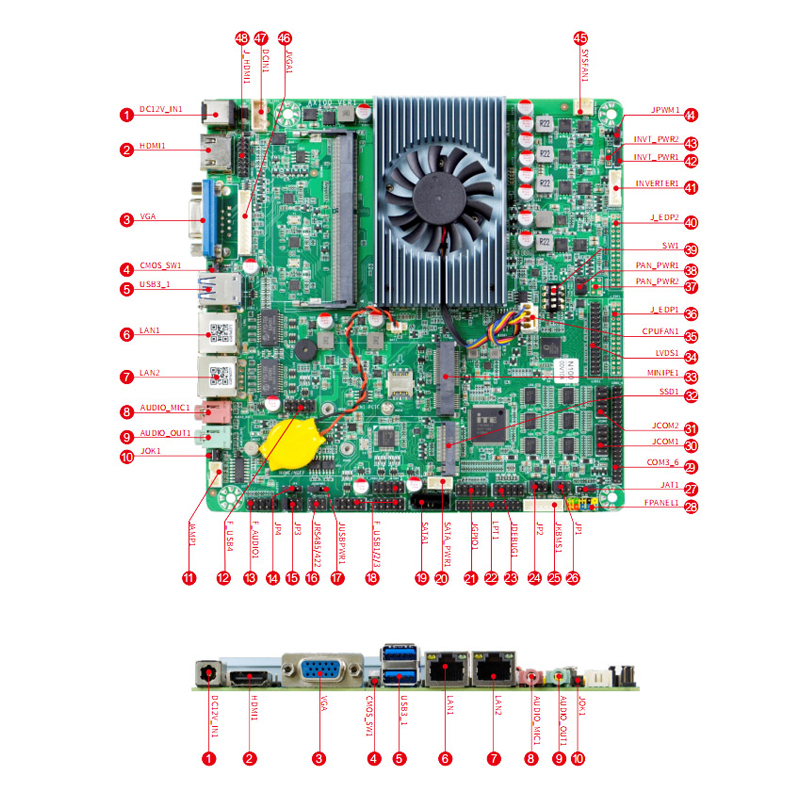

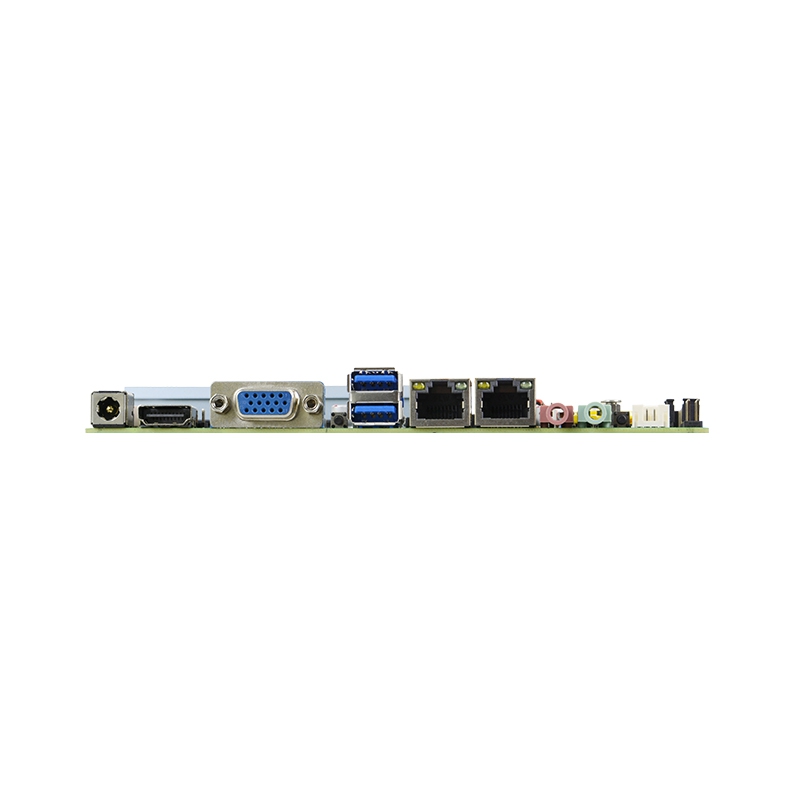

Rear I/O Interface:
1* DC 12V power input
1* VGA
1* HDMI1.4
2* USB3.0
2* RJ45 Gigabit network interface
1* Line out (green), 1* MIC (red)
1* JOK1 (One-Key Restore button), 1* CMOS_SW1 (Clear CMOS button)
Built-in I/O interface:
1* LVDS (optional eDP1 interface)
1* JHDMI interface (JHDMI shares the same signal as HDMI)
1* JVGA interface (optional eDP2 interface; JVGA shares the same signal as VGA)
6* COM ports (COM1/2 configurable for powered Pin 9; COM2 supports RS485/RS422; COM3 supports RS485)
8* USB 2.0 ports (F_USB1 supports wake-up function)
1* JKBMS interface (supports PS/2 keyboard and mouse)
1* LPT printer interface, 1* F_AUDIO interface
1* JAMP amplifier interface (supports 2Ω 5W)
1* SATA 3.0 interface, 1* HDD power output connector
1* Front panel header
1* DC-IN power connector (options: 1*4-pin, 2*2-pin, or 1*2-pin)
Fan interface: 1* CPU fan header, 1* System fan header
GPIO: Support 4 input and output GPIO
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 10/11/Linux
Power type: Powered by DC 12V power supply
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, non-condensing

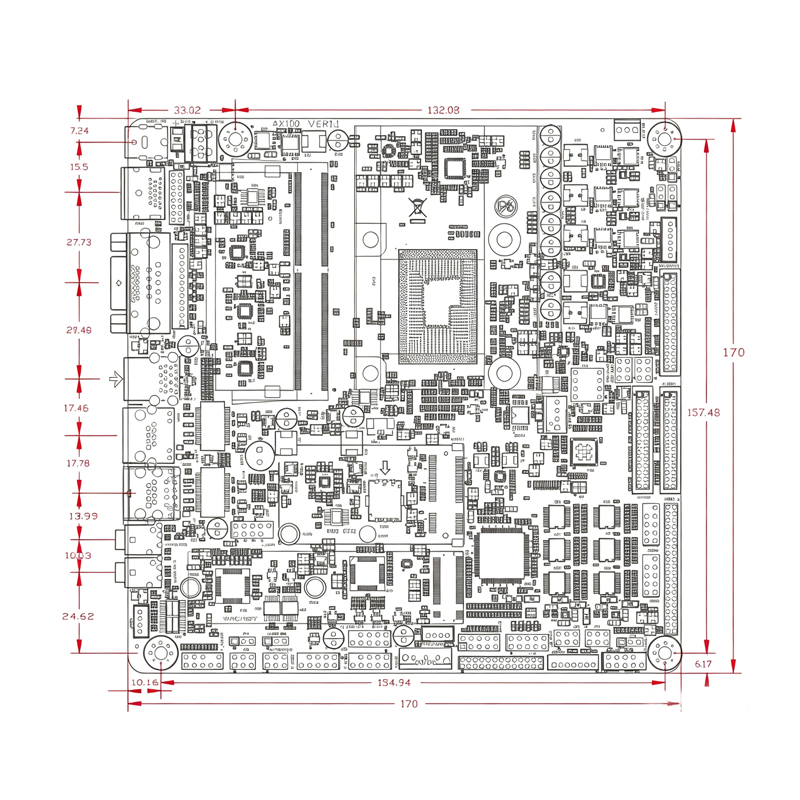

Size:170mm x 170mm
