Product Description

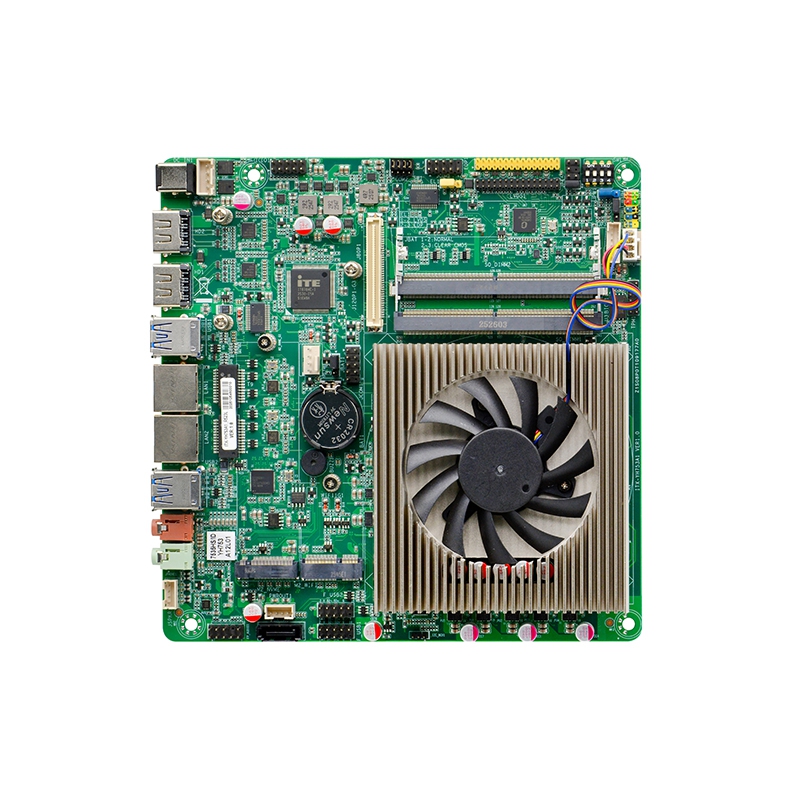

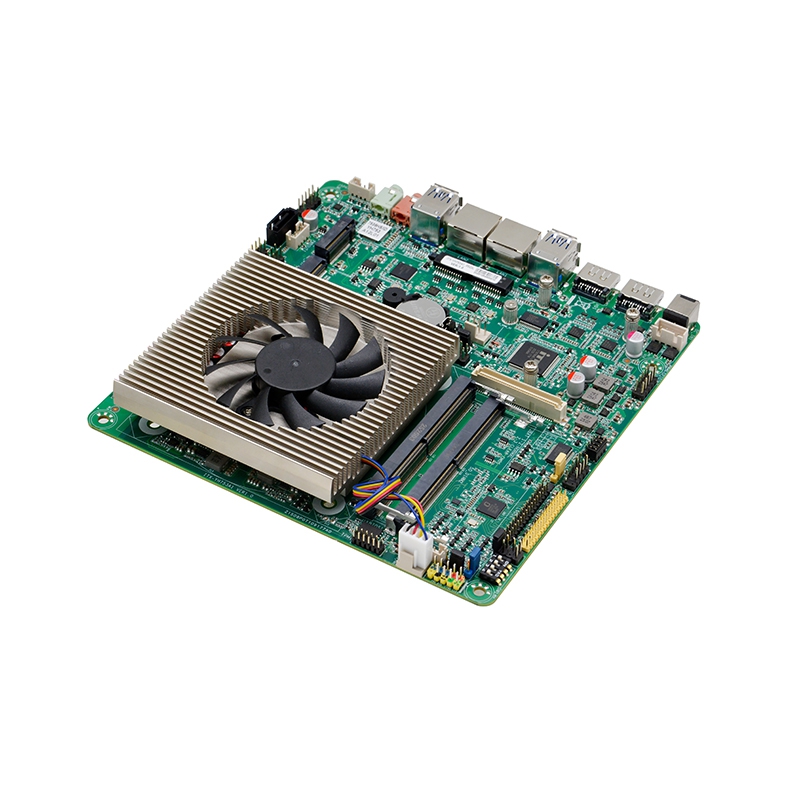

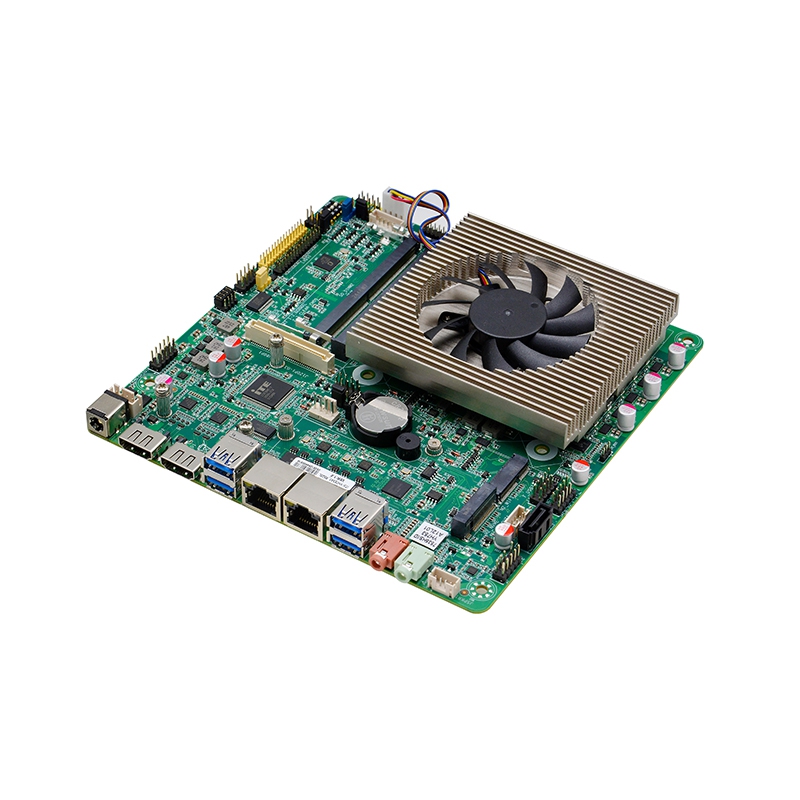

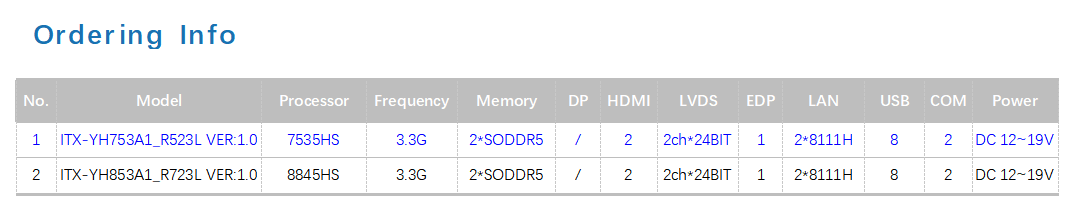

Model No.: ITX-YH753A1_R523L VER:1.0
Processor:
Integrated AMD Ryzen™ 5 7535HS 3.3GHz 6-core 12-thread CPU,TDP 35~54W
Compatible with AMD Ryzen™ 5/7 series processor
Chipset: Based on SOC platform
RAM: 2* SODIMM slot ,support dual channel 4800MHz DDR5 memory, up to 64GB
Dispay:
Integrated AMD Radeon™ 660M, support DirectX 12 OpenGL 4.6, support 4K/60H
1* LVDS, supports dual-channel 24-bit
2* HDMI, maximum supported resolution: 3840×2160@60Hz
1* eDP interface (selectable via jumper between eDP and LVDS)
Supports triple-display output (HDMI/LVDS or eDP) in synchronous or asynchronous modes
Ethernet: 2* RTL8111H Gigabit Ethernet Lan, support Wake_on_LAN/PXE function
Storage:
1* SATA3.0, transfer rate up to 6Gbps
1* M.2 slot, supports M.2 Key M 2280 NVME PCIE4.0 X4 standard SSD
Audio:
Integrated ALC897 7.1+2 channel high-fidelity audio controller, supporting MIC,Line-out and power amplifier
Support amplifier 4Ω 3W speaker
Expansion Slot:
1* M.2 slot, supports M.2 Key E 2230 WIFI/BT module
1* 80-pin high-speed connector, including 4* PCIe, eSPI, USB, and DDI signals (using YH753-H2 expansion board)

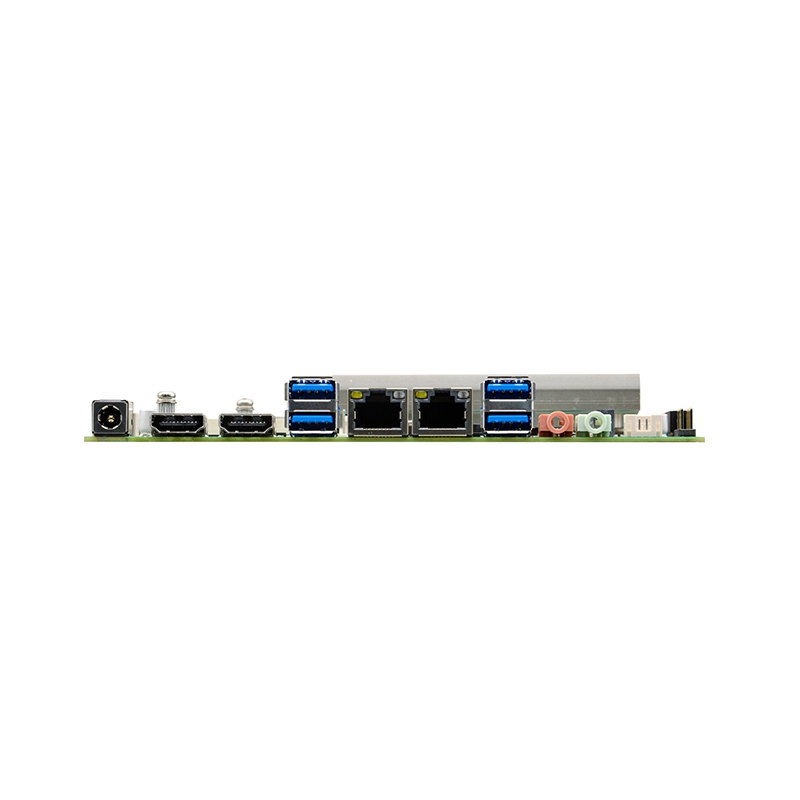

Rear I/O interface:
4* Type-A USB3.0 (5Gbps）
2* HDMI2.0
2* RJ-45 Gigabit Network Interface
1* Line out (Green); 1* MIC (Red)
1* DC power input, supporting 12V~19V power input

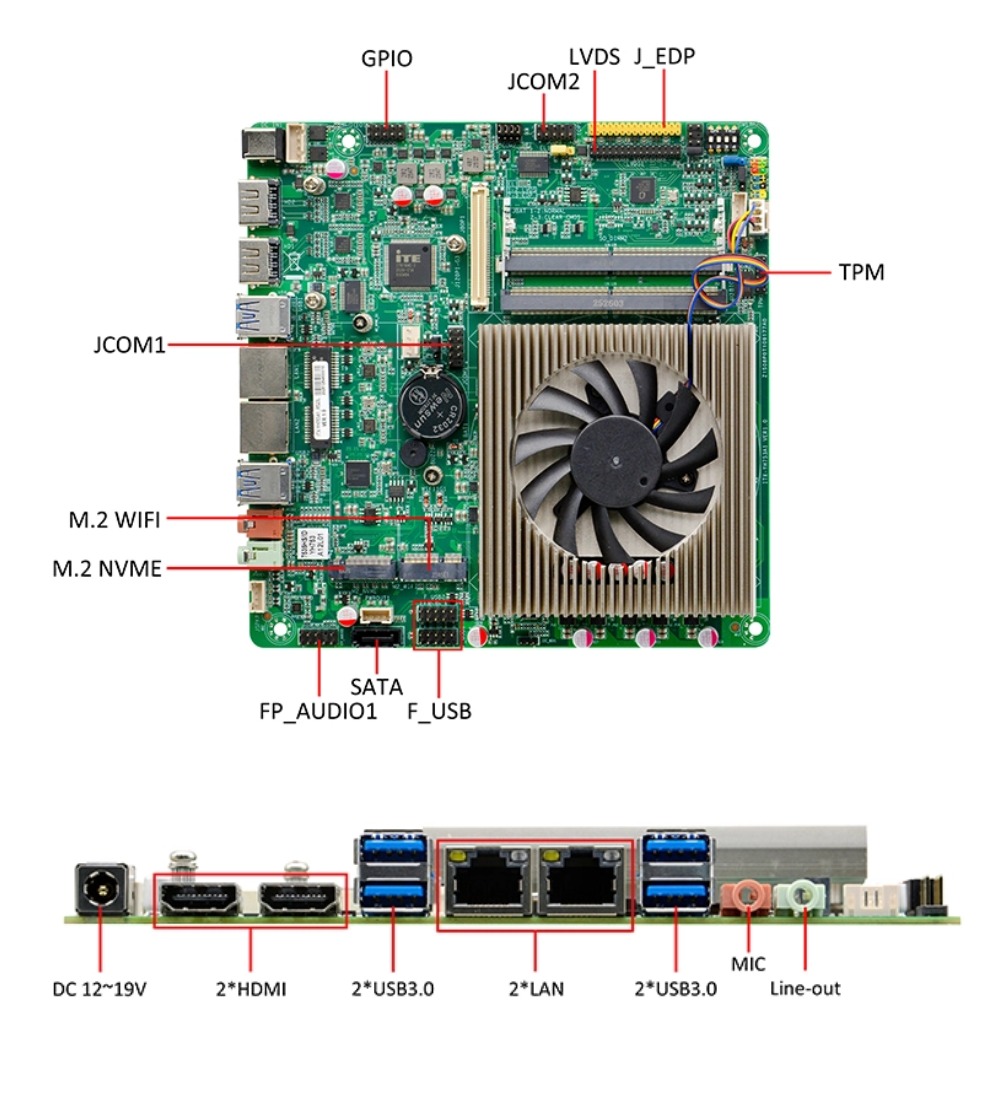

Built-in I/O interface:
1* LVDS interface (2*15-pin, 2.0mm pitch), supports dual-channel 24-bit
1* LVDS backlight power interface (1*6-pin, 2.0mm pitch)
1* eDP interface (2*15-pin, 2.0mm pitch); selectable via jumper (mutually exclusive with LVDS)
2* RS-232 serial interfaces (2*5-pin, 2.54mm pitch); COM2 supports RS-485 functionality
4* USB 2.0 interfaces (2*5-pin, 2.54mm pitch)
1* Front audio interface (2*5-pin, 2.54mm pitch)
1* Front panel switch/indicator interface (2*5-pin, 2.54mm pitch)
1* HDD power interface (1*4-pin, 2.0mm pitch)
1* Audio amplifier interface (1*4-pin, 2.0mm pitch)
1* DC power interface (1*4-pin, 2.5mm pitch; supports 19V power input)
1* TPM interface (eSPI specification), 2x6-pin, 2.0mm pitch
Fan interface: 1* 4Pin CPU intelligent fan interface and 1* 4Pin system fan interface
GPIO: Support 4-way input and output GPIO
BIOS: 256Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Window 10/Windows 11/Linux
Power type: Powered by DC 12~19V power supply
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, non-condensing
Size: 170mm x 170mm
