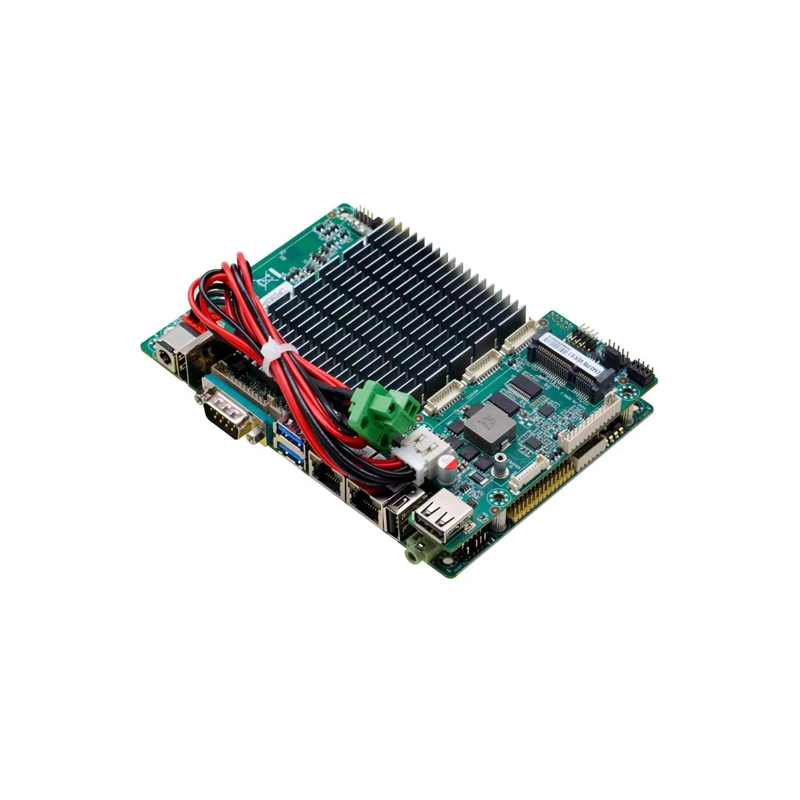

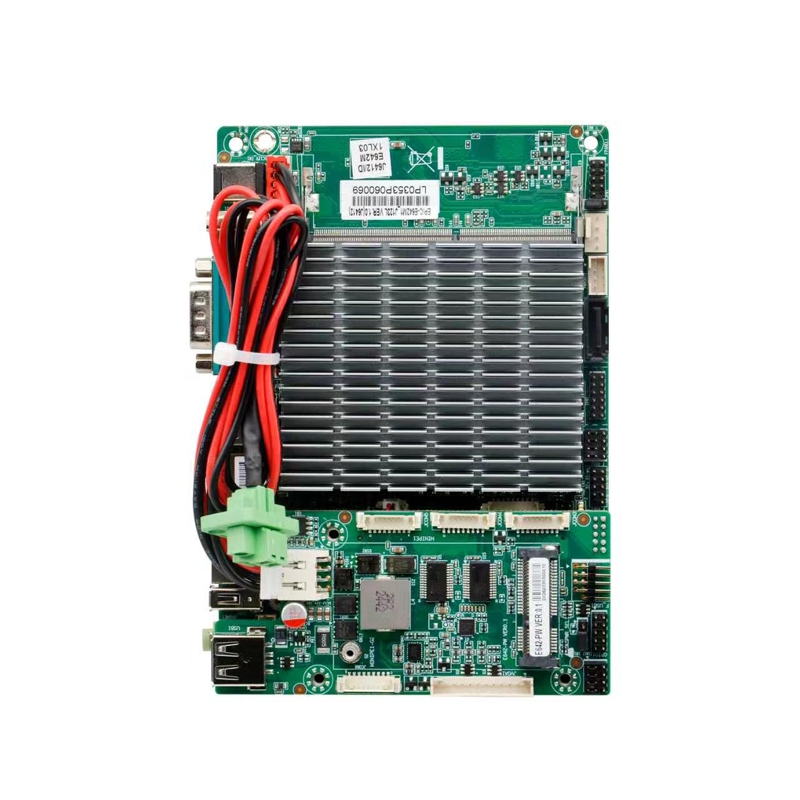

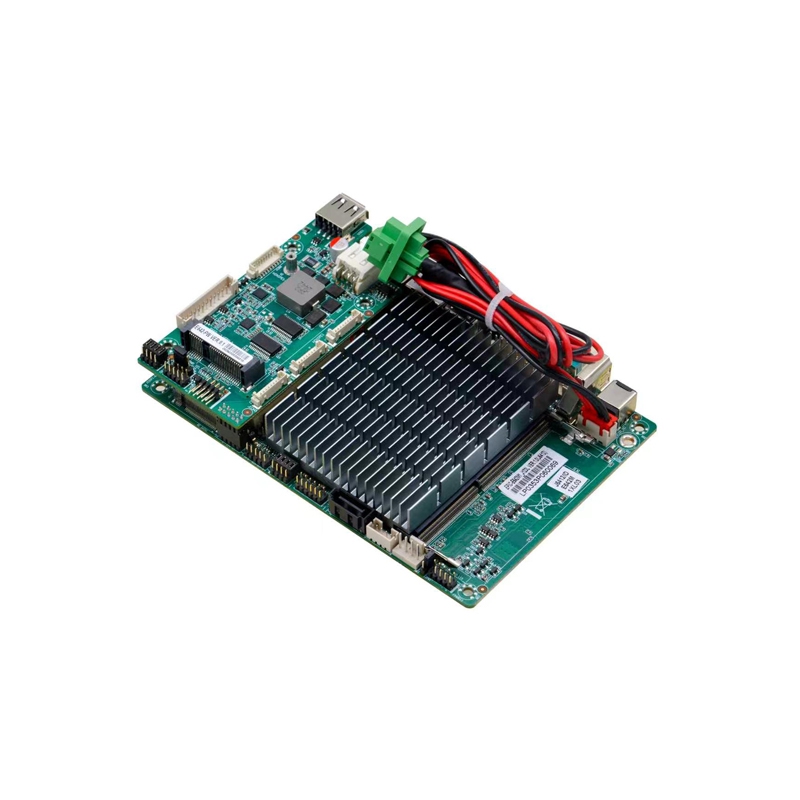

Overview
The EPIC-E642M1 is based on Intel Elkhart Lake platform with Celeron N6211 dual-core CPU (J6412 optional), supporting up to 32GB DDR4 memory. It features dual Gigabit LAN, 7x USB, 2x configurable COM (RS232/485/422), and M.2 NVMe SSD storage. Triple display outputs (VGA+HDMI+LVDS/eDP) are supported, along with GPIO, watchdog timer, and audio amplifier. Fanless design, 12V DC input. Ideal for industrial control, edge computing, digital signage, self-service kiosks, and IoT gateways.
Product Description

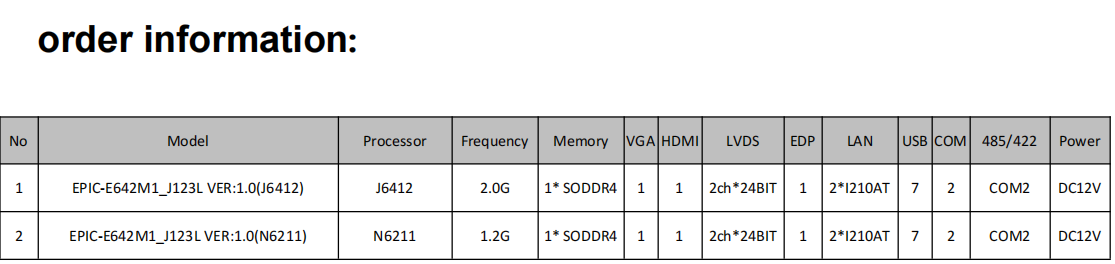

Model No.: EPIC-E642M1_J123L VER:1.0(N6211)
Processor:
Integrated Intel®Celeron N6211 1.2GHz dual-core, dual-thread processor ,TDP 6.5W
Compatible with Intel® Elkhart Lake all series CPU
Chipset: SOC
Memory: 1* DDR4 SODIMM, supports single channel 3200MHz memory, up to 32GB
Display:
Integrated Intel® UHD Graphics
1* VGA, the highest supported resolution is：1920x1080@60Hz
1* HDMI1.4, the highest supported resolution is：3840x2160@60Hz
1* LVDS, support dual channel 24BIT,
1* EDP, the LVDS interface uses a jumper to select one of two options.
Supports independent triple display via VGA/HDMI/LVDS or EDP
Ethernet :2* Intel I210AT 1GbE Gigabit Ethernet, supports Wake on LAN、PXE function
Storage:
1* 7pin SATA3.0, the transfer rate is up to 6Gbps
1* M.2,support M.2 Key M 2280 NVME PCIE 3.0X1 specification SSD
Note: M.2 SSDs can support SATA SSDs, but a BIOS modification is required.
Audio:
Onboard ALC897 7.1+2 channel high-fidelity audio controller, supporting MIC/Line-out. Amplifier
Amplifier with 4Ω 3W speakers is recommended.
Expansion Slot:
1* M.2, supports M.2 2230 WIFI/BT
1* 120pin high-speed connector, including 4 TTL/2* PCIe, 1* DP, 8 GPIO signals (for use with E642 series small boards)

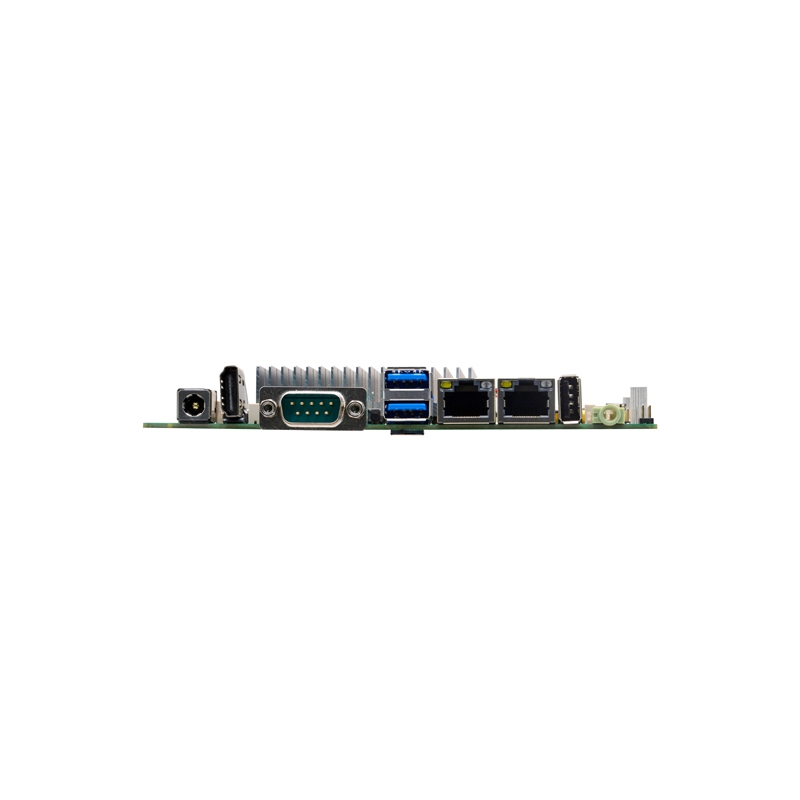

Backplane I/O interface:
1* DC 12V
1* DB9 RS232 serial port, selectable between the built-in JCOM1 and the standard one
1* HDMI1..4
2* Type-A USB3.0(5Gbps),1* Type-A USB2.0
2* RJ45 Gigabit Ethernet
1* Line-out(green)
Built in I/O interface:
1* DC power interface,1*4pin PH=2.5mm, supports 12V power input and output
1* JVGA, 1*12pin,PH=2.0mm,the DP signal in the high-speed connector is selectable between two signals, which is set via a DIP switch.
1* LVDS, 2*15pin,PH=2.0mm, support dual channel 24BIT
1* EDP(yellow),2*15pin,PH=2.0mm,LVDS is an either-or choice, selected via a jump cap
1* Screen backlight power supply interface, 1*6pin,PH=2.0mm
4* USB2.0,2*5pin PH=2.0mm
1* RS232 serial interface, 1*9pin, pH=1.25mm, supports RS485/422 functionality
1* Hard drive power supply interface, 1*4pin PH=2.0mm
1* Front audio interface, 2*5pin PH=2.0mm
1* Amplifier interface, 1*4pin PH=2.0mm
1* Front panel function button and indicator light interface, 2*5pin PH=2.0mm
1* TPM, ESPI specification 2*6pin,PH=2.0mm
Fan connector: Fanless cooling, with one 4-pin CPU smart fan connector and one 4-pin system fan connector
GPIO: N/A
BIOS: 128Mb Flash ROM
Watchdog: Supports hardware reset function (256 levels, 0~255 seconds)
OS: Windows 10/11/Linux
Power Type: DC 12V power supply and can be powered by the E642-PW expansion board to support a wide voltage range of DC 12~24V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% (relative humidity,non-condensing)
Dimension: 148mm x 102mm
