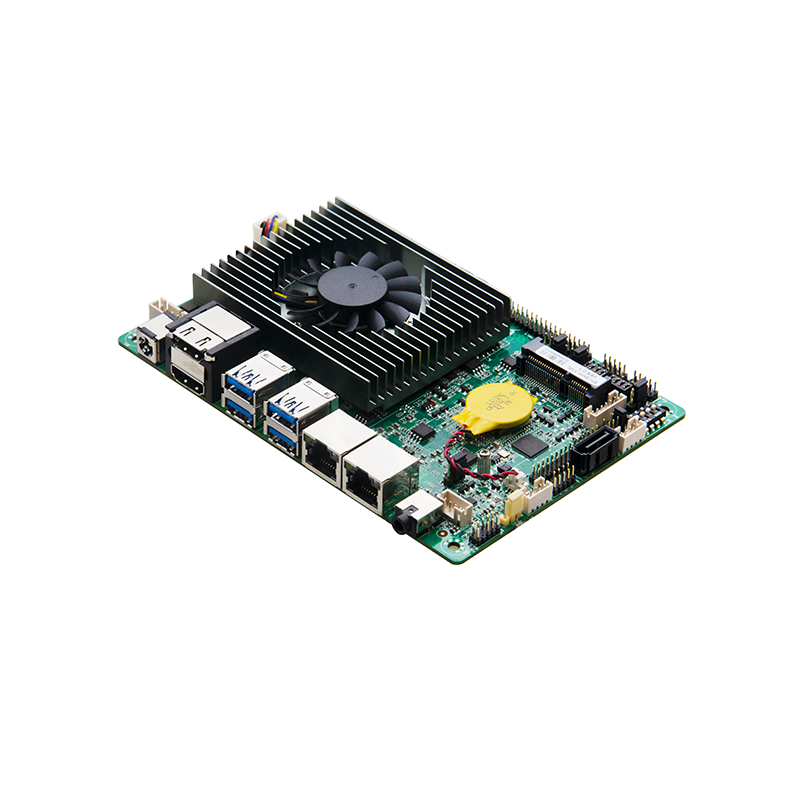

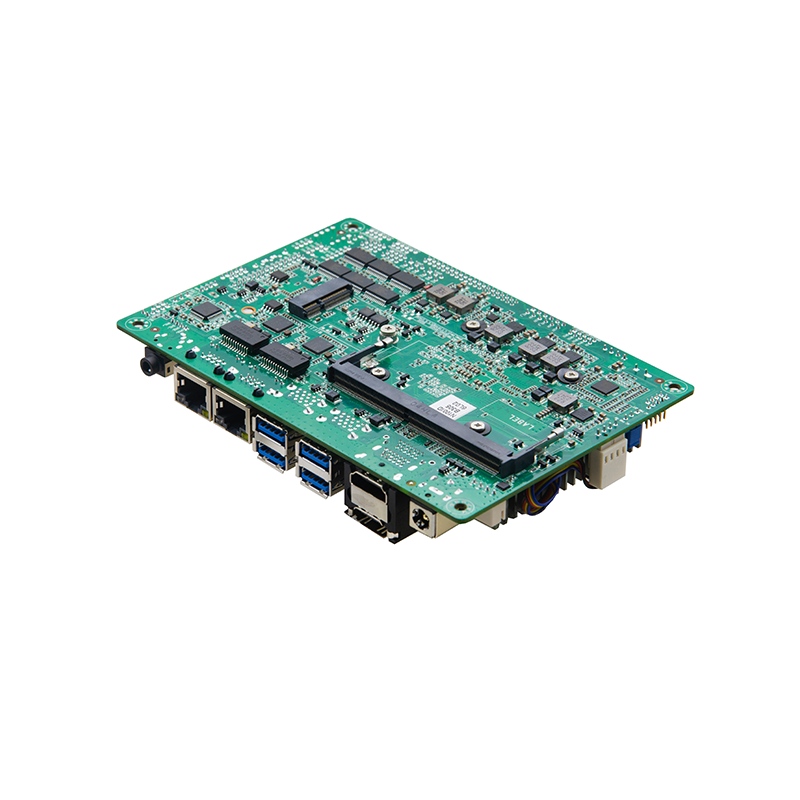

Overview
This high-performance 3.5 inch motherboard adopts the Intel Bay Trail SOC platform with Intel Alder Lake-N N100 Quad-Core processor (3.4GHz) and Intel UHD Graphics, delivering exceptional computing power in an ultra-compact form factor.
Key Features:
●Powerful graphics: Supports dual HDMI 1.4 + LVDS/EDP (optional) simultaneous display
●High-speed memory: Single DDR4 3200MHz SO-DIMM slot (up to 16GB)
●Rich I/O connectivity:
2× Gigabit Ethernet ports
7× USB ports (including USB3.0)
6× industrial COM ports (RS232/485)
●Flexible storage options:
1× SATA3.0
1× mSATA SSD
1× M.2 slot (for WiFi/BT)
Watchdog Timer
GPIO control
4Ω3W audio amplifier
●Low-power design: 12V DC input

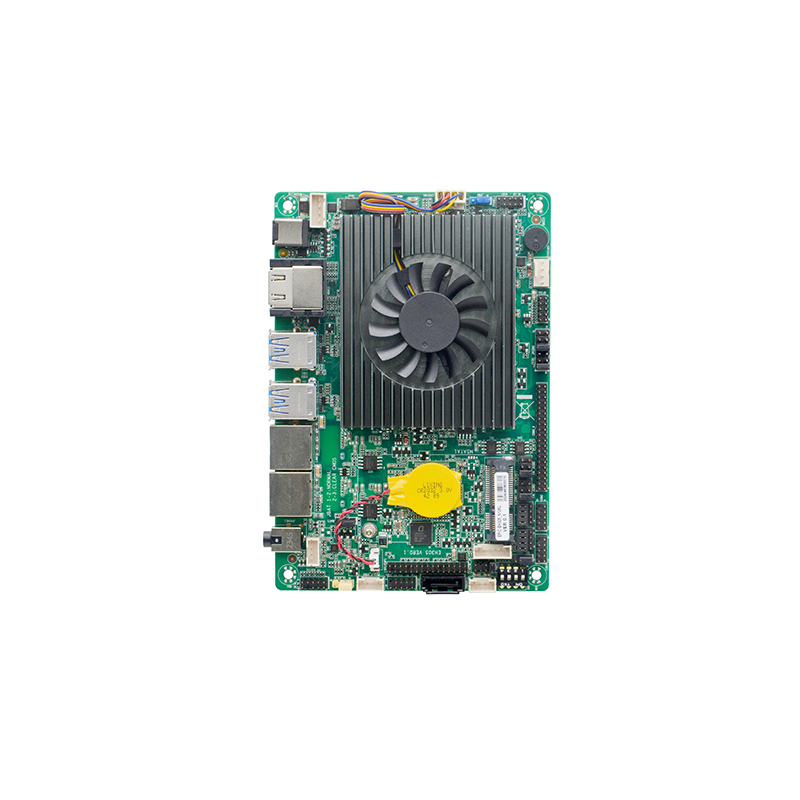

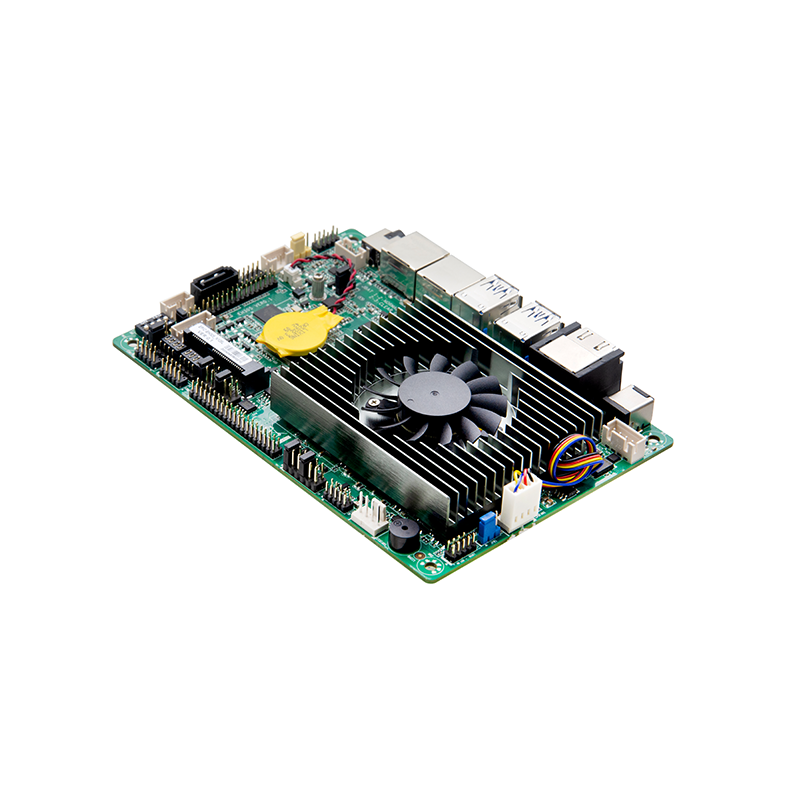

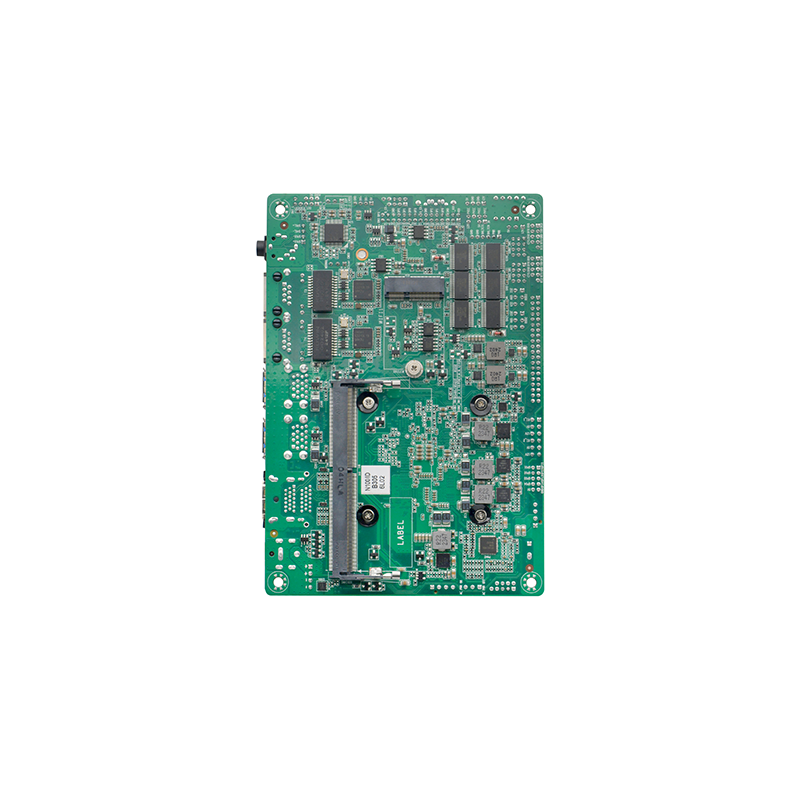

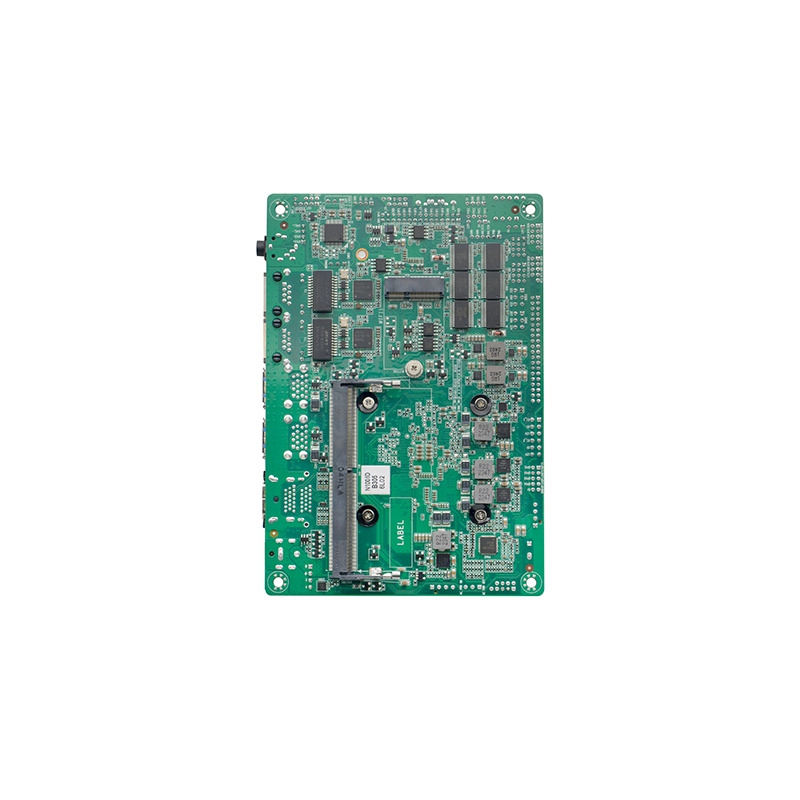

Detail Display
Product Description

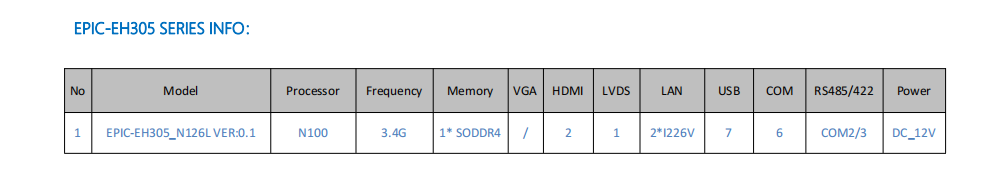

Product model: EPIC-EH305_N126L VER:0.1
processor: Integrated Intel®Alder Lake-N N100 3.4GHz Quad core Quad threads processor (TDP: 6W)
Compatible with all Intel® Alder Lake-N series CPUs
Chipset: SOC
RAM: 1x SODIMM memory slot, single channel 3200MHz DDR4 memory, up to 16GB
Display: Intel® UHD Graphics, DirectX 12.1, OpenGL4.6
2x HDMI1.4 ; 1x LVDS/EDP (EDP is optional)
Ethernet: 2x Intel I226V 2.5 Gigabit Ethernet Controller, supports Wake on LAN/PXE function
Storage: 1x MSATA slot, support SSD, the transfer rate up to 6Gbps
1x 7pin SATA3.0, the transfer rate up to 6Gbps
Audio: Onboard ALC897 7.1+2 vocal channels high fidelity audio controller, supports MIC/Line-out and power amplifier
suggest use 4Ω3W horn
Expansion slot: 1x M.2 slot, support M.2 2230 WIF/Bluetooth module

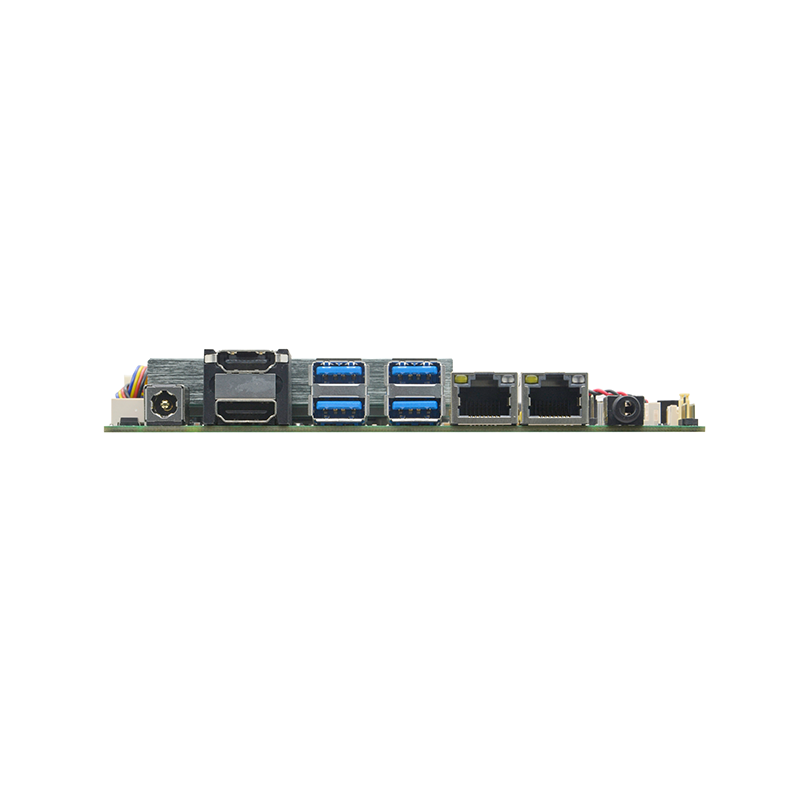

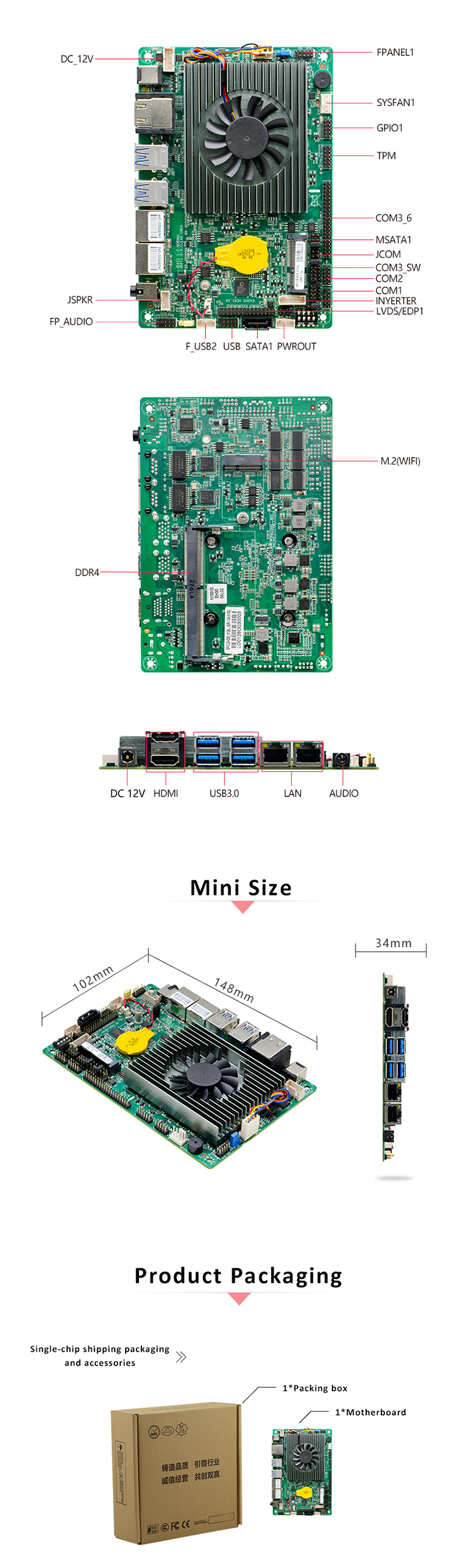

Rear I/O interfaces:
2x HDMI1.4
4x USB3.0
2x RJ45 2.5 Gigabit Lan
1x Two in one audio interface, support Line-out, MICK
Inner I/O interfaces:
1x 4pin DC power interface, support DC_12V input/output
1x LVDS interface, 2x 15pin,Support dual-channel 24BIT, shared pin with EDP
1x Screen backlight power supply interface, 1*6pin
2x USB2.0, 2x 5pin
1x USB2.0, 1x 4pin
6x RS232 serial ports, COM1/2 supports the 9th pin with power, COM2/COM3 support RS485/422 function
1x HDD power connector, 1x 4pin
1x front audio interface, 2x 5pin
1x power amplifier interface, 1x 4pin
1x Front panel function button and indicator interface, 2x 5pin
Fan interfaces: 1x 4pin CPU smart fan interface ; 1x 4pin system fan interface
GPIO: Support 4-way input and output GPIO
BIOS: 256Mb flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Operating system: Windows / Linux
Power type: DC_12V
Operating temperature: -10℃~60℃
Storage temperature: -20℃~70℃
Working humidity: Relative humidity 5%-95%, no condensation
Size: 148 mm x 102 mm
