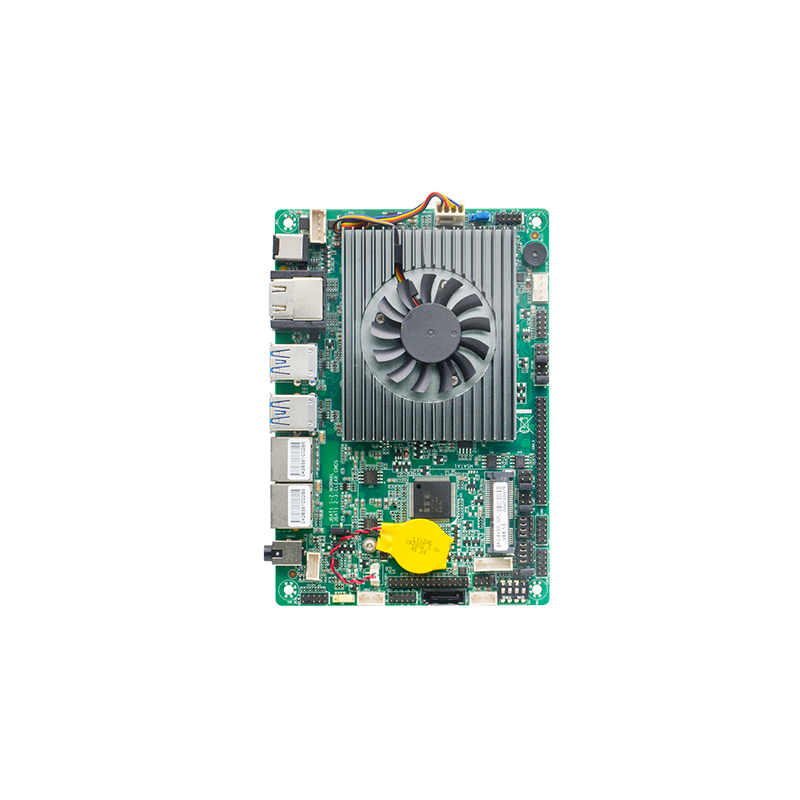

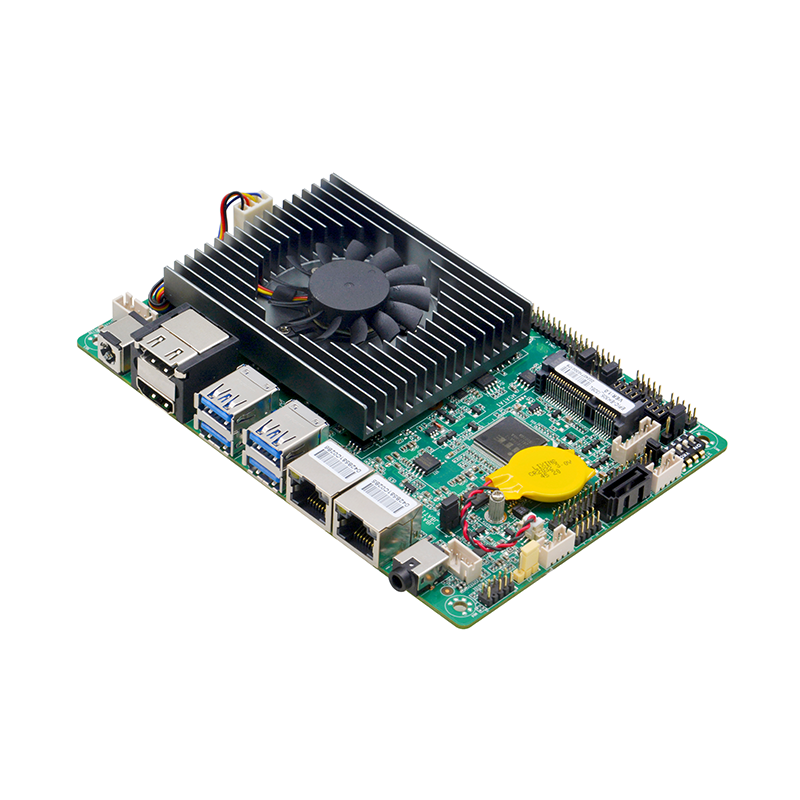

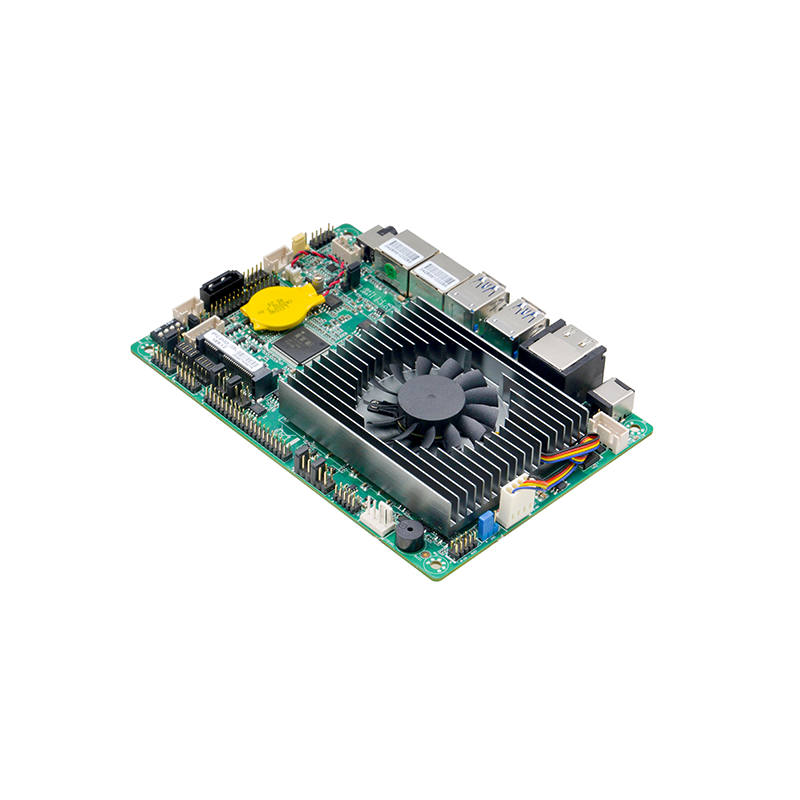

Product Description

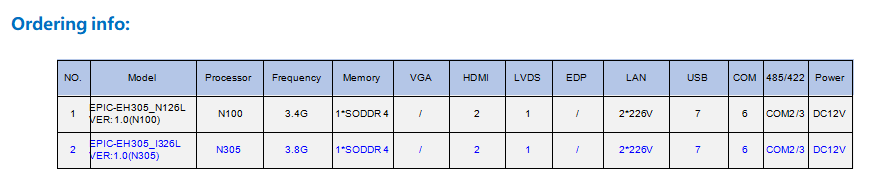

Model No.: EPIC-EH305_I326L VER:1.0(N305)
Processor: Integrated Intel® Alder Lake-N Core I3-N305 3.8GHz eight-core eight-thread processor, TDP 15W
Compatible with the full range of Intel® Alder Lake-N CPUs, providing customers with flexible choices
Chipset: SOC

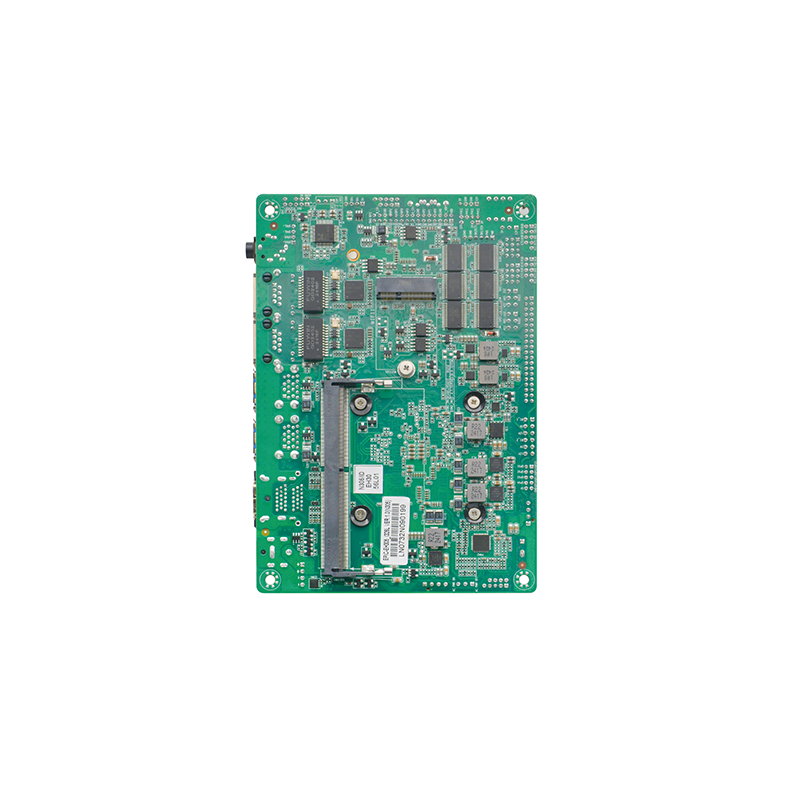

RAM: 1x SODIMM memory slot, single channel 3200MHz DDR4 memory, up to 16GB
Display: Integrated Intel® UHD Graphics core graphics card, supports DirectX 12.1, OpenGL4.6
2x HDMI1.4 , 1x LVDS
Note: The LVDS and EDP interfaces share pin headers and can be selected by jumping
Ethernet: 2x Intel I226V 2.5 Gigabit Ethernet , supports Wake on LAN/PXE function
Storage: 1x 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps
1x MSATA slot, supports SSD solid state drive, SSD transmission speed up to 6Gbps
Audio: Onboard ALC897 7.1+2-channel high-fidelity audio controller, supports MIC/Line-out. amplifier
suggest use 4Ω3W horn
Expansion slot: 1x M.2 slot, support M.2 2230 WIF/Bluetooth module

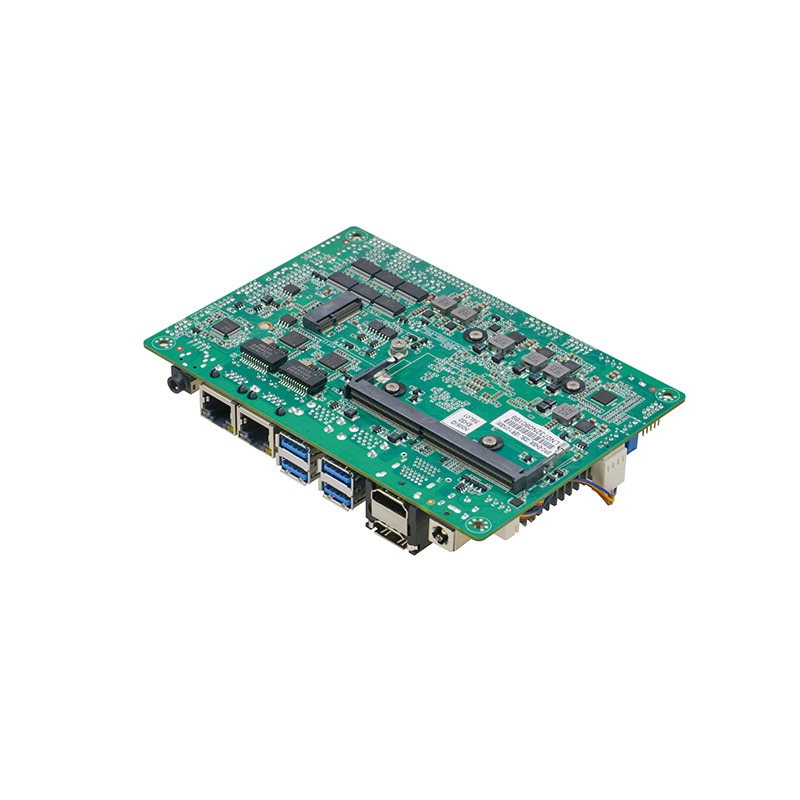

Rear I/O interfaces:

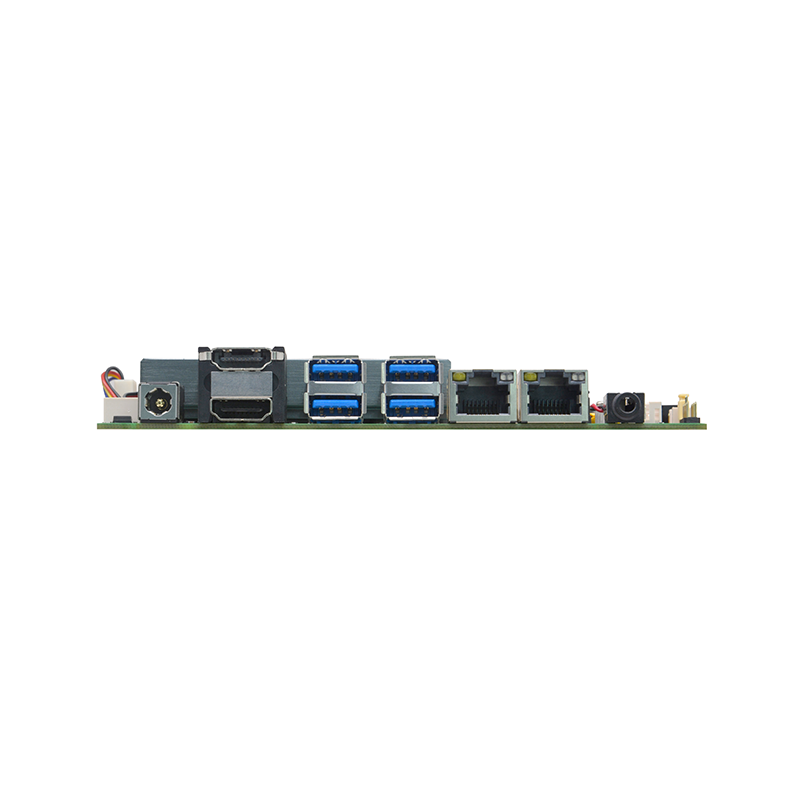

2x HDMI1.4
4x USB3.0
2x RJ45 2.5 Gigabit Lan
1x Two in one audio interface, support Line-out, MICK

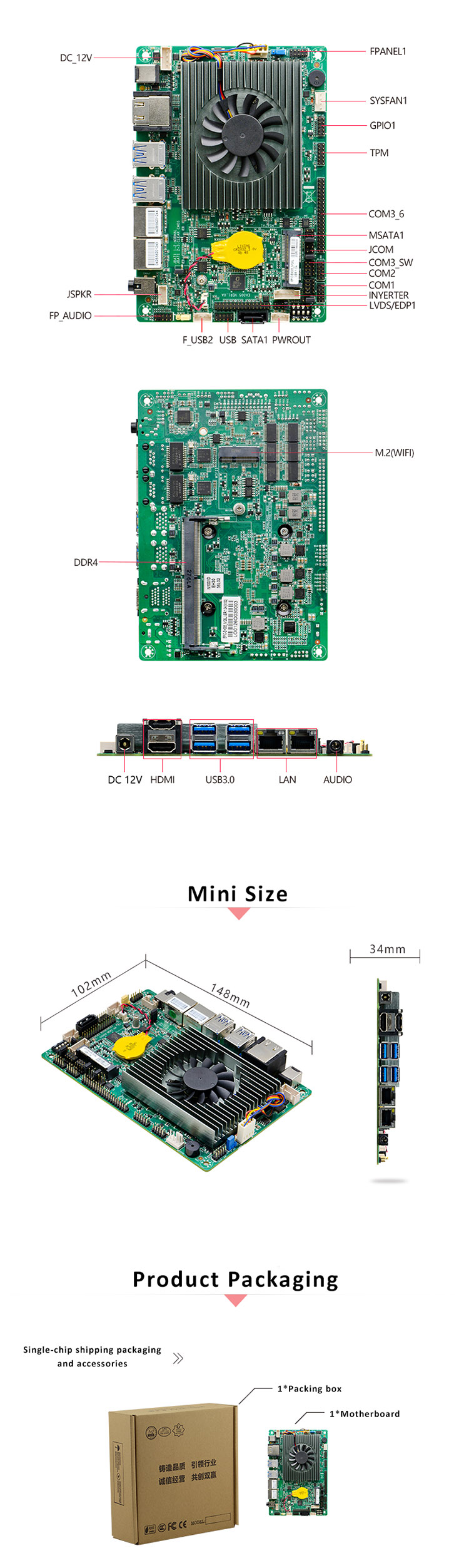

Inner I/O interfaces:
1x 4pin DC power interface, support DC_12V input/output
1x LVDS interface, 2x 15pin,Support dual-channel 24BIT, shared pin with EDP
1x Screen backlight power supply interface, 1x 6pin
2x USB2.0, 2x 5pin
1x USB2.0, 1x 4pin
6x RS232 serial ports, COM1/2 supports the 9th pin with power, COM2/COM3 support RS485/422 function
1x HDD power connector, 1x 4pin
1x front audio interface, 2x 5pin
1x power amplifier interface, 1x 4pin
1x Front panel function button and indicator interface, 2x 5pin
Fan interfaces: 1x 4pin CPU smart fan interface ; 1x 4pin system fan interface
GPIO: Support 4-way input and output GPIO
BIOS: 256Mb flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Operating system: Windows / Linux
Power type: DC_12V
Operating temperature: -10℃~60℃
Storage temperature: -20℃~70℃
Working humidity:Relative humidity 5%-95%, no condensation
Size :148 mm x 102 mm
