Product Description
Model No.: H86DM VER:1.0 (LGA1150)
Processor: 4th Intel® Celeron/Pentium/Core™ i3/i5/i7 processors with LGA1150 architecture
Chipset: Uses Intel H87/Z87 high-speed chipset
Memory: 4*DDR3 DIMM memory slot, supporting a dual-channel memory of 1600mhz/ 1333mhz/1066MHz, up to 32GB
Display:
Integrated Intel® HD Graphics Graphics Controller, 1*VGA and 2*HDMI1.4
Supports single display, dual display mode, and extended mode
Ethernet: 2*Intel® WGI211AT Gigabit Ethernet ,Supports network wake up /PXE function
Storage:
5* SATA 3.0 hard disk interface,SATA interface transmission speed up to 6Gbps
1* MSATA SSD interface, transmission speed up to 6Gbps
Audio: Integrated ALC892 7.2+2 channel high-fidelity audio controller, support MIC、Line_out
Expansion Slot:
1* PCI-E 16x slot,1* PCI-Ex4 slot,1* PCI-Ex1 slot
4* PCI expansion slot
1* Mini-PCIE slot, supporting the TPM-4COM module to expand four serial ports
Rear I/O interface:
1* PS/2 keyboard and mouse interface
1*VGA display interface
1*HDMI display interface
2* RS232 serial port,(COM1/2 supports 5V/12V live function,COM1/2 supports RS485/422 function)
2* USB2.0
4*USB3.0
2* RJ-45 Gigabit network interface
1* Line out interface (green), 1* MIC interface (red)
Built in I/O interface:
4* RS232 serial port
1* HDMI port 2*8pin
1* JVGA port 1*12pin, the same signal as the external VGA port
1* PS/2 keyboard and mouse interface 1*6pin
1* LPT print port 2*13pin
1* front audio interface 2*5pin
8* USB 2.0 interface 2*5Pin
1*USB2.0
1* Front panel function button and indicator port 2*5pin
1* 24pin ATX power input interface
1* 8pin ATX power input interface
Fan Connector: 2*4pin CPU intelligent fan interface; 2*4pin system fan port
GPIO: Support 4-way input output GPIO function
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: 24Pin ATX power supply
Operating system: Windows 7/Windows 10 /Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-90%( relative humidity, non-condensing)
Dimension: 305mm x 245mm

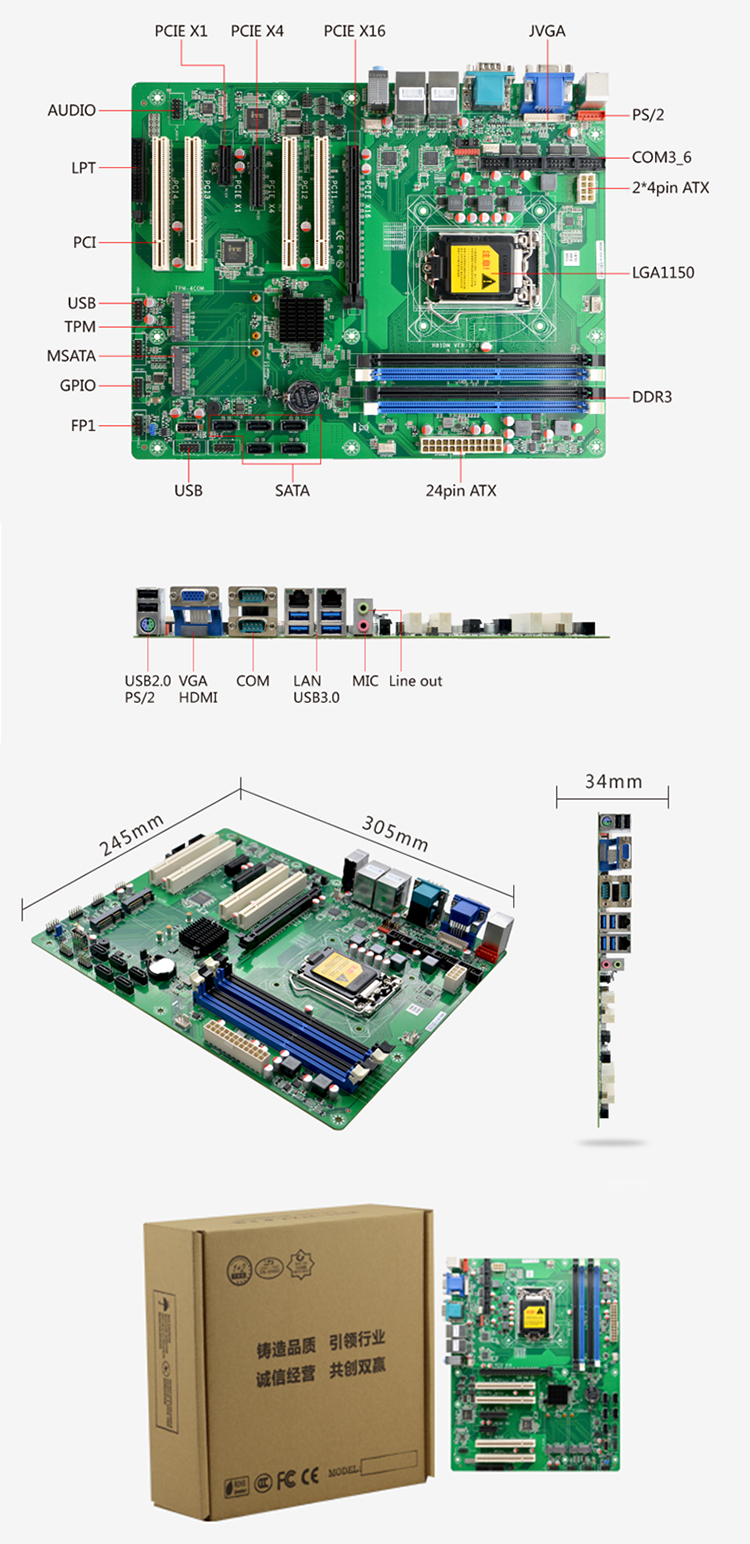

Detail Display
Application FieldThe Industrial ATX Motherboard is a high-performance computing motherboard specially designed for industrial environments. It features stability, durability and scalability and is widely used in the following fields:
1.Industrial Automation
●Applied in PLC control, robotic control, and production line management.
2.Machine Vision
●Supports high-precision image processing for quality inspection and defect detection.
3.IoT & Edge Computing
●Serves as an industrial IoT gateway for data acquisition and real-time analytics.
4.Intelligent Transportation
●Used in traffic signal control and in-vehicle computing systems.
5.Energy Management
●Applied in smart grids and renewable energy monitoring systems.
6.Medical Equipment
●Used in medical imaging and diagnostic equipment control.
7.Military & Aerospace
●Suitable for extreme-environment computing with high reliability requirements.
8.Test & Measurement
●Applied in industrial testing and data acquisition systems.
Industrial ATX motherboards, with rugged design and high performance, are key components in Industry 4.0 and smart manufacturing.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
