6 COM ports + dual LAN + watchdog timer – reliable control for medical devices
ITX-B75R1 VER:1.0 Mini-ITX Industrial Motherboard
Powered by Intel Z77/B75 chipset, supports LGA1155 2nd/3rd Gen Core i3/i5/i7, Celeron and Pentium processors. Integrated Intel HD Graphics with VGA+HDMI dual display. Features 1×DDR3 slot (up to 8GB), 2×SATA2.0, 1×mSATA, 1×M.2 (WiFi), 1×PCIE2.0 x16. I/O: 2×GbE LAN, 10×USB, 6×COM (RS232/485/422), 2×PS/2. Supports GPIO & Watchdog Timer. Size: 170×170mm, ATX 24PIN+4PIN power.
Key Advantages for Medical Devices:
●6 COM ports – Connect multiple medical devices (patient monitors, scanners, analyzers)
●GPIO + Watchdog Timer – Direct control + auto-reset on system freeze for reliability
●Dual Gigabit Ethernet – Isolate internal control from hospital network
●Compact 170×170mm size – Easy integration into medical carts, diagnostic devices
●10 USB ports – Support various medical peripherals
●PCIe x16 – Optional expansion for dedicated medical cards
●Mature & stable – Ideal for diagnostic, monitoring, and treatment devices

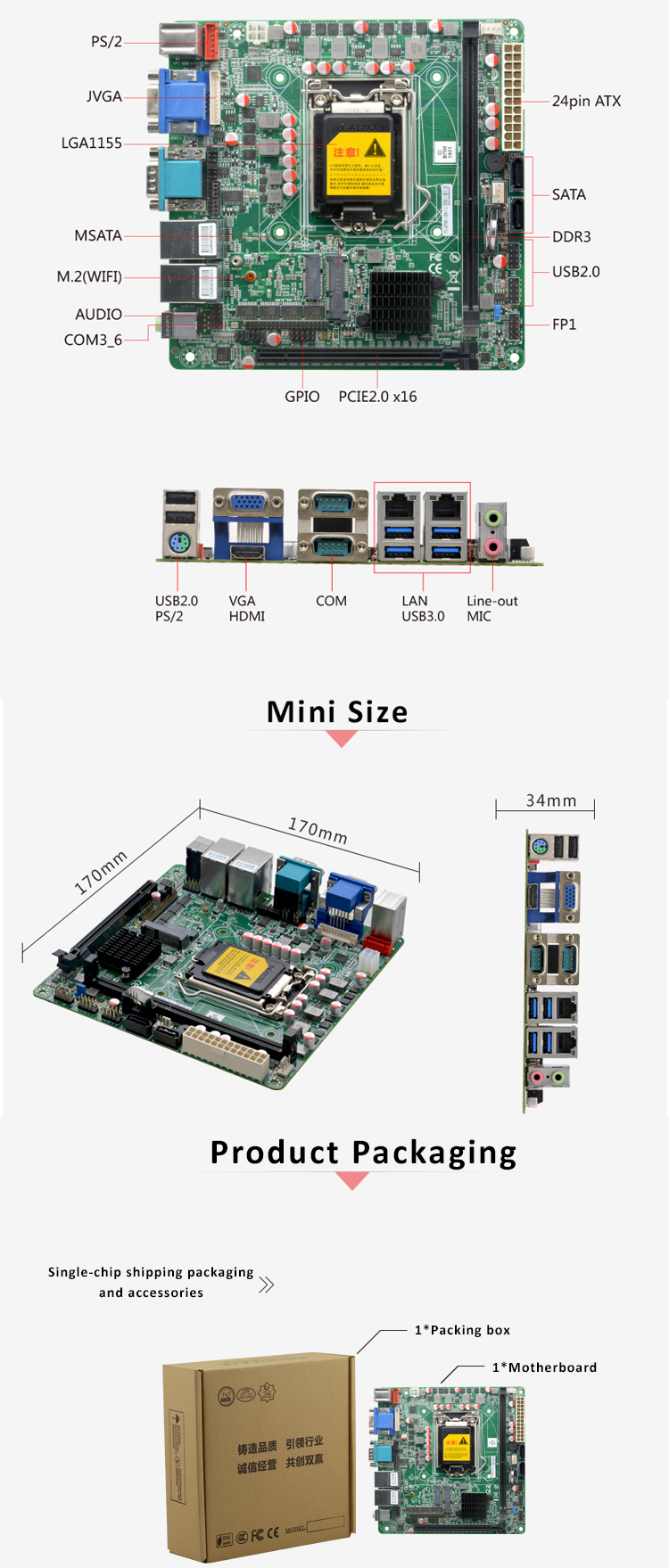

Detail Display
Product Description
Model No.: ITX-B75R1 VER:1.0
Processor: Supports LGA1155 2th/3th Intel Celeron/Pentium/Core i3/i5/i7 processor
Chipset: Intel Z77/B75 express chipset
Memory: 1x DDR3 DIMM memory slot,supports 1066/1333/1600MHz,up to 8GB
Display: Integrated Intel® HD Graphics
1x VGA，1x HDMI1.4
Support independent display, dual display mode, extended mode
Ethernet: 2x RTL8111H Gigabit Ethernet,supports Wake on LAN/PXE function
Storage: 2x SATA2.0 hard disk interface, the transmission speed of SATA interface can reach 3Gbps
1x MSATA solid-state hard disk interface, the transmission speed can reach 6Gbps
Audio: Integrated ALC888S high-fidelity audio controller, support Mic, Line out
Expansion Slot:
1x PCIE2.0 x16
1x M.2,supports M.2 Key E WIFI module
Rear I /O interface:
1x PS/2 Keyboard and mouse interface
1x VGA
1x HDMI
2x RS232 serial port, COM1/2 supports 5V/12V live function, COM1/2 supports RS485/422 function
2x USB 2.0
4x USB 3.0
2x RJ-45 Gigabit Network Interface
1x Line out interface (green)、1x Mic interface (red)
Built in I/O interface:
1x JVGA interface，1x 12pin,(Same signal as VGA)
1x PS/2 Keyboard and mouse interface ,1x 6pin
1x Front audio interface ,2x 5pin
4x USB 2.0 interface ,2x 5pin
4x RS232 COM, 2x 20pin
1x Front panel function button and indicator light interface, 2x 5pin
1x 24pin ATX power input interface
1x 4pin ATX power input interface
Fan Connector: 1x 4pin CPU smart fan interface，1x 4pin system smart fan interface
GPIO: Support 4-way input and output GPIO function
BIOS: 32Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 7 / Linux
Power Type: 24Pin ATX power supply
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5～90%( relative humidity, non-condensing)
Dimension: 170mm x170mm（ITX）
