Combining powerful computing capabilities with robust integrated performance and an excellent balance of low power consumption and high efficiency, the Senbainno ITX-YS610R1 is suitable for a wide range of industrial applications. It is ideal for use in industrial control, information systems, financial equipment, automated ticketing systems, automotive sectors, military applications, and various terminal markets.

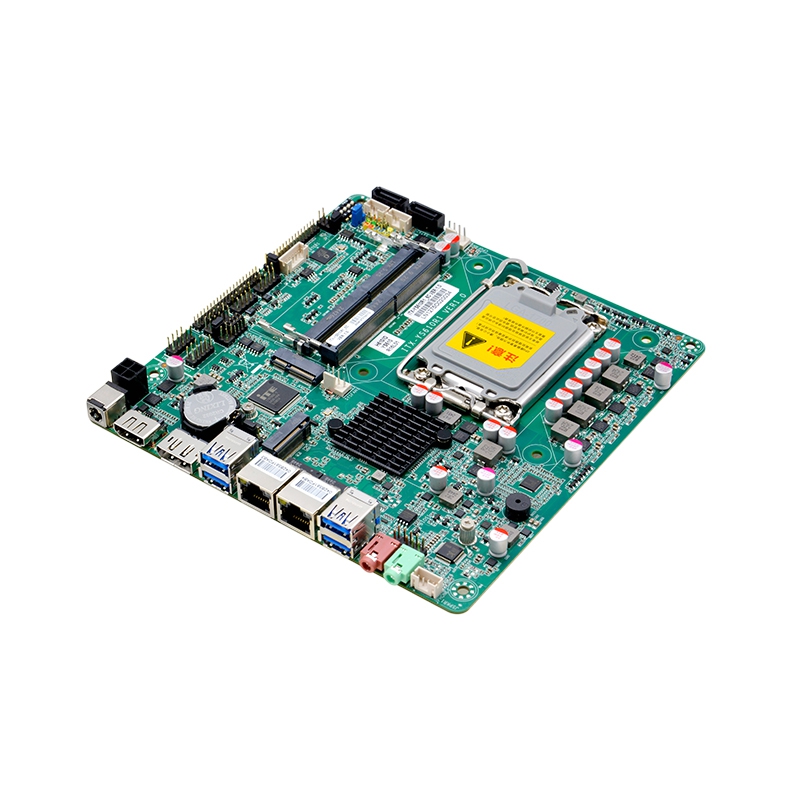

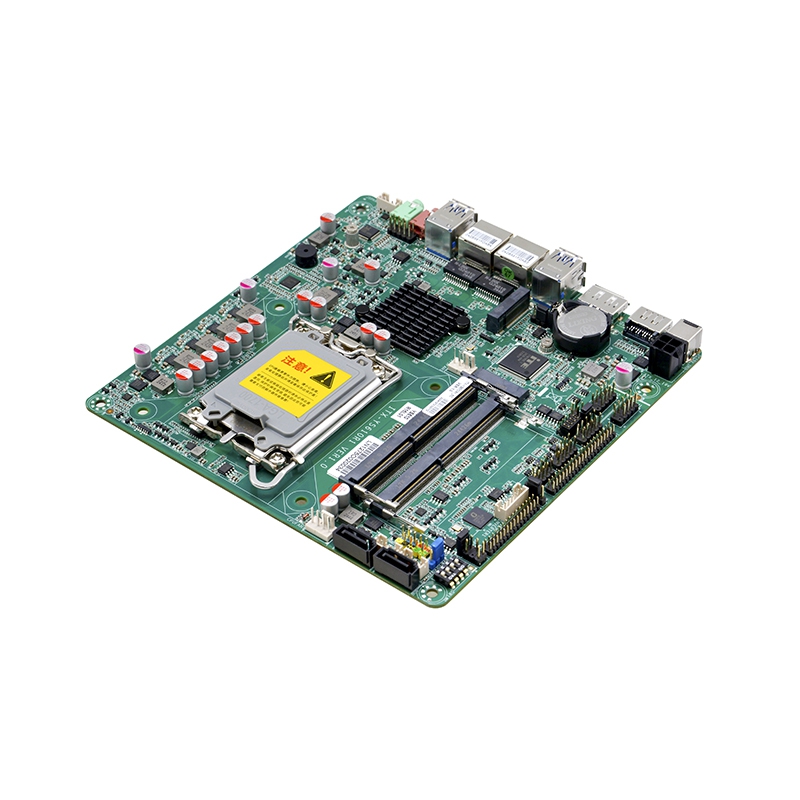

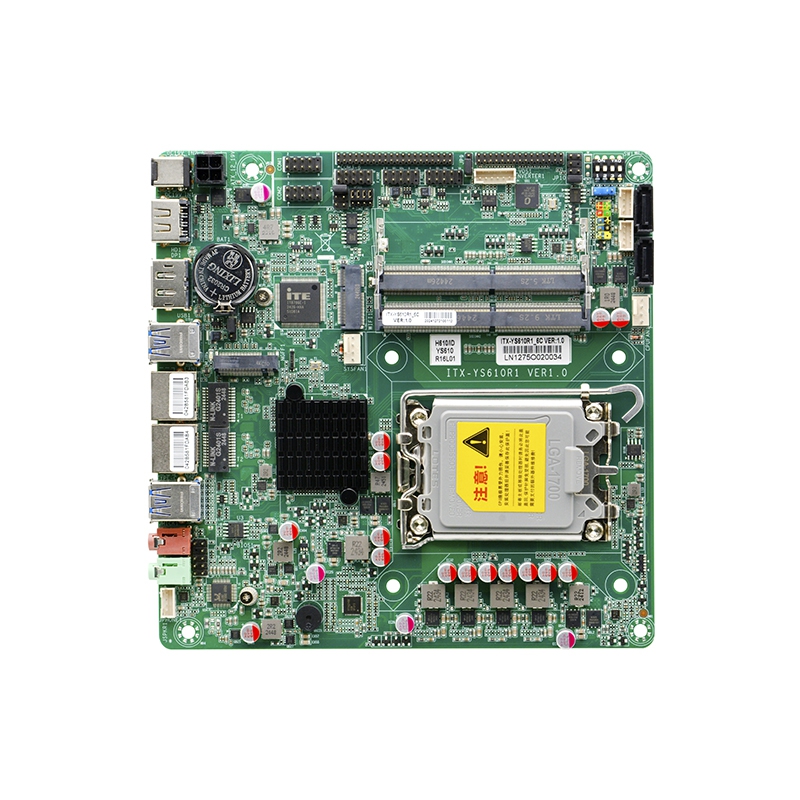

Detail Display
Product Description

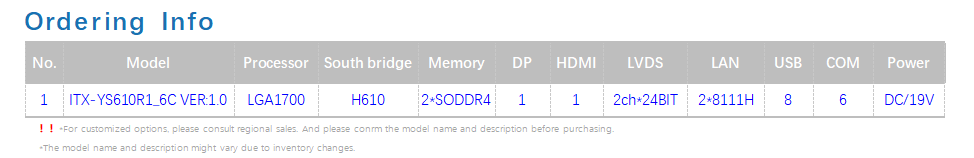

Model No.: ITX-YS610R1_6C VER:1.0
Processor:
Supports LGA1700 12th/13th/14th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Note:Supports below 65W CPU,Turbo Boost is disabled by default
Chipset: Based on Intel® H610 chipset
RAM: 2* SODIMM slot ,support dual channel 3200MHz DDR4 memory, up to 64GB
Dispay:
Integrated Intel® HD Graphics, supportsDirectX12.1, OpenGL4.5, supports 4K/60Hz
1* DP, the maximum resolution supported is: 4096x 2106 @ 60Hz
1* HDMI1.4, the maximum resolution supported is: 4096x2304 @24Hz
1* LVDS, supports dual channel 24BIT
Ethernet: 2* Realtek RTL8111H Gigabit Ethernet Lan, support Wake_on_LAN/PXE function
Storage:
2* SATA3.0, the transfer rate is up to 6Gbps
1* M.2 slot, supports M.2 Key M 2260/2280 NVME PCIE3.0 X4 SSD
Audio: Onboard ALC897 7.1+2 channel high fidelity audio controller,supporting MIC/Line-out and power amplifier
Expansion Slot: 1* M.2, support M.2 Key E 2230 WIFI&BT module

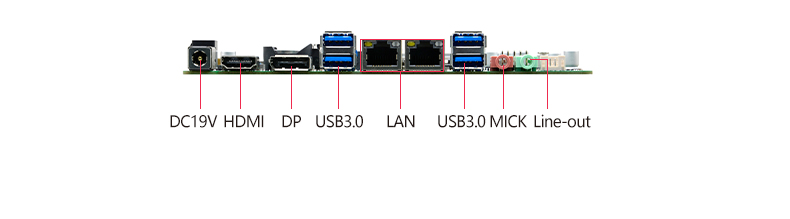

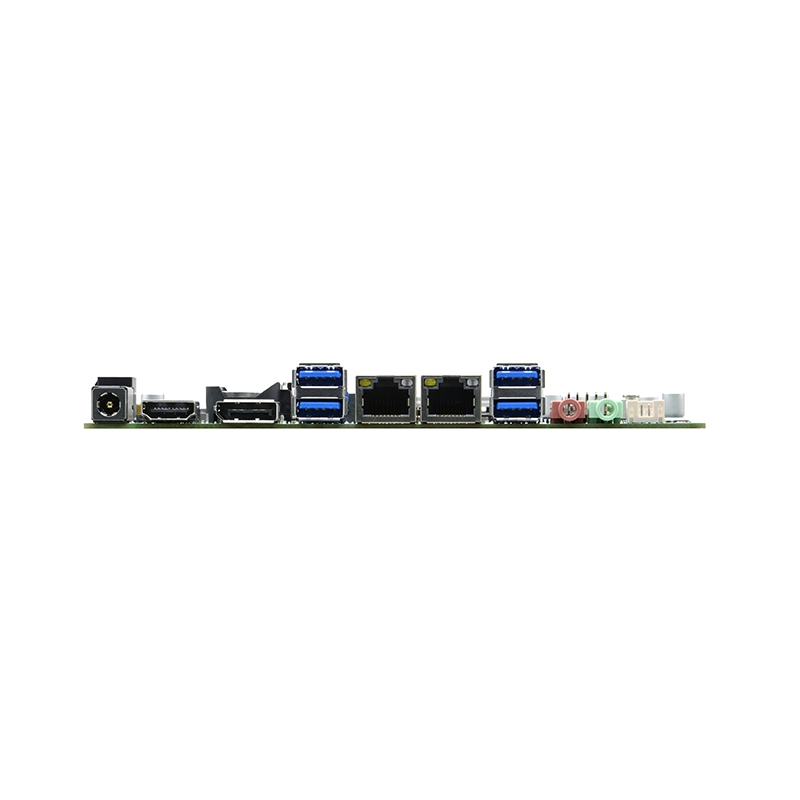

Rear I/O interface:
1*DC power supply slot, support DC19V power supply
1* HDMI1.4, 1*DP
4* USB3.0 (5Gbps) (USB2 and TYPE-C are the same column, and one TYPE-C interface can be selected)
2* RJ45 Gigabit network interface
1* Line-out(green), 1*MIC(red)

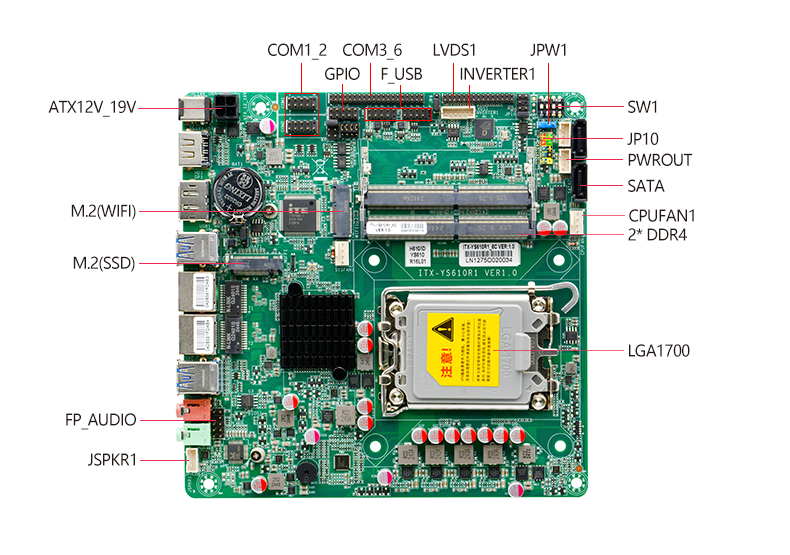

Built-in I/O interface:
6* RS232 serial ports, COM2 supports RS485/422
4* USB2.0, 2*5pin
1* LVDS, supports dual channel 24BIT
2* Hard disk power supply interface, 1*4pin
1* Screen backlight power supply interface, 1*6pin
1* 2*2pin ATX power interface, supports 19V power input and output
1* Front audio interface, 2*5pin
1* Amplifier interface, 1*4pin (NS4251)
1* Front panel function buttons and indicator light interface, 2*5pin
Fan interface:
1*4pin CPU fan connector, 1*4pin system fan connector
GPIO: Support 4-way input output GPIO function (Alternative to PS/2)
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
OS: Windows 10/Windows 11/Linux
Power type: DC_19V power input
Operating temperature: -20℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, non-condensing
Size: 170mm x 170mm
