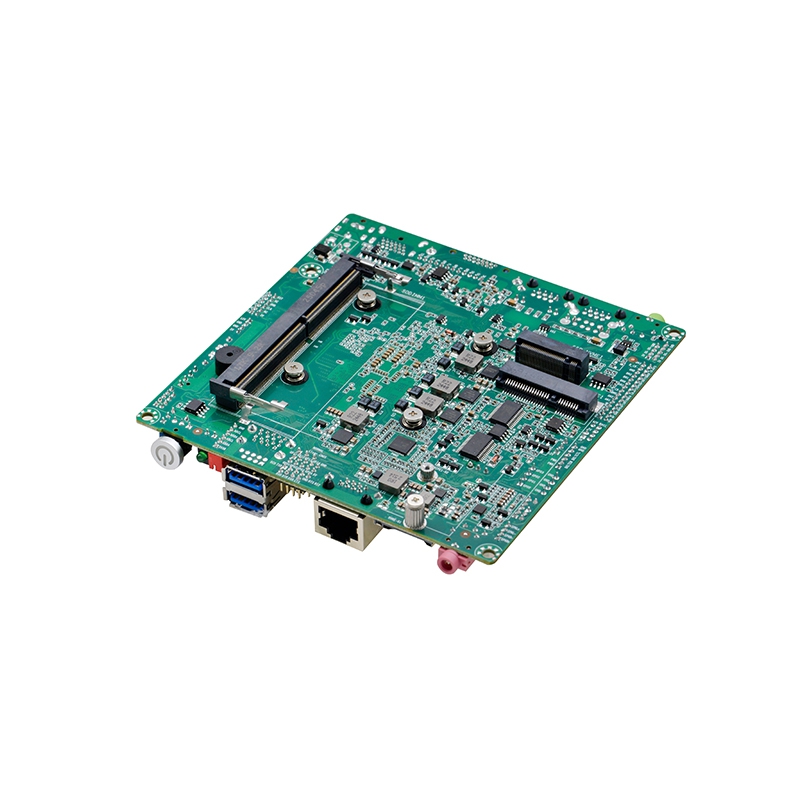

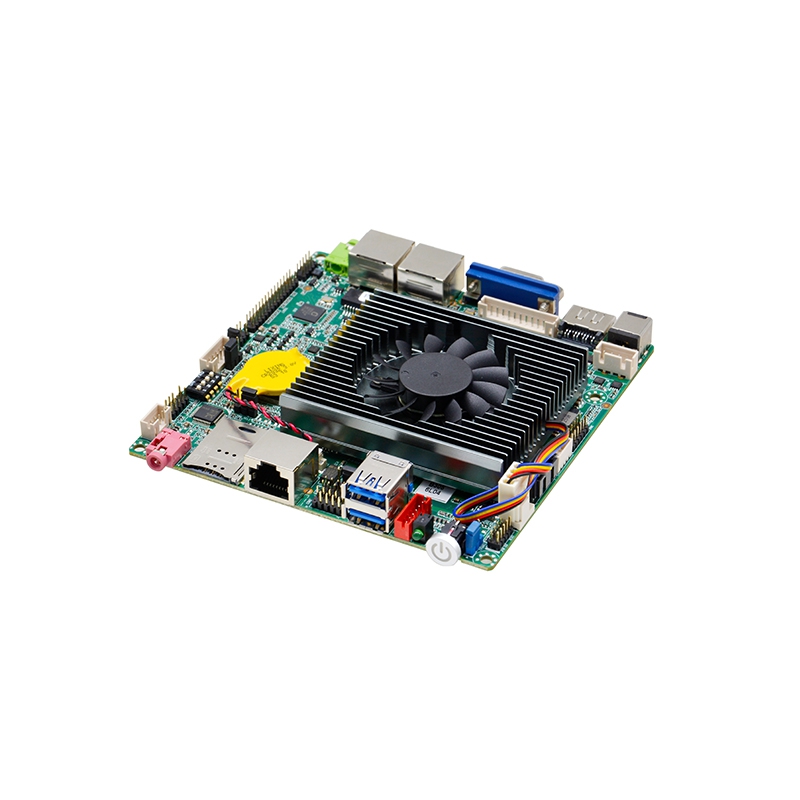

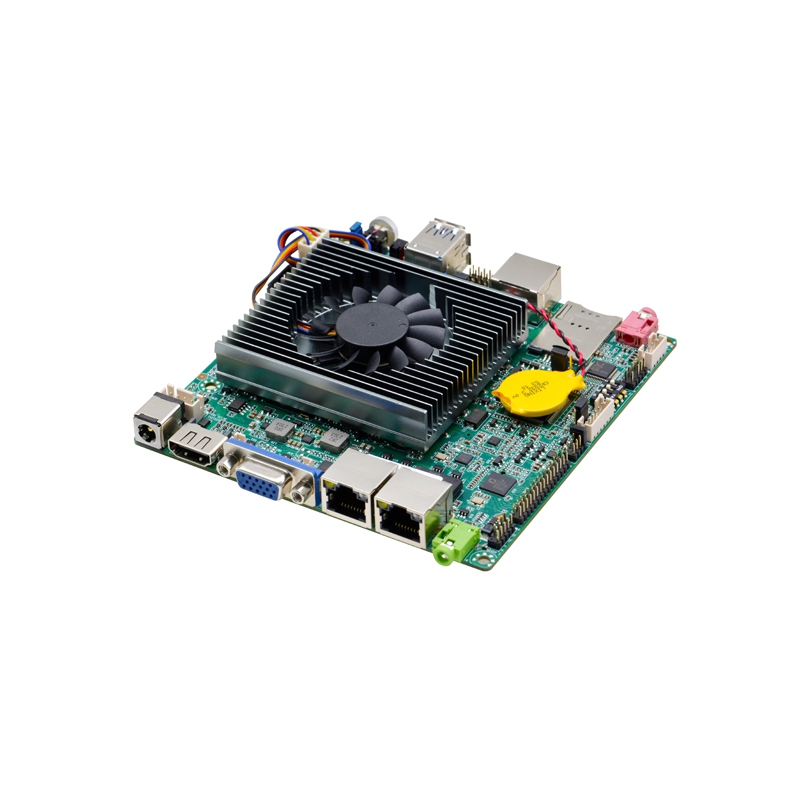

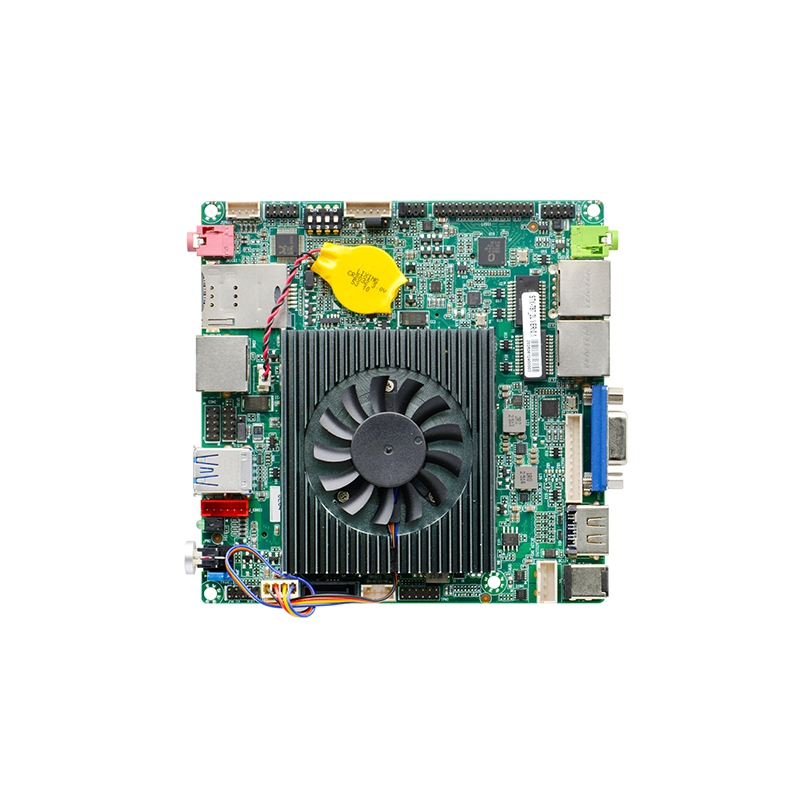

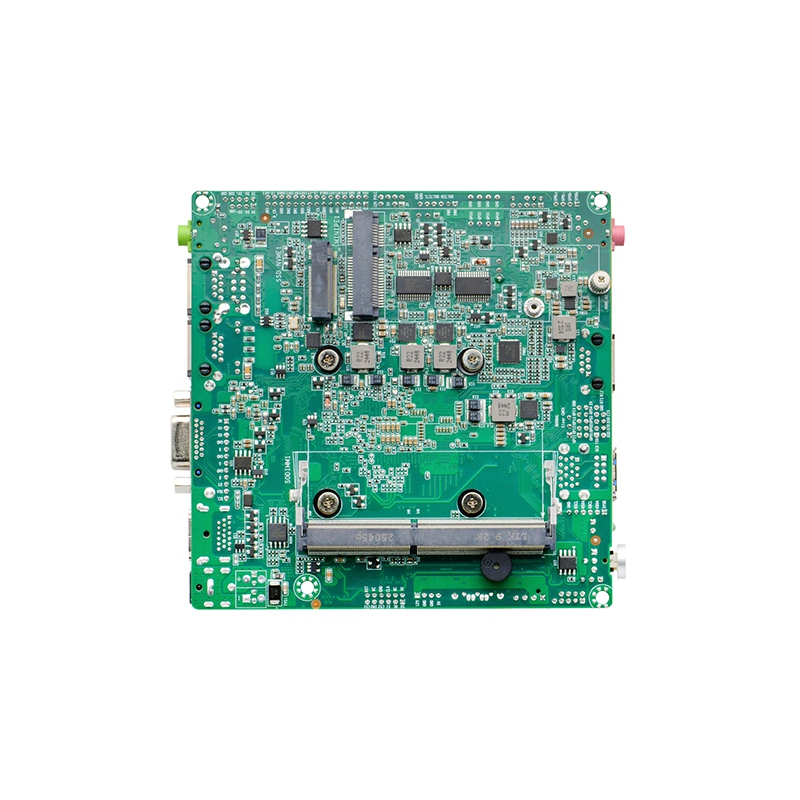

Product Description
Model No.: STX-T97_2L VER0.1
Processor:
Integrated Intel®Alder Lake-N N97 3.6GHz quad-core processor, TDP 12W
Compatible with Intel® Alder Lake-N all series CPU
Chipset: SOC
RAM: 1* SODIMM memory slot, support single channel 3200MHz DDR4 memory, up to 32GB
Display:
Integrated Intel® UHD Graphics
1*VGA, 1*HDMI, 1*LVDS interface (support dual-channel 24BIT)
Support: VGA; HDMI; LVDS synchronous/asynchronous display
Ethernet: 2* RTL8111H Gigabit LAN, support Wake-on-LAN, PXE function. (LAN2 and double-layer USB2.0 co-located)
Storage:
1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
1* M.2 slot, support M.2 Key M 2280 PCIE X1/SATA specification SSD
Audio:
Onboard ALC897 7.1+2 channel Hi-Fi audio controller,support MIC/Line-out.Power amplifier
The amplifier is recommended to use 4Ω3W speakers
Expand slot: 1* Mini-PCIE slot, supports WIFI/4G module
Front I/O Interface:
1* Power switch with light
1* Power indicator light (green)
2* USB2.0
1* RJ45 serial port
1* SIM card slot
1* MICK (red)

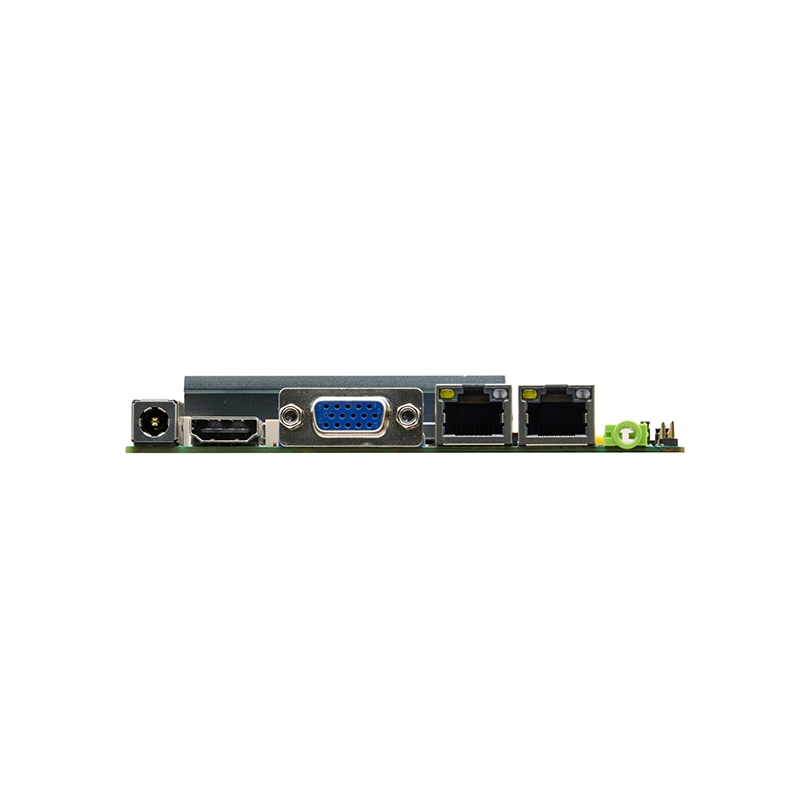

Backplane I/O Interface:
1* Line-out (green)
2* RJ45 Gigabit network interface (LAN2 and double-layer USB2.0 co-row)
1* VGA
1* HDMI1.4
1*DC 12V power interface
Built-in I/O interface:
1* LVDS interface (2*15pin), supports dual-channel 24BIT LCD display
1* LVDS backlight interface, 1*6pin
1* JVGA1 interface, 1*12pin, (same signal as DB15)
1* RS232 serial port, 2*5pin, support RS485 (RS485 function requires modification)
2* USB2.0, 2*5pin
1* PS/2 mouse and keyboard interface (1*6Pin)
1* Front panel audio interface, 2*5pin
1* Hard drive power supply interface, 1*4pin
1* Front panel function button and indicator interface, 2*5pin
1* DC power supply interface, 1*4pin support 12V power input output
1*power amplifier interface , 1*4pin
1* TPM, 2*6pin
Fan interface: 1*4pin CPU smart fan interface, 1*4pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: AMI 64Mb Flash ROM
Watchdog: Support hardware reset function(256 levels, 0~255 seconds)
Operating system: Windows 10/Windows 11/Linux
Power Type: Powered by DC 12V power supply
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, no condensation
Dimension: 120mm x 120mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:We offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
