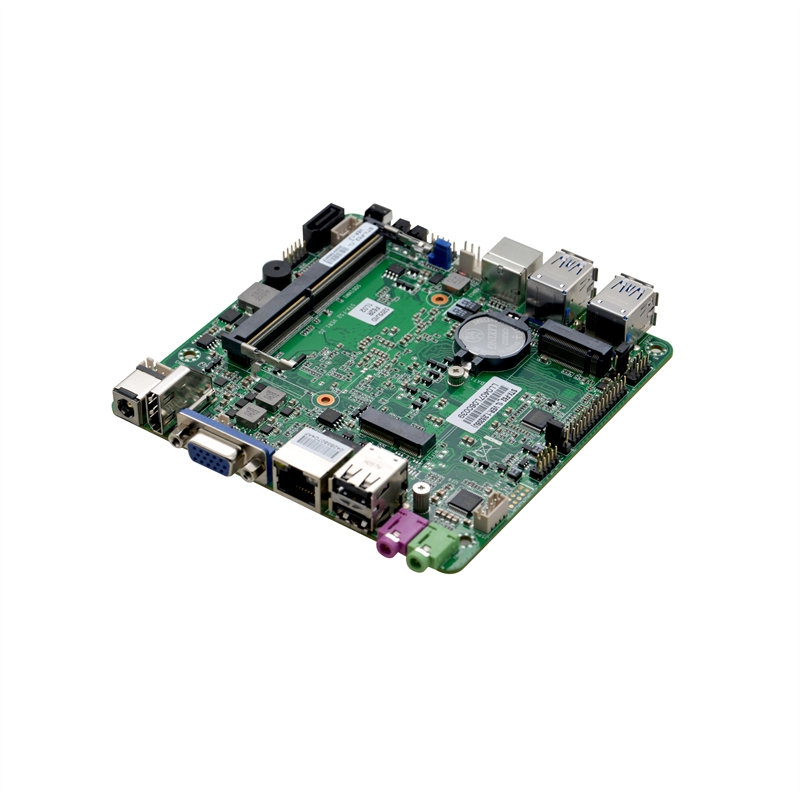

Designed for compact embedded systems, this Nano ITX motherboard is built on the Intel Comet Lake-U SOC platform, featuring the 10th Gen Intel Celeron 5205U (1.90GHz Dual-Core) with Intel UHD Graphics (supporting VGA+HDMI+eDP triple display).
Key Features:
●Ultra-compact Nano ITX form factor (120×120mm) with fanless design, ideal for space-constrained applications.
●Flexible memory & storage: 1× DDR4 SO-DIMM (up to 32GB), 1× M.2 PCIe/SATA SSD, and 1× M.2 Wi-Fi slot.
●Rich connectivity: 1× Gigabit Ethernet, 4× USB3.0, 4× USB2.0, RS232, PS/2, and GPIO.
●Industrial reliability: Watchdog Timer and 12V DC input for stable 24/7 operation.
Detail Display
Product Description
Model No.: STX-F52_1L VER:1.2 (5205U)
Processor: Integrated 10th Intel®Celeron 5205U 1.9GHz Dual core Dual thread processor ,TDP 15W
Compatible with Intel®Whiskey Lake-U/Comet Lake-U 8th/10th Celeron/Pentium/I3/I5/I7 series low power consumption processors
Chipset: SOC
Memory: 1x SODIMM slot, support DDR4 2400MHz memory, up to 32GB
Display: Integrated Intel® UHD Graphics ,supports DirectX 12 OpenGL 4.5, supports 4K
1x VGA, The maximum resolution supported is：1920X1200@60Hz
1x HDMI1.4, The maximum resolution supported is：4096X2304@24Hz
1x Embedded Display Port，The maximum resolution supported is：4096X2304@60Hz
Ethernet: 1x Realtek8111H Gigabit Ethernet,supports Wake on LAN/PXE function
Storage: 1x M.2 slot, M.2 2280 standard, supports PCIEx4 / SATA SSD
1x 7pin SATA3.0，the transfer rate up to 6Gbps
Note:7pin SATA and M.2 NVME is alternative ,if use NVME of M.2 SSD,7pin SATA can not use;
use SATA of M.2,7pin SATA can use,the default is M.2 NVME and SATA adaptive
Audio: Onboard ALC897 7.1+2 channel high fidelity audio controller, supports Line-out，MIC-in，power amplifier
Support power amplifier 4Ω3W horn
Expansion Slot: 1x M.2 slot, supports M.22230 WiFi module

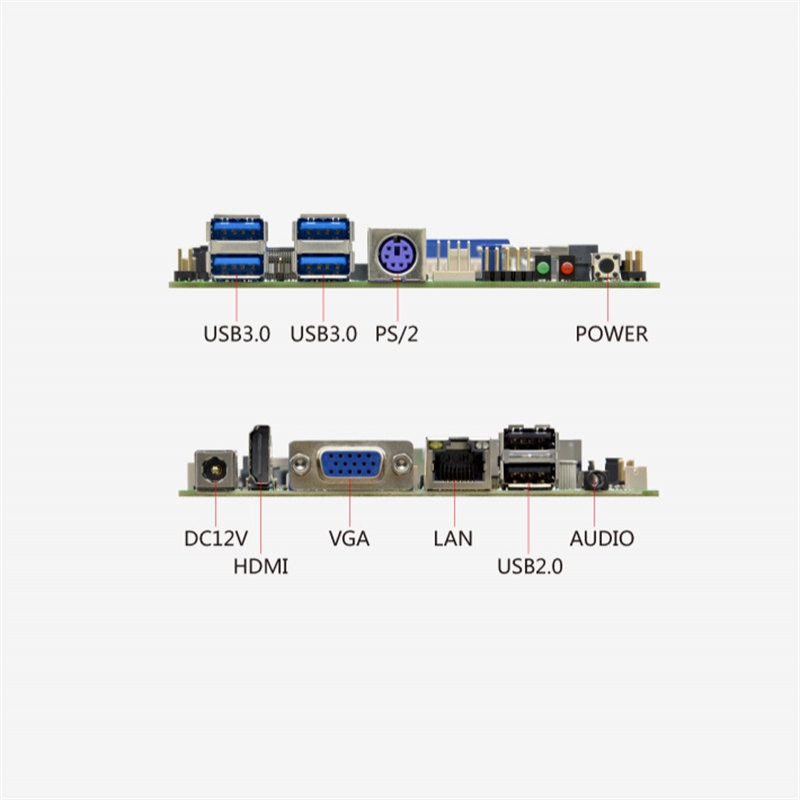

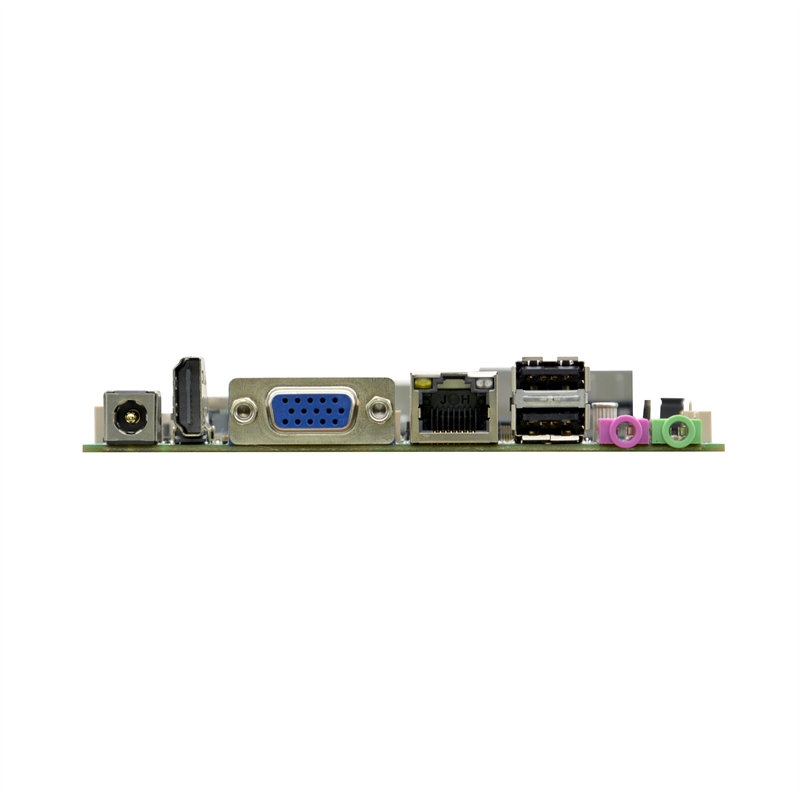

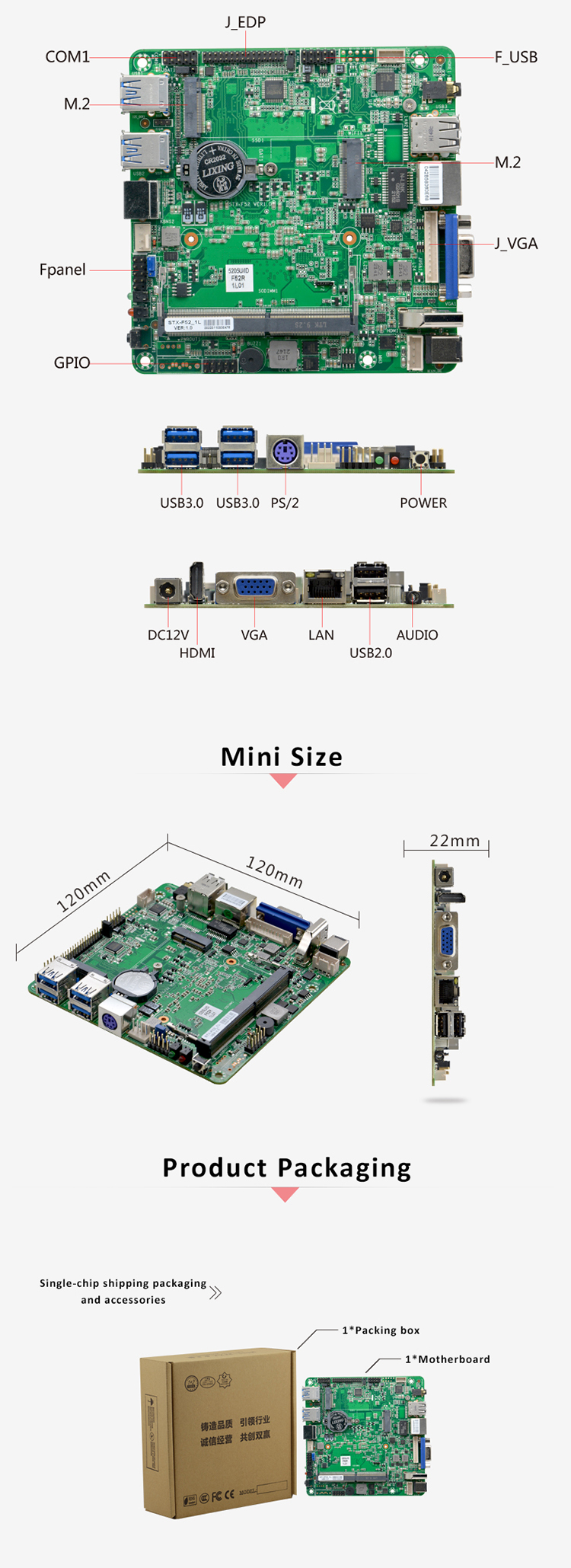

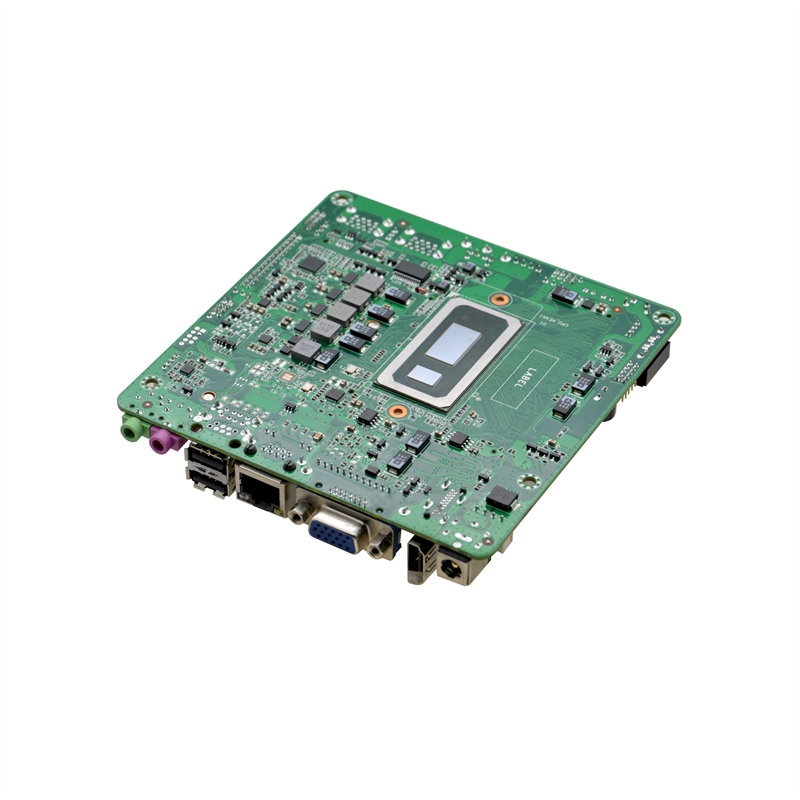

Rear I/O:
1x DC_Jack
1x HDMI
1x VGA
1x RJ45 Gigabit Ethernet ( 2* RJ45 optional )
2x USB2.0 (With F_USB2 built in interface is alternative)
1x Line-out (Green)
1x MIC_in (Red)

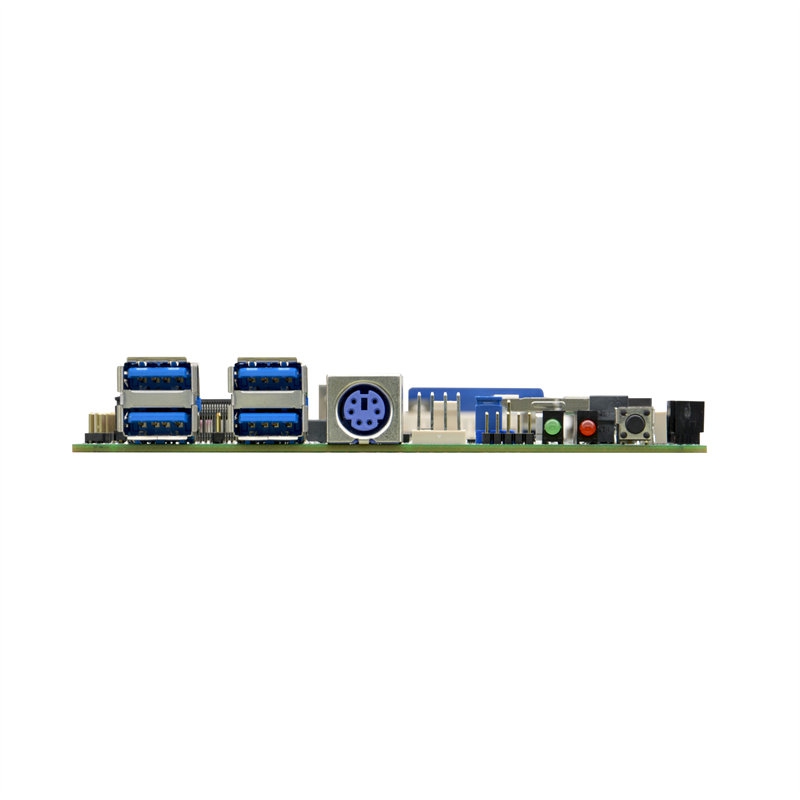

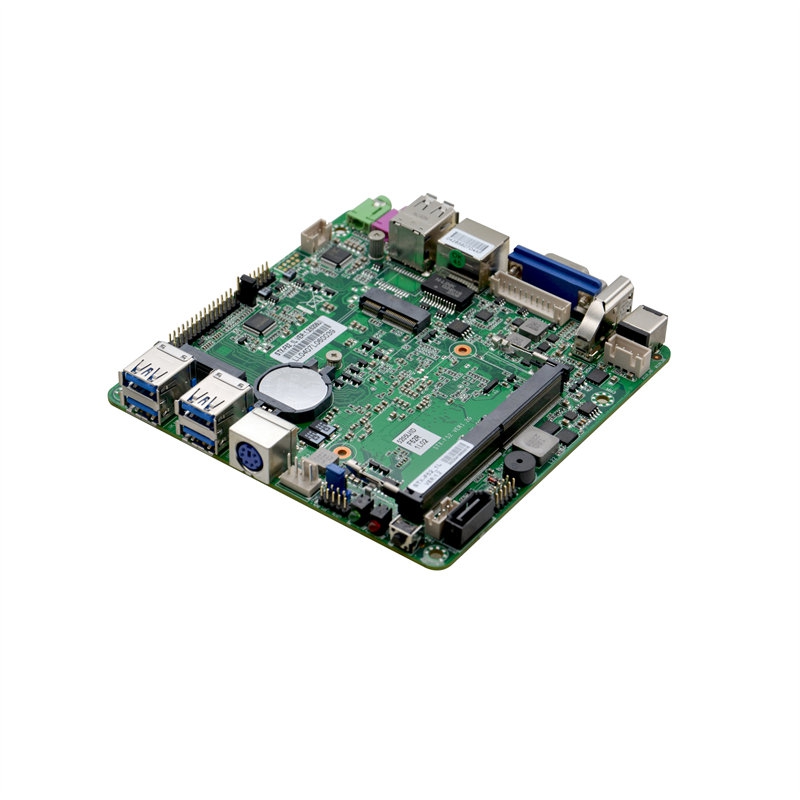

Front I/O:
4x USB3.0
1x PS/2 (K&M)
1x power switch
1x power LED ; 1*HDD LED

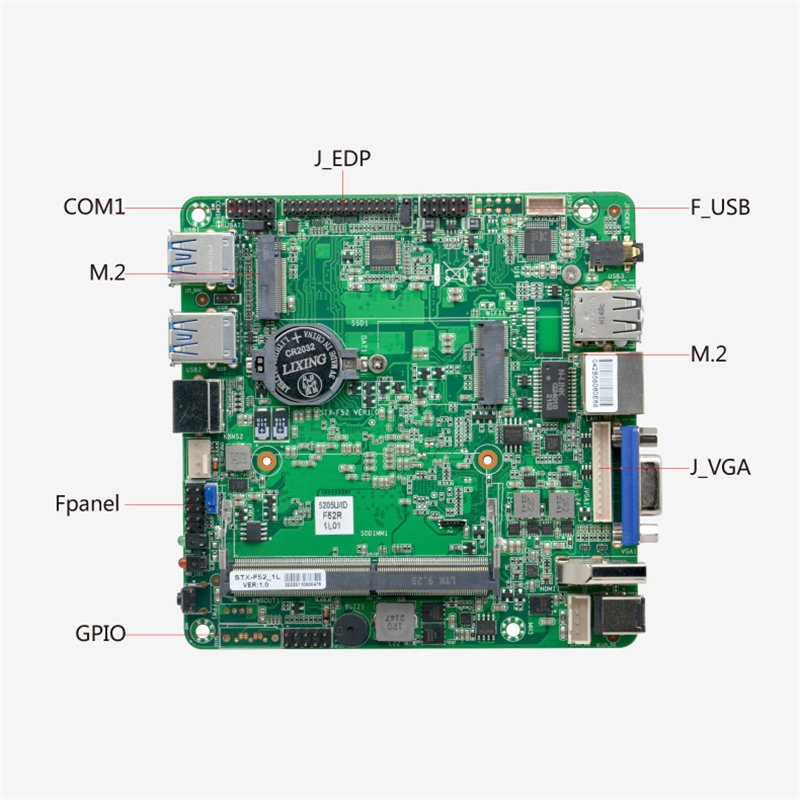

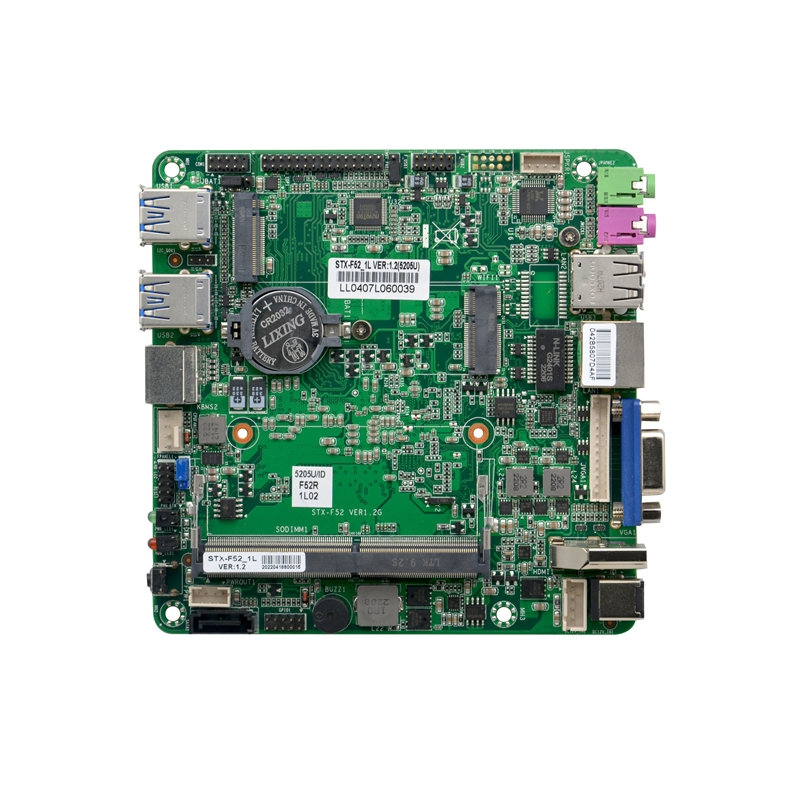

Built in I/O: 1x EDP, 2x 15pin
1x JVGA, 1x12pin (Same signal as DB15)
2x USB2.0 2x 5pin
1x RS232 COM 2x 5pin
1x Power amplifier interface 1x 4pin
1x Hard disk power supply interface 1x 4pin
1x Front panel function button and indicator light interface 2x 5pin
1x DC 12v power interface 1x 4pin
Fan Connector: 1x 4pin CPU smart fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (L256，0~255 seconds)
OS: Windows 10/Linux
Power Type: DC 12V
Working temp.: -10℃～60℃
Storage temp.: -20℃～70℃
Working humidity: 5%-95% (relative humidity,non-condensing)

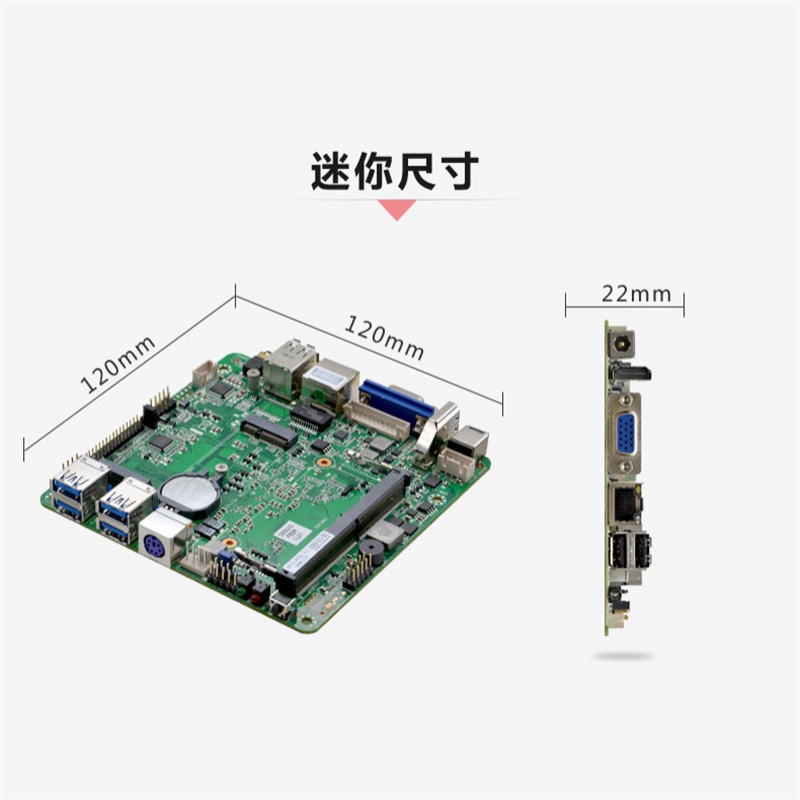

Dimension: 120mm x 120mm

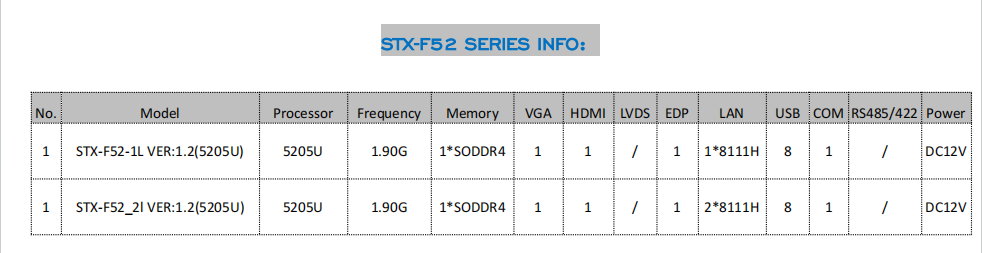

%20--order.png)
