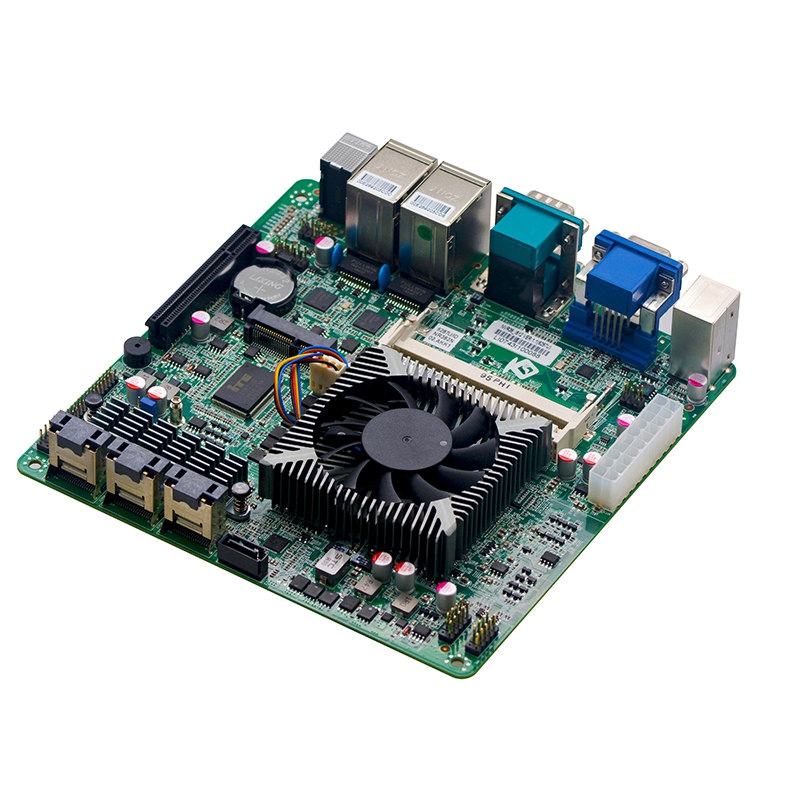

Overview
This industrial-grade NAS motherboard is engineered with the Intel Skylake-U SOC platform, featuring the Intel Core i5-6287U Dual-Core processor (3.1GHz base, 3.5GHz Turbo) and Intel Iris Graphics 550, delivering exceptional storage density and video processing capabilities for professional network-attached storage and surveillance solutions.
Key NAS/NVR Features:
●Massive storage capacity:
12x SATA3.0 via 3x Mini-SAS (SFF-8087) connectors
1x SATA3.0 + 1x mSATA SSD (for OS/boot)
●High-performance memory: 2x DDR3L 1600MHz SO-DIMM (up to 16GB)
●Dual-network reliability: 2x Intel I210AT Gigabit Ethernet (teaming supported)
●Professional expansion:
1x PCIe 3.0 x8 slot (x4 electrical, for HBA/10GbE cards)
●Legacy interfaces:
2x RS232 (for console/device management)
PS/2 (industrial keyboard support)
●Industrial durability:
Watchdog Timer
ATX 20pin power input
Optimized for:
Large-scale surveillance NVR systems (50+ cameras)
Enterprise NAS appliances (24+ bay)
Video analytics storage nodes
Industrial data logging systems

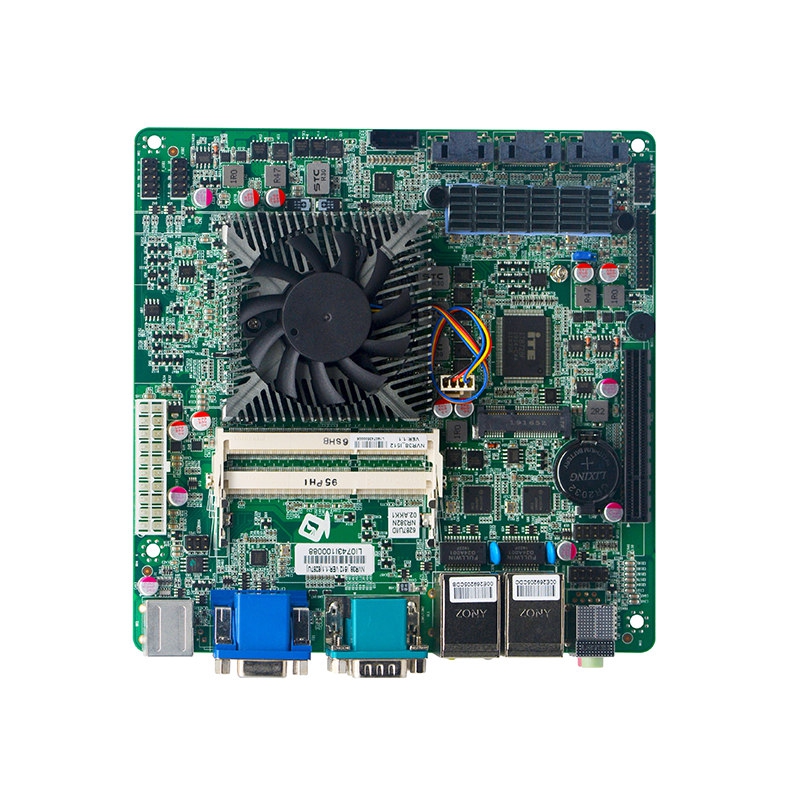

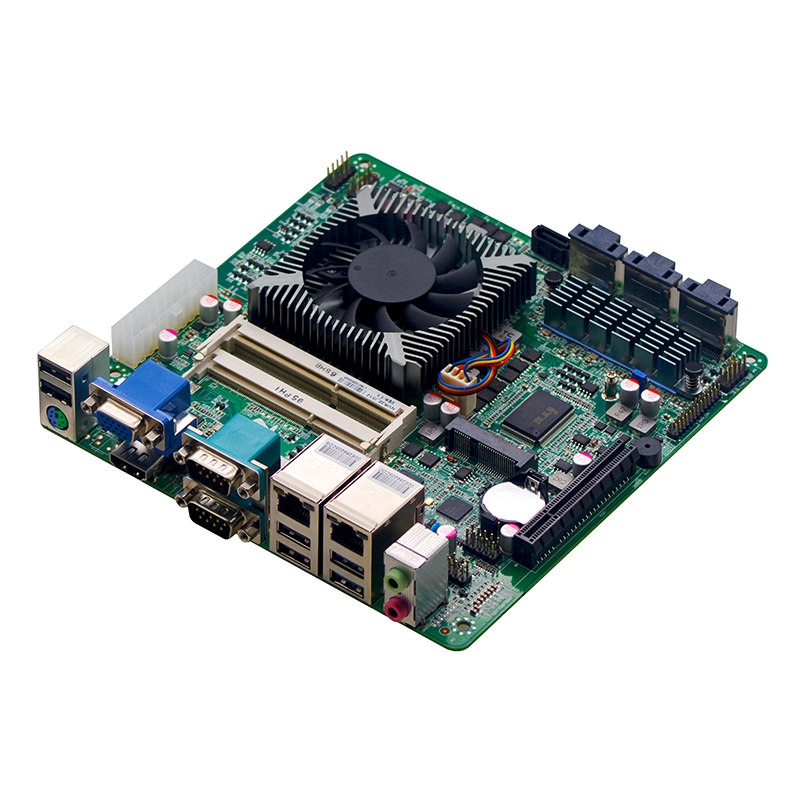

Product Description
Model No.: NVR38_I512 VER:1.1（6287U）
Processor: Integrated Intel®Core I5-6287U 3.1GHz dual core processor, TDP 28W
Compatible with Intel® Skylake-U/Kabylake-U Celeron/Pentium/I3/I5/I7 low power processor
Chipset: SOC
Memory: 2x DDR3L SODIMM memory slot, support 1600MHz ram, is up to 16GB
Display: Integrated Intel® Iris TM Graphics 550, support DirectX 12 OpenGL 4.5, support 4K
1x VGA, the maximum resolution supported is: 1920X1200@60Hz
1x HDMI1.4, the maximum resolution supported is: 4096X2304@24Hz
Ethernet: 2x Intel WGI211AT Gigabit Ethernet chip, supports Wake on LAN/PXE function
Storage: 1x 7pin SATA3.0, the transfer rate is up to 6Gbps
3x MSAS, support total 12x SATA3.0, the transfer rate is up to 6Gbps
1x MSATA slot, support Intel protocol SSD,the transfer rate is up to 6Gbps
Audio: Integrated ALC662 6 channel high-fidelity audio controller, supports MIC, Line_out
Expansion Slot: 1x PCIEx8, support PCIE X4

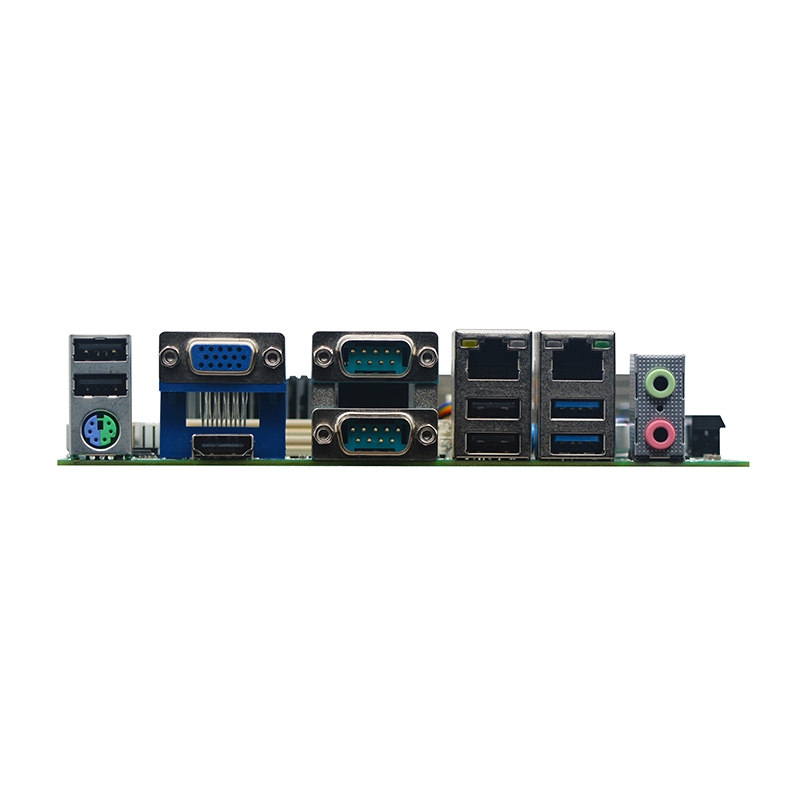

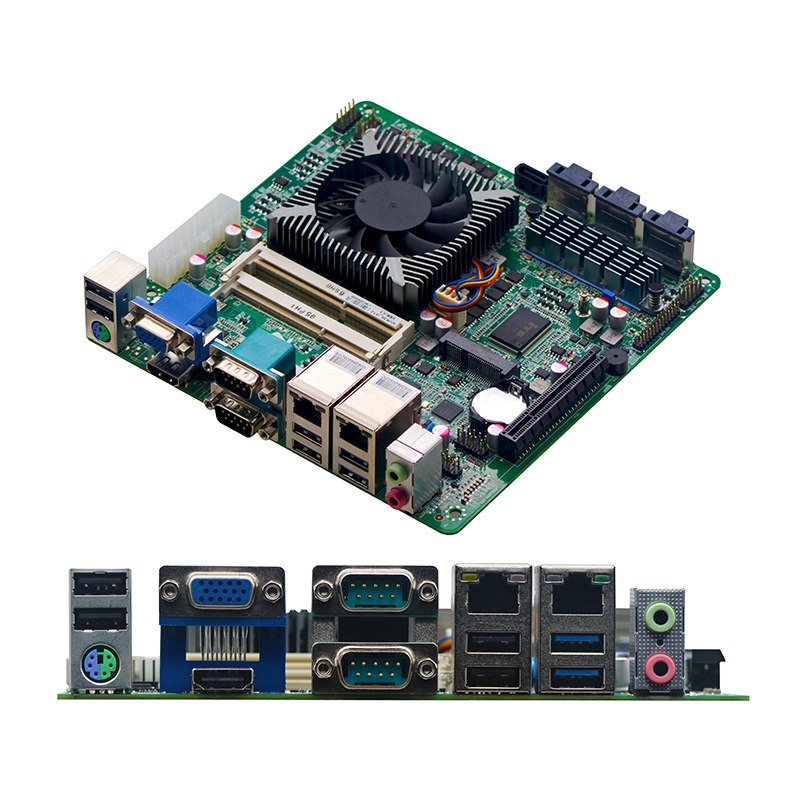

Rear I /O interface:
1x HDMI
1x VGA
2x USB3.0
4x USB2.0
2x RJ45 Gigabit Network Interface
1x Line-out(Green),1x MIC(Red)
1x PS/2
2x DB9 RS232 COM
Built in I/O interface :
4x USB2.0, 2x 5pin
1x Hard disk indicator light interface, 2x 13pin
1x Front audio interface, 2x 5pin
1x Front panel switch button and indicator light interface, 2x 5pin
1x 20pin ATX power supply interface
Fan Connector: 1x 4pin CPU smart fan interface
GPIO: Support 4-way input and output GPIO functions
BIOS: 64MB Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 7/ Windows 8/ Windows 10/ Linux
Power Type: Adopt 20pin ATX power supply
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 170mm X170mm
