This high-performance NAS motherboard leverages the Intel Q570 Express chipset with LGA1200 socket, supporting 10th/11th Gen Intel® Core™ processors (up to i9-11900K), delivering unparalleled storage density and processing power for mission-critical network-attached storage solutions.
Key NAS Features:
●Server-grade memory: 2× DDR4 3200MHz SO-DIMM (up to 128GB ECC optional)
●Enterprise storage architecture:
6× SATA3.0 ports (hardware RAID 0/1/5/10 via Intel RST)
2× M.2 NVMe slots (PCIe 3.0 x4, 64Gbps total bandwidth)
●High-speed networking:
●Professional expansion:
1× PCIe 3.0 x16 slot (for SAS3/10GbE/NVMe expansion)
1× TF card slot (for embedded OS deployment)
●Data center reliability:
Watchdog Timer with NMI trigger
ATX 20+8pin power (125W TDP support)
Optimized for:
AI training data repositories
8K video production shared storage
Enterprise private cloud infrastructure

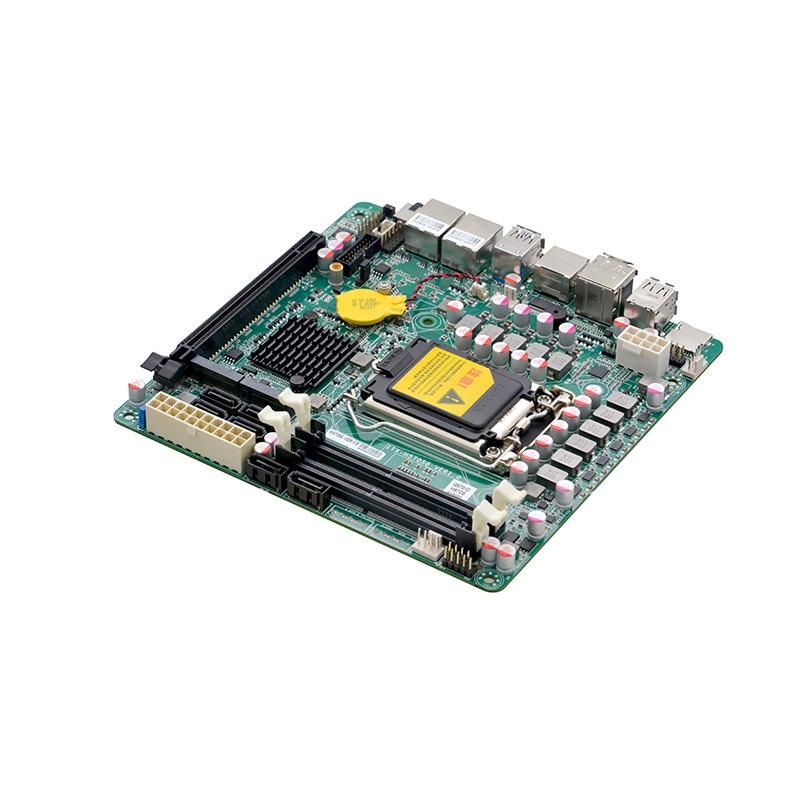

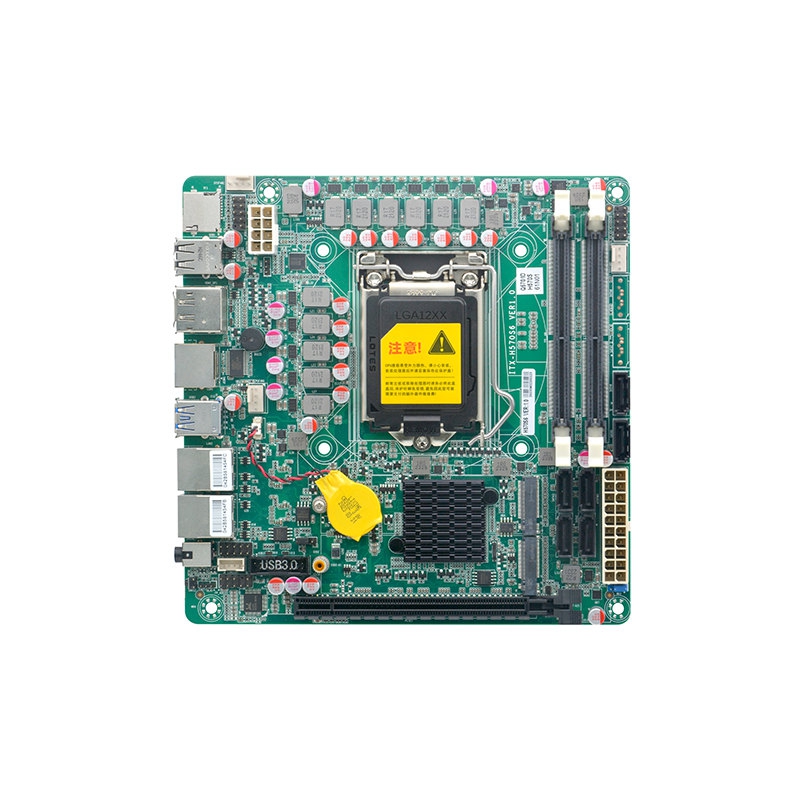

Detail Display
Product Description
Model No.: H570S6 VER:1.0
Processor: Supports LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Note: Supports 10th /11th 125W CPU
Chipset: Intel® Q570 chipset
Memory: 2x DDR4 SODIMM memory slot, supports dual channels ,up to 3200MHz memory, up to 128GB
Display: Integrated Intel®HD Graphics, supports DirectX12.1,OpenGL4.5, supports 4K
1x DP, the maximum resolution supported is: 1920X1200@60Hz
1x HDMI1.4, the maximum resolution supported is: 4096x2304 @24Hz
Ethernet: 2x Intel ®I226V Gigabit Ethernet chip, supports Wake on LAN/PXE function
Storage: 6x SATA3.0, the transfer rate is up to 6Gbps (Q570 south bridge only support 6*SATA, SATA7/8 can not use), support RAID 0,1,5,10
2x M.2 slot, support M.2 2280 NVME PCIE X4 standard SSD
Audio: Onboard ALC897 7.1+2 channel high fidelity audio controller, support MIC/Line-out
Expansion Slot: 1x PCIE3.0 X16

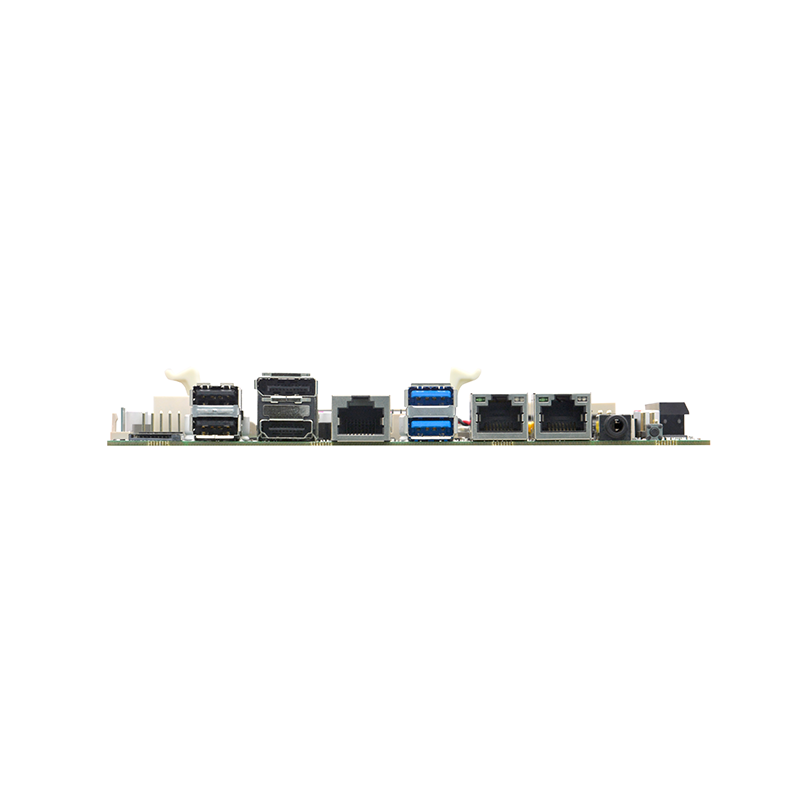

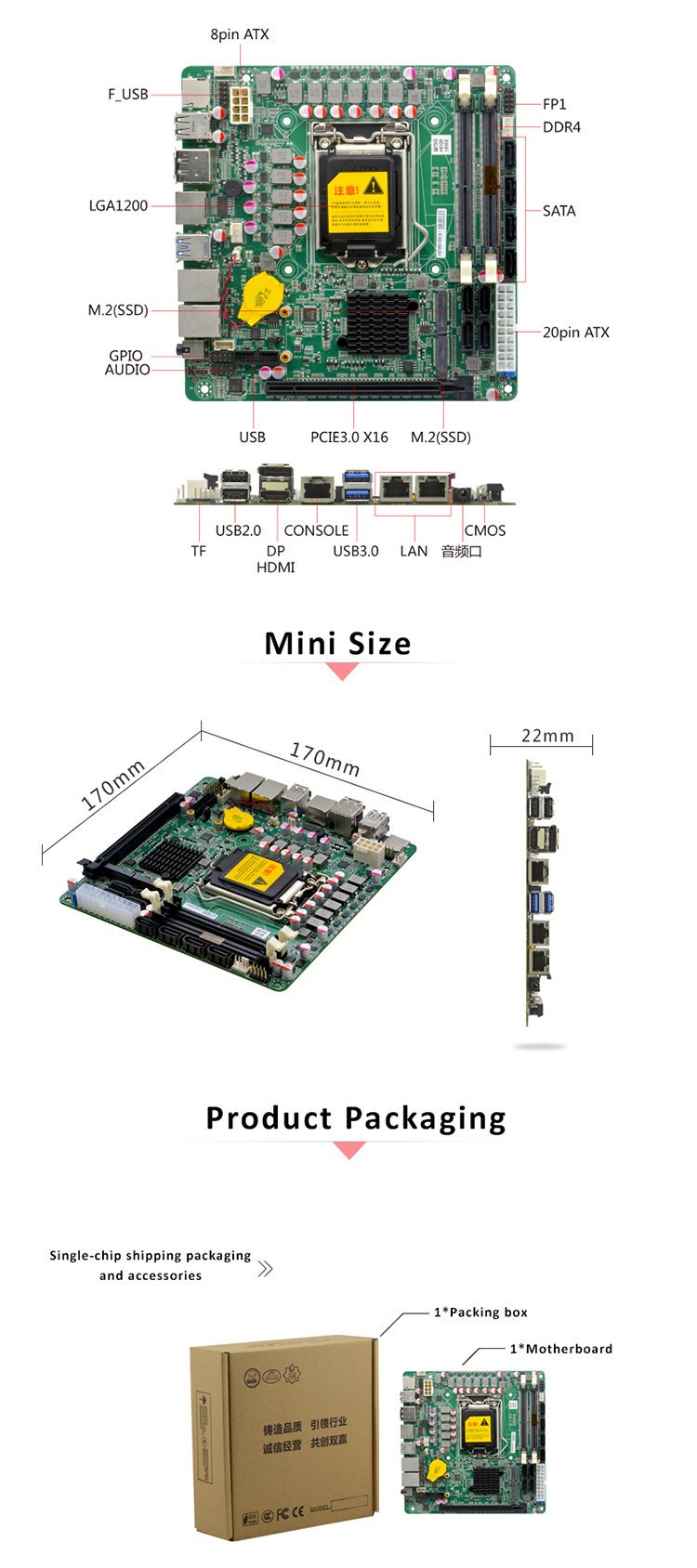

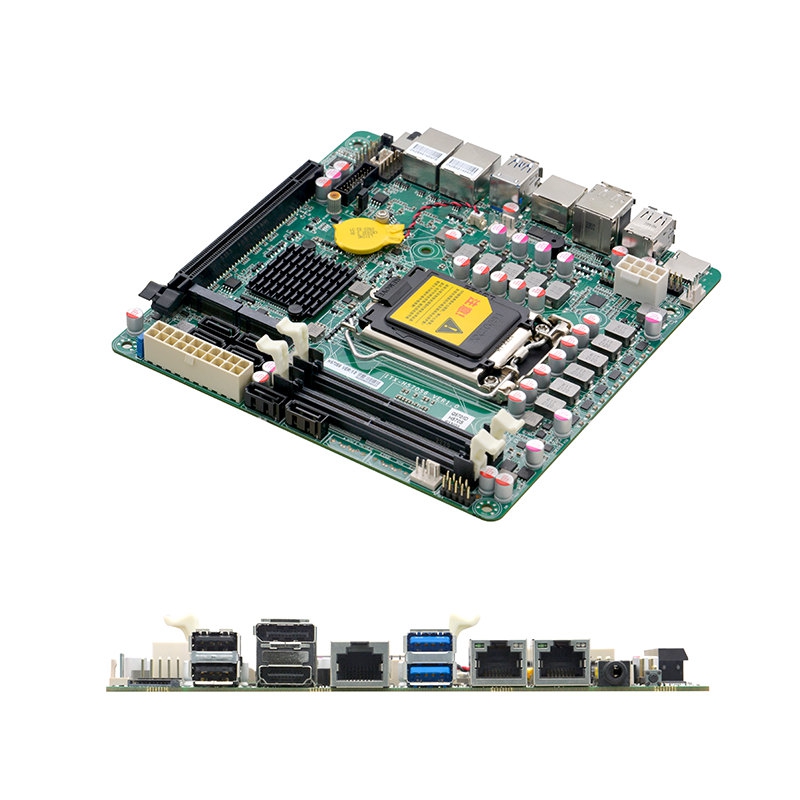

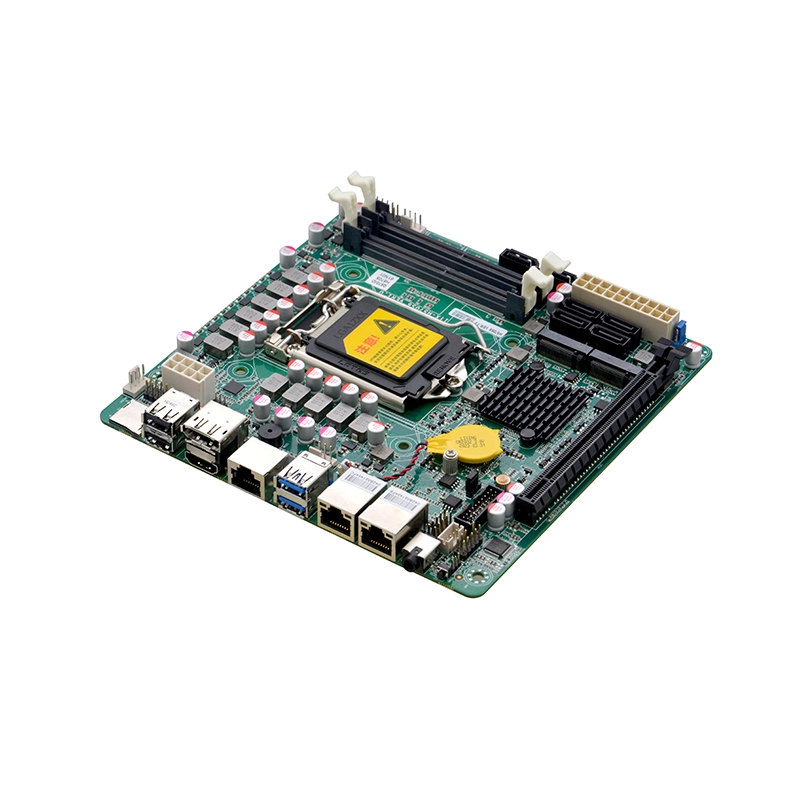

Rear I /O interface:
1x TF card slot
2x USB2.0
1x DP
1x HDMI
1x RJ45 COM
2x USB3.0
2x RJ45 Gigabit Network Interface
1x Line-out/MICK 2-in-1 audio interface
1x Reset button (CMOS)
Built in I/O interface:
2x USB3.0, 2x 10pin
2x USB2.0, 2x 5pin
1x Front audio interface, 2x 5pin
1x Network indicator light interface, 1x 4pin
1x Front panel function button and indicator light interface, 2x 5pin
1x 8pin ATX power supply interface
1x 20pin ATX power supply interface
Fan Connector: 1x 4pin CPU fan connector, 2x 4pin system fan connector
GPIO: Supports four-in and four-out GPIO functions
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 10/Windows 11/Linux
Power Type: Adapt ATX 20Pin and 8pin power supply
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 170mm x 170mm
