Overview

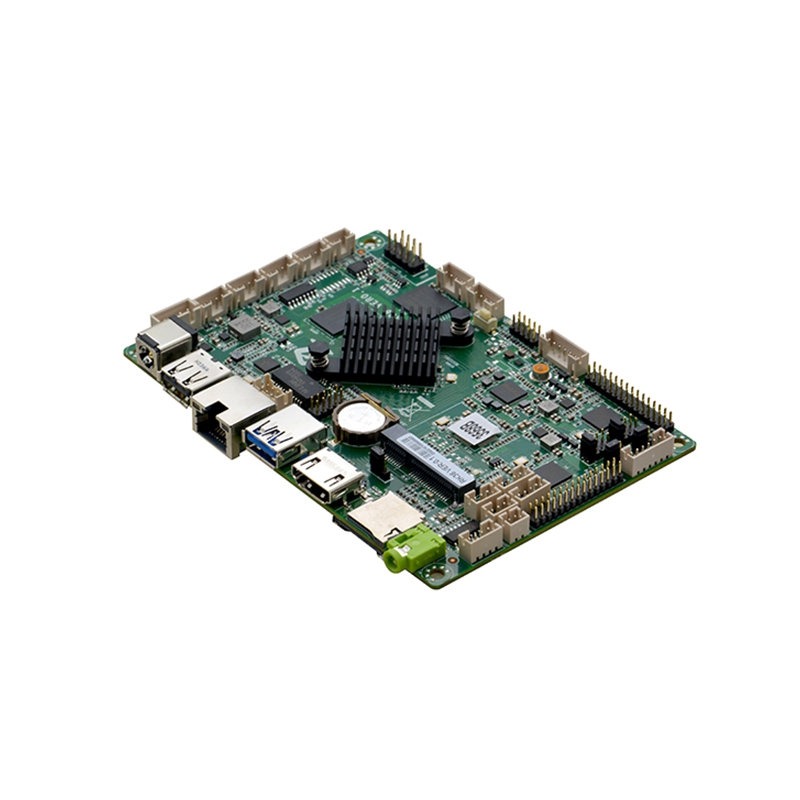

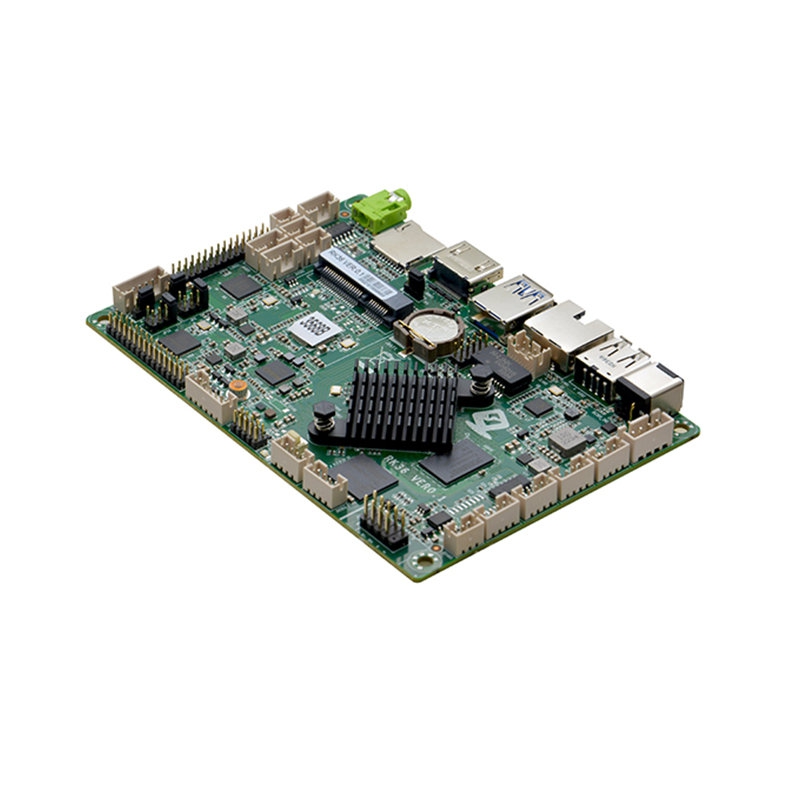

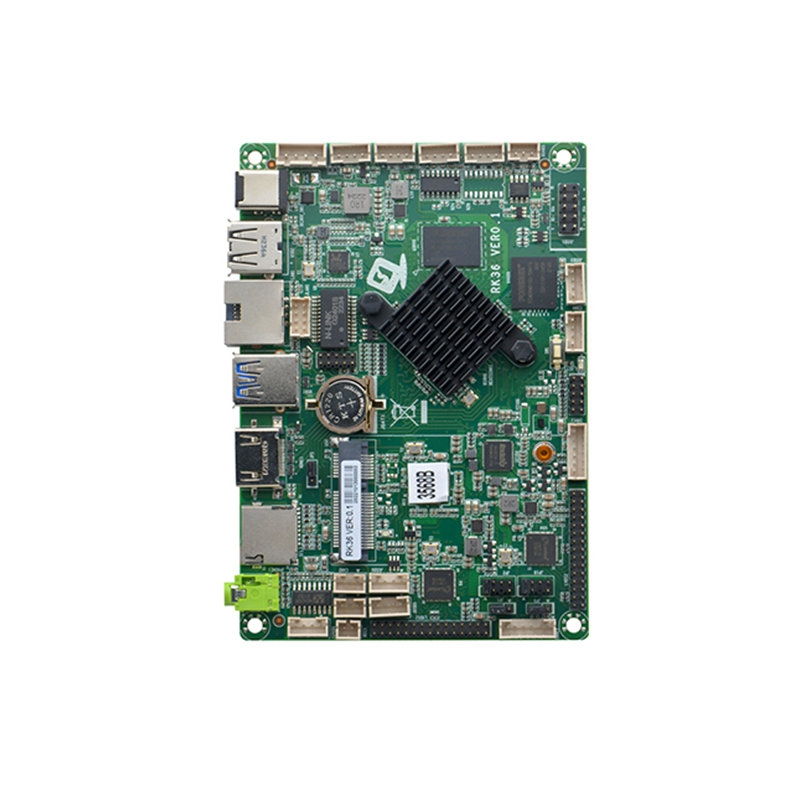

The RK36B features Rockchip RK3568B2 quad-core CPU (Cortex-A55/2.0GHz) with 1-8GB DDR4 RAM. Offers eMMC storage, TF slot, 1xGbE, HDMI and dual LVDS outputs. Expansion includes Mini-PCIe and 6x USB ports. 12V DC powered for industrial and smart device applications.
Detail Display
Product Description

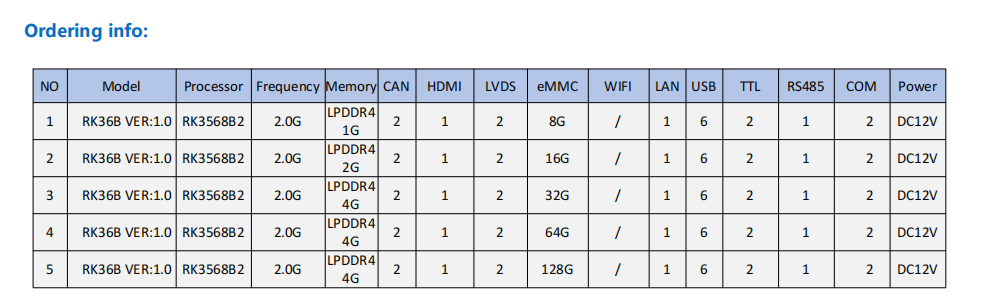

Model No.: RK36B VER:1.0
Processor: CPU Rockchip RK3568B2 Quad-core Cortex-A55 up to 2.0GHz processor
Memory: Onboard LPDDR4 2G memory (1GB/2GB/8GB optional）
Graphics: Integrated ARM Mali-G52 GPU, support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1
1x HDMI,2x LVDS
Support dual-screen differential display
Network: 1x RTL8211F Gigabit network card chip
Storage: 1x eMMC memory chip 16G（8GB/32GB/64GB/128GB optional）
1x Support TF card expansion
Audio: Line-out，MICK
Amplifier: Support 2Ω5W dual channel
Expansion slots: 1x mini PCIe slot

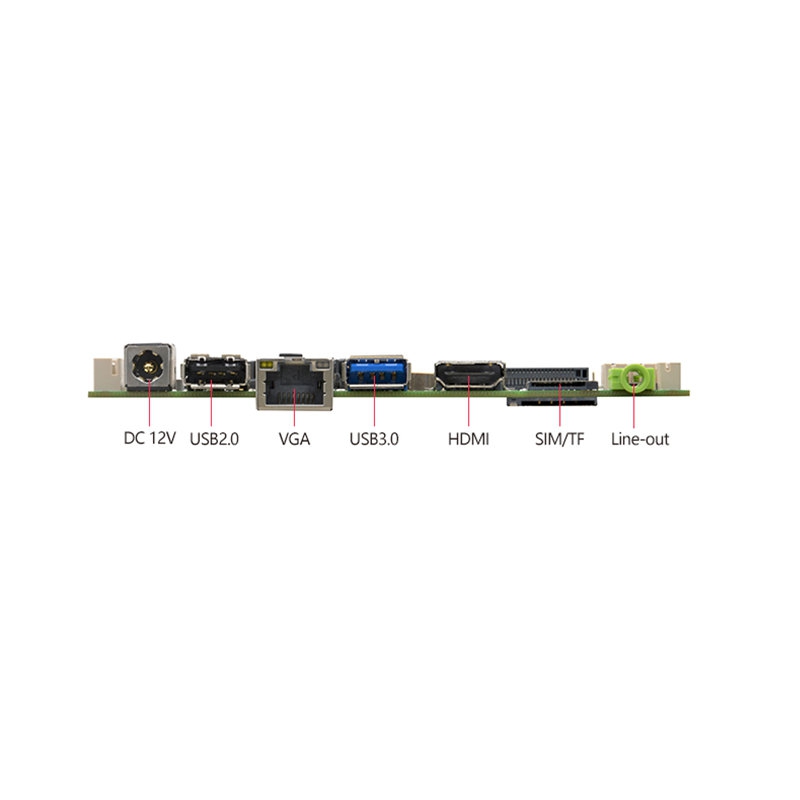

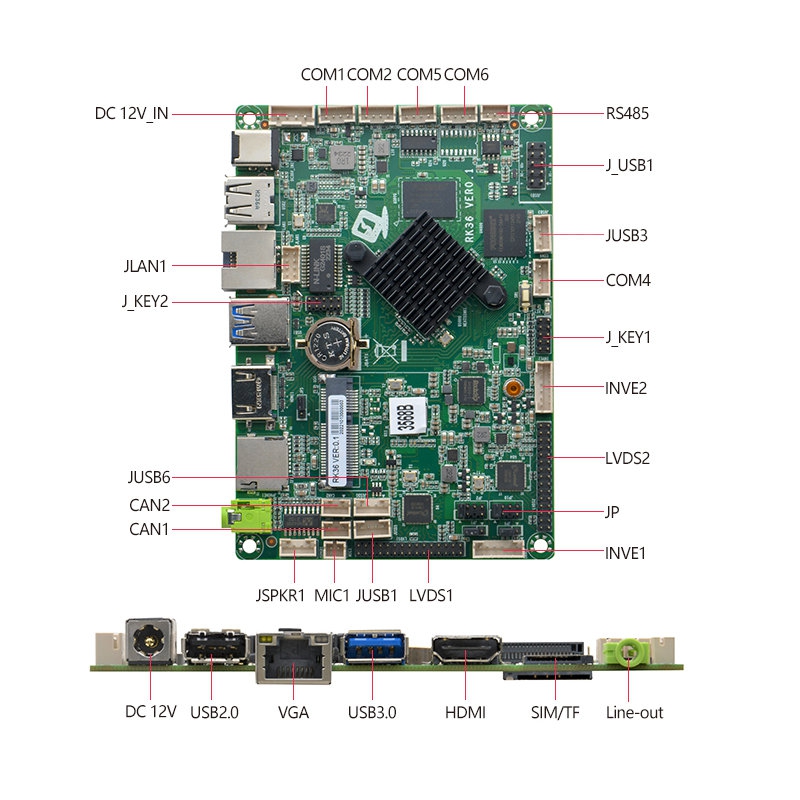

Rear I/O interface:
1x USB2.0
1x USB3.0
1x HDMI
1x Gigabit network interface
1x Line-out（green）
1x TF card slot
1x SIM card slot
1x DC 12V power interface

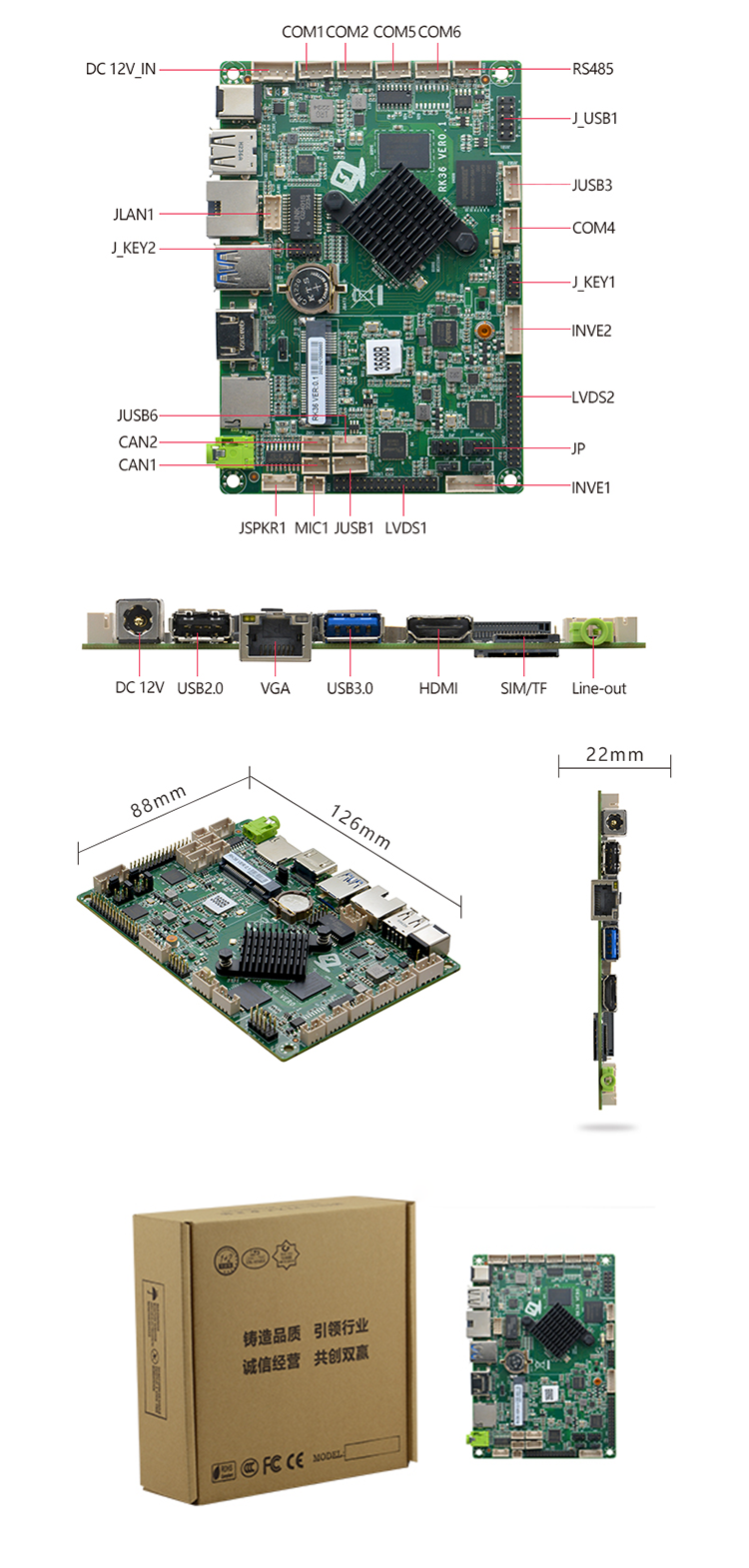

Built in I/O interface:
1x USB3.0, 2*5pin
3x USB2.0, 1*4pin
2x RS232 serial interface,1x 4pin
2x TTL serial interface, 1x 4pin (default TTL level, can be changed to RS232)
1x RS485,1x 3pin(optional post)
2x LVDS
1x Gigabit network interface (optional with RJ45)
2x Screen backlight power supply interface 1x 6pin
1x Power amplifier（2Ω5W） 1x 4pin
1x MIC interface 1x 2pin
1x DC12V input 1x 4pin
2x CAN,1x 3pin
1x Function button and indicator light interface 2x 5pin
Power input: DC 12V single power input
GPIO: Supports 4 input and 4 output GPIO interfaces
OS:Android 11,Ubuntu20.04、Debian 10
Working Temp.: 0℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)

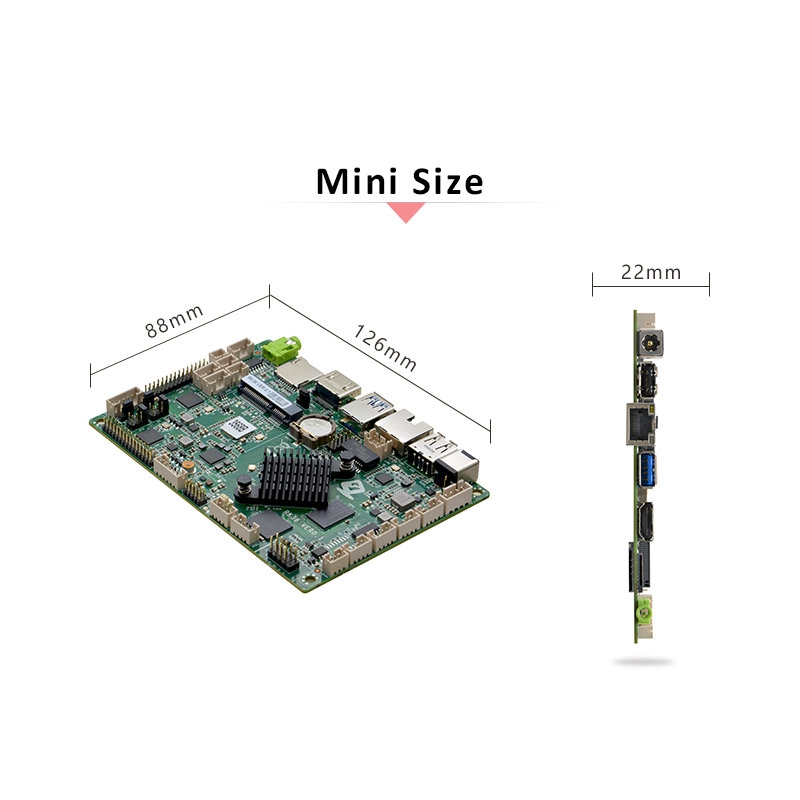

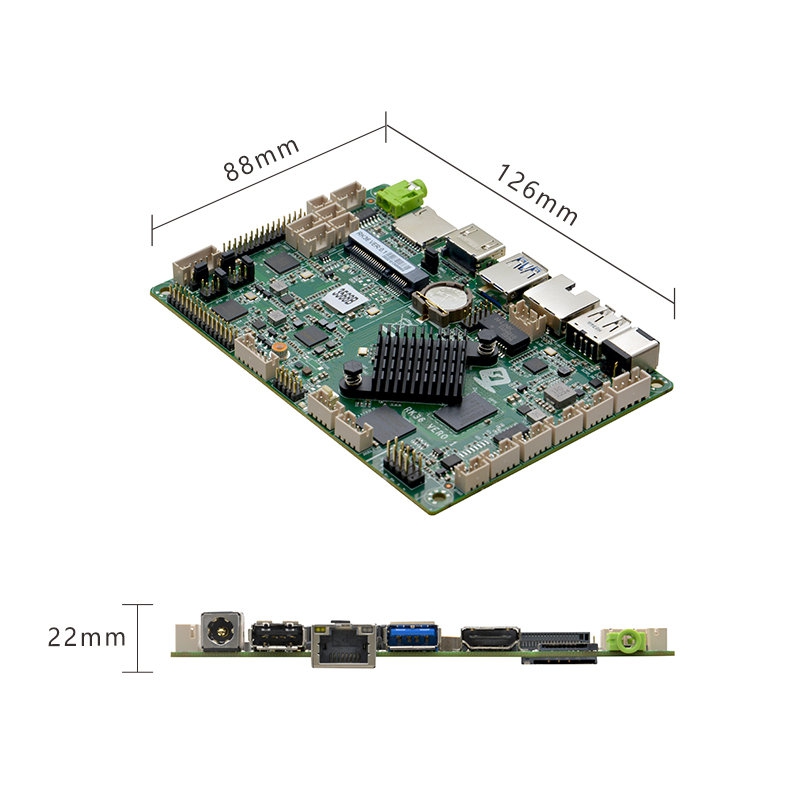

Dimension: 126mm x 88 x 12mm (6-layer board, screw hole specifications: Ø3.5mm x 4)
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.

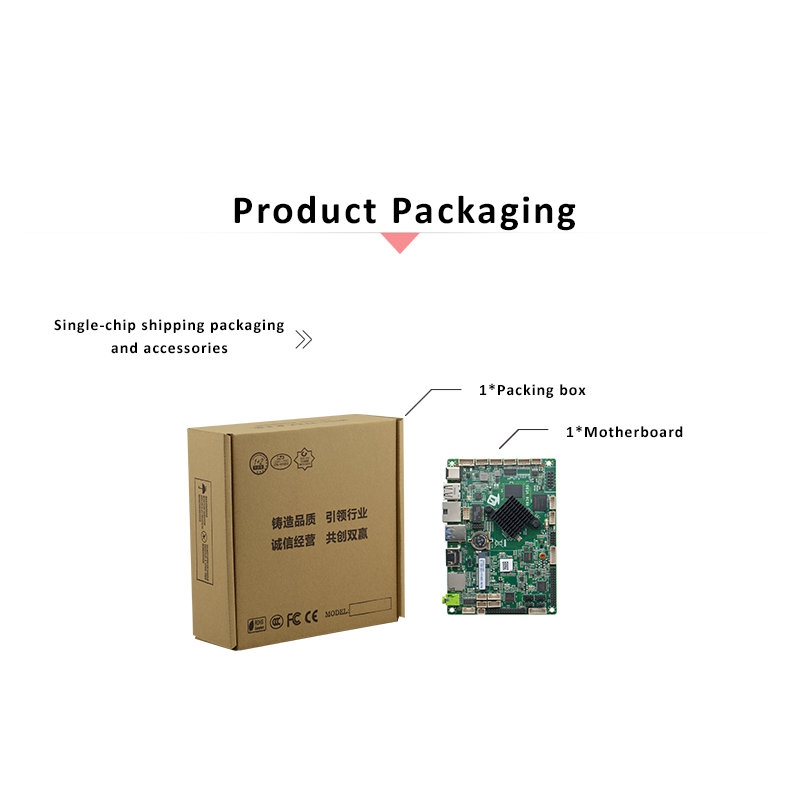

Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
