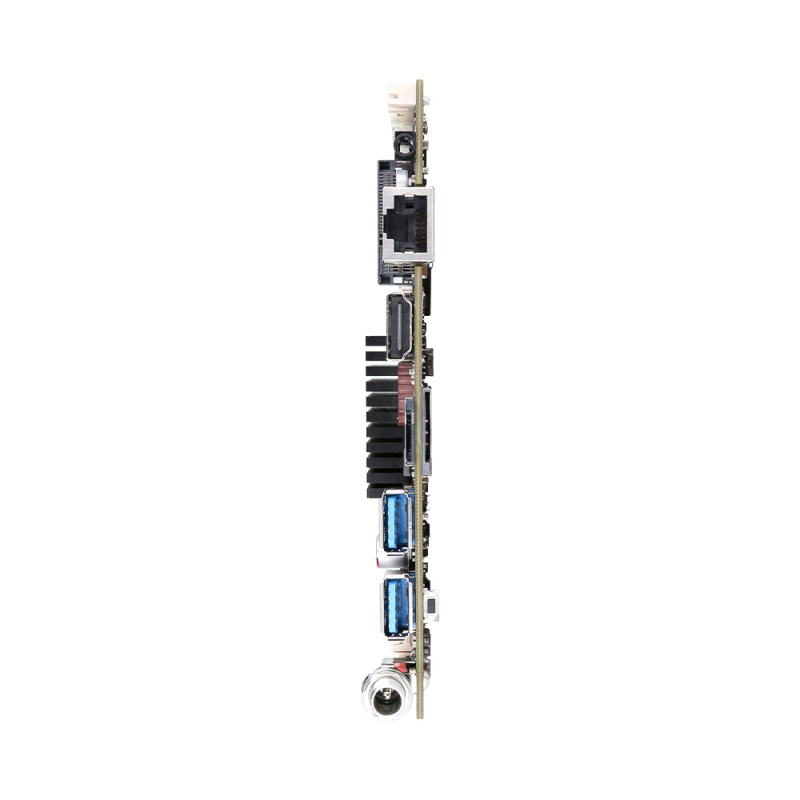

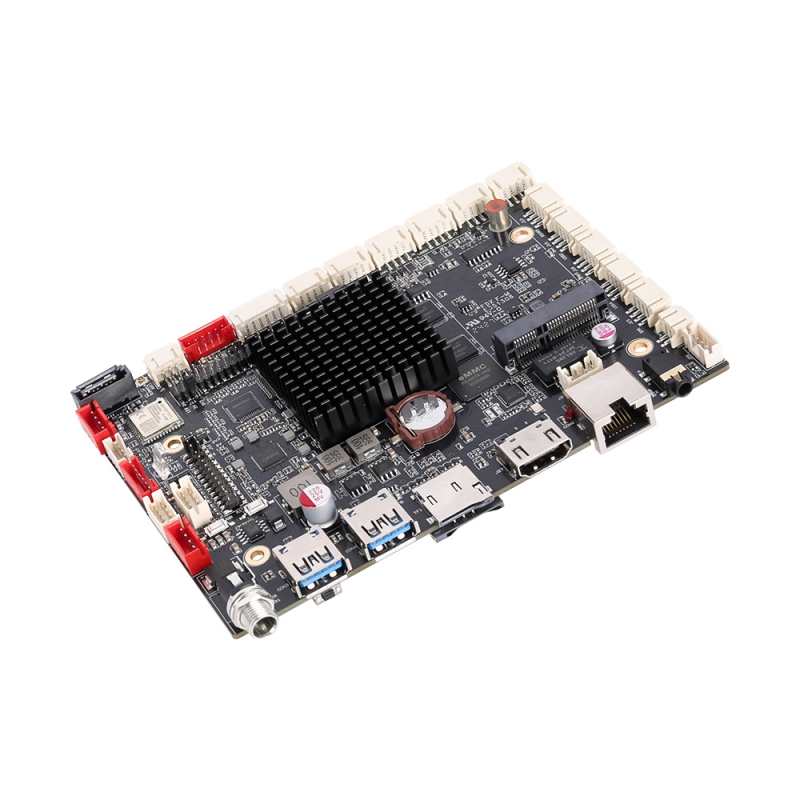

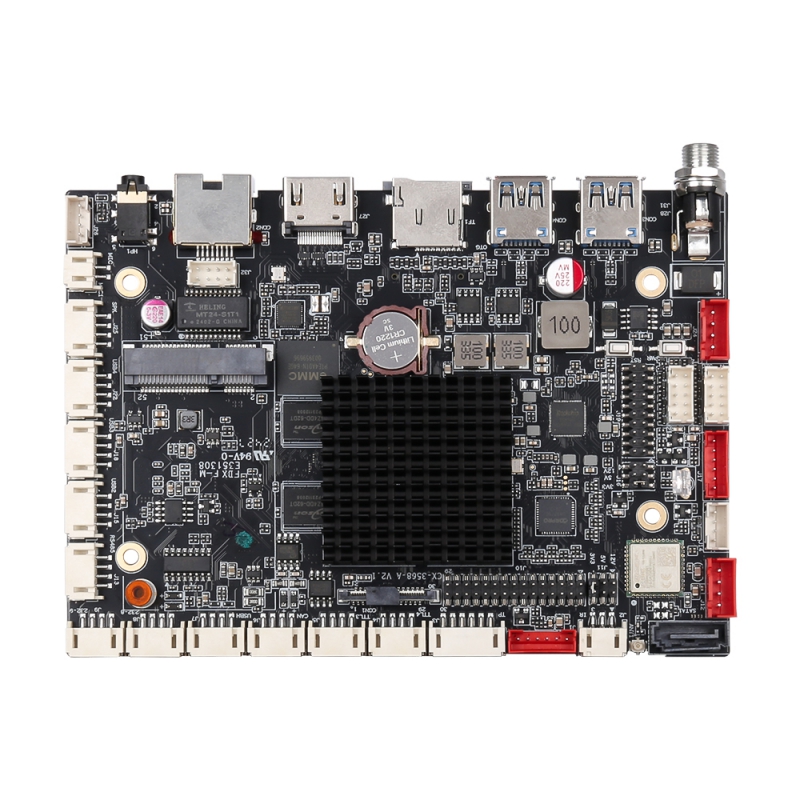

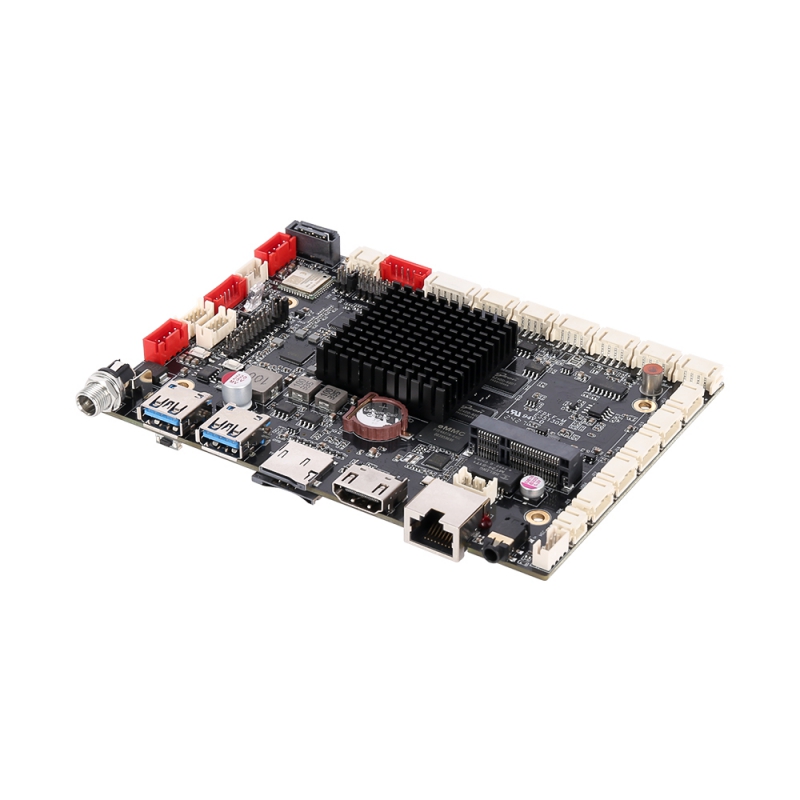

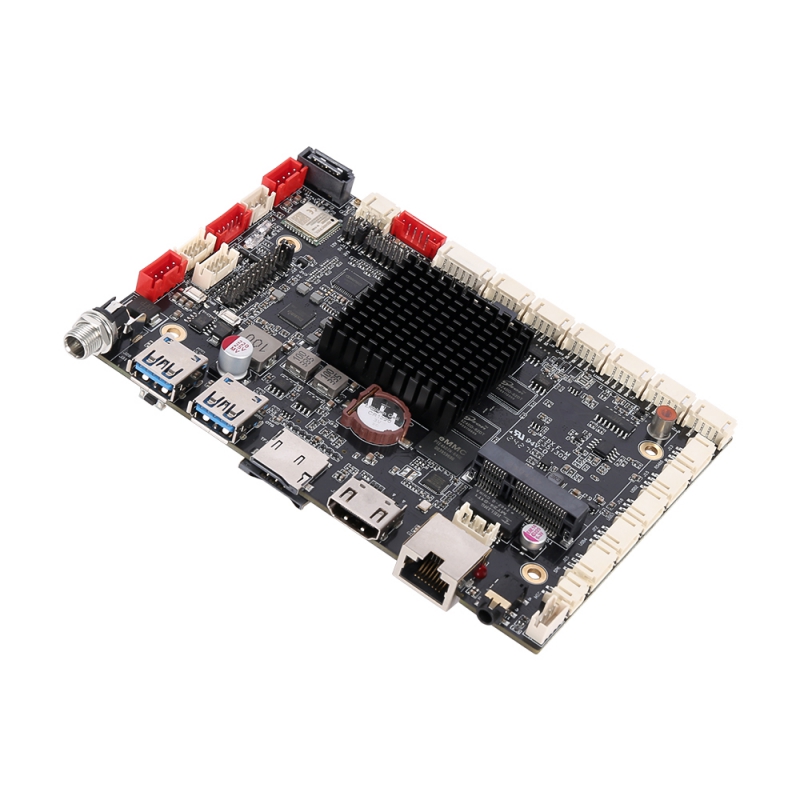

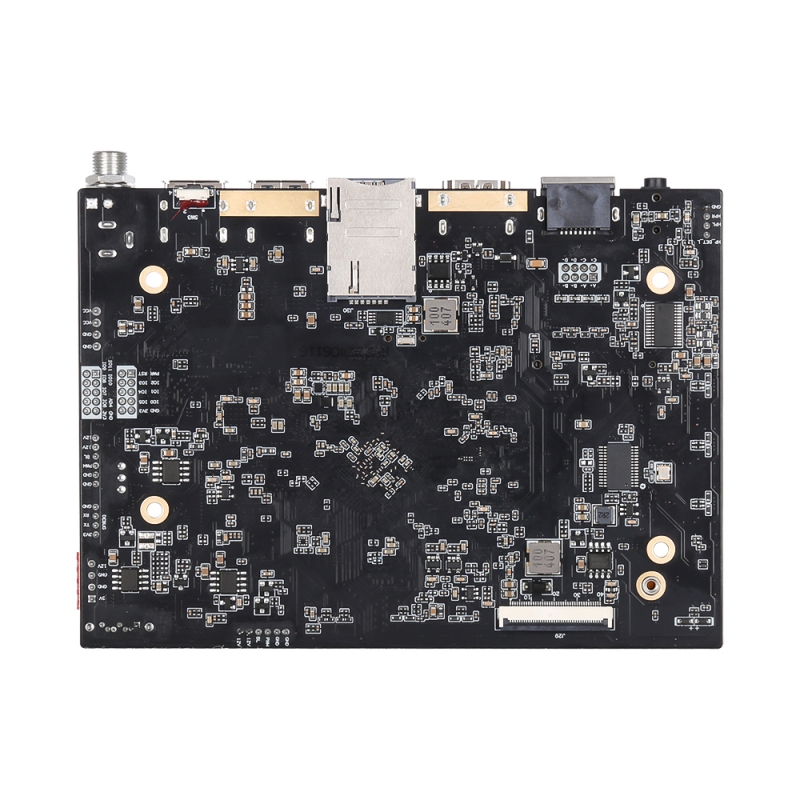

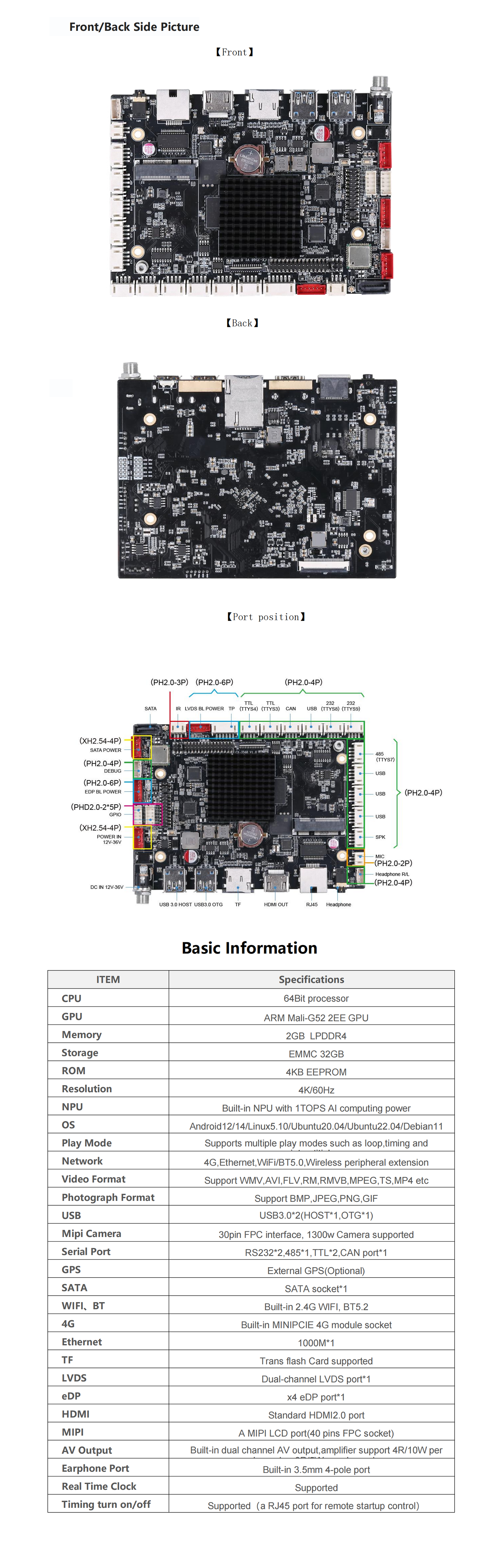

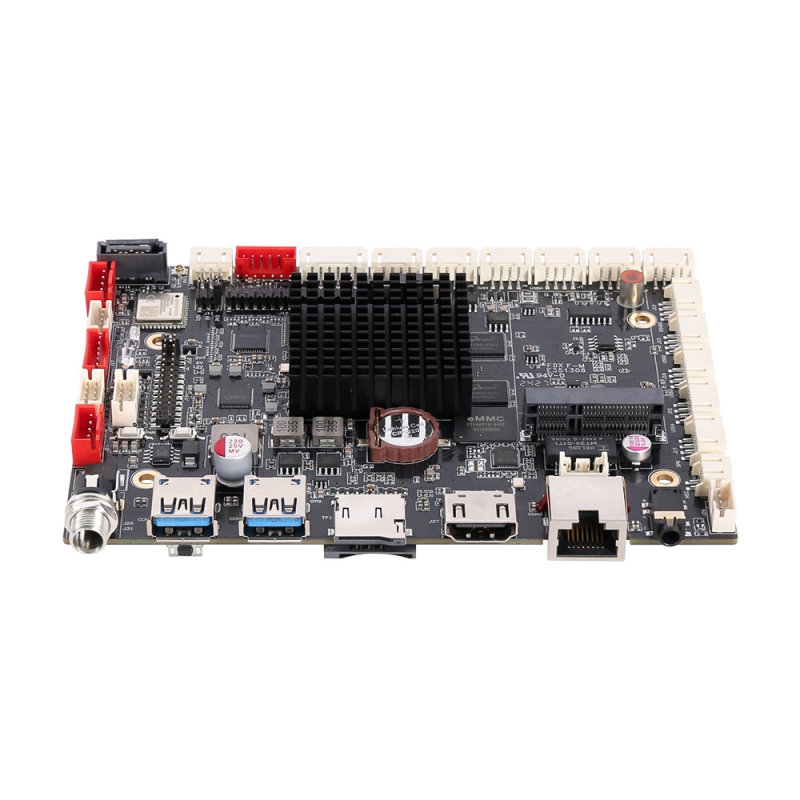

RK3568 ARM Motherboard

●Model: SII-3568-A

●RK3568 64Bit processor,Quad Core Cortex-A55 2.0GHz

●Onboard LP DDR4 2G RAM

●Onboard eMMC 32G memory (up to 64GB);1x TF card slot

●1000M1 Ethernet

●1x HD,1x LVDS, 1x eDP,1x MIPI

●OS:Android 12

●Built-in 2.4G WIFI; 2RS232, 1485, 2TTL, 1*CAN port

●DC_12V Power Input

●Size: 140mm x 100mm

Description

Applicability
SII-3568-A is a 22nm advanced manufacturing process android series product with high performance,low power consumption feature. It has a quad-core 64-bit Cortex-A55 core architecture with a 2.0GHz basic frequency; Built-in independent NPU, with 1TOPS AI computing power, support lightweight AI application development, GPU using ARM Mali-G52 2EE, it supports 4K video decode and 4K display output.

Functions

SII-3568-A uses Android12 OS. It integrated double LVDS, eDP, MIPI, HDMI display output interfaces,MIPI Camera, SATA hard disk, gigabit network etc, and it has built-in universal backlight board port and screen voltage select jumper, compatible with various kinds of display; Stronger performance,faster, richer interface, SII-3568-A is your best choice for human-computer interaction,intelligentterminal, industrial control projects.

Features

●Various display interfaces: Dual-LVDS, EDP, HDMI etc.

●Various expansion interfaces. SII-3568-Ahas six USB ports(A USB3.0 HOST standard port,a USB3.0 OTG standard port, four internal expansion ports, there expansion ports from USB_HUB, one from CPU),two TTL serial ports, two RS232 serial ports, a 485 port, a 12I/O channel GPIO port ,it can satisfy your customization request.

●Various internet interfaces:a 1000M Ethernet interface, 2.4G WIIF and BT5.2 supported,built-in PCI-E 4G module interfaces.

●High definition.SII-3568-Asupports 4K/60HZ output, it also supports display screen with LVDS/EDP/MIPI/HDMI interface.

●Android system customization. SII-3568-A providessystem calling interface and API reference code, it supports upper-layer applications development perfectly.

●SII-3568-A supports infrared, optical, capacitance, resistance and other mainstream touch screen

Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
