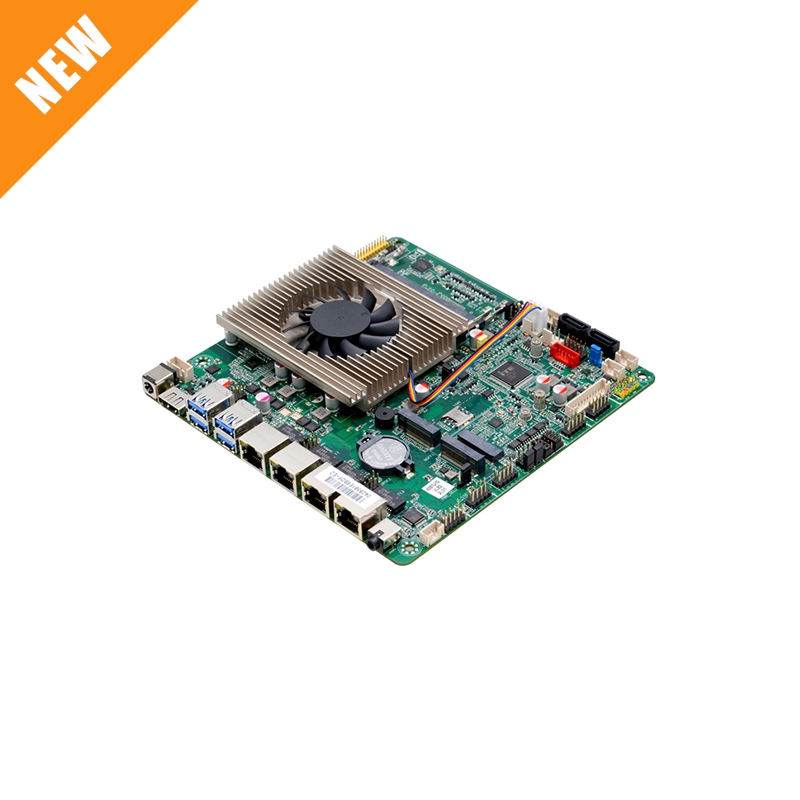

Overview
The ITX-VL82 VER:1.0(8257U) is an ultra-low power Mini ITX industrial motherboard based on Intel 8th Gen Coffee Lake-U SOC platform. Featuring Intel® Core™ i5-8257U quad-core processor (1.4GHz, only 15W TDP) with Intel UHD Graphics, it supports multi-display via HDMI1.4+LVDS+EDP+VGA. This compact Mini ITX motherboard with embedded CPU provides 2 DDR4 SO-DIMM slots (up to 64GB), 4 Gigabit LAN ports, 8 USB ports, and rich expansion options including M.2 NVMe SSD/WiFi/5G module slots. Perfect for low power embedded applications in industrial automation, digital signage, etc.

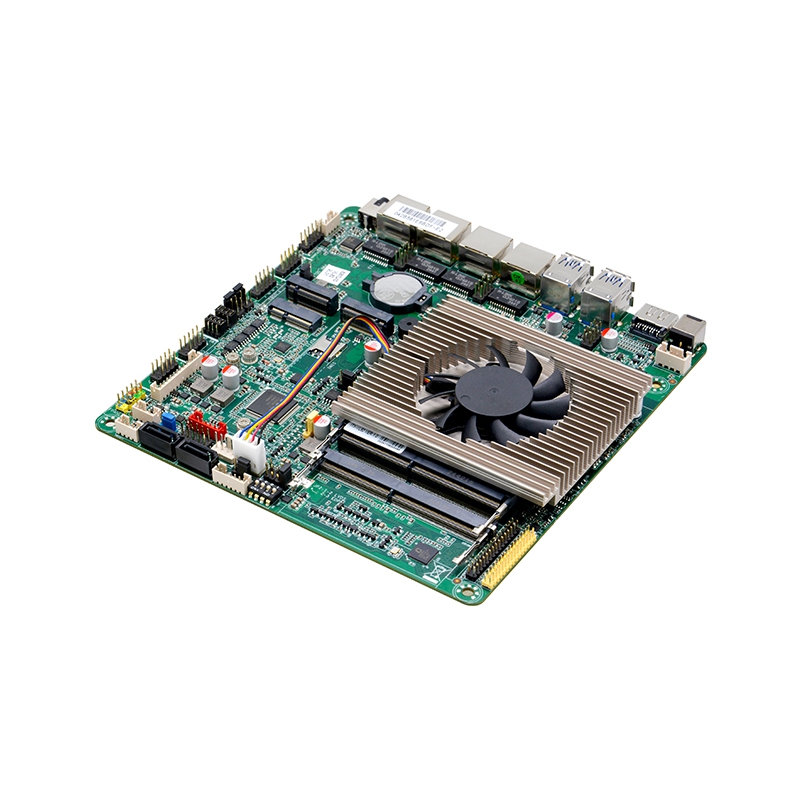

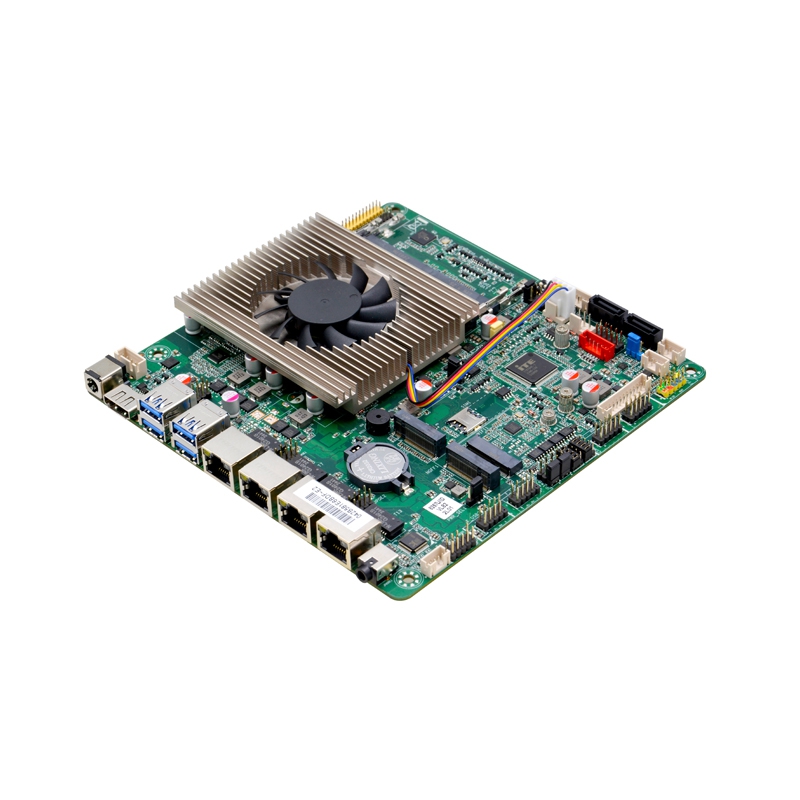

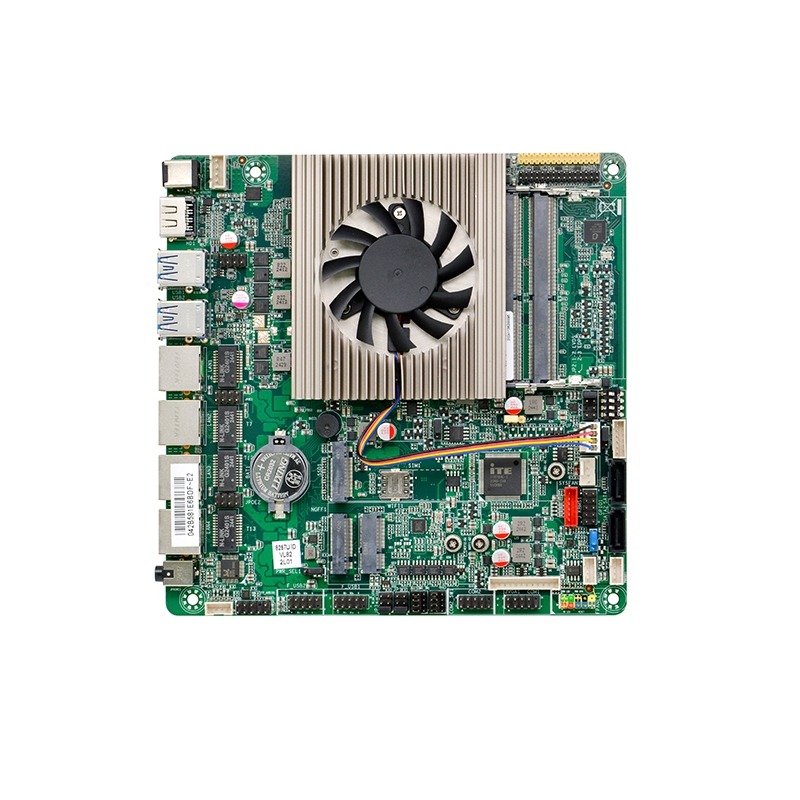

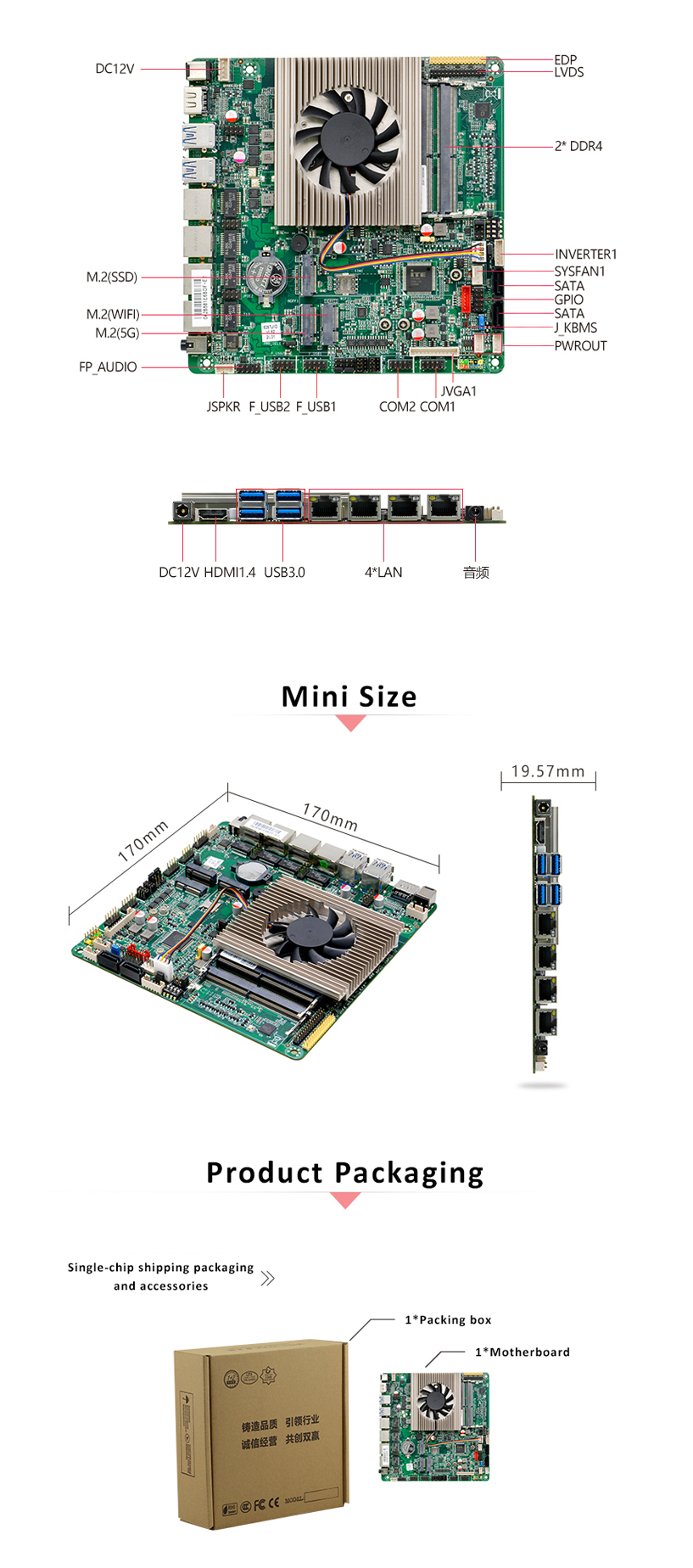

Detail Display
Product Description

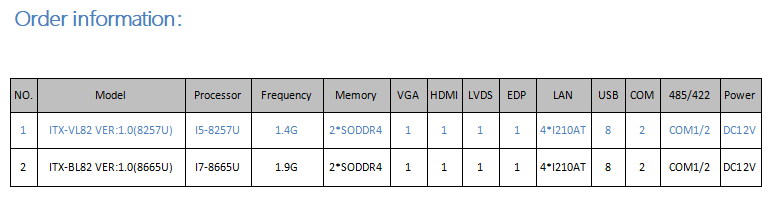

Model No.:ITX-VL82 VER:1.0(8257U)
Processor: Integrated the 8th Intel® i5-8257U 1.4GHz 4-core 8-thread processor, TDP 15W
Compatible with Intel® Whiskey Lake-U/Comet Lake-U/Coffee Lake-U 8th/10th Celeron/Pentium/I3/I5/I7 low-power processors
Chipset:SOC
RAM:2* SODIMM memory slot, support dual channel 2400MHz DDR4 memory, up to 64GB
Display:
Integrated Intel® UHD Graphics, support DirectX 12 OpenGL4.5, support 4K
1*VGA, the highest supported resolution is: 1920X1200@60Hz
1*HDMI1.4, the highest supported resolution is: 4096x2304@24Hz
1*Support dual-channel 24bit LVDS interface
1*EDP (choose EDP or LVDS through jumper)
Ethernet:
4* Intel I210AT Gigabit LAN, support Wake-on-LAN, PXE function
Note: can support POE. If need the POE function, will need to use the VL68-PW expansion board.
Storage:
2* SATA3.0 hard disk interface, transfer rate up to 6Gbps
1* M.2 slot, support M.2 Key M 2280 NVME PCIE X4/SATA specification SSD
Audio:
Onboard ALC897 7.1+2 channel Hi-Fi audio controller,support MIC/Line-out.Power amplifier
Suggest to use a 4Ω3W speaker for the power amplifier
Expand slot:
1* M.2 slot, supports M.2 Key E 2230 WIFI module
1* M.2 slot, supports M.2 Key B 3042/3052 5G module

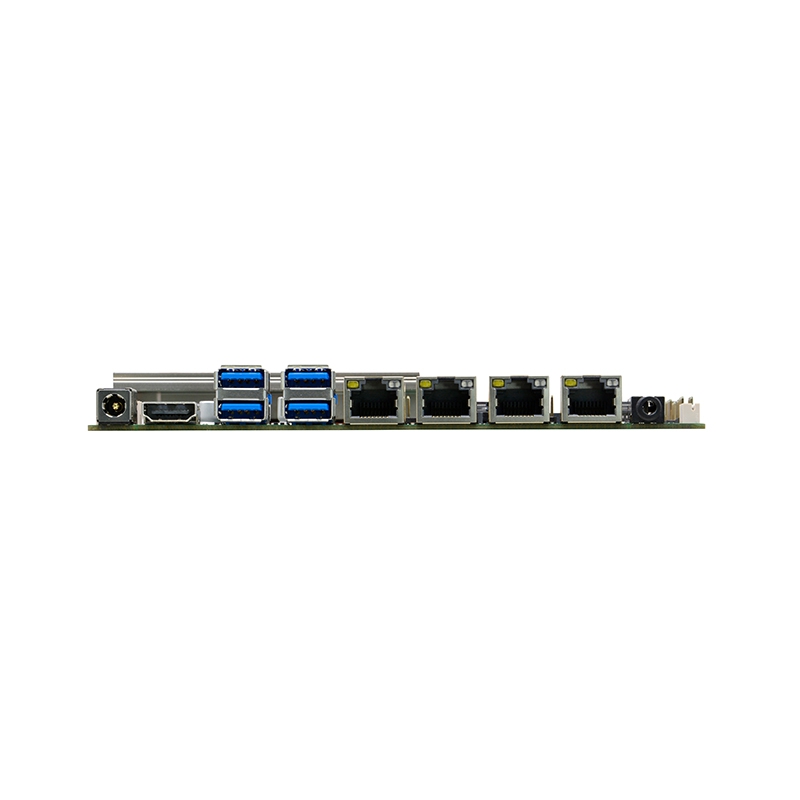

Backplane I/O Interface:
4* USB3.0
1* HDMI1.4
4* RJ45 Gigabit network interface
1* Two-in-one audio interface
1* DC 12V power supply input interface
Built-in I/O interface:
1* LVDS, 2*15pin, support dual channels 24BIT
1* LVDS Screen backlight power supply interface, 1*6pin
1* EDP, 2*15pin(The LVDS and EDP interfaces are selected by jumper)
2* RS232 serial port, COM1/COM2 support RS485/422 function
3* 2*4pin PH=2.54mm pin header, connected to VL680-PW small board
1* PS/2 keyboard and mouse interface (red), 1*6Pin
4* USB2.0, 2*5pin
1* SIM card slot
1* Front panel audio interface, 2*5pin
1* Front panel function button and indicator interface, 2*5pin
2* Hard drive power supply interface, 1*4pin
1* Amplifier interface, 1*4pin
1* 4pin DC power interface (can be used as 12V input and output power interface)
Fan interface: 1*4pin CPU smart fan interface, 1*4pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function(256 levels, 0~255 seconds)
Operating system: Windows 10/Windows 11/Linux
Power Type: Powered by DC 12V power supply
Operating temperature: -20℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, no condensation
Dimension: 170mm x 170mm
