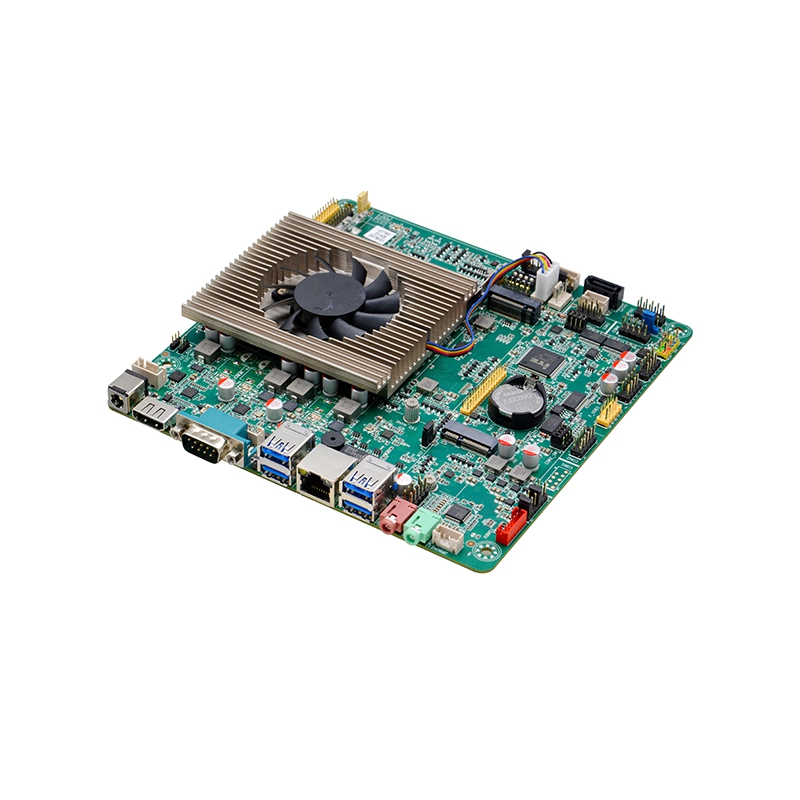

Processor: Integrated Intel®Alder Lake 12th Core I5-1235U 10 cores 12 thread processor, TDP 15W
Compatible with Intel®Alder Lake/Raptor Lake 12th/13th Celeron/I3/I5/I7 Processor
Chipset: SOC
Memory: 2*DDR4 SODIMM memory slot, Supports 3200MHz, up to 64GB
Display:
Integrated Intel® Iris® Xe Graphics core graphics card, Supports DirectX12.1, OpenGL4.6, and 4K/60Hz display
1*VGA,The highest resolution supported is 1920x1080@60Hz
1*HDMI2.0,The highest resolution supported is 3840x2160@60Hz
1* LVDS, supporting dual-channel 24BIT
2* EDP interface, and LVDS interface through the jumper(EDP1 and LVDS are optional)
Note: It can support dual EDP display or LVDS+EDP display. The supported display combinations are: LVDS single display, EDP1 single display, LVDS+EDP2 dual display, EDP1+EDP2 dual display. J_EDP2 cannot be used alone.
Ethernet: 1* 8111H Gigabit Ethernet, Supports network wake up /PXE function
Storage:
1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps
1* M.2 slot, supporting M.22280 NVME PCIE X1/SATA SSD
Audio:
Onboard ALC897 7.1+2 channel high-fidelity audio controller, support MIC/Line_out,power amplifier
The amplifier supports 4Ω/3W dual channels
Expansion Slot: 1* M.2 slot, supporting the M.2 2230 WIFI module
Rear I/O interface:
1* DC12V power port ,supports 12V power input and output
1* HDMI2.0
1* DB9 RS232 serial port (DB15 VGA are optional)
4*USB3.0
1* RJ45 Gigabit network interface
1* Line out interface (green), 1* MIC interface (red)
Built in I/O interface:
1* JVGA pin port, 1*12pin, same signal as DB15
1* LVDS, 2*15pin
1* EDP interface, 2*15pin ( LVDS are optional by jumping)
1* screen backlight power supply interface, 1*6pin
4* RS232 serial port, of which COM2 supports RS485
1* front audio interface, 2*5Pin
1*power amplifier interface, 1*4Pin
1*Function buttons and indicators on the front panel, 2*5Pin
6*USB2.0, 2*5pin
1* PS/2 keyboard and mouse interface, 1*6pin
1* hard drive power port, 1*4pin
1*TPM, 2*6pin
1*4pin DC power interface, support 12v power input and output
1*SIM card slot
Fan Connector: 1*4pin CPU intelligent fan interface; 1*4pin system fan port
GPIO: Support 4-way input output GPIO function
BIOS: 256Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC12V power supply
operating system: Windows 10/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%(relative humidity, non-condensing)
Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:We offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
